Page 282 of 864
3 - 91
INSP
ADJ
EC36K000REAR SHOCK ABSORBER
INSPECTION
1. Inspect:
Swingarm smooth action
Abnormal noise/unsmooth
action
→ Grease the pivoting
points or repair the pivoting
points.
Damage/oil leakage
→
Replace.
REAR SHOCK ABSORBER
SPRING PRELOAD ADJUSTMENT
1. Elevate the rear wheel by plac-
ing the suitable stand under the
engine.
2. Remove:
Rear frame
3. Loosen:
Locknut
1
4. Adjust:
Spring preload
By turning the adjuster
2.
* For EUROPE
** For AUS, NZ and ZA
NOTE:Be sure to remove all dirt and mud
from around the locknut and
adjuster before adjustment.
The length of the spring (installed)
changes 1.5 mm (0.06 in) per turn
of the adjuster.
CAUTION:
Never attempt to turn the adjuster
beyond the maximum or mini-
mum setting.
5. Tighten:
Locknut
6. Install:
Rear frame (upper)
Rear frame (lower) Stiffer → Increase the spring
preload. (Turn the adjuster 2
in.)
Softer → Decrease the spring
preload. (Turn the adjuster 2
out.)
Spring length (installed)
a:
Standard lengthExtent of
adjustment
250 mm (9.84 in)
* 246 mm
(9.69 in)
** 242.5 mm
(9.55 in)237.5 ~
258.5 mm
(9.35 ~ 10.18 in)
T R..32 Nm (3.2 m · kg, 23 ft · lb)
T R..29 Nm (2.9 m · kg, 21 ft · lb)
CONTROLE DE L’AMORTISSEUR
ARRIÈRE
1. Contrôler:
Fonctionnement régulier du bras
oscillant
Bruit anormal/fonctionnement
irrégulier → Graisser ou réparer
les points de pivot.
Endommagement/fuite d’huile →
Remplacer.
REGLAGE DE LA PRECON-
TRAINTE DU RESSORT DE
L’AMORTISSEUR ARRIERE
1. Surélever la roue arrière en plaçant
un support adéquat sous le moteur.
2. Déposer:
Cadre arrière
3. Desserrer:
Contre-écrou 1
4. Régler:
Précontrainte de ressort
En vissant le dispositif de réglage
2.
* EUROPE
** AUS, NZ et ZA
N.B.:
Avant d’effectuer le réglage, bien
enlever toute la boue et toutes les sale-
tés autour du contre-écrou et du dispo-
sitif de réglage.
La longueur du ressort (monté) change
de 1,5 mm (0,06 in) par tour du dispo-
sitif de réglage.
ATTENTION:
Ne jamais forcer le dispositif de
réglage au-delà des limites maximum
ou minimum.
5. Serrer:
Contre-écrou
6. Monter:
Cadre arrière (supérieur)
Cadre arrière (inférieur) Plus dur → Augmenter la
précontrainte du ressort. (Visser
le dispositif de réglage 2.)
Plus mou → Diminuer la précon-
trainte du ressort. (Dévisser le
dispositif de réglage 2.)
Longueur du ressort
(monté) a:
Longueur
standardPlage de réglage
250 mm (9,84 in)
* 246 mm
(9,69 in)
** 242,5 mm
(9,55 in)237,5 à 258,5 mm
(9,35 à 10,18 in)
T R..32 Nm (3,2 m · kg, 23 ft · lb)
T R..29 Nm (2,9 m · kg, 21 ft · lb)
CHASSIS
CHASSIS

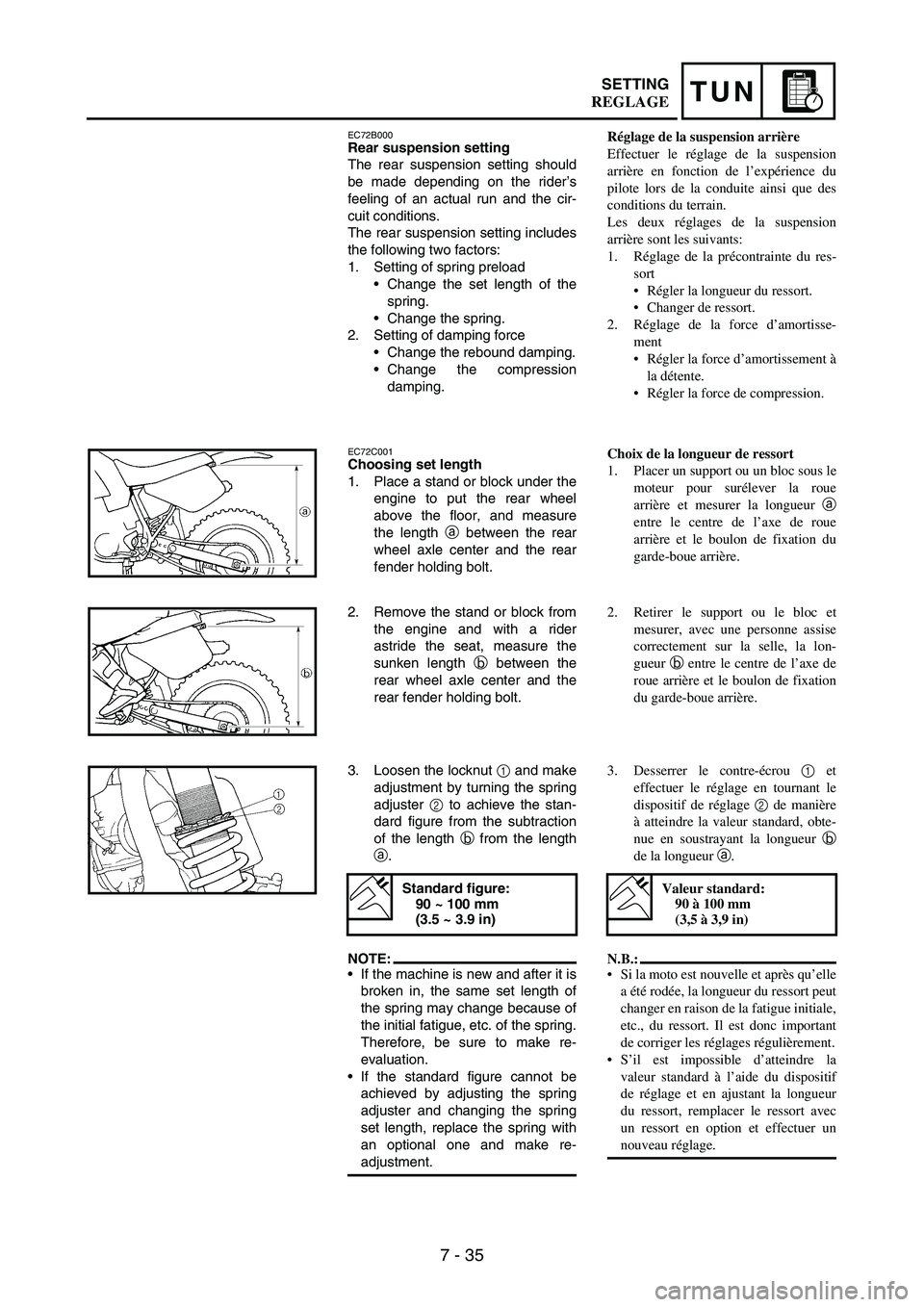

Page 846 of 864
7 - 35
TUNSETTING
EC72B000Rear suspension setting
The rear suspension setting should
be made depending on the rider’s
feeling of an actual run and the cir-
cuit conditions.
The rear suspension setting includes
the following two factors:
1. Setting of spring preload
Change the set length of the
spring.
Change the spring.
2. Setting of damping force
Change the rebound damping.
Change the compression
damping.
EC72C001Choosing set length
1. Place a stand or block under the
engine to put the rear wheel
above the floor, and measure
the length
a between the rear
wheel axle center and the rear
fender holding bolt.
2. Remove the stand or block from
the engine and with a rider
astride the seat, measure the
sunken length
b between the
rear wheel axle center and the
rear fender holding bolt.
3. Loosen the locknut
1 and make
adjustment by turning the spring
adjuster
2 to achieve the stan-
dard figure from the subtraction
of the length
b from the length
a.
NOTE:If the machine is new and after it is
broken in, the same set length of
the spring may change because of
the initial fatigue, etc. of the spring.
Therefore, be sure to make re-
evaluation.
If the standard figure cannot be
achieved by adjusting the spring
adjuster and changing the spring
set length, replace the spring with
an optional one and make re-
adjustment.
Standard figure:
90 ~ 100 mm
(3.5 ~ 3.9 in)
Réglage de la suspension arrière
Effectuer le réglage de la suspension
arrière en fonction de l’expérience du
pilote lors de la conduite ainsi que des
conditions du terrain.
Les deux réglages de la suspension
arrière sont les suivants:
1. Réglage de la précontrainte du res-
sort
Régler la longueur du ressort.
Changer de ressort.
2. Réglage de la force d’amortisse-
ment
Régler la force d’amortissement à
la détente.
Régler la force de compression.
Choix de la longueur de ressort
1. Placer un support ou un bloc sous le
moteur pour surélever la roue
arrière et mesurer la longueur a
entre le centre de l’axe de roue
arrière et le boulon de fixation du
garde-boue arrière.
2. Retirer le support ou le bloc et
mesurer, avec une personne assise
correctement sur la selle, la lon-
gueur b entre le centre de l’axe de
roue arrière et le boulon de fixation
du garde-boue arrière.
3. Desserrer le contre-écrou 1 et
effectuer le réglage en tournant le
dispositif de réglage 2 de manière
à atteindre la valeur standard, obte-
nue en soustrayant la longueur b
de la longueur a.
N.B.:
Si la moto est nouvelle et après qu’elle
a été rodée, la longueur du ressort peut
changer en raison de la fatigue initiale,
etc., du ressort. Il est donc important
de corriger les réglages régulièrement.
S’il est impossible d’atteindre la
valeur standard à l’aide du dispositif
de réglage et en ajustant la longueur
du ressort, remplacer le ressort avec
un ressort en option et effectuer un
nouveau réglage.
Valeur standard:
90 à 100 mm
(3,5 à 3,9 in)
REGLAGE
