YAMAHA WR 250F 2016  Owners Manual CHASSIS
4-8
Heavy and
draggingRebound
damping forceTurn adjuster counterclock-
wise (about 2 clicks) to de-
crease damping.
Spring Replace with soft spring.
Poor road grip-
pingRebound
damping forc

Page 152 of 428

YAMAHA WR 250F 2016  Owners Manual CHASSIS
4-9

Page 153 of 428

YAMAHA WR 250F 2016  Owners Manual 5
CHASSIS
GENERAL CHASSIS........................................................................................ 5-1
REMOVING THE LEFT SIDE COVER .....................................................

Page 154 of 428

YAMAHA WR 250F 2016  Owners Manual HANDLEBAR................................................................................................. 5-33
REMOVING THE HANDLEBAR............................................................... 5-

Page 155 of 428

YAMAHA WR 250F 2016  Owners Manual GENERAL CHASSIS
5-1
EAS2GB7150
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.)

Page 156 of 428

YAMAHA WR 250F 2016  Owners Manual GENERAL CHASSIS
5-2

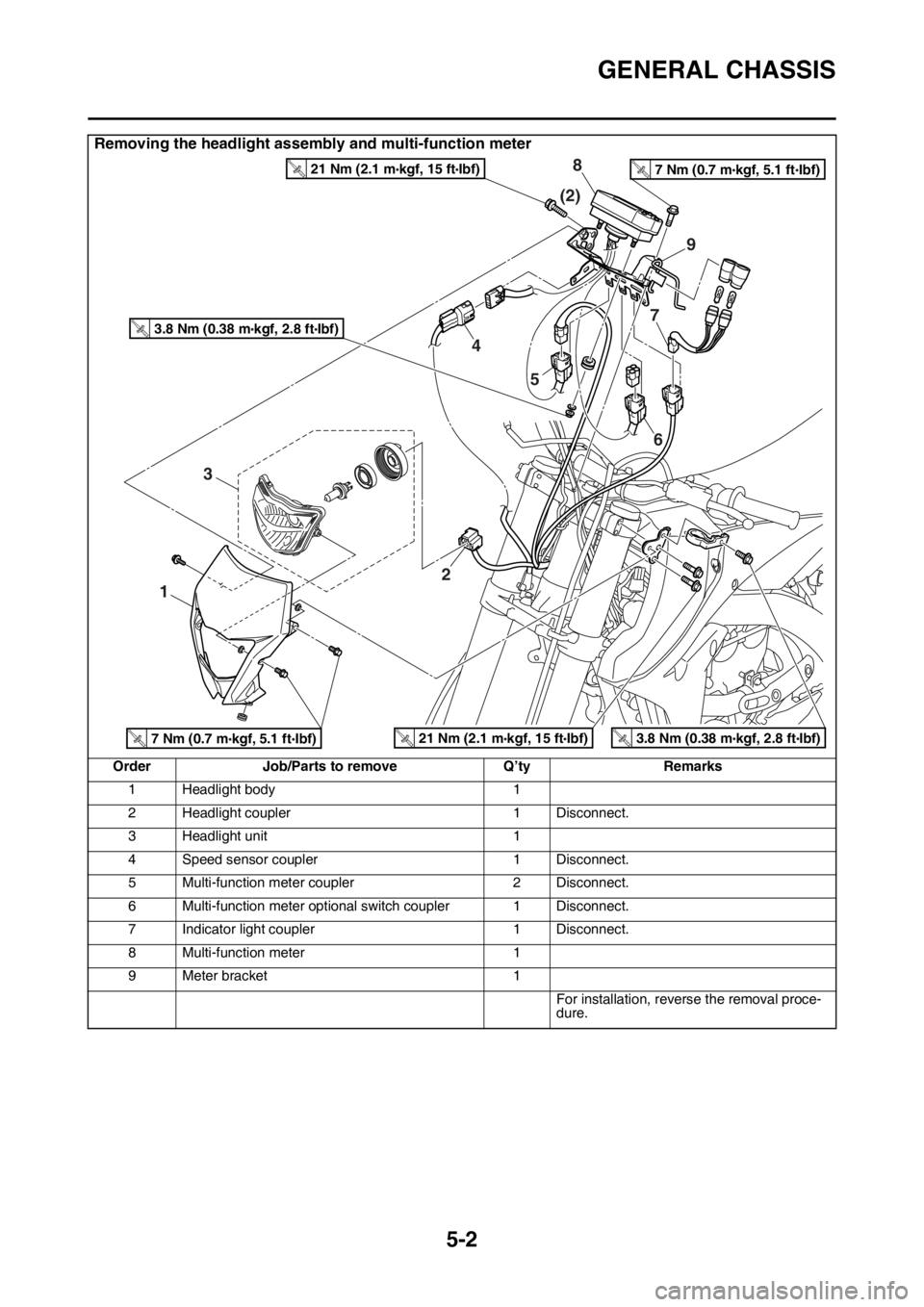

Removing the headlight assembly and multi-function meter
Order Job/Parts to remove Q’ty Remarks
1 Headlight body 1
2 Headlight coupler 1 Disconnect.
3 Headlight unit 1
4 Speed se

Page 157 of 428

YAMAHA WR 250F 2016  Owners Manual GENERAL CHASSIS
5-3

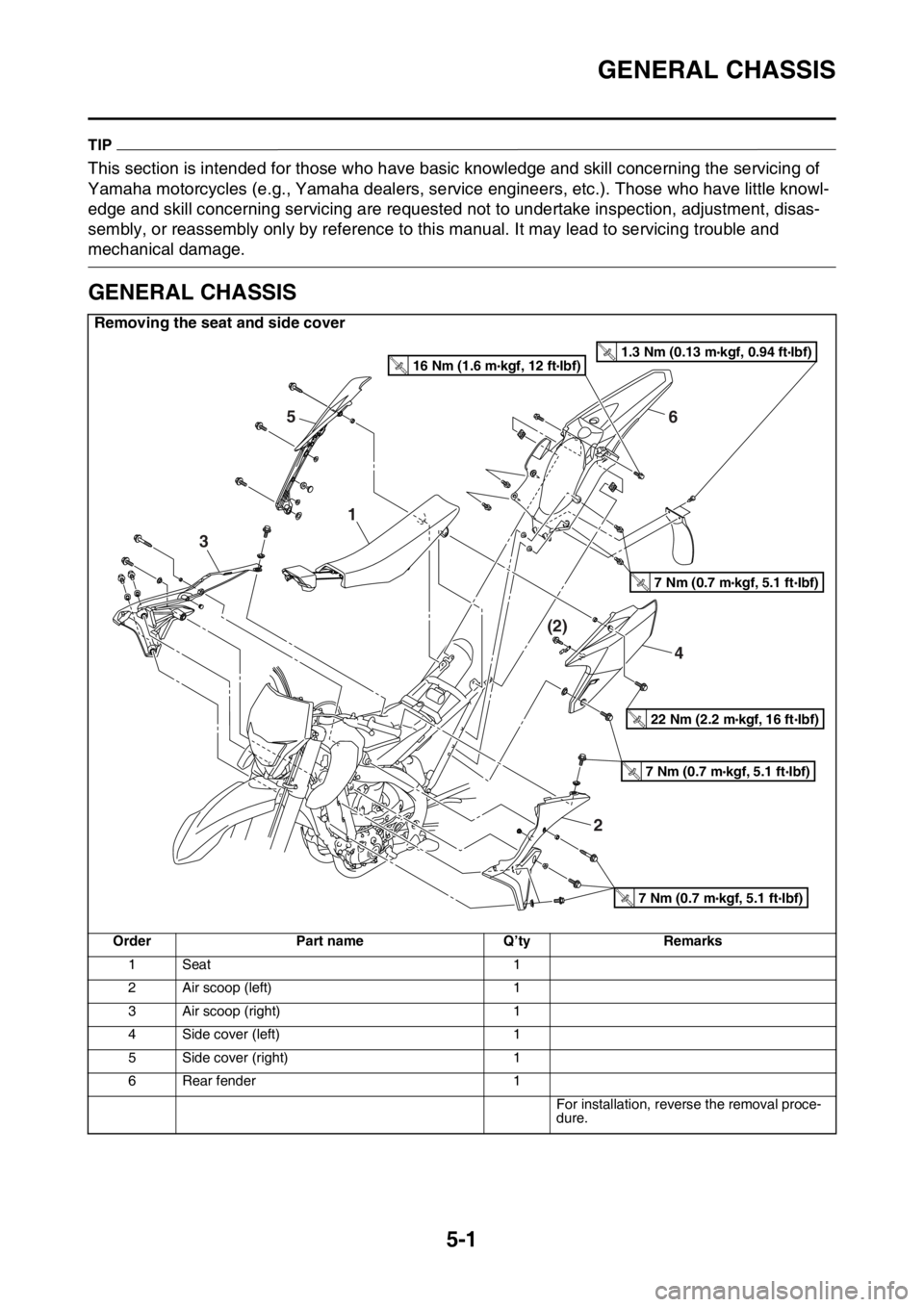

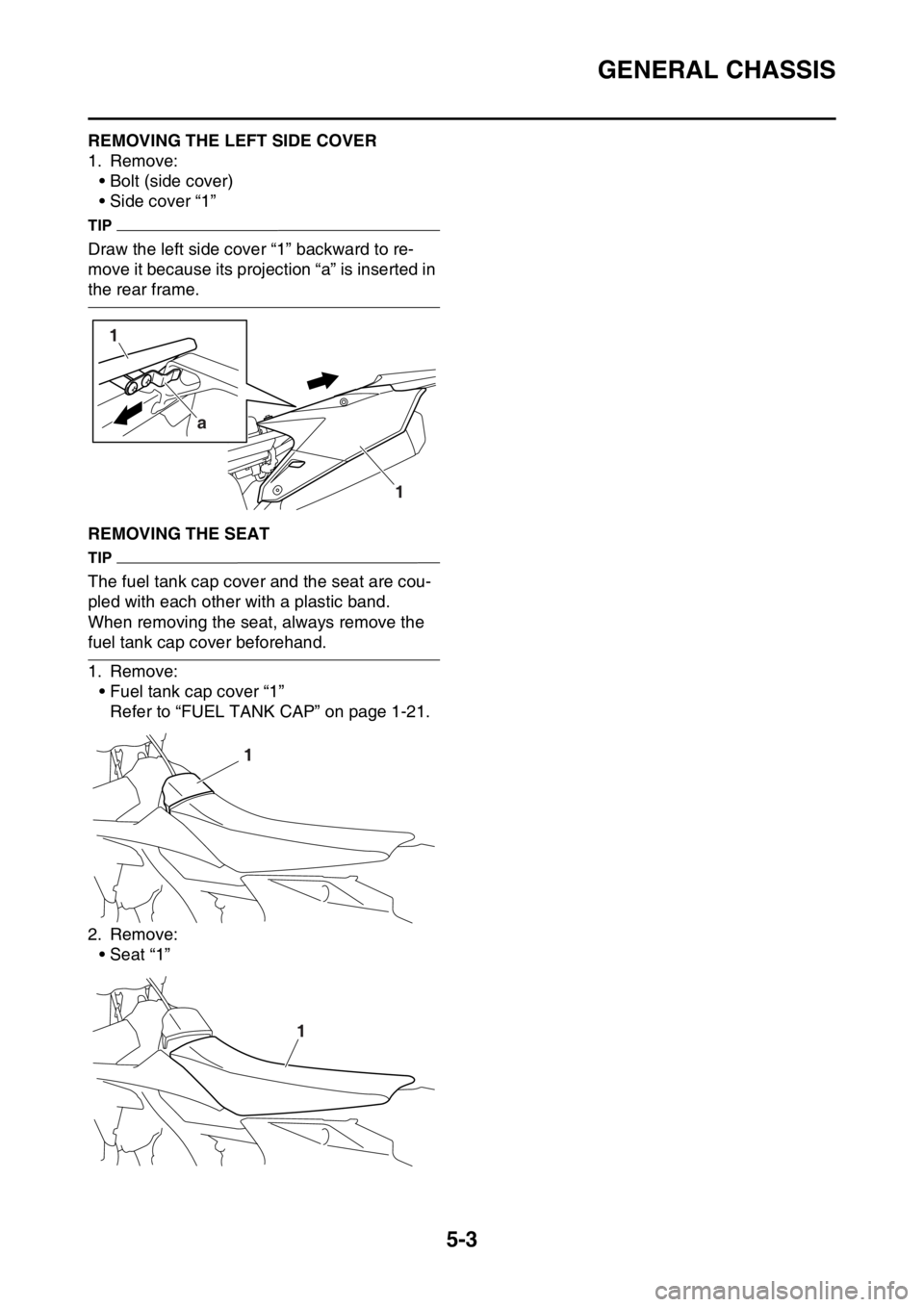

EAS2GB7152REMOVING THE LEFT SIDE COVER
1. Remove:
• Bolt (side cover)
• Side cover “1”
TIP
Draw the left side cover “1” backward to re-
move it because its projection

Page 158 of 428

YAMAHA WR 250F 2016  Owners Manual FRONT WHEEL
5-4
EAS2GB7154

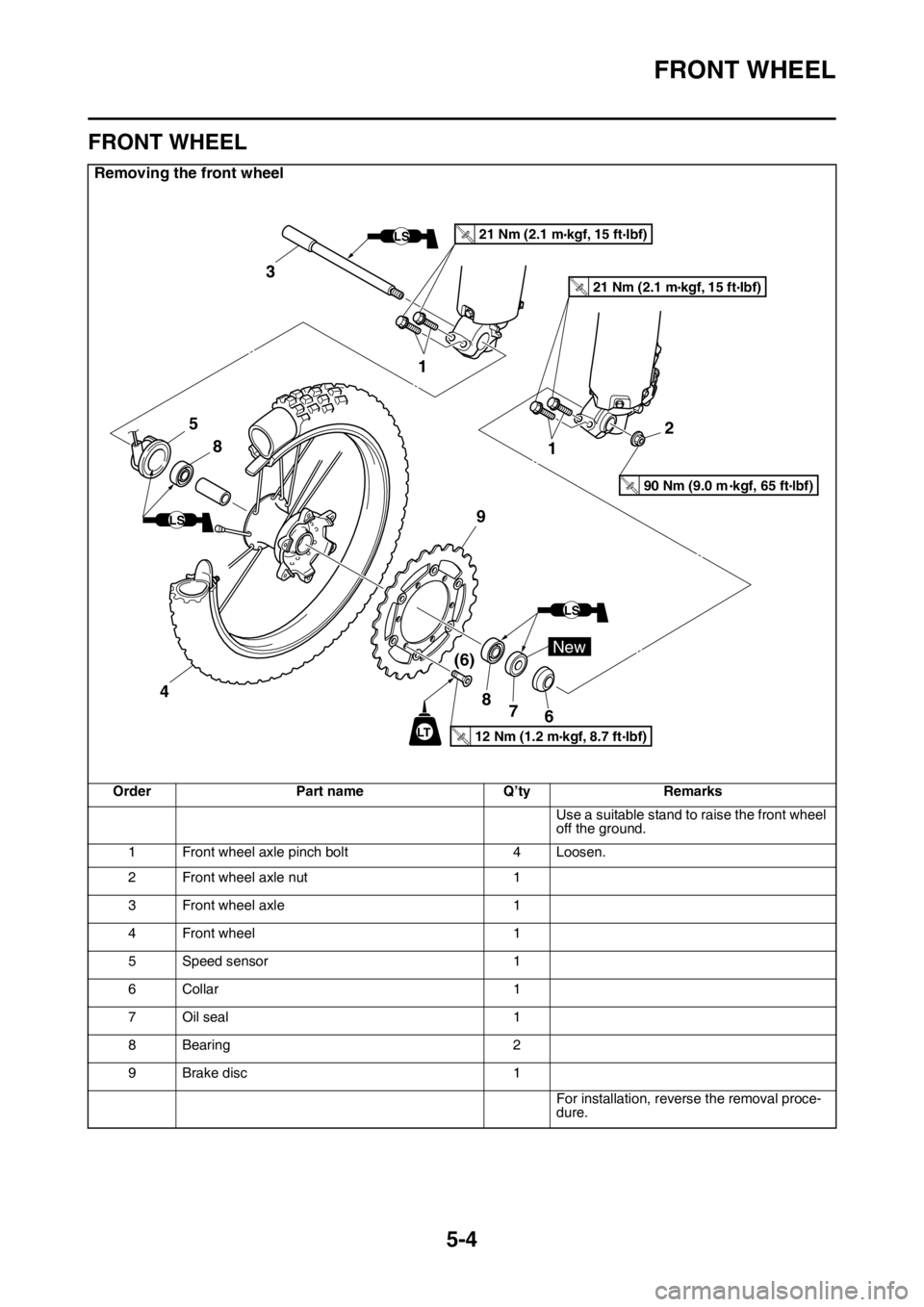

FRONT WHEEL
Removing the front wheel
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
1 Front wheel axle pinch bolt 4 Loosen.
2

Page 159 of 428

YAMAHA WR 250F 2016  Owners Manual FRONT WHEEL
5-5
EAS2GB7155REMOVING THE FRONT WHEEL
1. Use a suitable stand to raise the front wheel
off the ground.
EWA
WARNING
Securely support the vehicle so that there is
no danger of it falling

Page 160 of 428

YAMAHA WR 250F 2016  Owners Manual FRONT WHEEL
5-6

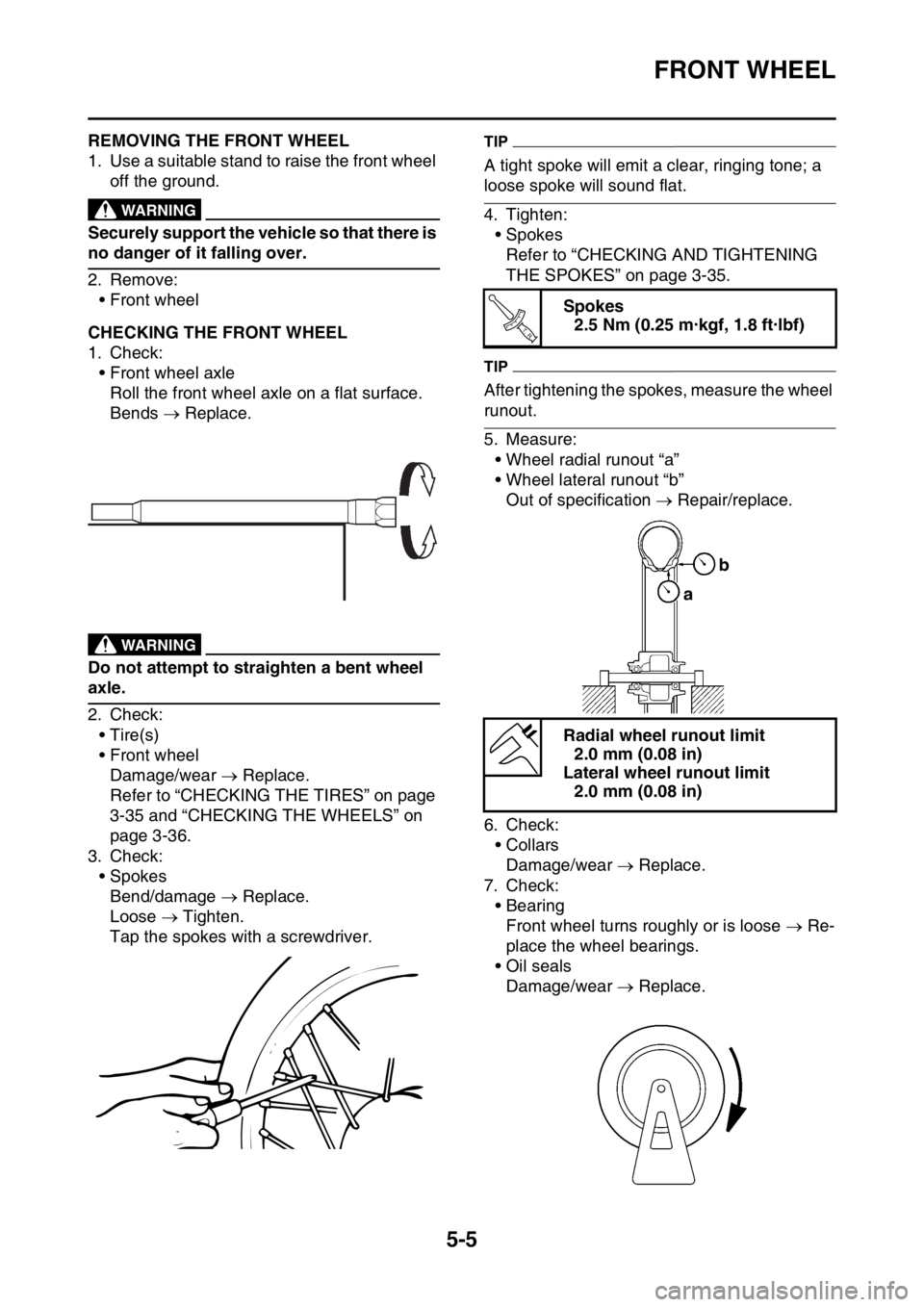

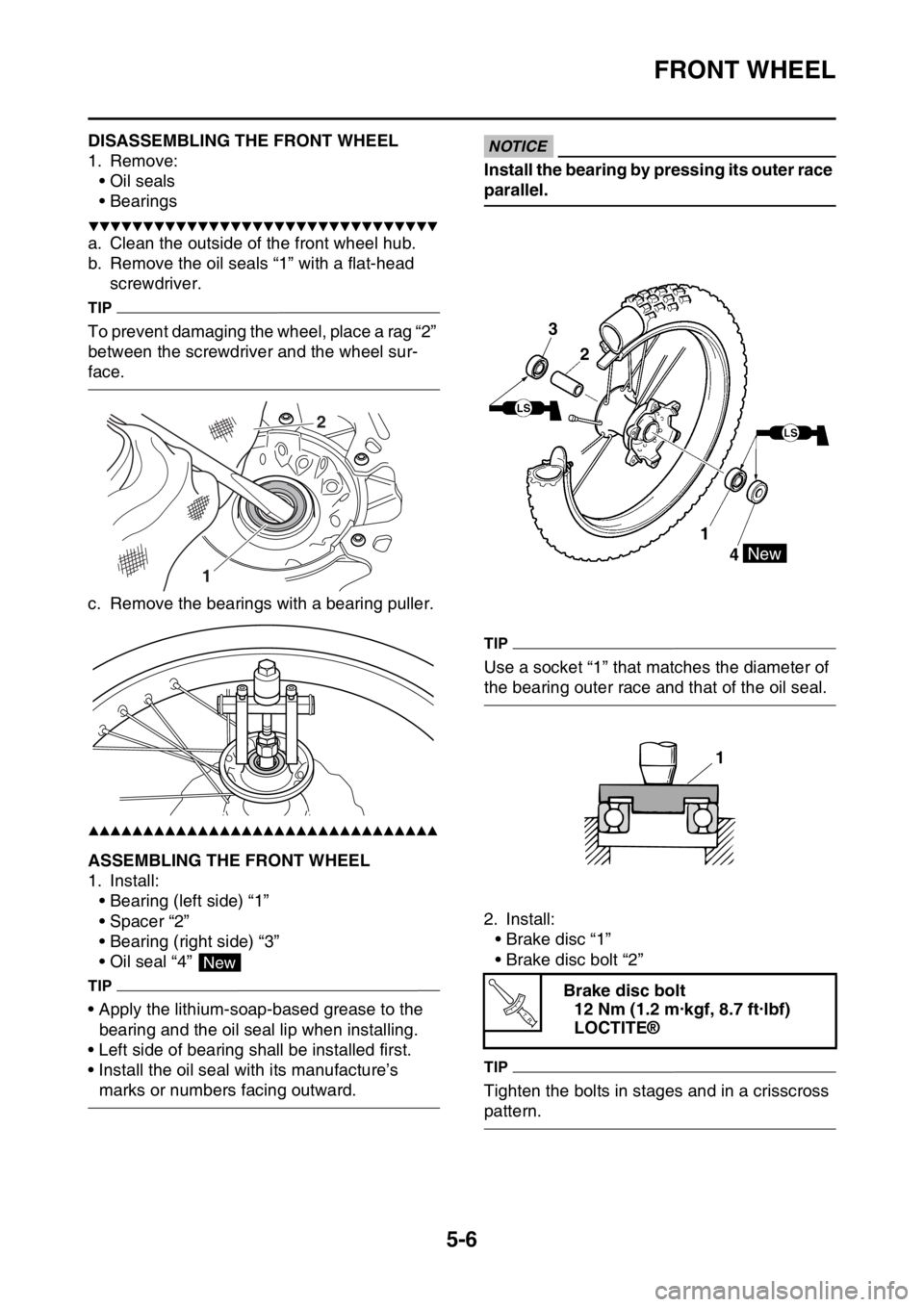

EAS2GB7157DISASSEMBLING THE FRONT WHEEL
1. Remove:
• Oil seals
• Bearings
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Clean
