fuel filter YAMAHA WR 250R 2009 Owners Manual

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2
Multi-function display .......................3-3
Handlebar switches .........................3-8
Clutch lever ......................................3-9
Shift pedal ......................................3-10
Brake lever ....................................3-10
Brake pedal ...................................3-10
Fuel tank cap .................................3-11
Fuel ................................................3-11
Catalytic converter .........................3-13
Seat ...............................................3-13
Helmet holder ................................3-14
Adjusting the front fork ...................3-14
Front fork bleeding .........................3-16
Adjusting the shock absorber
assembly ....................................3-17
EXUP system ................................3-18
Sidestand .......................................3-19
Ignition circuit cut-off system .........3-19
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
.............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT
.................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance chart for the
emission control system .............. 6-2
General maintenance and
lubrication chart ........................... 6-3
Removing and installing panels ...... 6-7
Checking the spark plug .................. 6-9
Engine oil and oil filter element ..... 6-10
Coolant .......................................... 6-13
Cleaning the air filter element
and check hose .......................... 6-16
Adjusting the engine idling
speed ......................................... 6-18
Checking the throttle cable free
play ............................................ 6-18
Valve clearance ............................. 6-19
Tires .............................................. 6-19Spoke wheels ............................... 6-21
Adjusting the clutch lever free
play ............................................ 6-21
Adjusting the brake lever free
play ............................................ 6-22
Adjusting the rear brake light
switch ......................................... 6-23
Checking the front and rear brake
pads ........................................... 6-23
Checking the brake fluid level ....... 6-24
Changing the brake fluid ............... 6-25
Drive chain slack ........................... 6-25
Cleaning and lubricating the
drive chain ................................. 6-26
Checking and lubricating the
cables ........................................ 6-27
Checking and lubricating the
throttle grip and cable ................ 6-27
Checking and lubricating the
brake and clutch levers .............. 6-28
Checking and lubricating the
brake pedal ................................ 6-28
Checking and lubricating the
sidestand ................................... 6-29
Lubricating the rear suspension .... 6-29
Checking the front fork .................. 6-29
Checking the steering ................... 6-30
Checking the wheel bearings ........ 6-31
Battery ........................................... 6-31
Replacing the fuses ...................... 6-32
Replacing the headlight bulb ........ 6-33

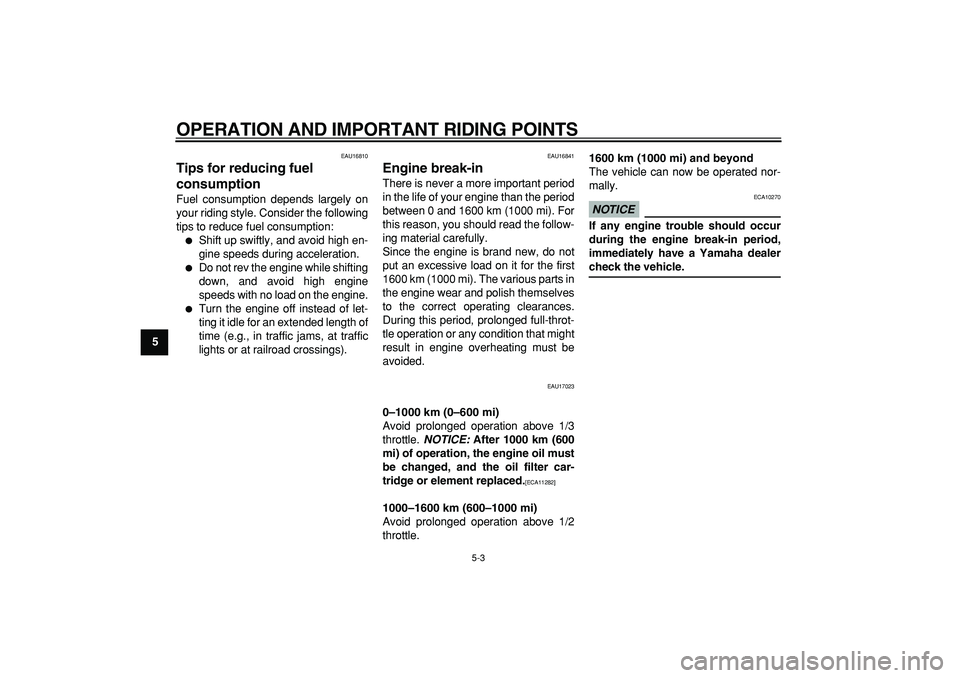

OPERATION AND IMPORTANT RIDING POINTS
5-3
1
2
3
4
5
6
7
8
9

EAU16810
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.

Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17023
0–1000 km (0–600 mi)
Avoid prolonged operation above 1/3
throttle.
NOTICE:
After 1000 km (600
mi) of operation, the engine oil must
be changed, and the oil filter car-
tridge or element replaced.

[ECA11282]

1000–1600 km (600–1000 mi)
Avoid prolonged operation above 1/2
throttle.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
NOTICE

ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU2633T

Dimensions:
Overall length:
2180 mm (85.8 in)
Overall width:
810 mm (31.9 in)
Overall height:
1230 mm (48.4 in)
Seat height:
930 mm (36.6 in)
Wheelbase:
1420 mm (55.9 in)
Ground clearance:
300 mm (11.81 in)
Minimum turning radius:
2300 mm (90.6 in)
Weight:
With oil and fuel:
134.0 kg (295 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
250.0 cm
3

Bore
×
stroke:
77.0
×
53.6 mm (3.03
×
2.11 in)
Compression ratio:
11.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE 10W-30, SAE 10W-40, SAE 10W-50,
SAE 15W-40, SAE 20W-40 or SAE
20W-50
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter element replacement:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
0.90 L (0.95 US qt, 0.79 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
7.6 L (2.01 US gal, 1.67 Imp.gal)
Fuel reserve amount:
2.1 L (0.55 US gal, 0.46 Imp.gal)
Fuel injection:
Throttle body:
Type/quantity:
38EIS/1
Spark plug (s):
Manufacturer/model:
NGK/CR9EK
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
78/25 (3.120)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
43/13 (3.308)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50

INDEX
A
Air filter element and check hose,
cleaning .................................................6-16
Auxiliary light bulb, replacing ...................6-36
B
Battery .....................................................6-31
Brake and clutch levers, checking and
lubricating ..............................................6-28
Brake fluid, changing ...............................6-25
Brake fluid level, checking .......................6-24
Brake lever ..............................................3-10
Brake lever free play, adjusting ...............6-22
Brake pedal .............................................3-10
Brake pedal, checking and lubricating .....6-28
C
Cables, checking and lubricating .............6-27
Care ...........................................................7-1
Catalytic converter ...................................3-13
Clutch lever ................................................3-9
Clutch lever free play, adjusting ..............6-21
Coolant ....................................................6-13
Coolant temperature warning light .............3-2
D
Dimmer switch ...........................................3-9
Drive chain, cleaning and lubricating .......6-26
Drive chain slack .....................................6-25
E
Engine break-in .........................................5-3
Engine idling speed .................................6-18
Engine oil and oil filter element ................6-10
Engine stop switch.....................................3-9
Engine trouble warning light ......................3-3
EXUP system ..........................................3-18
F
Front and rear brake pads, checking....... 6-23
Front fork, adjusting................................. 3-14
Front fork, bleeding ................................. 3-16
Front fork, checking ................................. 6-29
Fuel ......................................................... 3-11
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-32
H
Handlebar switches ................................... 3-8
Headlight bulb, replacing ......................... 6-33
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator and warning lights....................... 3-2
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
M
Main switch/steering lock .......................... 3-1
Maintenance and lubrication, periodic ....... 6-3
Maintenance, emission control system ..... 6-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-3
N
Neutral indicator light................................. 3-2
P
Panels, removing and installing ................ 6-7
Parking ...................................................... 5-4
Part locations ............................................ 2-1
R
Rear brake light switch, adjusting ........... 6-23
Rear suspension, lubricating ................... 6-29
S
Safety information ..................................... 1-1
Seat ......................................................... 3-13
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating........ 6-29
Spark plug, checking ................................. 6-9
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-30
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-36
T
Tail/brake light ......................................... 6-34
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-27
Tires ........................................................ 6-19
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-41
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-35
Turn signal switch ..................................... 3-9
