headlight bulb YAMAHA WR 250R 2010 Owners Manual

TABLE OF CONTENTS
Replacing the headlight bulb ........ 6-33
Tail/brake light .............................. 6-35
Replacing a turn signal light
bulb ........................................... 6-35
Replacing the license plate light
bulb ........................................... 6-36
Replacing an auxiliary light bulb ... 6-36
Supporting the motorcycle ............ 6-37
Front wheel ................................... 6-37
Rear wheel ................................... 6-38
Troubleshooting ............................ 6-40
Troubleshooting charts ................. 6-41
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U32DE4E0.book Page 2 Monday, December 14, 2009 2:24 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If a fuse immediately blows again,
have a Yamaha dealer check the
electrical system.
EAU45213
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Fuel injection system fuse
2. Radiator fan fuse
3. Backup fuse (for clock)
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
7
123456
Specified fuses:
Main fuse:
30.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
10.0 A
Headlight fuse:
15.0 A
Radiator fan fuse:
7.5 A
Backup fuse:
7.5 A
Fuel injection system fuse:
7.5 A
U32DE4E0.book Page 33 Monday, December 14, 2009 2:24 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34

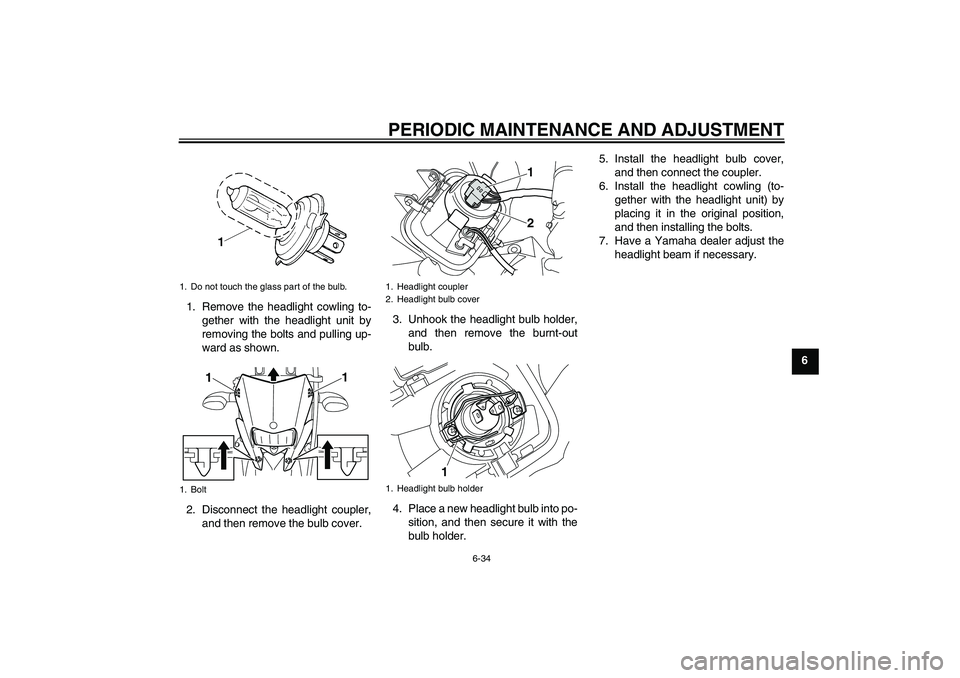

6 1. Remove the headlight cowling to-
gether with the headlight unit by
removing the bolts and pulling up-
ward as shown.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight cowling (to-
gether with the headlight unit) by
placing it in the original position,
and then installing the bolts.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Bolt
1
1
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
1
2
1
U32DE4E0.book Page 34 Monday, December 14, 2009 2:24 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU24313

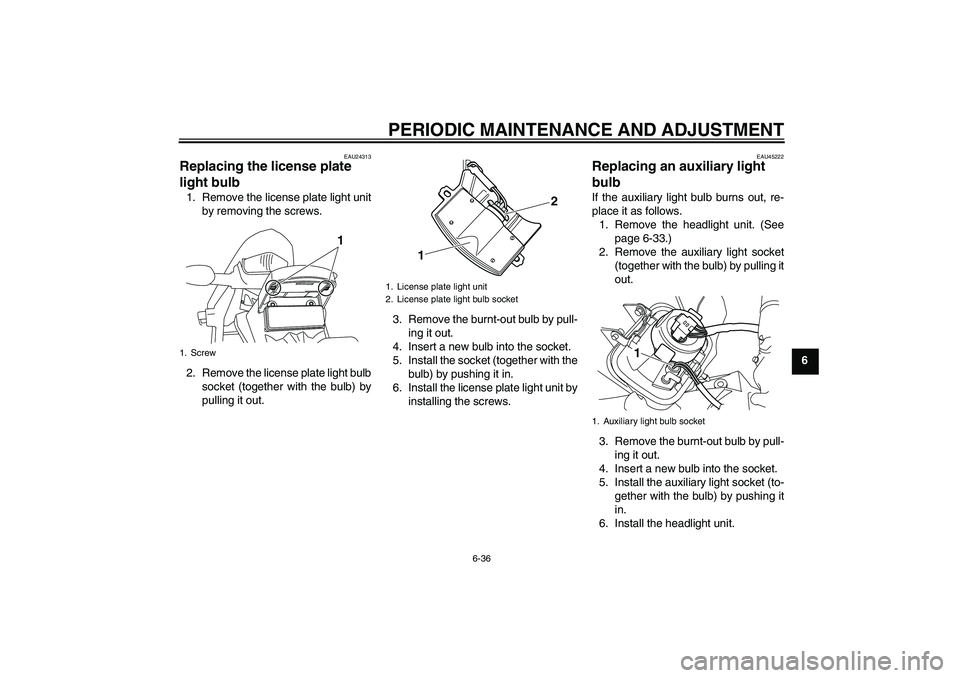

Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the license plate light bulb
socket (together with the bulb) by
pulling it out.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU45222
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-33.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
1. Screw
1
1. License plate light unit
2. License plate light bulb socket
12
1. Auxiliary light bulb socket
1
U32DE4E0.book Page 36 Monday, December 14, 2009 2:24 PM

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LEDFuses:Main fuse:
30.0 AHeadlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
7.5 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A
U32DE4E0.book Page 3 Monday, December 14, 2009 2:24 PM

INDEXAAir filter element and check hose,
cleaning .............................................. 6-16
Auxiliary light bulb, replacing ................ 6-36BBattery................................................... 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ............................................ 3-10
Brake lever free play, adjusting............. 6-22
Brake light switches .............................. 6-23
Brake pedal ........................................... 3-10
Brake pedal, checking and
lubricating ........................................... 6-29CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Clutch lever ............................................. 3-9
Clutch lever free play, adjusting ............ 6-21
Coolant.................................................. 6-13
Coolant temperature warning light .......... 3-2DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack ................................... 6-25EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-17
Engine oil and oil filter element ............. 6-10
Engine stop switch .................................. 3-9
Engine trouble warning light.................... 3-3EXUP system ....................................... 3-18
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-14
Front fork, bleeding............................... 3-16
Front fork, checking .............................. 6-30
Fuel....................................................... 3-11
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-2
Fuel tank cap ........................................ 3-11
Fuses, replacing ................................... 6-32HHandlebar switches ................................ 3-8
Headlight bulb, replacing ...................... 6-33
Helmet holder ....................................... 3-14
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-9IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-19
Indicator and warning lights .................... 3-2LLicense plate light bulb, replacing ........ 6-36MMain switch/steering lock........................ 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function display .............................. 3-3NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-7Parking .................................................... 5-4
Part locations .......................................... 2-1
SSafety information ................................... 1-1
Seat ....................................................... 3-13
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shift pedal, checking ............................. 6-23
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-19
Sidestand, checking and lubricating...... 6-29
Spark plug, checking ............................... 6-9
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch.............................................. 3-9
Steering, checking................................. 6-30
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-37
Swingarm pivots, lubricating ................. 6-29TTail/brake light ....................................... 6-35
Throttle cable free play, checking ......... 6-18
Throttle grip and cable, checking and
lubricating ........................................... 6-28
Tires ...................................................... 6-19
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-40
Troubleshooting charts.......................... 6-41
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................... 3-9VValve clearance..................................... 6-18
Vehicle identification number .................. 9-1
U32DE4E0.book Page 1 Monday, December 14, 2009 2:24 PM
