YAMAHA WR 250R 2011 User Guide
Manufacturer: YAMAHA, Model Year: 2011, Model line: WR 250R, Model: YAMAHA WR 250R 2011Pages: 98, PDF Size: 2.57 MB
Page 11 of 98
1-4
1
SAFETY INFORMATION
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
• Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may
seriously affect the stability ofthe motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.
Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-20 for tire
specifications and more information on
replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.
Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with
tie-downs or suitable straps that
are attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-mount-
ed handlebars or turn signals, or
32D-9-E6.book 4 ページ 2011年1月7日 金曜日 午後3時10分

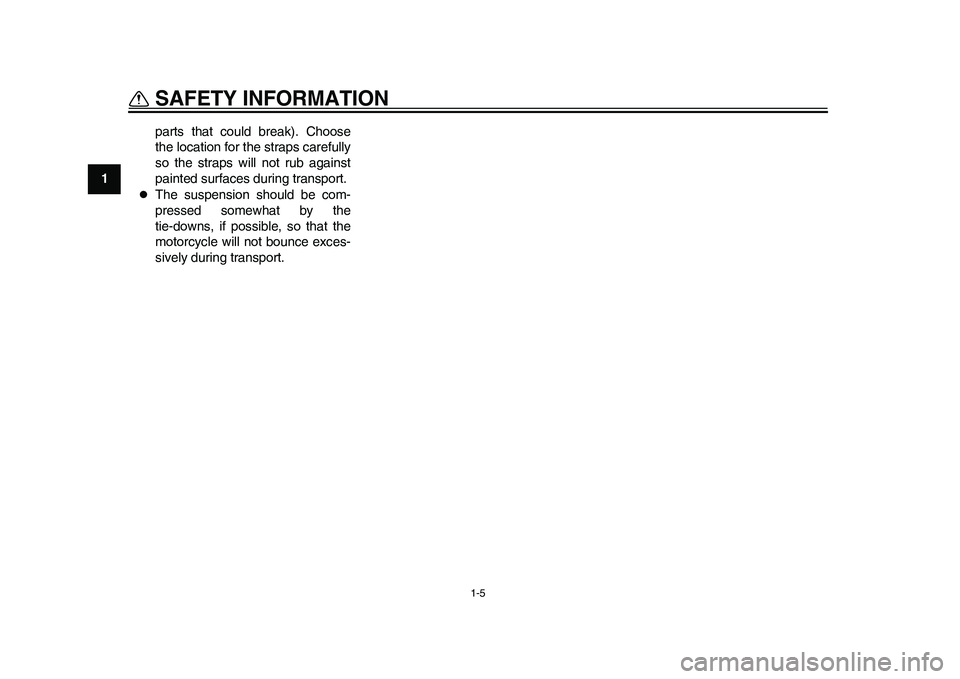

Page 12 of 98
1-5
SAFETY INFORMATION
1parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the
tie-downs, if possible, so that the
motorcycle will not bounce exces-
sively during transport.
32D-9-E6.book 5 ページ 2011年1月7日 金曜日 午後3時10分
Page 13 of 98
2-1
12
DESCRIPTION
EAU10410

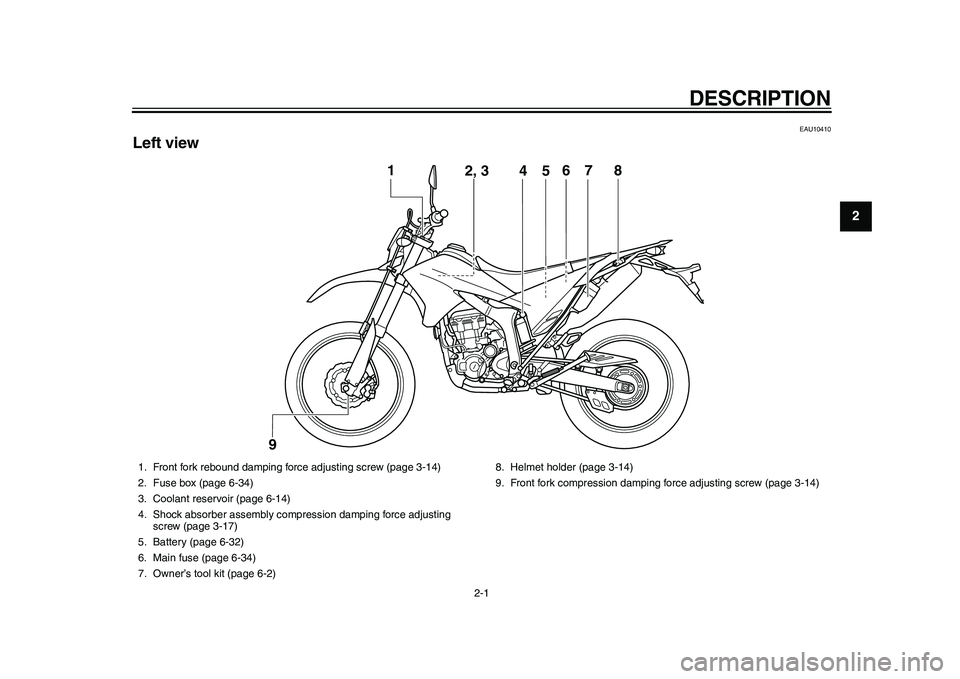

Left view
4
5
1
2, 3
6
7
8
9
1. Front fork rebound damping force adjusting screw (page 3-14)
2. Fuse box (page 6-34)
3. Coolant reservoir (page 6-14)
4. Shock absorber assembly compression damping force adjusting
screw (page 3-17)
5. Battery (page 6-32)
6. Main fuse (page 6-34)
7. Owner’s tool kit (page 6-2)8. Helmet holder (page 3-14)
9. Front fork compression damping force adjusting screw (page 3-14)
32D-9-E6.book 1 ページ 2011年1月7日 金曜日 午後3時10分
Page 14 of 98
DESCRIPTION
2-2
12
3
4
5
6
7
8
9
EAU10420
Right view
3 12
76
5
4
1. Rear brake fluid reservoir (page 6-25)
2. Air filter element (page 6-17)
3. Rear brake light switch (page 6-24)
4. Bleed screw (page 3-16)
5. Engine oil filler cap (page 6-12)
6. Engine oil level check window (page 6-12)
7. Shock absorber assembly rebound damping force adjusting knob
(page 3-17)
32D-9-E6.book 2 ページ 2011年1月7日 金曜日 午後3時10分
Page 15 of 98
DESCRIPTION
2-3
23
4
5
6
7
8
9
EAU10430

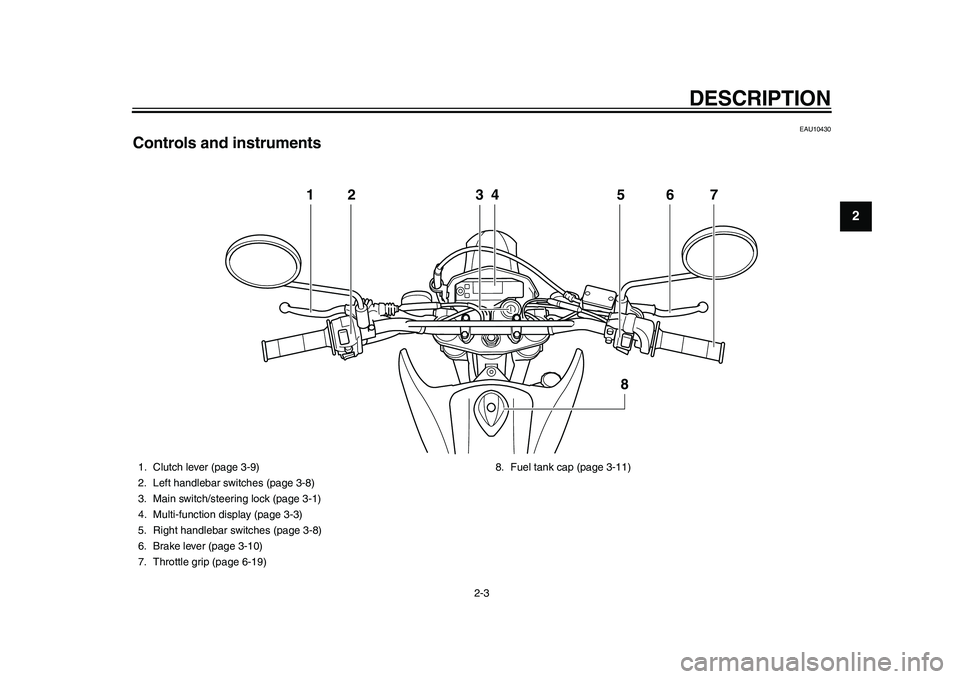

Controls and instruments
12 34 5 6
8
7
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Main switch/steering lock (page 3-1)
4. Multi-function display (page 3-3)
5. Right handlebar switches (page 3-8)
6. Brake lever (page 3-10)
7. Throttle grip (page 6-19)8. Fuel tank cap (page 3-11)
32D-9-E6.book 3 ページ 2011年1月7日 金曜日 午後3時10分
Page 16 of 98
3-1
1
23
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38530
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10683
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.12
32D-9-E6.book 1 ページ 2011年1月7日 金曜日 午後3時10分
Page 17 of 98
INSTRUMENT AND CONTROL FUNCTIONS
3-2
234
5
6
7
8
9 To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU49391
Indicator lights and warning
lights
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11352
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2.1 L (0.55 US gal, 0.46 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU11445
Coolant temperature warning light
“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
1. Push.
2. Turn.12
1. Coolant temperature warning light “ ”
2. Fuel level warning light “ ”
3. Neutral indicator light “ ”
4. Turn signal indicator light “ ”
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
1234
5 6
32D-9-E6.book 2 ページ 2011年1月7日 金曜日 午後3時10分
Page 18 of 98
INSTRUMENT AND CONTROL FUNCTIONS
3-3
1
23
4
5
6
7
8
9can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
If the engine overheats, see page6-44 for further instructions.
EAU11534
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-8for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU45276
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.1. “RESET” button
2. “SELECT 1” button
3. “SELECT 2” button
4. Clock/stopwatch
5. Speedometer
6. Odometer/tripmeter/fuel reserve tripmeter
1
23
4
5
6
32D-9-E6.book 3 ページ 2011年1月7日 金曜日 午後3時10分
Page 19 of 98
INSTRUMENT AND CONTROL FUNCTIONS
3-4
234
5
6
7
8
9
TIP
The multi-function display can be
set to the basic mode or the mea-
surement mode.
Tripmeter A will automatically re-
set to zero when changing from
the basic mode to the measure-ment mode or vice versa.
Basic mode:
a speedometer
an odometer
two tripmeters (which show the
distance traveled since they werelast set to zero)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
a clock
a self-diagnosis device
Measurement mode:
a speedometer
a distance-compensation tripme-
ter (which shows the accumulated
distance traveled since set to zero
and which can be calibrated to pro-
vide a more accurate tripmeter
reading)
a stopwatch (which shows the time
that has been accumulated since
the start of stopwatch measure-
ment)
a self-diagnosis device
TIP
Be sure to turn the key to “ON” be-
fore using the “SELECT 1”, “SE-
LECT 2” and “RESET” buttons.
When the key is turned to “ON”, all
of the display segments of the
multi-function display will appearand then disappear, in order to test
the electrical circuit.
For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT 2”
button until the display changes af-ter the key is turned to “ON”.
Basic mode
Odometer and tripmeter modes
Push the “SELECT 2” button to switch
the display between the odometer
mode and the tripmeter modes A and B
in the following order:
odometer tripmeter A tripmeter B
odometer
1. Stopwatch indicator “ ”
2. Tripmeter A indicator “ ”/Distance-com-
pensation tripmeter “ ”
3. Tripmeter B indicator “ ”
1
3
2
32D-9-E6.book 4 ページ 2011年1月7日 金曜日 午後3時10分
Page 20 of 98
INSTRUMENT AND CONTROL FUNCTIONS
3-5
1
23
4
5
6
7
8
9
TIPIndicator “ ” comes on when tripmeter
A is selected, and indicator “ ” comeson when tripmeter B is selected.
If the fuel level warning light comes on(see page 3-2), the display will auto-
matically change to the fuel reserve
tripmeter mode “F” and start counting
the distance traveled from that point. In
this case, push the “SELECT 2” button
to switch the display between the vari-
ous tripmeter and odometer modes in
the following order:
fuel reserve tripmeter “F” odometer
tripmeter A tripmeter B fuel re-
serve tripmeter “F”
TIPThe fuel level warning light may not
function accurately while riding off road
as the fuel level reading changes due to
the movement and inclination of the ve-hicle.
If the fuel level warning light comes on
while riding in the measurement mode,
change to the basic mode and push the
“SELECT 2” button to display the fuel
reserve tripmeter.TIPTo change from the measurement
mode to the basic mode, the stopwatch
and the distance-compensation tripme-ter must be stopped.To reset a tripmeter, select it by push-
ing the “SELECT 2” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Clock
The clock displays when the key is
turned to “ON”.
To set the clock1. Push the “SELECT 1” button for at
least two seconds.
2. When the hour digits start flashing,
1. Tripmeter A indicator “ ”
1. Tripmeter B indicator “ ”
11
1. Fuel reserve tripmeter “F”
1
32D-9-E6.book 5 ページ 2011年1月7日 金曜日 午後3時10分
