Page 6 of 98

TABLE OF CONTENTSSAFETY INFORMATION .................. 1-1
DESCRIPTION .................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS....................................... 3-1
Main switch/steering lock ................ 3-1
Indicator lights and warning
lights ............................................ 3-2
Multi-function display ...................... 3-3
Handlebar switches ........................ 3-8
Clutch lever ..................................... 3-9
Shift pedal ..................................... 3-10
Brake lever ................................... 3-10
Brake pedal .................................. 3-10
Fuel tank cap ................................ 3-11
Fuel ............................................... 3-11
Catalytic converter ........................ 3-13
Seat .............................................. 3-13
Helmet holder ............................... 3-14
Adjusting the front fork .................. 3-14
Front fork bleeding ........................ 3-16
Adjusting the shock absorber
assembly ................................... 3-17
EXUP system ............................... 3-18
Sidestand ...................................... 3-19
Ignition circuit cut-off system ........ 3-19FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for
the emission control system ....... 6-3

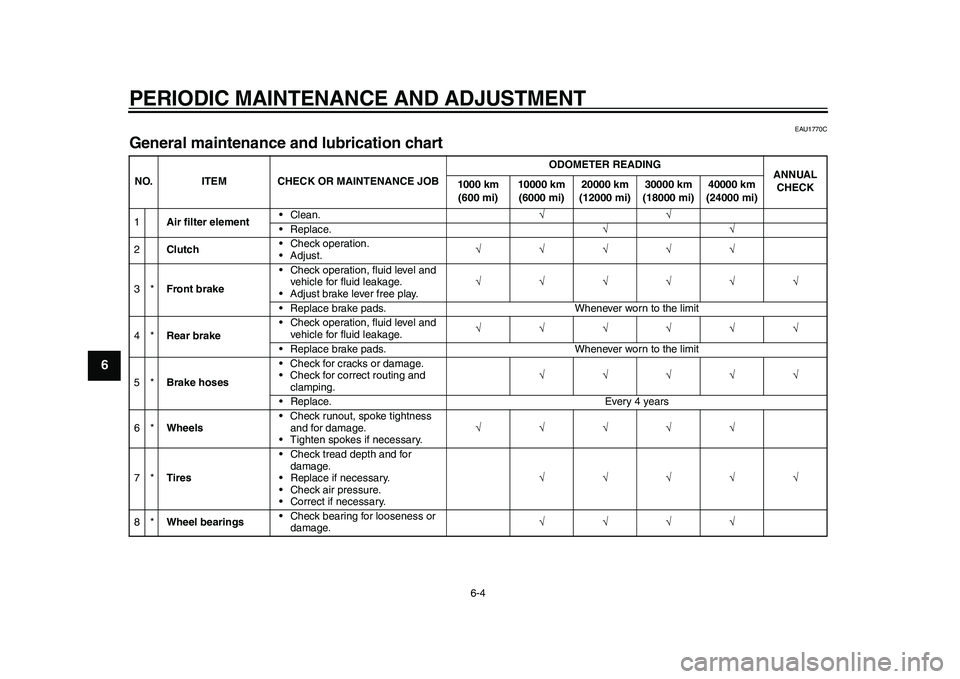

General maintenance and
lubrication chart .......................... 6-4
Removing and installing panels ..... 6-8
Checking the spark plug ............... 6-11
Engine oil and oil filter element .... 6-12
Coolant ......................................... 6-14
Cleaning the air filter element
and check hose ......................... 6-17
Adjusting the engine idling
speed ........................................ 6-19
Checking the throttle grip free
play ........................................... 6-19
Valve clearance ............................ 6-20
Tires ............................................. 6-20Spoke wheels ............................... 6-22
Adjusting the clutch lever free
play ............................................ 6-22
Adjusting the brake lever free
play ............................................ 6-23
Checking the shift pedal ............... 6-24
Brake light switches ...................... 6-24
Checking the front and rear
brake pads ................................. 6-25
Checking the brake fluid level ....... 6-25
Changing the brake fluid ............... 6-26
Drive chain slack ........................... 6-27
Cleaning and lubricating the
drive chain ................................. 6-28
Checking and lubricating the
cables ........................................ 6-29
Checking and lubricating the
throttle grip and cable ................ 6-29
Checking and lubricating the
brake and clutch levers ............. 6-29
Checking and lubricating the
brake pedal ................................ 6-30
Checking and lubricating the
sidestand ................................... 6-30
Lubricating the swingarm
pivots ......................................... 6-31
Checking the front fork .................. 6-31
Checking the steering ................... 6-32
Checking the wheel bearings ........ 6-32
Battery .......................................... 6-32
Replacing the fuses ...................... 6-3432D-9-E6.book 1 ページ 2011年1月7日 金曜日 午後3時10分
Page 7 of 98

TABLE OF CONTENTS
Replacing the headlight bulb ........ 6-35
Tail/brake light .............................. 6-36
Replacing a turn signal light
bulb ........................................... 6-36
Replacing the license plate
light bulb .................................... 6-37
Replacing an auxiliary light
bulb ........................................... 6-38
Supporting the motorcycle ............ 6-38
Front wheel ................................... 6-39
Rear wheel ................................... 6-40
Troubleshooting ............................ 6-41
Troubleshooting charts ................. 6-43
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
32D-9-E6.book 2 ページ 2011年1月7日 金曜日 午後3時10分
Page 14 of 98

DESCRIPTION
2-2
12
3
4
5
6
7
8
9
EAU10420
Right view
3 12
76
5
4
1. Rear brake fluid reservoir (page 6-25)
2. Air filter element (page 6-17)
3. Rear brake light switch (page 6-24)
4. Bleed screw (page 3-16)
5. Engine oil filler cap (page 6-12)
6. Engine oil level check window (page 6-12)
7. Shock absorber assembly rebound damping force adjusting knob
(page 3-17)
32D-9-E6.book 2 ページ 2011年1月7日 金曜日 午後3時10分
Page 15 of 98

DESCRIPTION
2-3
23
4
5
6
7
8
9
EAU10430
Controls and instruments
12 34 5 6
8
7
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Main switch/steering lock (page 3-1)
4. Multi-function display (page 3-3)
5. Right handlebar switches (page 3-8)
6. Brake lever (page 3-10)
7. Throttle grip (page 6-19)8. Fuel tank cap (page 3-11)
32D-9-E6.book 3 ページ 2011年1月7日 金曜日 午後3時10分
Page 25 of 98

INSTRUMENT AND CONTROL FUNCTIONS
3-10
234
5
6
7
8
9
EAU12871

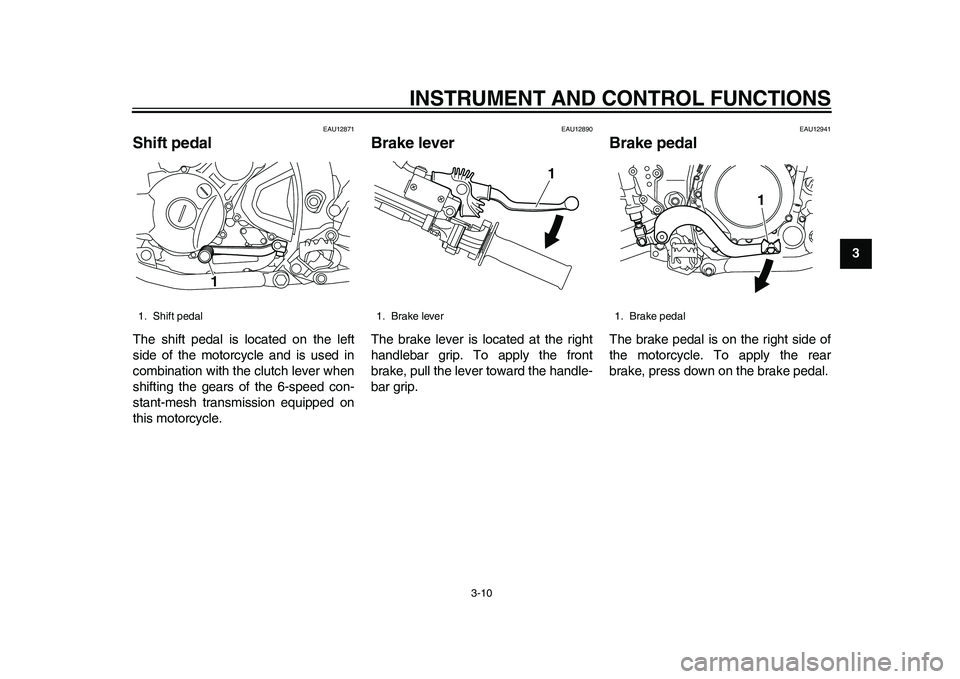

Shift pedal The shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Shift pedal
1
1. Brake lever
1
1. Brake pedal
1
32D-9-E6.book 10 ページ 2011年1月7日 金曜日 午後3時10分
Page 36 of 98

4-1
1
2
34
5
6
7
8
9
FOR YOUR SAFETY – PRE-OPERATION CHECKS
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-11
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-12
Coolant• Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.6-14
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.6-23, 6-25
32D-9-E6.book 1 ページ 2011年1月7日 金曜日 午後3時10分
Page 37 of 98

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
2
345
6
7
8
9
Rear brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.6-25
Clutch• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-22
Throttle grip• Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip free play and lubricate
cable and grip housing.6-19, 6-29
Control cables• Make sure that operation is smooth.
• Lubricate if necessary.6-29
Drive chain• Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary.6-27, 6-28
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-20, 6-22
Shift pedal• Make sure that operation is smooth.
• Correct if necessary.6-24
Brake pedal• Make sure that operation is smooth.
• Lubricate pedal pivoting point if necessary.6-30
Brake and clutch levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-29
Sidestand• Make sure that operation is smooth.
• Lubricate pivot if necessary.6-30 ITEM CHECKS PAGE
32D-9-E6.book 2 ページ 2011年1月7日 金曜日 午後3時10分
Page 43 of 98

6-1
2
3
4
567
8
9
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU17244
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer performservice.
WARNING
EWA15122
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-2 for more in-
formation about carbon monox-ide.WARNING
EWA15460
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool beforetouching them.
EAU17302
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devic-
es and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
32D-9-E6.book 1 ページ 2011年1月7日 金曜日 午後3時10分
Page 46 of 98

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
1
2
3
4
56
7
8
9
EAU1770C
General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1Air filter element• Clean.
• Replace.
2Clutch• Check operation.
• Adjust.
3*Front brake• Check operation, fluid level and
vehicle for fluid leakage.
• Adjust brake lever free play.
• Replace brake pads. Whenever worn to the limit
4*Rear brake• Check operation, fluid level and
vehicle for fluid leakage.
• Replace brake pads. Whenever worn to the limit
5*Brake hoses• Check for cracks or damage.
• Check for correct routing and
clamping.
• Replace. Every 4 years
6*Wheels• Check runout, spoke tightness
and for damage.
• Tighten spokes if necessary.
7*Tires• Check tread depth and for
damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.
8*Wheel bearings• Check bearing for looseness or
damage.
32D-9-E6.book 4 ページ 2011年1月7日 金曜日 午後3時10分

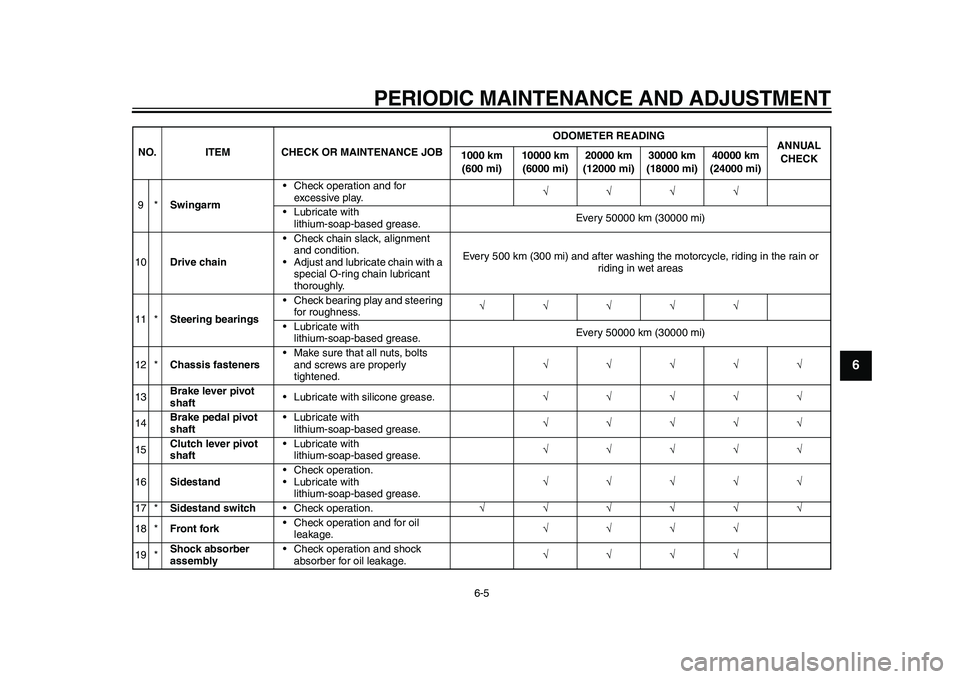

Page 47 of 98

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
2
3
4
567
8
9
9*Swingarm• Check operation and for
excessive play.
• Lubricate with
lithium-soap-based grease.Every 50000 km (30000 mi)
10Drive chain• Check chain slack, alignment
and condition.
• Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 500 km (300 mi) and after washing the motorcycle, riding in the rain or
riding in wet areas
11 *Steering bearings• Check bearing play and steering
for roughness.
• Lubricate with
lithium-soap-based grease.Every 50000 km (30000 mi)
12 *Chassis fasteners• Make sure that all nuts, bolts
and screws are properly
tightened.
13Brake lever pivot
shaft• Lubricate with silicone grease.
14Brake pedal pivot
shaft• Lubricate with
lithium-soap-based grease.
15Clutch lever pivot
shaft• Lubricate with
lithium-soap-based grease.
16Sidestand• Check operation.
• Lubricate with
lithium-soap-based grease.
17 *Sidestand switch• Check operation.
18 *Front fork• Check operation and for oil
leakage.
19 *Shock absorber
assembly• Check operation and shock
absorber for oil leakage. NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
32D-9-E6.book 5 ページ 2011年1月7日 金曜日 午後3時10分
