TABLE OF CONTENTS
Replacing the headlight bulb ........ 6-35
Tail/brake light .............................. 6-36
Replacing a turn signal light
bulb ........................................... 6-36
Replacing the license plate
light bulb .................................... 6-37
Replacing an auxiliary light
bulb ........................................... 6-38
Supporting the motorcycle ............ 6-38
Front wheel ................................... 6-39
Rear wheel ................................... 6-40
Troubleshooting ............................ 6-41
Troubleshooting charts ................. 6-43
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
32D-9-E6.book 2 ページ ２０１１年１月７日　金曜日　午後３時１０分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
2
3
4
567
8
9
EAU45215
Replacing the headlight bulb This model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.

Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.1. Remove the headlight cowling to-
gether with the headlight unit by
removing the bolts and pulling up-
ward as shown.
2. Disconnect the headlight coupler,
and then remove the headlightbulb cover.
3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
1. Do not touch the glass part of the bulb.
1. Bolt
1
1
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
1
2
1
32D-9-E6.book 35 ページ ２０１１年１月７日　金曜日　午後３時１０分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
1
2
3
4
56
7
8
9sition, and then secure it with the
bulb holder.
5. Install the bulb cover, and then
connect the coupler.
6. Install the headlight cowling (to-
gether with the headlight unit) by
placing it in the original position,
and then installing the bolts.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an
LED-type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.1. Screw
2. Turn signal light lens
1
2
32D-9-E6.book 36 ページ ２０１１年１月７日　金曜日　午後３時１０分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
2
3
4
567
8
9 3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]

EAU24313

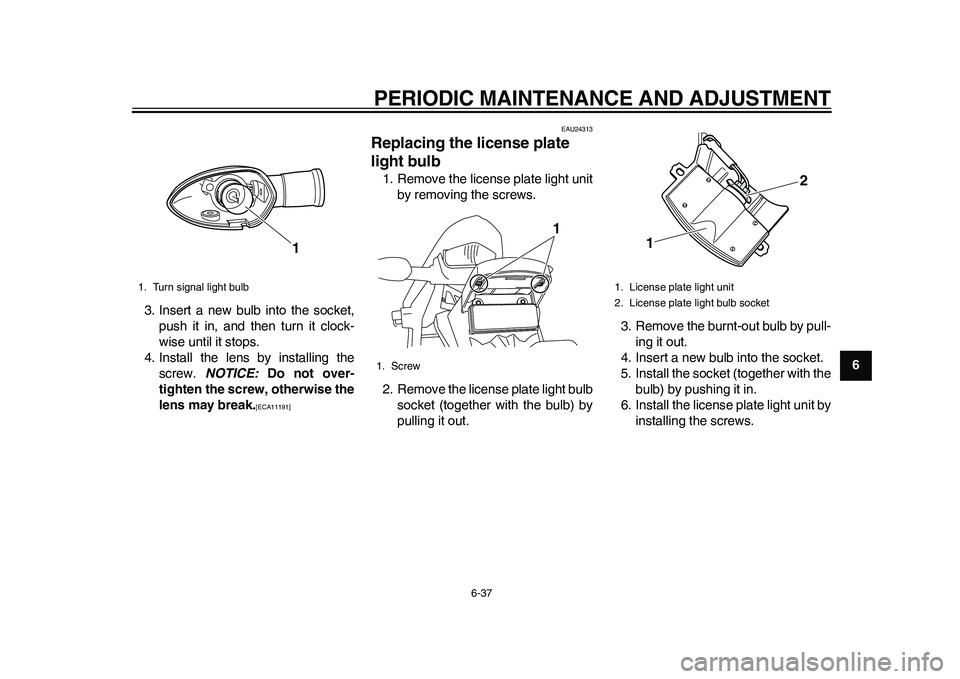

Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the license plate light bulb
socket (together with the bulb) by
pulling it out.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
1. Turn signal light bulb
1
1. Screw
1
1. License plate light unit
2. License plate light bulb socket
12
32D-9-E6.book 37 ページ ２０１１年１月７日　金曜日　午後３時１０分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
1
2
3
4
56
7
8
9
EAU45222

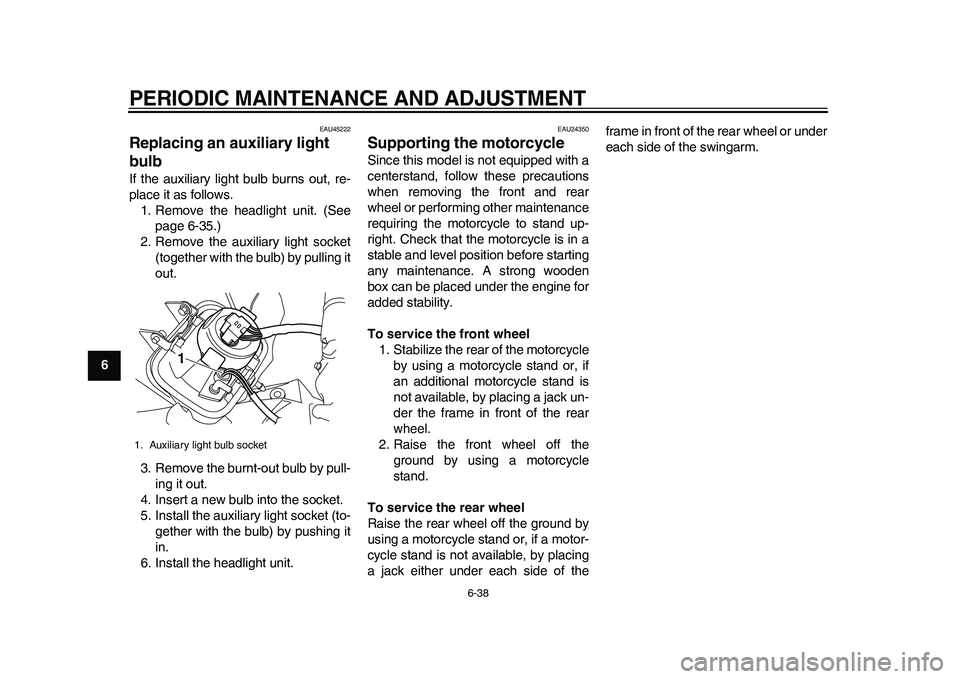

Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-35.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of theframe in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulb socket
1
32D-9-E6.book 38 ページ ２０１１年１月７日　金曜日　午後３時１０分

SPECIFICATIONS
8-3
2
3
4
5
6
789

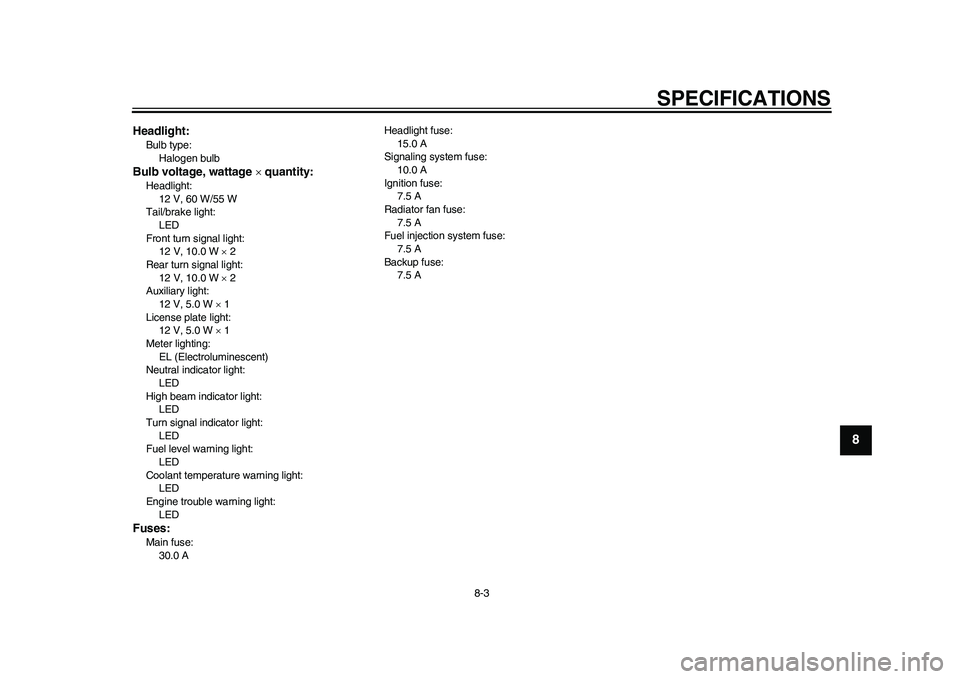

Headlight:Bulb type:
Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 60 W/55 W
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W  2
Rear turn signal light:
12 V, 10.0 W  2
Auxiliary light:
12 V, 5.0 W  1
License plate light:
12 V, 5.0 W  1
Meter lighting:
EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LEDFuses:Main fuse:
30.0 AHeadlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
7.5 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A
32D-9-E6.book 3 ページ ２０１１年１月７日　金曜日　午後３時１０分

INDEX
AAir filter element and check hose,
cleaning ................................................. 6-17
Auxiliary light bulb, replacing ................... 6-38BBattery ..................................................... 6-32
Brake and clutch levers, checking and
lubricating .............................................. 6-29
Brake fluid, changing ............................... 6-26
Brake fluid level, checking ....................... 6-25
Brake lever .............................................. 3-10
Brake lever free play, adjusting ............... 6-23
Brake light switches ................................. 6-24
Brake pedal ............................................. 3-10
Brake pedal, checking and lubricating ..... 6-30CCables, checking and lubricating ............. 6-29
Care ........................................................... 7-1
Catalytic converter ................................... 3-13
Clutch lever................................................ 3-9
Clutch lever free play, adjusting .............. 6-22
Coolant .................................................... 6-14
Coolant temperature warning light............. 3-2DDimmer switch ........................................... 3-9
Drive chain, cleaning and lubricating ....... 6-28
Drive chain slack ..................................... 6-27EEngine break-in ......................................... 5-3
Engine idling speed ................................. 6-19
Engine oil and oil filter element................ 6-12
Engine stop switch..................................... 3-9
Engine trouble warning light ...................... 3-3
EXUP system .......................................... 3-18
FFront and rear brake pads, checking ...... 6-25
Front fork, adjusting ................................ 3-14
Front fork, bleeding ................................. 3-16
Front fork, checking................................. 6-31
Fuel ......................................................... 3-11
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap........................................... 3-11
Fuses, replacing ...................................... 6-34HHandlebar switches ................................... 3-8
Headlight bulb, replacing......................... 6-35
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ............................................... 3-9IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator lights and warning lights ............. 3-2LLicense plate light bulb, replacing ........... 6-37MMain switch/steering lock .......................... 3-1
Maintenance and lubrication, periodic....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display................................. 3-3NNeutral indicator light ................................ 3-2PPanels, removing and installing ................ 6-8
Parking ...................................................... 5-4Part locations .............................................2-1
SSafety information ......................................1-1
Seat ......................................................... 3-13
Shifting .......................................................5-2
Shift pedal ................................................3-10
Shift pedal, checking................................ 6-24
Shock absorber assembly, adjusting .......3-17
Sidestand .................................................3-19
Sidestand, checking and lubricating ........6-30
Spark plug, checking ............................... 6-11
Specifications.............................................8-1
Starting the engine.....................................5-1
Start switch ................................................3-9
Steering, checking ................................... 6-32
Storage ......................................................7-3
Supporting the motorcycle .......................6-38
Swingarm pivots, lubricating .................... 6-31TTail/brake light ......................................... 6-36
Throttle grip and cable, checking and
lubricating ..............................................6-29
Throttle grip free play, checking............... 6-19
Tires ......................................................... 6-20
Tool kit .......................................................6-2
Troubleshooting ....................................... 6-41
Troubleshooting charts ............................6-43
Turn signal indicator light ...........................3-2
Turn signal light bulb, replacing ............... 6-36
Turn signal switch ......................................3-9VValve clearance ....................................... 6-20
