technical data YAMAHA WR 250R 2011 Owners Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
2
3
4
567
8
9
EAU46861
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.

From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
EAU46910

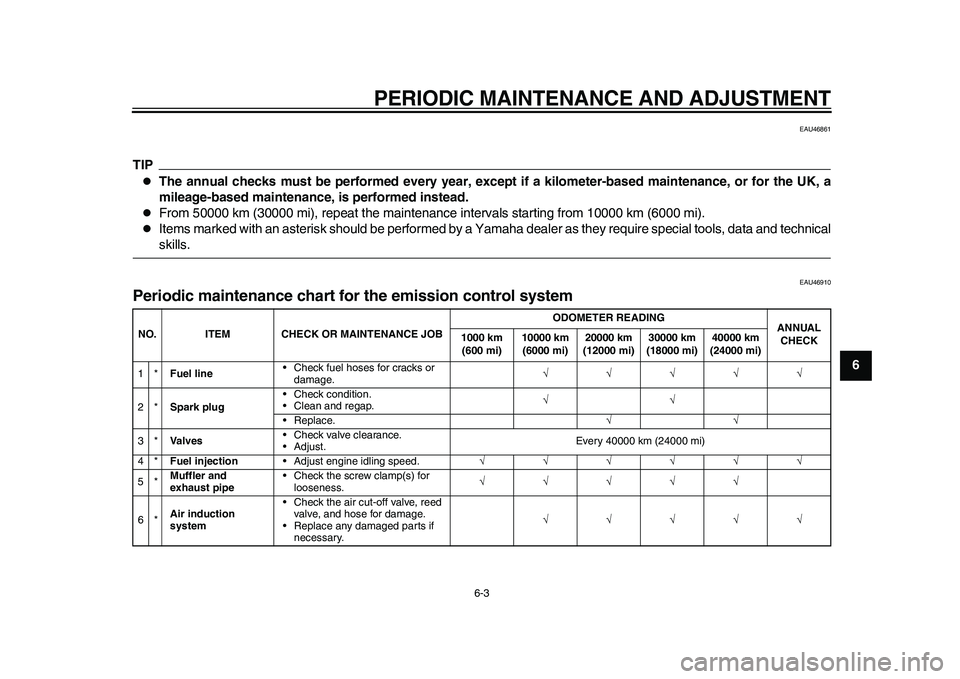

Periodic maintenance chart for the emission control system NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.
2*Spark plug• Check condition.
• Clean and regap.
• Replace.
3*Valves• Check valve clearance.
• Adjust.Every 40000 km (24000 mi)
4*Fuel injection• Adjust engine idling speed.
5*Muffler and
exhaust pipe• Check the screw clamp(s) for
looseness.
6*Air induction
system• Check the air cut-off valve, reed
valve, and hose for damage.
• Replace any damaged parts if
necessary.
