PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
2
3
4
567
8
9
3. Pull the front part of the panel out-
ward, and then remove the panel
by pulling it off.
To install the panel
1. Place the panel in the original posi- tion, and then install the collars
and bolts. 2. Install the seat.
Panel B
To remove the panel
1. Remove the seat. (See page 3-13.)
2. Remove the bolt, and then remove the panel as shown. To install the panel
1. Place the panel in the original posi-
tion, and then install the bolt.
2. Install the seat.
1. Bolt
2. Collar
3. Panel A1
2
3
1. Bolt
2. Panel B
1 2
32D-9-E8.book 9 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
1
2
3
4
56
7
8
9Panel C
To remove the panel
1. Remove the bolts.
2. Lift the bottom of the panel slightly,
and then slide the panel forward.
To install the panelPlace the panel in the original position,
and then install the bolts. Panel D
To remove the panel
1. Remove the seat. (See
page 3-13.)
2. Remove the bolt and washer, and then remove the panel as shown. To install the panel
1. Place the panel in the original posi-
tion, and then install the washer
and bolt.
2. Install the seat.
1. Panel C
2. Bolt
12
2
1. Bolt
2. Washer
3. Panel D
3
2 1
32D-9-E8.book 10 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
2
3
4
567
8
9
EAU48340
Checking the spark plug The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
Before installing a spark plug, the spark
plug gap should be measured with awire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–
1/2 turnpast finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.NOTICE
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twistit back and forth while pushing it in.
Specified spark plug:
NGK/CR9EK
1. Spark plug gapSpark plug gap:0.6 –0.7 mm (0.024 –0.028 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)11
32D-9-E8.book 11 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
1
2
3
4
56
7
8
9
EAU45143
Engine oil and oil filter
element The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.TIPThe engine oil should be between theminimum and maximum level marks. 4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element replace-
ment) 1. Place the vehicle on a level sur- face.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5 –8 if the oil filter element isnot being replaced.
5. Remove the oil filter element cover by removing the bolts.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
4. Engine oil level check window
1
2
3 4
1. Engine oil drain bolt
2. Gasket
12
32D-9-E8.book 12 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
2
3
4
567
8
9
6. Remove the oil filter element and
O-rings.
7. Install a new oil filter element and new O-rings.
TIPMake sure that the O-rings are properlyseated.
8. Install the oil filter element cover by installing the bolts, then tightening
them to the specified torque.
9. Install the engine oil drain bolt and its new gasket, and then tighten
the bolt to the specified torque.
10. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.NOTICE
ECA11620

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-rial enters the crankcase.
11. Start the engine, and then let it idle for several minutes while checking
1. Oil filter element cover
2. Oil filter element cover bolt
1. O-ring
2. Oil filter element
1
2
1
2
Tightening torque:Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque: Engine oil drain bolt:20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended oil:
See page 8-1.
Oil quantity: Without oil filter element replace-
ment:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
32D-9-E8.book 13 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
1
2
3
4
56
7
8
9it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
12. Turn the engine off, wait a few min- utes until the oil settles, and then
check the oil level and correct it if
necessary.
NOTICE
ECA11231
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.
Loosen the bleed bolt.

Start the engine and keep it
idling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.

After checking the oil pressure,
tighten the bleed bolt to thespecified torque.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20254
To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool- ant reservoir.
TIPThe coolant should be between theminimum and maximum level marks.
1. Bleed boltTightening torque:Bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
32D-9-E8.book 14 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
2
3
4
567
8
9
3. If the coolant is at or below the
minimum level mark, remove pan-
el C (See page 6-8.), remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the reservoir cap and
the panel. WARNING! Remove
only the coolant reservoir cap.
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA15161]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]

EAU45155
To change the coolant
1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove panels A and C. (See page 6-8.)
3. Place a container under the engine to collect the used coolant.
4. Remove the radiator cap retaining bolt and radiator cap. WARNING!
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA10381]

5. Remove the coolant reservoir by removing the bolts.
1. Maximum level mark
2. Minimum level mark
1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
2. Radiator cap retaining bolt
2
1
32D-9-E8.book 15 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
1
2
3
4
56
7
8
96. Remove the coolant reservoir cap.
7. Drain the coolant from the coolant
reservoir by turning it upside down.
8. Install the coolant reservoir by placing it in the original position, and then installing the bolts.
9. Remove the coolant drain bolt and its gasket to drain the cooling sys-
tem.
10. After the coolant is completely drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
12. Pour the specified amount of the recommended coolant into the ra- diator and reservoir.
13. Install the coolant reservoir cap.
14. Install the radiator cap.
15. Start the engine, let it idle for sev- eral minutes, and then turn it off.
16. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap and its retaining bolt.
17. Check the coolant level in the res- ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
1. Bolt
2. Coolant reservoir
1. Coolant reservoir cap
1 2
1
1. Coolant drain bolt
2. GasketTightening torque:
Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity: Radiator capacity (including all
routes):0.90 L (0.95 US qt, 0.79 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
32D-9-E8.book 16 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
2
3
4
567
8
9
18. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
19. Install the panels.
EAU44323
Cleaning the air filter element
and check hose The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas. In addition, the air
filter check hose must be frequently
checked and cleaned if necessary.
To clean the air filter element 1. Remove panel B. (See page 6-8.)
2. Open the air filter case cover by re- moving the screw and pulling the
case cover outward as shown. 3. Unhook the holding clip, and then
pull the air filter element out.
4. Remove the sponge material from the air filter element frame, clean it
1. Screw
2. Air filter case cover
1. Holding clip
2. Air filter element
2
11
2
32D-9-E8.book 17 ページ ２０１１年６月２８日　火曜日　午前１０時２７分

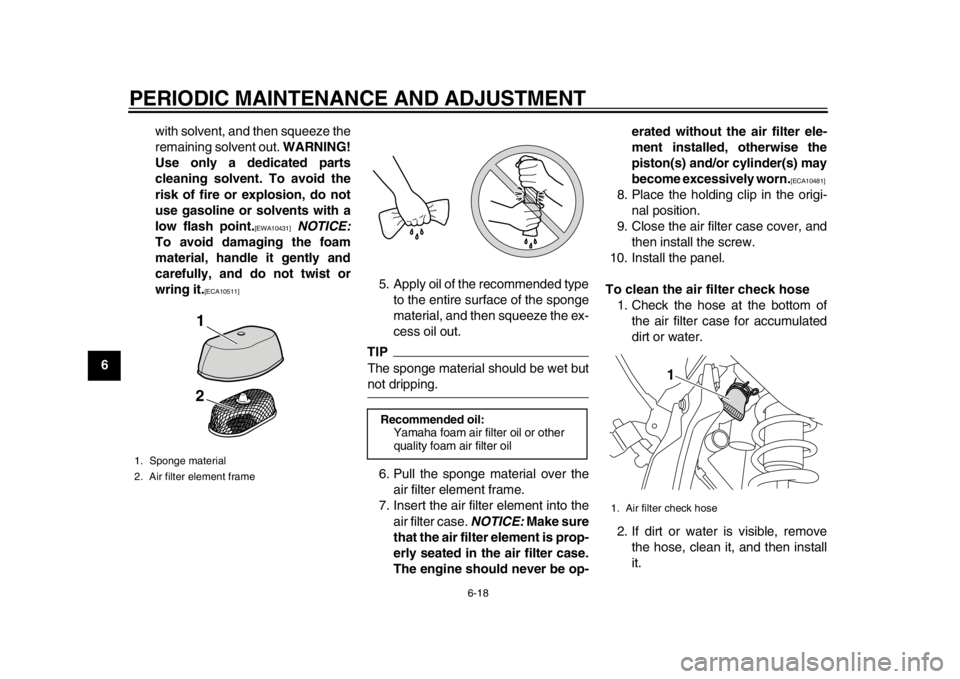

PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
1
2
3
4
56
7
8
9with solvent, and then squeeze the
remaining solvent out.
WARNING!
Use only a dedicated parts
cleaning solvent. To avoid the
risk of fire or explosion, do not
use gasoline or solvents with a
low flash point.
[EWA10431]
NOTICE:
To avoid damaging the foam
material, handle it gently and
carefully, and do not twist or
wring it.
[ECA10511]
5. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
TIPThe sponge material should be wet butnot dripping.
6. Pull the sponge material over the air filter element frame.
7. Insert the air filter element into the air filter case. NOTICE: Make sure
that the air filter element is prop-
erly seated in the air filter case.
The engine should never be op- erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10481]

8. Place the holding clip in the origi- nal position.
9. Close the air filter case cover, and then install the screw.
10. Install the panel.
To clean the air filter check hose 1. Check the hose at the bottom of the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove the hose, clean it, and then install
it.
1. Sponge material
2. Air filter element frame
1
2
Recommended oil: Yamaha foam air filter oil or other
quality foam air filter oil
1. Air filter check hose
1
32D-9-E8.book 18 ページ ２０１１年６月２８日　火曜日　午前１０時２７分
