YAMAHA WR 250R 2015 Owners Manual

8-1
1
2
3
4
5
6
789
10
11
12
SPECIFICATIONS
EAU5091M
Dimensions:Overall length: 2180 mm (85.8 in)
Overall width: 810 mm (31.9 in)
Overall height: 1230 mm (48.4 in)
Seat height:
930 mm (36.6 in)
Wheelbase: 1420 mm (55.9 in)
Ground clearance: 300 mm (11.81 in)
Minimum turning radius:
2300 mm (90.6 in)Weight:Curb weight:134 kg (295 lb)Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Single cylinder
Displacement:
250 cm
3
Bore  stroke:
77.0  53.6 mm (3.03  2.11 in)
Compression ratio: 11.8 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter element replacement:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement: 1.40 L (1.48 US qt, 1.23 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
0.90 L (0.95 US qt, 0.79 Imp.qt)
Air filter:Air filter element:Wet elementFuel:Recommended fuel:Premium unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity: 8.0 L (2.11 US gal, 1.76 Imp.gal)
Fuel reserve amount:
2.1 L (0.55 US gal, 0.46 Imp.gal)Fuel injection:Throttle body:ID mark:3D71 10Spark plug(s):Manufacturer/model:
NGK/CR9EK
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:3.120 (78/25)
Final drive:
Chain
Secondary reduction ratio: 3.308 (43/13)
Transmission type: Constant mesh 6-speed
Operation:
Left foot operation
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
32D-9-ED.book 1 ページ ２０１４年７月１日　火曜日　午前１０時２分

SPECIFICATIONS
8-2
1
2
3
4
5
6
78
9
10
11
12
Gear ratio: 1st:2.643 (37/14)
2nd: 1.813 (29/16)
3rd:
1.318 (29/22)
4th: 1.040 (26/25)
5th: 0.889 (24/27)
6th:
0.786 (22/28)Chassis:Frame type: Semi double cradle
Caster angle:
26.67 
Trail: 111 mm (4.4 in)Front tire:Type:
With tube
Size: 80/100-21M/C 51P
Manufacturer/model: BRIDGESTONE/TW-301 FRear tire:Type:With tube
Size: 120/80-18M/C 62P
Manufacturer/model:
BRIDGESTONE/TW-302 F
Loading:Maximum load:185 kg (408 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):Loading condition:0–90 kg (0–198 lb)
Front:
125 kPa (1.25 kgf/cm
2, 18 psi)
Rear:
175 kPa (1.75 kgf/cm2, 25 psi)
Loading condition: 90–185 kg (198–408 lb)
Front:
150 kPa (1.50 kgf/cm2, 22 psi)
Rear:
200 kPa (2.00 kgf/cm2, 29 psi)
Front wheel:Wheel type:Spoke wheel
Rim size:
21x1.60Rear wheel:Wheel type:Spoke wheel
Rim size:
18x2.15Front brake:Type:Single disc brake
Operation:
Right hand operation Specified brake fluid:
DOT 4
Rear brake:Type:Single disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 270 mm (10.6 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 270 mm (10.6 in)Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:YTZ7S
Voltage, capacity: 12 V, 6.0 Ah
32D-9-ED.book 2 ページ ２０１４年７月１日　火曜日　午前１０時２分

SPECIFICATIONS
8-3
1
2
3
4
5
6
789
10
11
12
Headlight:Bulb type: Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 60.0 W/55.0 W
Tail/brake light:
LED
Front turn signal light: 12 V, 10.0 W  2
Rear turn signal light: 12 V, 10.0 W  2
Auxiliary light:
12 V, 5.0 W  1
License plate light: 12 V, 5.0 W  1
Meter lighting: EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light: LED
Turn signal indicator light: LED
Fuel level warning light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
Fuses:Main fuse:30.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
7.5 A
Radiator fan motor fuse: 7.5 A
Fuel injection system fuse: 7.5 A
Backup fuse:
7.5 A
32D-9-ED.book 3 ページ ２０１４年７月１日　火曜日　午前１０時２分

9-1
1
2
3
4
5
6
7
89
10
11
12
CONSUMER INFORMATION
EAU53562

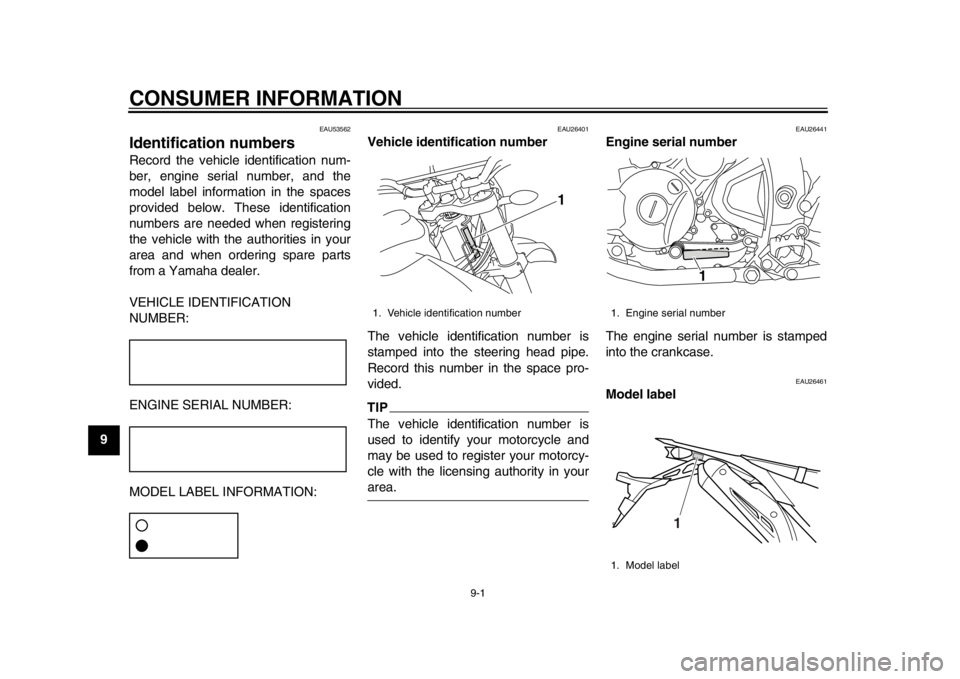

Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION
NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26441
Engine serial number
The engine serial number is stamped
into the crankcase.
EAU26461
Model label
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
32D-9-ED.book 1 ページ ２０１４年７月１日　火曜日　午前１０時２分

CONSUMER INFORMATION
9-2
1
2
3
4
5
6
7
8910
11
12
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
32D-9-ED.book 2 ページ ２０１４年７月１日　火曜日　午前１０時２分

10-1
1
2
3
4
5
6
7
8
910
11
12
INDEXAAir filter element and check hose, cleaning .................................................6-17
Auxiliary light bulb, replacing ...................6-36BBattery......................................................6-33
Brake and clutch levers, checking and lubricating ..............................................6-30
Brake fluid, changing ...............................6-27
Brake fluid level, checking .......................6-26
Brake lever ...............................................3-10
Brake lever free play, adjusting................6-23
Brake light switches .................................6-25
Brake pedal ..............................................3-10
Brake pedal, checking and lubricating .....6-30CCables, checking and lubricating .............6-29
Care ...........................................................7-1
Catalytic converter ...................................3-13
Clutch lever ................................................3-9
Clutch lever free play, adjusting ...............6-22
Coolant.....................................................6-14
Coolant temperature warning light .............3-2DDimmer switch ...........................................3-9
Drive chain, cleaning and lubricating .......6-28
Drive chain slack ......................................6-27EEngine break-in ..........................................5-3
Engine idling speed..................................6-19
Engine oil and oil filter element ................6-12
Engine serial number .................................9-1
Engine stop switch .....................................3-9
Engine trouble warning light.......................3-3 EXUP system .......................................... 3-18
FFront and rear brake
pads, checking ....... 6-25
Front fork, adjusting ................................. 3-14
Front fork, bleeding.................................. 3-16
Front fork, checking ................................. 6-31
Fuel.......................................................... 3-11
Fuel consumption, tips for reducing........... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-34HHandlebar switches ................................... 3-8
Headlight bulb, replacing ......................... 6-35
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ................................................ 3-9IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator lights and warning lights ............. 3-2LLicense plate light bulb, replacing ........... 6-37MMain switch/steering lock........................... 3-1
Maintenance and lubrication, periodic ....... 6-4
Maintenance, emission control system...... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display ................................. 3-3NNeutral indicator light ................................. 3-2PPanels, removing and installing ................. 6-8 Parking ...................................................... 5-4
Part locations ............................................ 2-1
SSafety information ..................................... 1-1
Seat ......................................................... 3-13
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shift pedal, checking ............................... 6-24
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking an
d lubricating........ 6-31
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-32
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-38
Swingarm pivots, lubricating ................... 6-31TTail/brake light ......................................... 6-36
Throttle grip and cable, checking and lubricating ............................................. 6-29
Throttle grip free play, checking .............. 6-19
Tires ........................................................ 6-20
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-42
Troubleshooting charts............................ 6-43
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-37
Turn signal switch ..................................... 3-9VValve clearance....................................... 6-20
Vehicle identification number .................... 9-1
32D-9-ED.book 1 ページ ２０１４年７月１日　火曜日　午前１０時２分

INDEX
10-2
1
2
3
4
5
6
7
8
91011
12
WWheel bearings, checking ....................... 6-32
Wheel (front) ............................................ 6-39
Wheel (rear)............................................. 6-40
Wheels..................................................... 6-22
