fuse box YAMAHA WR 250R 2015 Owners Manual

2-1
123
4
5
6
7
8
9
10
11
12
DESCRIPTION
EAU10411

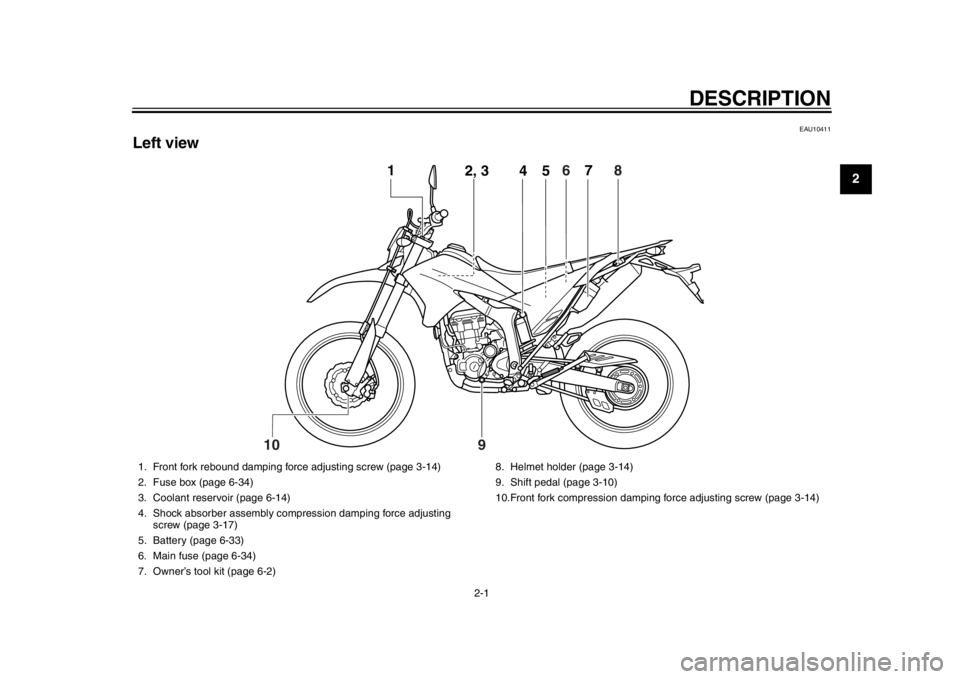

Left view
4
5
1
2, 3
6 7
8
10
9
1. Front fork rebound damping force adjusting screw (page 3-14)
2. Fuse box (page 6-34)
3. Coolant reservoir (page 6-14)
4. Shock absorber assembly compression damping force adjusting
screw (page 3-17)
5. Battery (page 6-33)
6. Main fuse (page 6-34)
7. Owner’s tool kit (page 6-2) 8. Helmet holder (page 3-14)
9. Shift pedal (page 3-10)
10.Front fork compression damping
force adjusting screw (page 3-14)
32D-9-ED.book 1 ページ ２０１４年７月１日　火曜日　午前１０時２分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
1
2
3
4
56
7
8
9
10
11
12 stallation.
NOTICE: When install-
ing the battery, be sure the key
is turned to “OFF”, then con-
nect the positive lead before
connecting the negative
lead.
[ECA16841]
NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
EAU23543

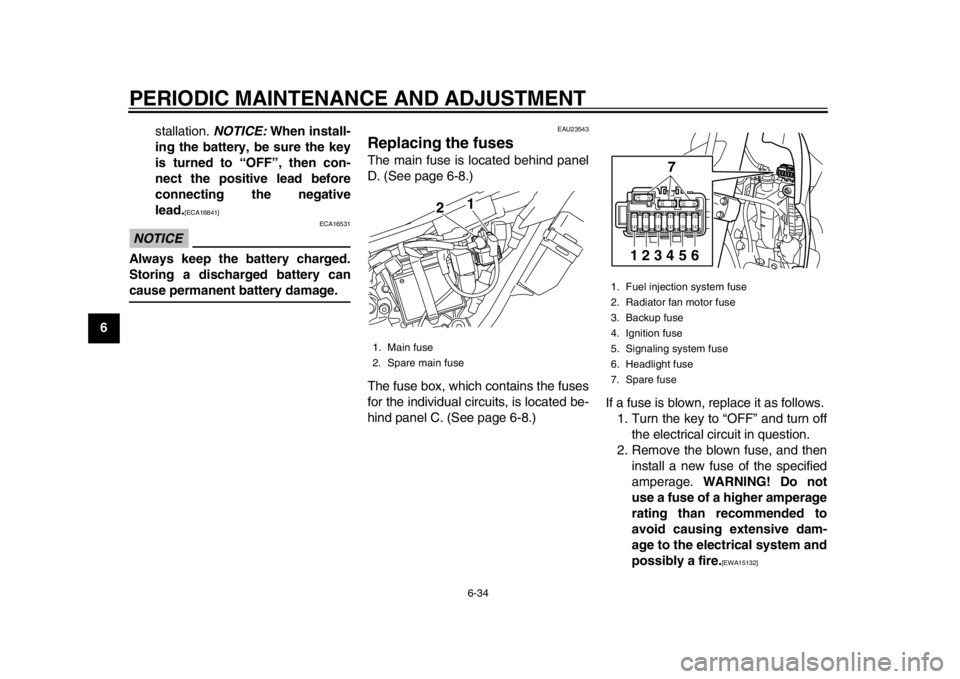

Replacing the fusesThe main fuse is located behind panel
D. (See page 6-8.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel C. (See page 6-8.) If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
1. Main fuse
2. Spare main fuse
2 1
1. Fuel injection system fuse
2. Radiator fan motor fuse
3. Backup fuse
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
7
123456
32D-9-ED.book 34 ページ ２０１４年７月１日　火曜日　午前１０時２分
