PERIODIC MAINTENANCE AND ADJUSTMENT
6-10

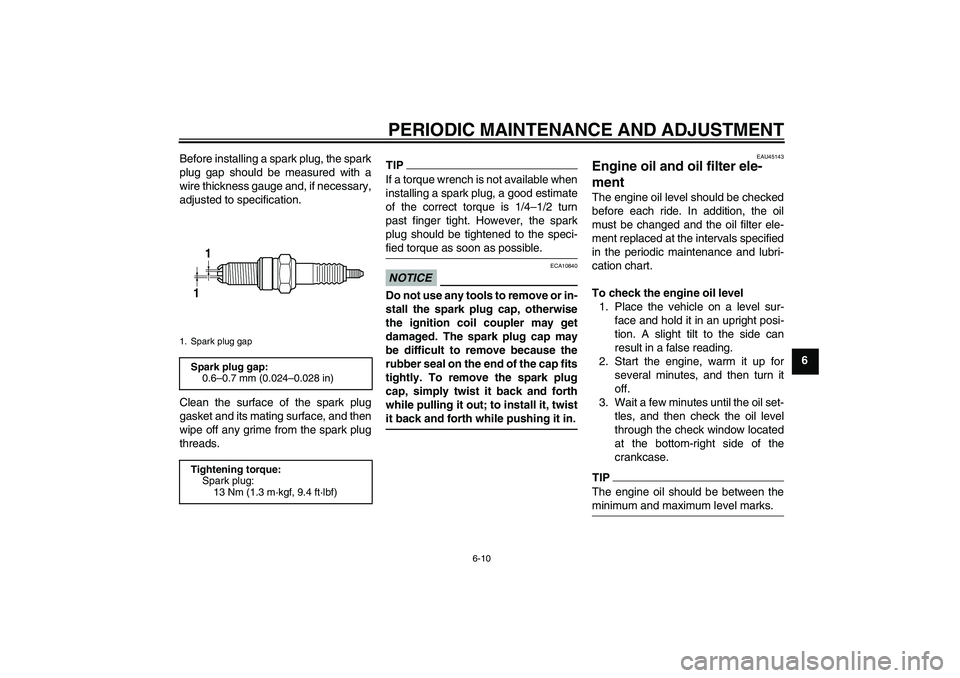

6 Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.NOTICE
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twist
it back and forth while pushing it in.
EAU45143
Engine oil and oil filter ele-
ment The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)11
U32DE5E0.book Page 10 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11

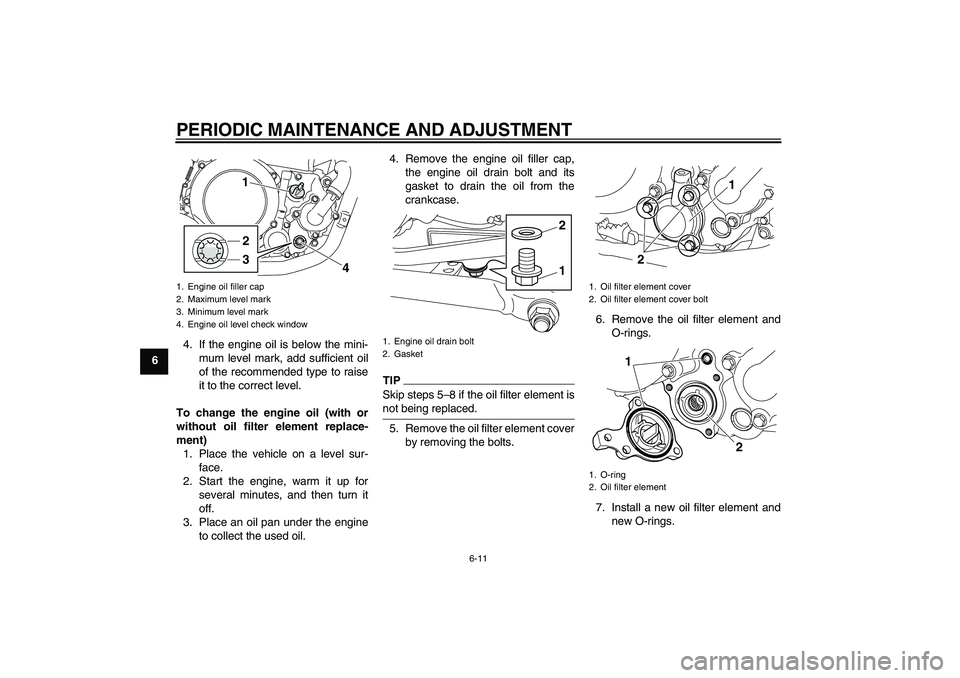

64. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.4. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5–8 if the oil filter element is
not being replaced.5. Remove the oil filter element cover
by removing the bolts.6. Remove the oil filter element and
O-rings.
7. Install a new oil filter element and
new O-rings.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
4. Engine oil level check window
1
2
3
4
1. Engine oil drain bolt
2. Gasket
12
1. Oil filter element cover
2. Oil filter element cover bolt
1. O-ring
2. Oil filter element
1
2
1
2
U32DE5E0.book Page 11 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6

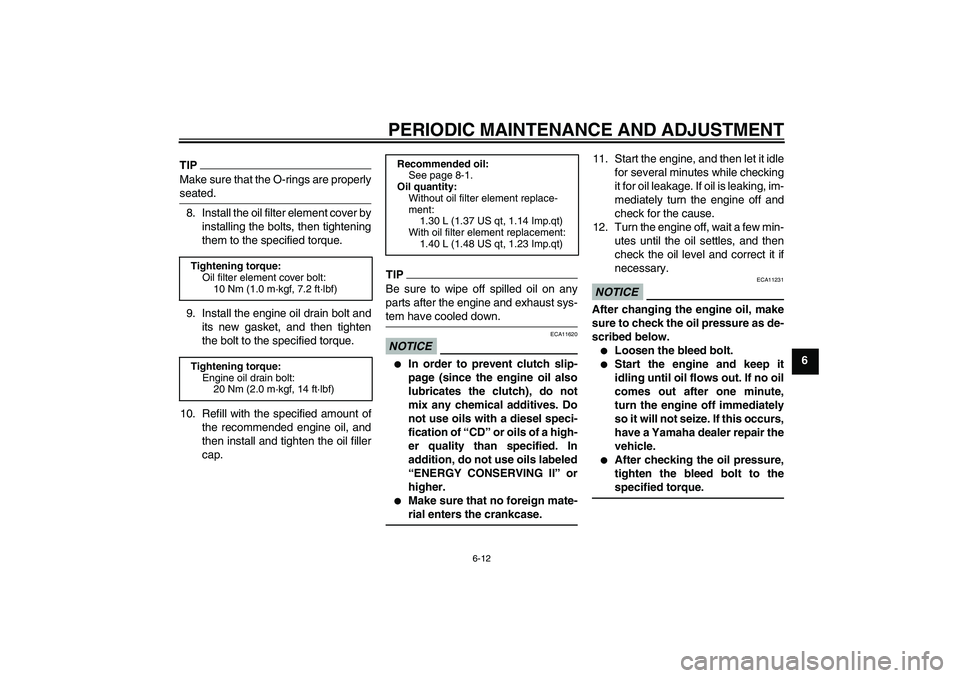

TIPMake sure that the O-rings are properly
seated.8. Install the oil filter element cover by
installing the bolts, then tightening
them to the specified torque.
9. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
10. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
11. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
12. Turn the engine off, wait a few min-
utes until the oil settles, and then
check the oil level and correct it if
necessary.NOTICE
ECA11231
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.

Loosen the bleed bolt.


Start the engine and keep it
idling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.


After checking the oil pressure,
tighten the bleed bolt to the
specified torque.
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
U32DE5E0.book Page 12 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
EAU20070

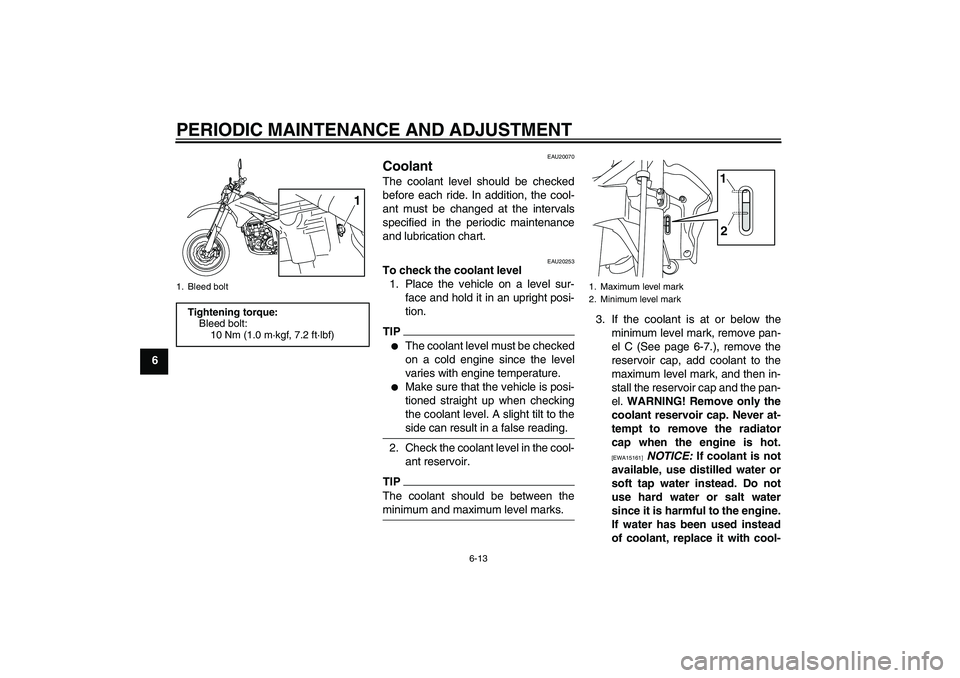

Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20253
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove pan-
el C (See page 6-7.), remove the
reservoir cap, add coolant to the
maximum level mark, and then in-
stall the reservoir cap and the pan-
el. WARNING! Remove only the
coolant reservoir cap. Never at-
tempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
1. Bleed boltTightening torque:
Bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
1. Maximum level mark
2. Minimum level mark
1
2
U32DE5E0.book Page 13 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]EAU45155

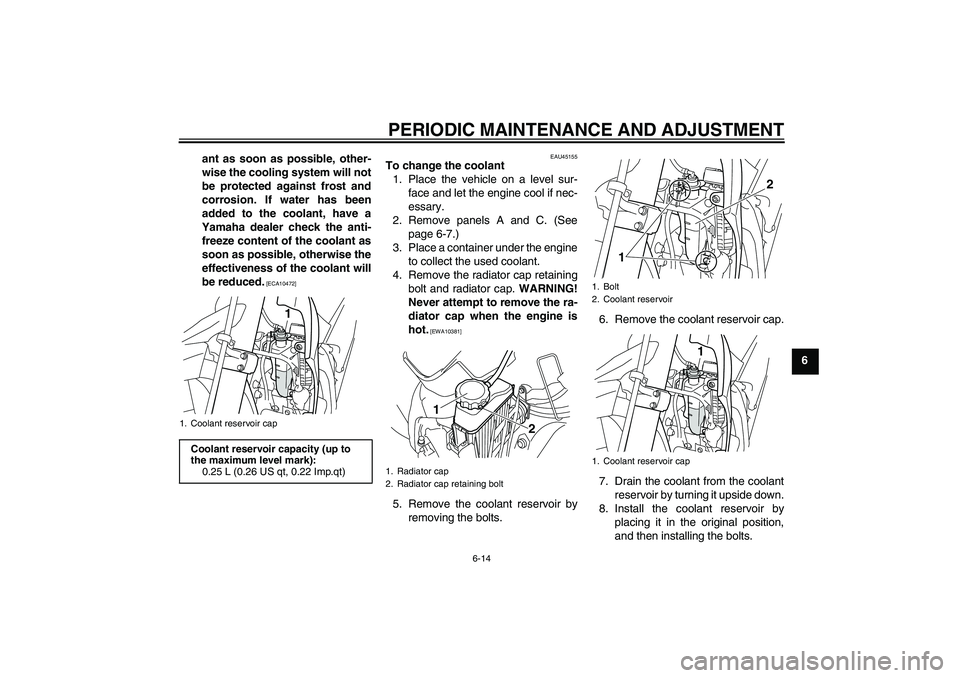

To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Remove panels A and C. (See
page 6-7.)
3. Place a container under the engine
to collect the used coolant.
4. Remove the radiator cap retaining
bolt and radiator cap. WARNING!
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA10381]
5. Remove the coolant reservoir by
removing the bolts.6. Remove the coolant reservoir cap.
7. Drain the coolant from the coolant
reservoir by turning it upside down.
8. Install the coolant reservoir by
placing it in the original position,
and then installing the bolts.
1. Coolant reservoir capCoolant reservoir capacity (up to
the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
2. Radiator cap retaining bolt
2 1
1. Bolt
2. Coolant reservoir
1. Coolant reservoir cap
12
1
U32DE5E0.book Page 14 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15

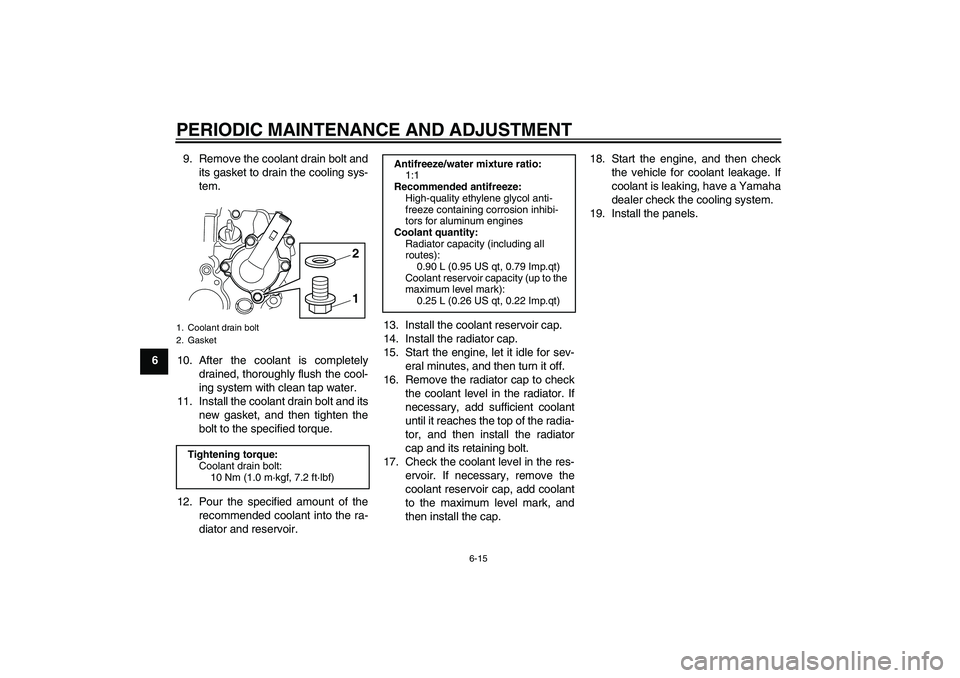

69. Remove the coolant drain bolt and
its gasket to drain the cooling sys-
tem.
10. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant drain bolt and its
new gasket, and then tighten the
bolt to the specified torque.
12. Pour the specified amount of the
recommended coolant into the ra-
diator and reservoir.13. Install the coolant reservoir cap.
14. Install the radiator cap.
15. Start the engine, let it idle for sev-
eral minutes, and then turn it off.
16. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap and its retaining bolt.
17. Check the coolant level in the res-
ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.18. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
19. Install the panels.
1. Coolant drain bolt
2. GasketTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
12
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibi-
tors for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
0.90 L (0.95 US qt, 0.79 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
U32DE5E0.book Page 15 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
EAU44323

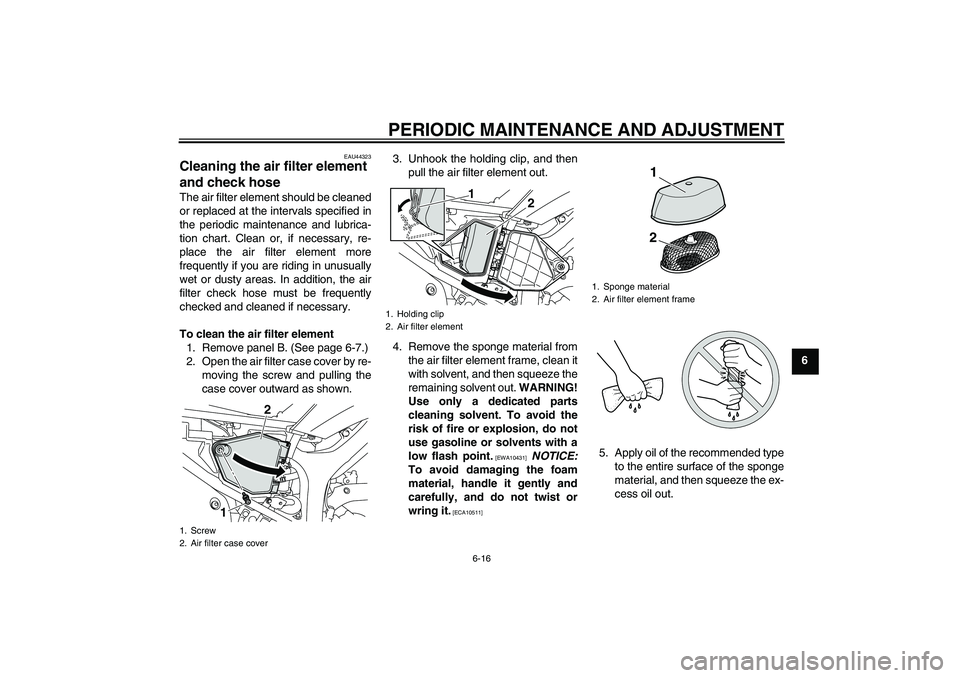

Cleaning the air filter element
and check hose The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas. In addition, the air
filter check hose must be frequently
checked and cleaned if necessary.
To clean the air filter element
1. Remove panel B. (See page 6-7.)
2. Open the air filter case cover by re-
moving the screw and pulling the
case cover outward as shown.3. Unhook the holding clip, and then
pull the air filter element out.
4. Remove the sponge material from
the air filter element frame, clean it
with solvent, and then squeeze the
remaining solvent out. WARNING!
Use only a dedicated parts
cleaning solvent. To avoid the
risk of fire or explosion, do not
use gasoline or solvents with a
low flash point.
[EWA10431]
NOTICE:
To avoid damaging the foam
material, handle it gently and
carefully, and do not twist or
wring it.
[ECA10511]
5. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
1. Screw
2. Air filter case cover
2
1
1. Holding clip
2. Air filter element
1
2
1. Sponge material
2. Air filter element frame
1
2
U32DE5E0.book Page 16 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
TIPThe sponge material should be wet but
not dripping.6. Pull the sponge material over the
air filter element frame.
7. Insert the air filter element into the
air filter case. NOTICE: Make sure
that the air filter element is prop-
erly seated in the air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10481]
8. Place the holding clip in the origi-
nal position.
9. Close the air filter case cover, and
then install the screw.

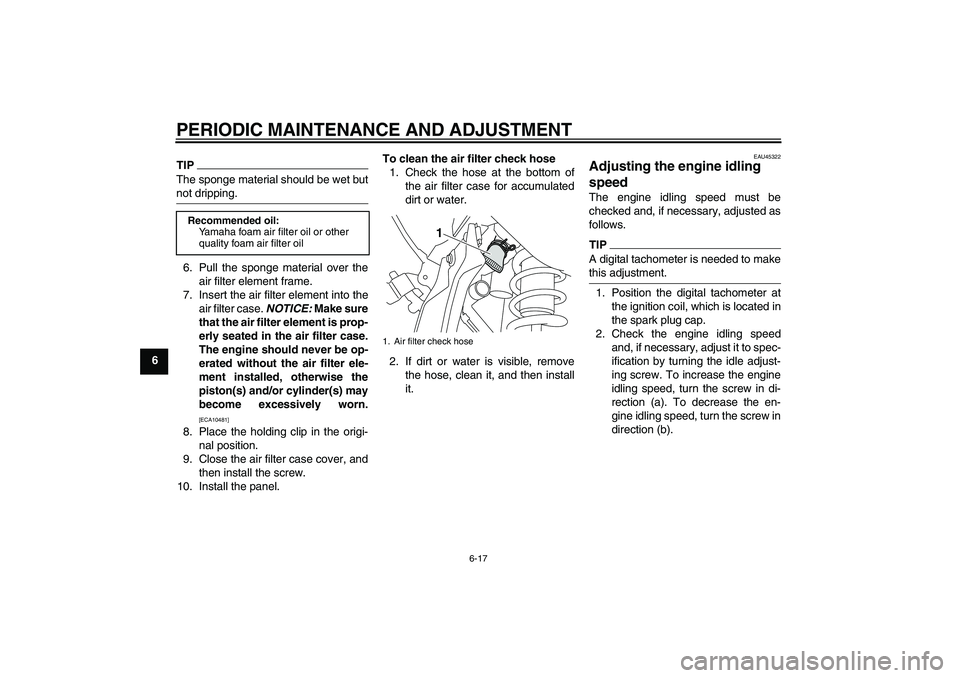

10. Install the panel.To clean the air filter check hose
1. Check the hose at the bottom of
the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove
the hose, clean it, and then install
it.
EAU45322
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows.TIPA digital tachometer is needed to make
this adjustment.1. Position the digital tachometer at
the ignition coil, which is located in
the spark plug cap.
2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the idle adjust-
ing screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Air filter check hose
1
U32DE5E0.book Page 17 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
TIPIf the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
EAU21383
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle cable free play
and, if necessary, have a Yamaha deal-
er adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.

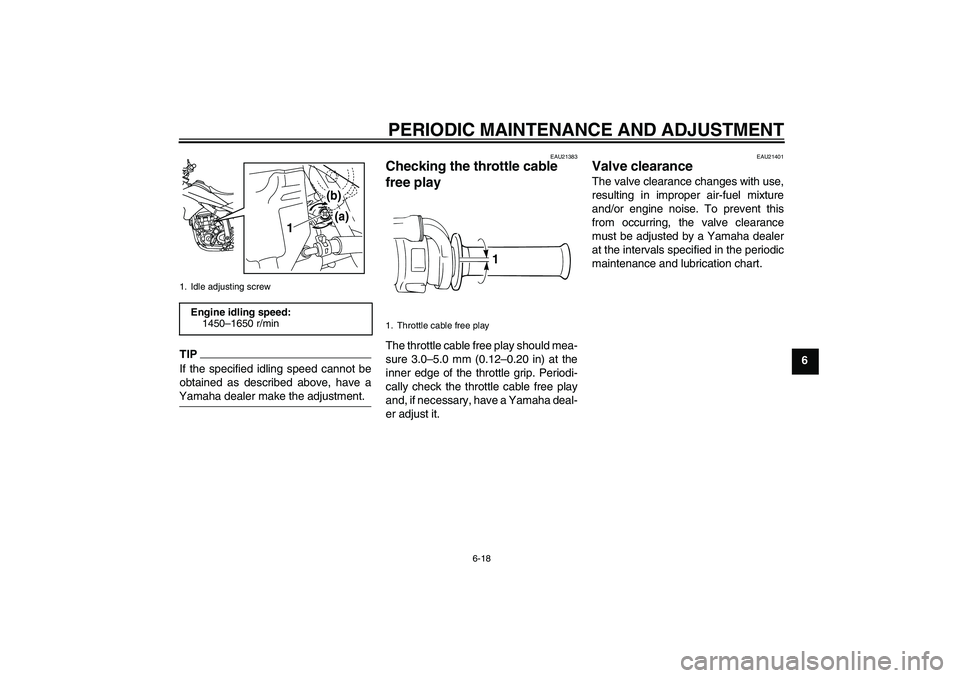

1. Idle adjusting screwEngine idling speed:
1450–1650 r/min
1
(b)
(a)
1. Throttle cable free play
1
U32DE5E0.book Page 18 Thursday, January 7, 2010 9:40 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU21641

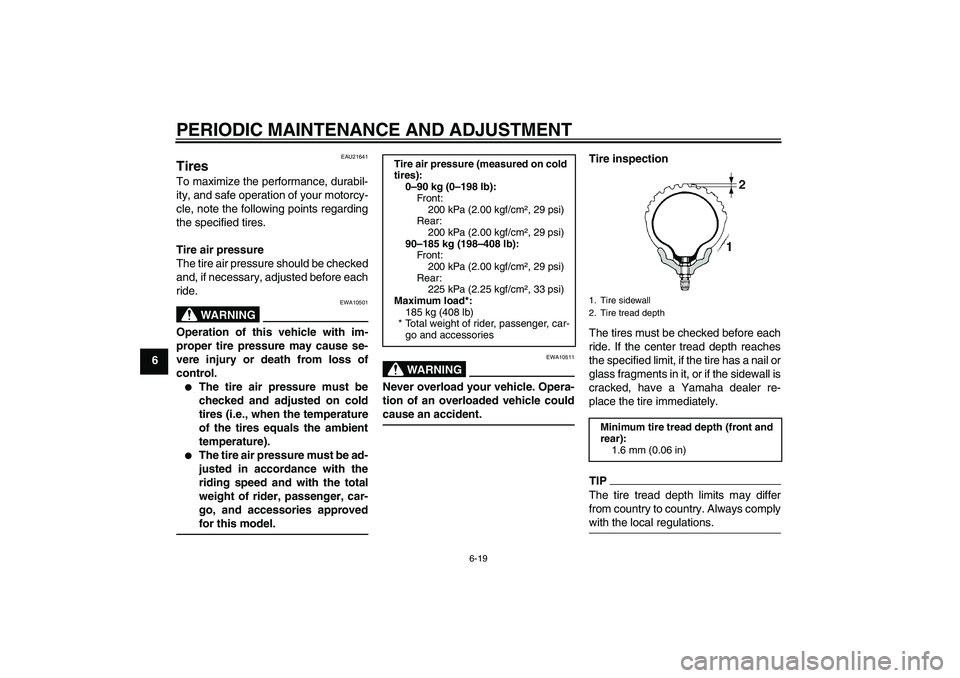

Tires To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10501
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle could
cause an accident.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.TIPThe tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
200 kPa (2.00 kgf/cm², 29 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
90–185 kg (198–408 lb):
Front:
200 kPa (2.00 kgf/cm², 29 psi)
Rear:
225 kPa (2.25 kgf/cm², 33 psi)
Maximum load*:
185 kg (408 lb)
* Total weight of rider, passenger, car-
go and accessories
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
U32DE5E0.book Page 19 Thursday, January 7, 2010 9:40 AM
