YAMAHA WR 250X 2012 Owners Manual

8-1
2
3
4
5
6
789
SPECIFICATIONS
EAU50915
Dimensions:Overall length: 2115 mm (83.3 in)
Overall width: 810 mm (31.9 in)
Overall height: 1190 mm (46.9 in)
Seat height:
895 mm (35.2 in)
Wheelbase: 1425 mm (56.1 in)
Ground clearance: 265 mm (10.43 in)
Minimum turning radius:
2300 mm (90.6 in)Weight:Curb weight: 136 kg (300 lb)Engine:Engine type: Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Single cylinder
Displacement:
250 cm
3
Bore  stroke:
77.0  53.6 mm (3.03  2.11 in)
Compression ratio: 11.80 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter element replacement:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement: 1.40 L (1.48 US qt, 1.23 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 0.90 L (0.95 US qt, 0.79 Imp.qt)Air filter:Air filter element:
Wet element
Fuel:Recommended fuel: Premium unleaded gasoline only
Fuel tank capacity: 8.0 L (2.11 US gal, 1.76 Imp.gal)
Fuel reserve amount: 2.1 L (0.55 US gal, 0.46 Imp.gal)Fuel injection:Throttle body:ID mark:
3D71 10Spark plug(s):Manufacturer/model: NGK/CR9EK
Spark plug gap:
0.6 –0.7 mm (0.024 –0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio: 3.120 (78/25)
Final drive: Chain
Secondary reduction ratio:
3.231 (42/13)
Transmission type: Constant mesh 6-speed
Operation: Left foot operation
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
32D-9-E9-E0.book 1 ページ ２０１１年６月２９日　水曜日　午前１１時３４分

SPECIFICATIONS
8-2
1
2
3
4
5
6
78
9
Gear ratio:1st: 2.642 (37/14)
2nd: 1.813 (29/16)
3rd:
1.318 (29/22)
4th: 1.040 (26/25)
5th: 0.889 (24/27)
6th:
0.786 (22/28)Chassis:Frame type: Semi double cradle
Caster angle:
25.33 
Trail: 76 mm (3.0 in)Front tire:Type:
With tube
Size: 110/70R17M/C 54H
Manufacturer/model: BRIDGESTONE/BT090F RADIAL GRear tire:Type: With tube
Size: 140/70R17M/C 66H
Manufacturer/model:
BRIDGESTONE/BT090R RADIAL G
Loading:Maximum load: 185 kg (408 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):Loading condition: 0–90 kg (0 –198 lb)
Front: 200 kPa (2.00 kgf/cm
2, 29 psi)
Rear:
200 kPa (2.00 kgf/cm2, 29 psi)
Loading condition: 90–185 kg (198 –408 lb)
Front: 200 kPa (2.00 kgf/cm2, 29 psi)
Rear:
225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type: Spoke wheel
Rim size:
17M/C x MT3.00Rear wheel:Wheel type: Spoke wheel
Rim size:
17M/C x MT4.00Front brake:Type: Single disc brake
Operation:
Right hand operation Specified brake fluid:
DOT 4
Rear brake:Type: Single disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type: Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 270.0 mm (10.63 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 265.0 mm (10.43 in)Electrical system:Ignition system: TCI
Charging system: AC magnetoBattery:Model: YTZ7S
Voltage, capacity: 12 V, 6.0 Ah
32D-9-E9-E0.book 2 ページ ２０１１年６月２９日　水曜日　午前１１時３４分

SPECIFICATIONS
8-3
2
3
4
5
6
789
Headlight:Bulb type: Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 60 W/55 W
Tail/brake light:
LED
Front turn signal light: 12 V, 10.0 W  2
Rear turn signal light: 12 V, 10.0 W  2
Auxiliary light:
12 V, 5.0 W  1
License plate light: 12 V, 5.0 W  1
Meter lighting: EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light: LED
Turn signal indicator light: LED
Fuel level warning light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LEDFuses:Main fuse: 30.0 A Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 7.5 A
Radiator fan fuse: 7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse: 7.5 A
32D-9-E9-E0.book 3 ページ ２０１１年６月２９日　水曜日　午前１１時３４分

9-1
1
2
3
4
5
6
7
89

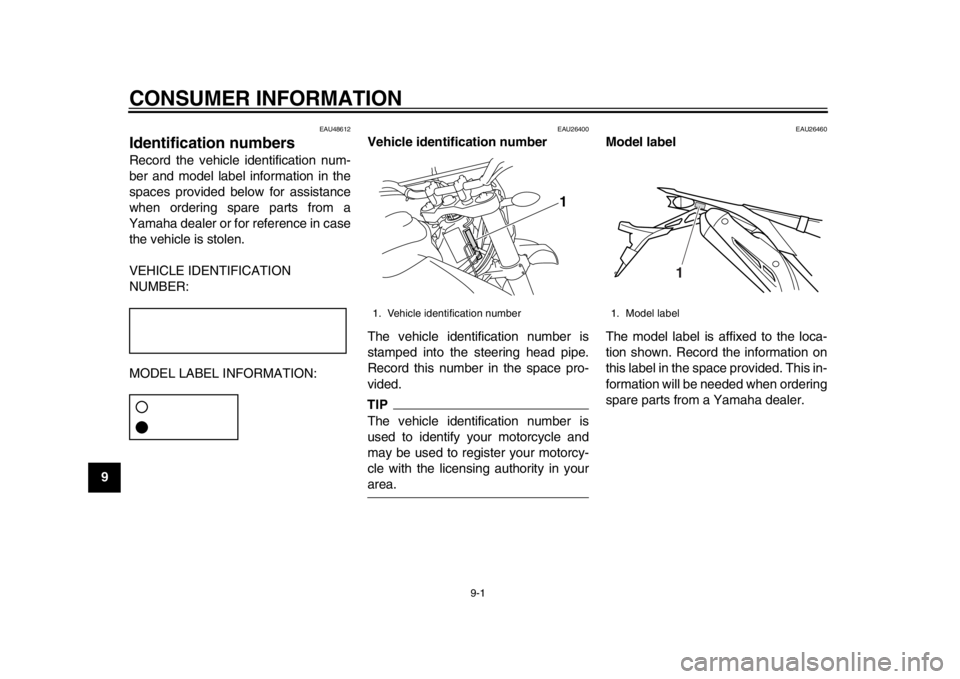

CONSUMER INFORMATION
EAU48612
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26460
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
32D-9-E9-E0.book 1 ページ ２０１１年６月２９日　水曜日　午前１１時３４分

INDEX
AAir filter element and check hose,
cleaning ................................................. 6-17
Auxiliary light bulb, replacing ................... 6-38BBattery ..................................................... 6-32
Brake and clutch levers, checking and lubricating .............................................. 6-29
Brake fluid, changing ............................... 6-26
Brake fluid level, checking ....................... 6-25
Brake lever .............................................. 3-10
Brake lever free play, adjusting ............... 6-23
Brake light switches ................................. 6-24
Brake pedal ............................................. 3-10
Brake pedal, checking and lubricating ..... 6-30CCables, checking and lubricating ............. 6-29
Care ........................................................... 7-1
Catalytic converter ................................... 3-13
Clutch lever................................................ 3-9
Clutch lever free play, adjusting .............. 6-22
Coolant .................................................... 6-14
Coolant temperature warning light............. 3-2DDimmer switch ........................................... 3-9
Drive chain, cleaning and lubricating ....... 6-28
Drive chain slack ..................................... 6-27EEngine break-in ......................................... 5-3
Engine idling speed ................................. 6-19
Engine oil and oil filter element................ 6-12
Engine stop switch..................................... 3-9
Engine trouble warning light ...................... 3-3
EXUP system .......................................... 3-18
FFront and rear brake pads, checking ...... 6-25
Front fork, adjusting ................................ 3-14
Front fork, bleeding ................................. 3-16
Front fork, checking................................. 6-31
Fuel ......................................................... 3-11
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap........................................... 3-11
Fuses, replacing ...................................... 6-34HHandlebar switches ................................... 3-8
Headlight bulb, replacing......................... 6-35
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ............................................... 3-9IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator lights and warning lights ............. 3-2LLicense plate light bulb, replacing ........... 6-37MMain switch/steering lock .......................... 3-1
Maintenance and lubricatio n, periodic....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display................................. 3-3NNeutral indicator light ................................ 3-2PPanels, removing and installing ................ 6-8
Parking ...................................................... 5-4 Part locations .............................................2-1
SSafety information ......................................1-1
Seat ......................................................... 3-13
Shifting .......................................................5-2
Shift pedal ................................................3-10
Shift pedal, checking................................ 6-24
Shock absorber assembly, adjusting .......3-17
Sidestand .................................................3-19
Sidestand, checking and lubricating ........6-30
Spark plug, checking ............................... 6-11
Specifications.............................................8-1
Starting the engine.....................................5-1
Start switch ................................................3-9
Steering, checking ................................... 6-32
Storage ......................................................7-3
Supporting the motorcycle .......................6-38
Swingarm pivots, lubricating .................... 6-31TTail/brake light ......................................... 6-36
Throttle grip and cable, checking and
lubricating ..............................................6-29
Throttle grip free play, checking............... 6-19
Tires ......................................................... 6-20
Tool kit .......................................................6-2
Troubleshooting ....................................... 6-41
Troubleshooting charts ............................6-43
Turn signal indicator light ...........................3-2
Turn signal light bul b, replacing ............... 6-36
Turn signal switch ......................................3-9VValve clearance ....................................... 6-20
Vehicle identificat ion number .....................9-1
32D-9-E9-E0.book 2 ページ ２０１１年６月２９日　水曜日　午前１１時３４分

INDEXWWheel bearings, checking ........................6-32
Wheel (front) ............................................6-39
Wheel (rear) .............................................6-40
Wheels .....................................................6-22
