YAMAHA WR 250X 2014 Repair Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
2
3
4
567
8
9
EAU45323
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted as
follows.TIPA digital tachometer is needed to makethis adjustment.1. Position the digital tachometer at the ignition coil, which is located in
the spark plug cap.
2. Check the engine idling speed and, if necessary, adjust it to spec-
ification by turning the idle adjust-
ing screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21385
Checking the throttle grip free
playThe throttle grip free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha
dealer adjust it.

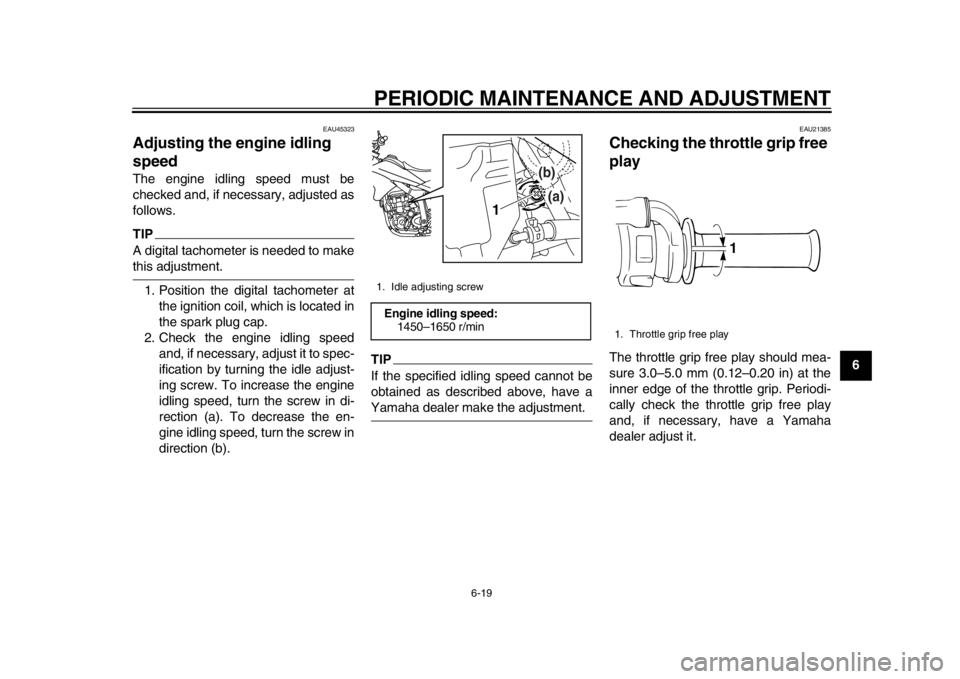

1. Idle adjusting screwEngine idling speed:1450–1650 r/min
1
(b)
(a)
1. Throttle grip free play
1
32D-28199-EB.book 19 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
1
2
3
4
56
7
8
9
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21645
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
riding speed and with the totalweight of rider, passenger, car-
go, and accessories approved
for this model.WARNING
EWA10512
Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident.Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):Front:200 kPa (2.00 kgf/cm
2, 29 psi)
Rear: 200 kPa (2.00 kgf/cm2, 29 psi)
90–185 kg (198–408 lb):
Front:200 kPa (2.00 kgf/cm2, 29 psi)
Rear:
225 kPa (2.25 kgf/cm2, 33 psi)
Maximum load*: 185 kg (408 lb)
* Total weight of rider, passenger, car- go and accessories
32D-28199-EB.book 20 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
2
3
4
567
8
9
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations. Tire information
This motorcycle is equipped with tube
tires.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10462
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, whichcould lead to an accident.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA10572

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the mo-
torcycle with excessively worn
tires decreases riding stability
and can lead to loss of control.

The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.

It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
Front tire:Size:110/70R17M/C 54H
Manufacturer/model:
BRIDGESTONE/BT090F RADIAL
G
Rear tire:
Size:140/70R17M/C 66H
Manufacturer/model:
BRIDGESTONE/BT090R RADIAL
G
32D-28199-EB.book 21 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
1
2
3
4
56
7
8
9very carefully and replace it as
soon as possible with a
high-quality product.

Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimalcharacteristics.
EAU21944
Spoke wheels
WARNING
EWA10611
The wheels on this model are not de-
signed for use with tubeless tires.
Do not attempt to use tubeless tireson this model.
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage, and the spokes for
looseness or damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.

The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short- ened tire life.
32D-28199-EB.book 22 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
2
3
4
567
8
9
EAU48374
Adjusting the clutch lever free
playThe clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.1. Slide the rubber cover back at the clutch lever.
2. Loosen the locknut.
3. To increase the clutch lever free play, turn the clutch lever free play
adjusting bolt in direction (a). To
decrease the clutch lever free play,
turn the adjusting bolt in direction
(b).
TIPIf the specified clutch lever free play
could be obtained as described above,skip steps 4–7.
4. Fully turn the adjusting bolt in di- rection (a) to loosen the clutch ca-
ble.
5. Slide the rubber cover back further down the clutch cable, and then
loosen the locknut.
6. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play, turn the adjusting nut in direction
(b).
7. Tighten the locknut at the clutch cable, and then slide the rubber
cover to its original position.
8. Tighten the locknut at the clutch le- ver, and then slide the rubber cov-

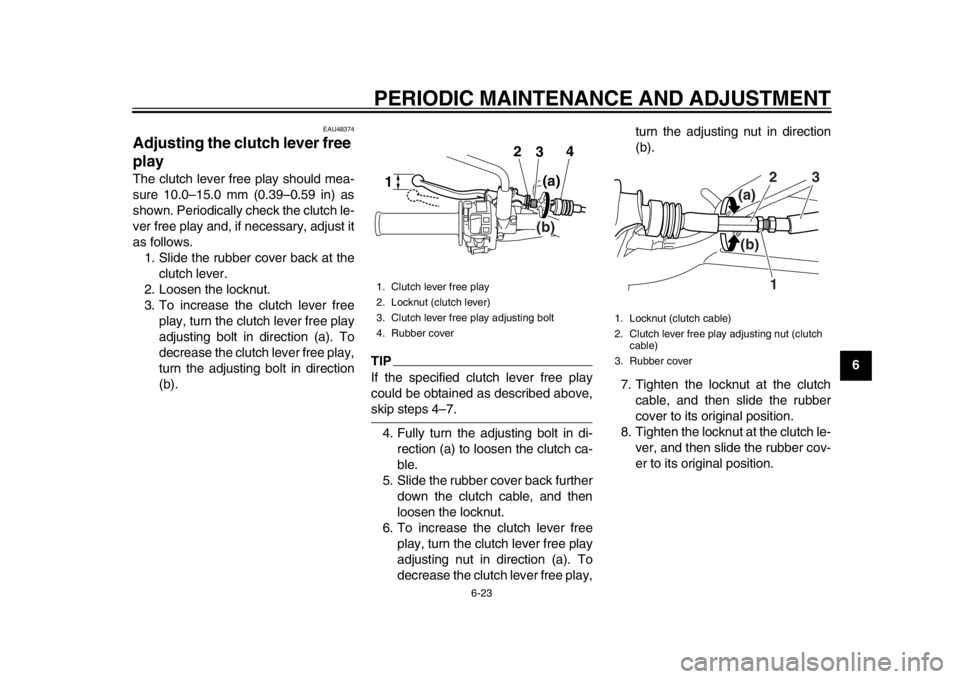

er to its original position.1. Clutch lever free play
2. Locknut (clutch lever)
3. Clutch lever free play adjusting bolt
4. Rubber cover
3
2
1
4
(a)(b)
1. Locknut (clutch cable)
2. Clutch lever free play adjusting nut (clutch
cable)
3. Rubber cover
1
2
3
(a)
(b)
32D-28199-EB.book 23 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
1
2
3
4
56
7
8
9
EAU48443
Adjusting the brake lever free
playThe brake lever free play should mea-
sure 5.0–8.0 mm (0.20–0.31 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.1. Slide the rubber cover back at the brake lever.
2. Loosen the locknut.
3. To increase the brake lever free play, turn the brake lever free play
adjusting screw in direction (a). To
decrease the brake lever free play,
turn the adjusting screw in direc-
tion (b). 4. Tighten the locknut, and then slide
the rubber cover back to its original
position.
WARNING
EWA10631

After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.

A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-
trol and an accident.

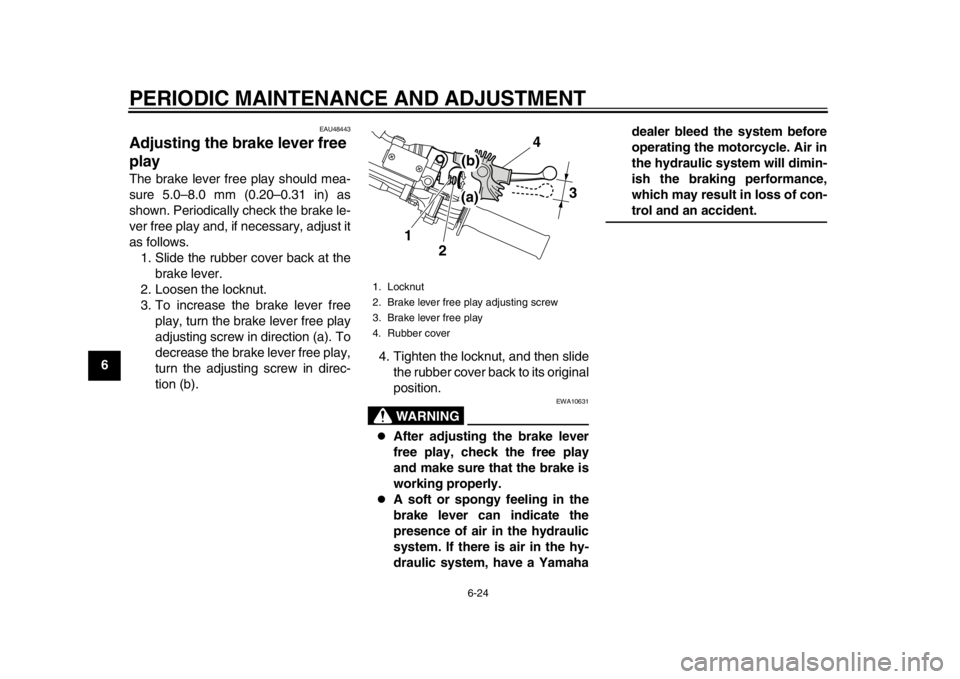

1. Locknut
2. Brake lever free play adjusting screw
3. Brake lever free play
4. Rubber cover
3
1
2
4
(b)
(a)
32D-28199-EB.book 24 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
2
3
4
567
8
9
EAU44821
Checking the shift pedalThe operation of the shift pedal should
be checked before each ride. If opera-
tion is not smooth, have a Yamaha
dealer check the vehicle.
EAU22274
Brake light switchesThe brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22393
Checking the front and rear
brake padsThe front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22431
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator grooves have almost disap-

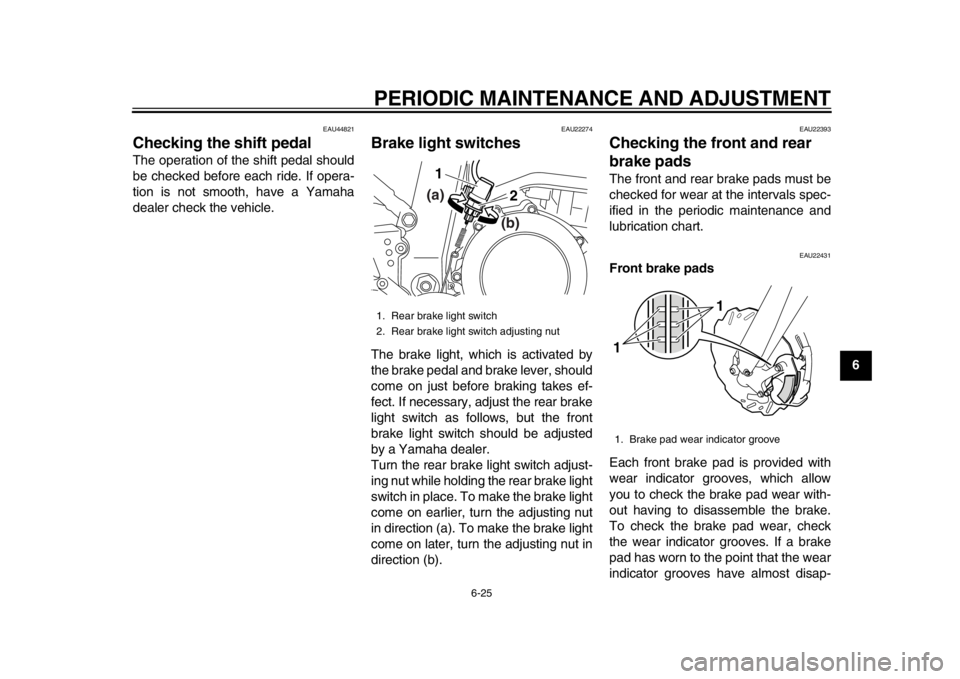

1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2(b)
(a)

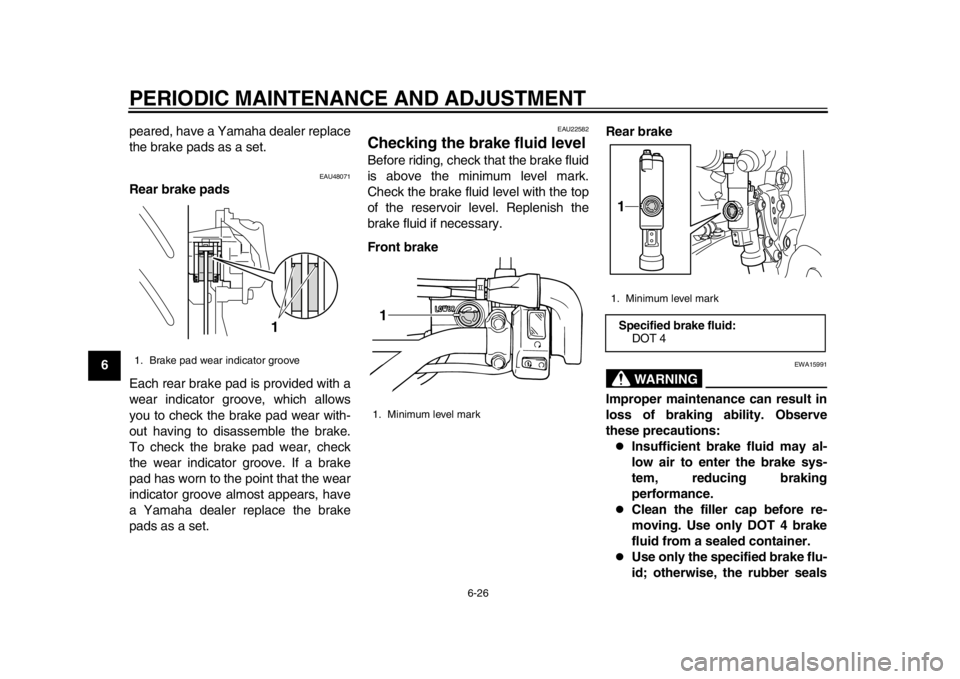

1. Brake pad wear indicator groove1 1
32D-28199-EB.book 25 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
1
2
3
4
56
7
8
9peared, have a Yamaha dealer replace
the brake pads as a set.
EAU48071
Rear brake pads
Each rear brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU22582
Checking the brake fluid levelBefore riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
Rear brake
WARNING
EWA15991
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.

Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.

Use only the specified brake flu-
id; otherwise, the rubber seals
1. Brake pad wear indicator groove
1
1. Minimum level mark1
1. Minimum level markSpecified brake fluid:
DOT 41
32D-28199-EB.book 26 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
2
3
4
567
8
9
may deteriorate, causing leak-
age.

Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.

Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vaporlock.
NOTICE
ECA17641
Brake fluid may damage painted sur-
faces or plastic parts. Always cleanup spilled fluid immediately.
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake sys-
tem leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. If the brake
fluid level goes down suddenly, have a
Yamaha dealer check the cause before
further riding.
EAU22733
Changing the brake fluidHave a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the master cylinders and calipers as
well as the brake hoses replaced at the
intervals listed below or whenever they
are damaged or leaking.
Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
EAU22762
Drive chain slackThe drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU47223
To check the drive chain slack
1. Place the motorcycle on the sides- tand.TIPWhen checking and adjusting the drive
chain slack, ther e should be no weighton the motorcycle.
2. Shift the transmission into the neu- tral position.
3. Push on the drive chain at the cen- ter point between the chain ten-
sioner and the chain support
mounting bolt with a force of 50 N
(5.0 kgf, 11 lbf).
4. Measure drive chain slack be- tween the swingarm and the top of
the chain link closest to the swing-
arm as shown.
Drive chain slack:8.0–13.0 mm (0.31–0.51 in)
32D-28199-EB.book 27 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
1
2
3
4
56
7
8
95. If the drive chain slack is incorrect,
adjust it as follows.
EAU34318
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.1. Loosen the axle nut and the lock- nut on each side of the swingarm.
2. To tighten the drive chain, turn the drive chain slack adjusting bolt on
each side of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt on each side
of the swingarm in direction (b),
and then push the rear wheel for- ward.
NOTICE: Improper drive
chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10572]
TIPUsing the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the sameposition for proper wheel alignment. 3. Tighten the axle nut, then the lock-
nuts to their specified torques.
4. Make sure that the drive chain pull- ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.

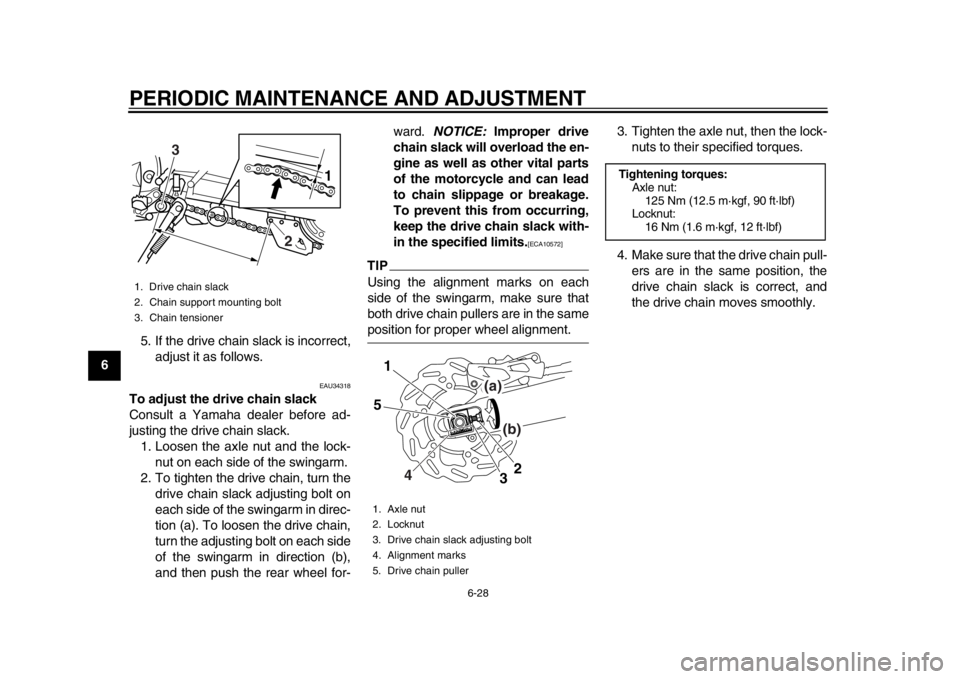

1. Drive chain slack
2. Chain support mounting bolt
3. Chain tensioner
1
3
2
1. Axle nut
2. Locknut
3. Drive chain slack adjusting bolt
4. Alignment marks
5. Drive chain puller15
32
4
(b)
(a)
Tightening torques:
Axle nut:125 Nm (12.5 m·kgf, 90 ft·lbf)
Locknut: 16 Nm (1.6 m·kgf, 12 ft·lbf)
32D-28199-EB.book 28 ページ ２０１３年７月３日　水曜日　午前１１時８分
