coolant reservoir YAMAHA WR 250X 2014 Owners Manual

2-1
12
DESCRIPTION
EAU10411

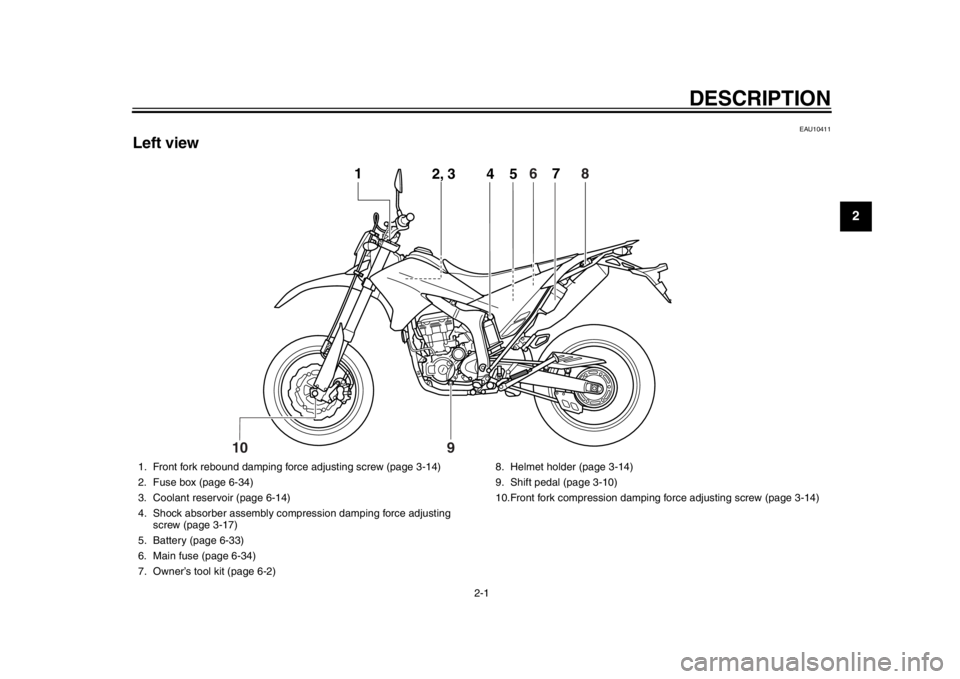

Left view
4
5
1
2, 3
67
8
10
9
1. Front fork rebound damping force adjusting screw (page 3-14)
2. Fuse box (page 6-34)
3. Coolant reservoir (page 6-14)
4. Shock absorber assembly compression damping force adjusting screw (page 3-17)
5. Battery (page 6-33)
6. Main fuse (page 6-34)
7. Owner’s tool kit (page 6-2) 8. Helmet holder (page 3-14)
9. Shift pedal (page 3-10)
10.Front fork compression damping
force adjusting screw (page 3-14)
32D-28199-EB.book 1 ページ ２０１３年７月３日　水曜日　午前１１時８分

4-1
1
2
34
5
6
7
8
9
FOR YOUR SAFETY – PRE-OPERATION CHECKS
EAU15598
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage. 3-11
Engine oil Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage. 6-12
Coolant Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage. 6-14
Front brake Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check lever free play.
Adjust if necessary.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add specified brake fluid to specified level.
Check hydraulic system for leakage. 6-24, 6-26
32D-28199-EB.book 1 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
1
2
3
4
56
7
8
9it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
12. Turn the engine off, wait a few min- utes until the oil settles, and then
check the oil level and correct it if
necessary.
NOTICE
ECA11232
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.
Loosen the bleed bolt.

Start the engine and keep it
idling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.

After checking the oil pressure,
tighten the bleed bolt to thespecified torque.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20255
To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool- ant reservoir.
TIPThe coolant should be between theminimum and maximum level marks.
1. Bleed boltTightening torque:Bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
32D-28199-EB.book 14 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
2
3
4
567
8
9
3. If the coolant is at or below the
minimum level mark, remove pan-
el C (See page 6-8.), remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the reservoir cap and
the panel. WARNING! Remove
only the coolant reservoir cap.
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA15162]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
EAU45156
To change the coolant1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove panels A and C. (See page 6-8.)
3. Place a container under the engine to collect the used coolant.
4. Remove the radiator cap retaining bolt and radiator cap. WARNING!
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA10382]
5. Remove the coolant reservoir by removing the bolts.
1. Maximum level mark
2. Minimum level mark
1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
2. Radiator cap retaining bolt
2
1
32D-28199-EB.book 15 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
1
2
3
4
56
7
8
96. Remove the coolant reservoir cap.
7. Drain the coolant from the coolant
reservoir by turning it upside down.
8. Install the coolant reservoir by placing it in the original position, and then installing the bolts.
9. Remove the coolant drain bolt and its gasket to drain the cooling sys-
tem.
10. After the coolant is completely drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
12. Pour the specified amount of the recommended coolant into the ra- diator and reservoir.
13. Install the coolant reservoir cap.
14. Install the radiator cap.
15. Start the engine, let it idle for sev- eral minutes, and then turn it off.
16. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap and its retaining bolt.
17. Check the coolant level in the res- ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
1. Bolt
2. Coolant reservoir
1. Coolant reservoir cap
1 2
1
1. Coolant drain bolt
2. GasketTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity: Radiator capacity (including all
routes):0.90 L (0.95 US qt, 0.79 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
32D-28199-EB.book 16 ページ ２０１３年７月３日　水曜日　午前１１時８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-44
1
2
3
4
56
7
8
9Engine overheating
WARNING
EWA10401

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily us
ed instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
32D-28199-EB.book 44 ページ ２０１３年７月３日　水曜日　午前１１時８分

8-1
2
3
4
5
6
789
SPECIFICATIONS
EAU5091D
Dimensions:Overall length:2115 mm (83.3 in)
Overall width: 810 mm (31.9 in)
Overall height: 1190 mm (46.9 in)
Seat height:
895 mm (35.2 in)
Wheelbase: 1425 mm (56.1 in)
Ground clearance: 265 mm (10.43 in)
Minimum turning radius:
2300 mm (90.6 in)Weight:Curb weight:136 kg (300 lb)Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Single cylinder
Displacement:
250 cm
3
Bore  stroke:
77.0  53.6 mm (3.03  2.11 in)
Compression ratio: 11.80 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter element replacement:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement: 1.40 L (1.48 US qt, 1.23 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
0.90 L (0.95 US qt, 0.79 Imp.qt)
Air filter:Air filter element:Wet elementFuel:Recommended fuel:Premium unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity: 8.0 L (2.11 US gal, 1.76 Imp.gal)
Fuel reserve amount:
2.1 L (0.55 US gal, 0.46 Imp.gal)Fuel injection:Throttle body:ID mark:3D71 10Spark plug(s):Manufacturer/model:
NGK/CR9EK
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:3.120 (78/25)
Final drive:
Chain
Secondary reduction ratio: 3.231 (42/13)
Transmission type: Constant mesh 6-speed
Operation:
Left foot operation
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
