Page 592 of 754

YAMAHA WR 450F 2004  Owners Manual 5 - 44
CHASHANDLEBAR
8. Install:
Start switch 1
Master cylinder 2
Master cylinder bracket 3
Bolt (master cylinder bracket) 4
Clamp 5
NOTE:
The start switch and master cylinder bracket
shoul

Page 593 of 754

YAMAHA WR 450F 2004  Owners Manual 5 - 44

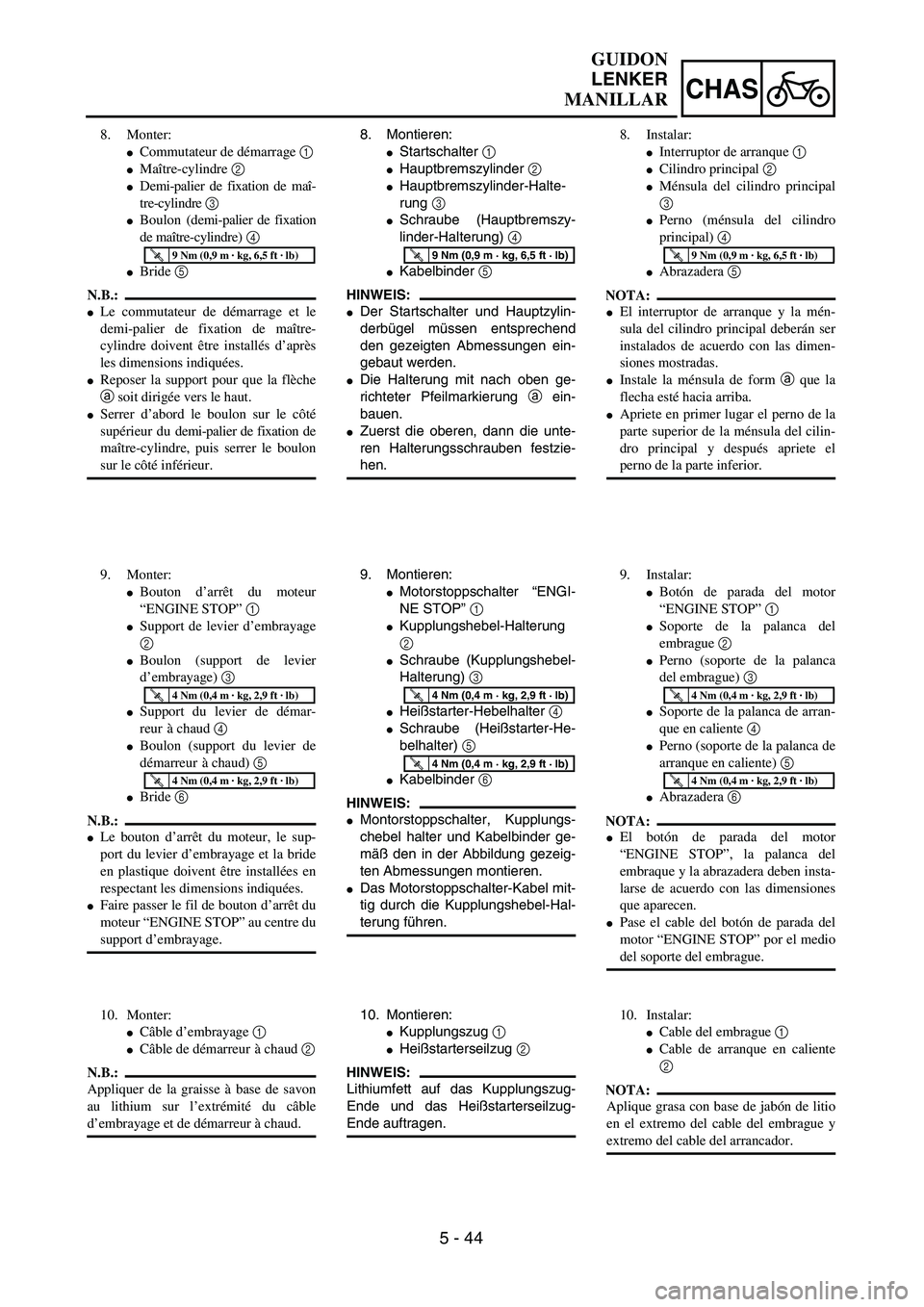

CHAS
GUIDON
LENKER
MANILLAR
8. Montieren:
Startschalter 1
Hauptbremszylinder 2
Hauptbremszylinder-Halte-
rung 3
Schraube (Hauptbremszy-
linder-Halterung) 4
Kabelbinder 5
HINWEIS:
Der

Page 596 of 754

YAMAHA WR 450F 2004  Owners Manual 5 - 46
CHAS
EC560000

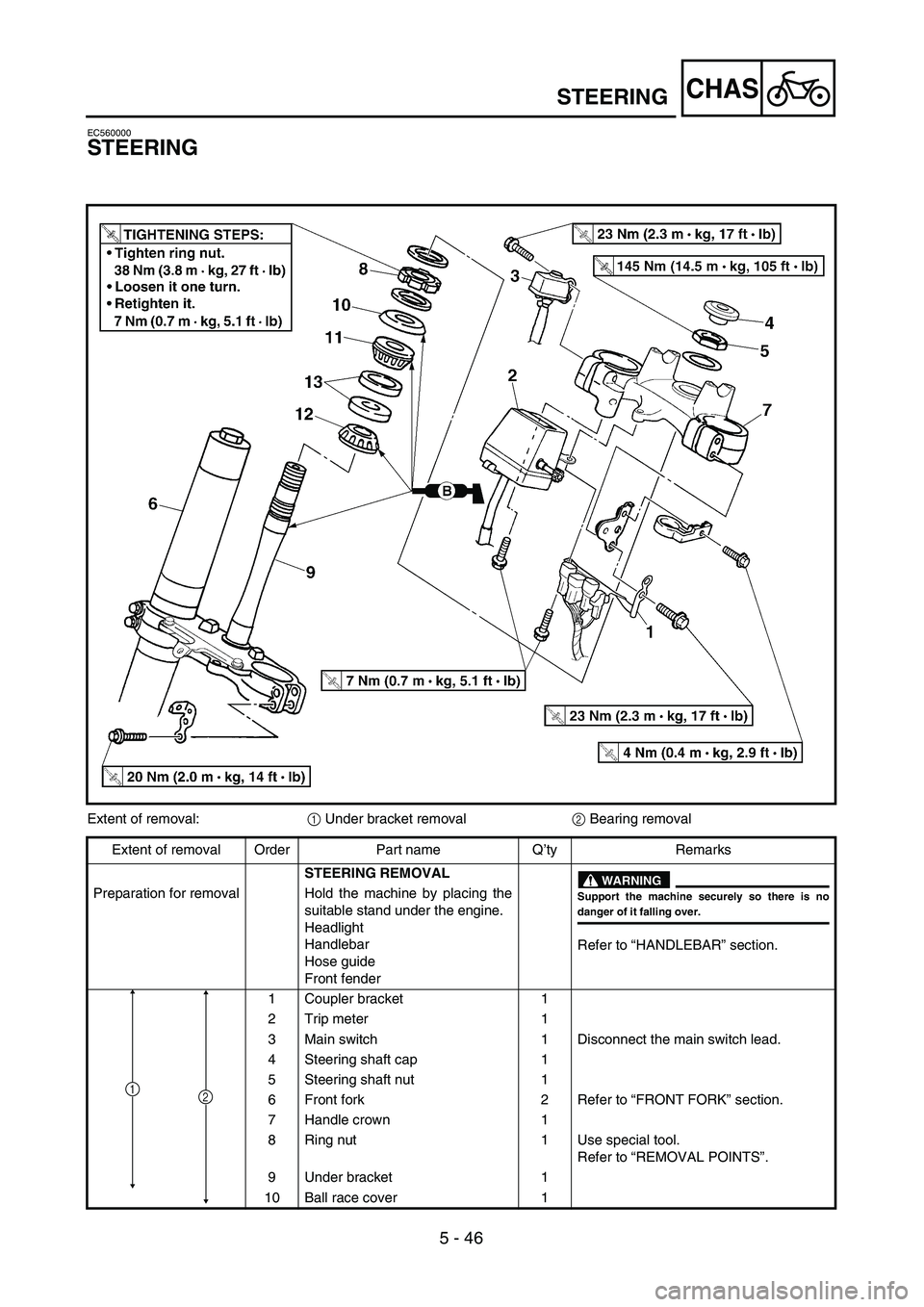

STEERING
Extent of removal:1 Under bracket removal2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNINGSupport the machine securely so there

Page 608 of 754

YAMAHA WR 450F 2004  Owners Manual 5 - 52
CHASSWINGARM
EC570000
SWINGARM
Extent of removal:1 Swingarm removal
Extent of removal Order Part name Q’ty Remarks
SWINGARM REMOVAL
WARNINGSupport the machine securely so there is no
danger o

Page 624 of 754

YAMAHA WR 450F 2004  Owners Manual 5 - 60

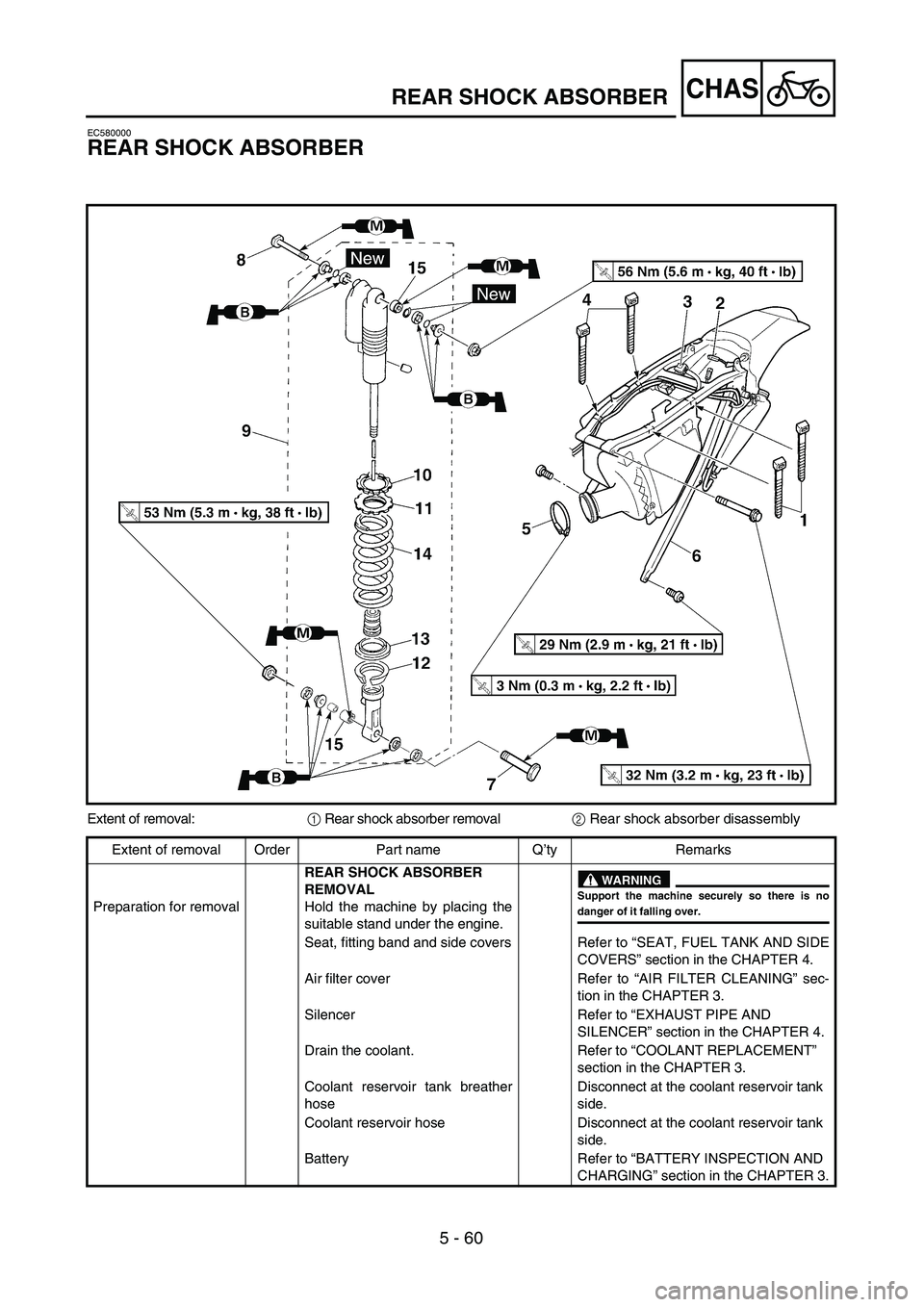

CHASREAR SHOCK ABSORBER
EC580000
REAR SHOCK ABSORBER
Extent of removal:1 Rear shock absorber removal2 Rear shock absorber disassembly
Extent of removal Order Part name Q’ty Remarks
Preparatio

Page 642 of 754

YAMAHA WR 450F 2004  Owners Manual
6 - 1
–+ELEC

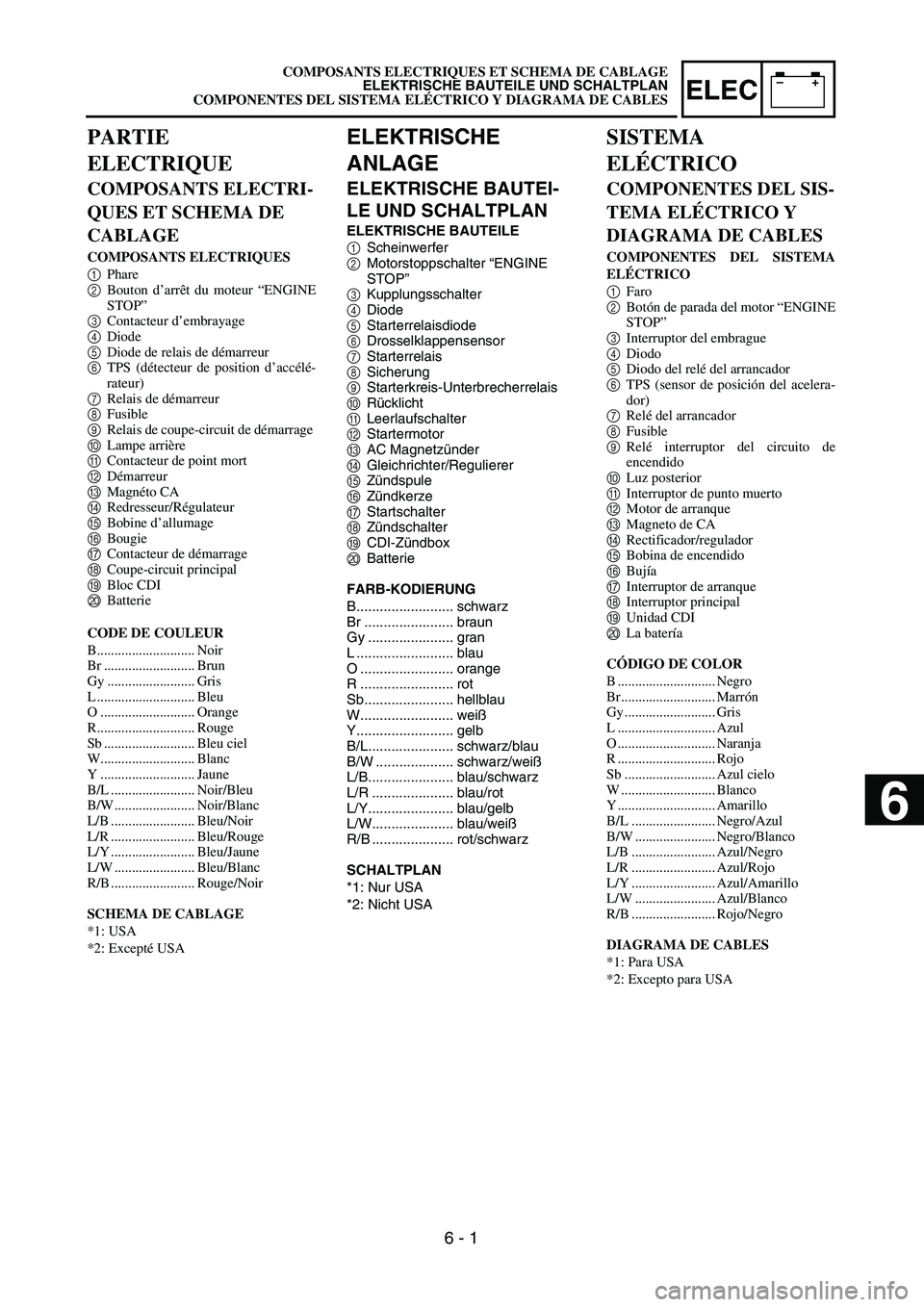

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1
Headlight
2
“ENGINE ST

Page 643 of 754

YAMAHA WR 450F 2004  Owners Manual –+ELEC

COMPOSANTS ELECTRIQUES ET SCHEMA DE CABLAGE
ELEKTRISCHE BAUTEILE UND SCHALTPLAN
COMPONENTES DEL SISTEMA ELÉCTRICO Y DIAGRAMA DE CABLES
ELEKTRISCHE
ANLAGE
ELEKTRISCHE BAUTEI-
LE UND

Page 644 of 754

YAMAHA WR 450F 2004  Owners Manual –+ELEC

6 - 2

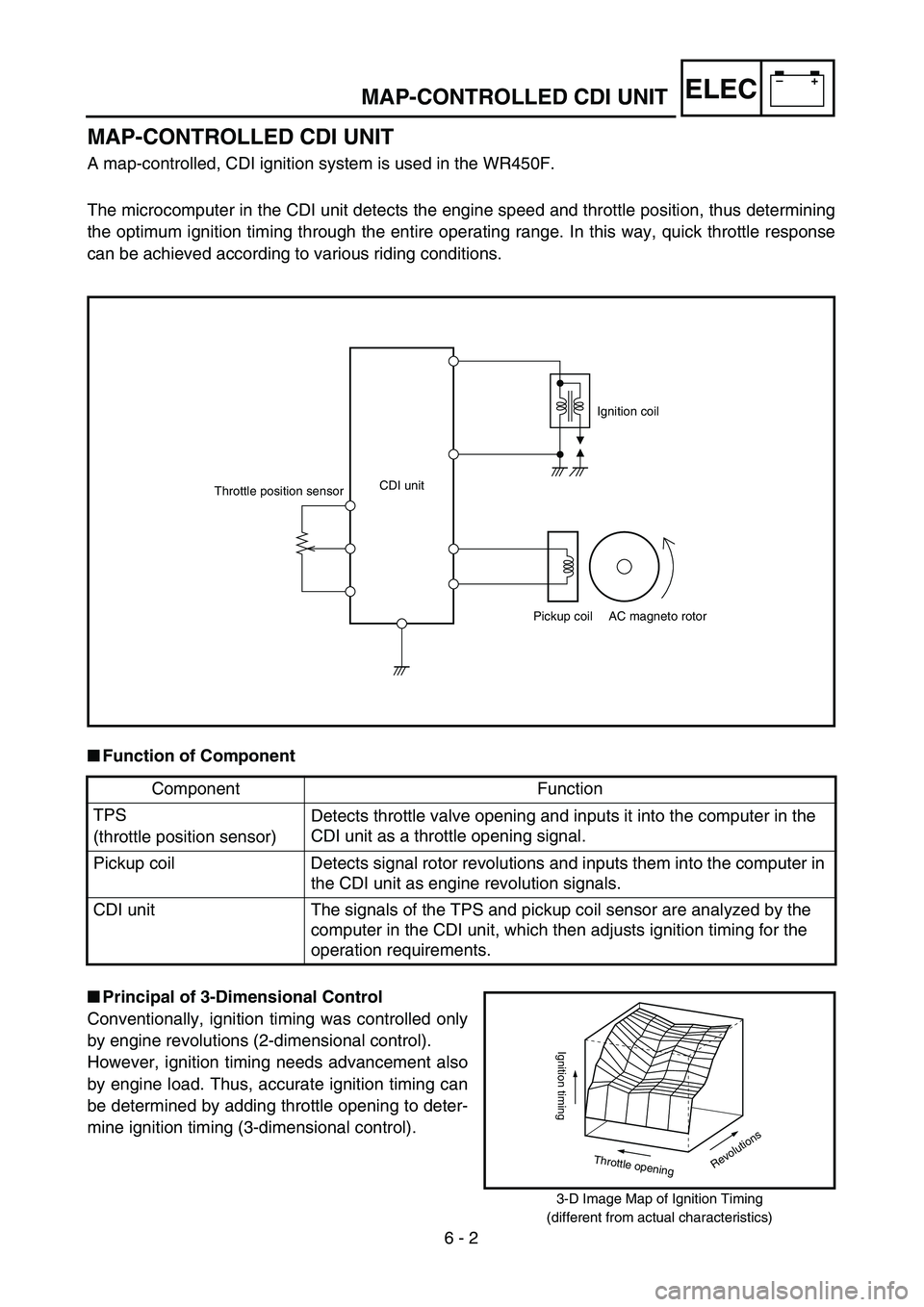

MAP-CONTROLLED CDI UNIT
MAP-CONTROLLED CDI UNIT
A map-controlled, CDI ignition system is used in the WR450F.
The microcomputer in the CDI unit detects the engine speed and throttle

Page 648 of 754

YAMAHA WR 450F 2004  Owners Manual –+ELEC

6 - 3
IGNITION SYSTEM
EC620000
IGNITION SYSTEM

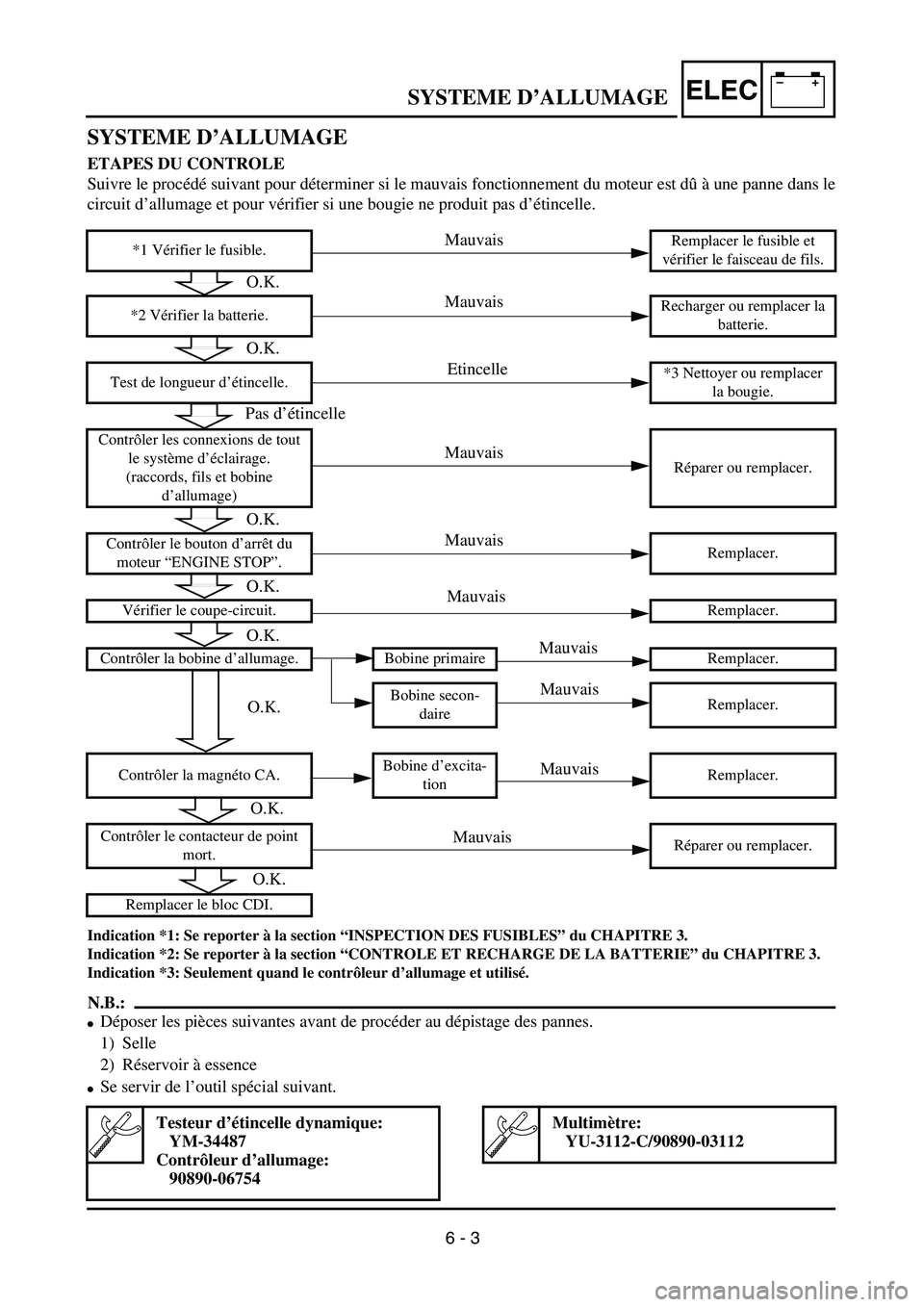

INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to
ignition system

Page 649 of 754

YAMAHA WR 450F 2004  Owners Manual –+ELECSYSTEME D’ALLUMAGE
SYSTEME D’ALLUMAGE
ETAPES DU CONTROLE
Suivre le procédé suivant pour déterminer si le mauvais fonctionnement du moteur est dû à une panne dans le
circuit d’allum
