SPEC

2 - 2
GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement 1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 1.6 L (1.41 Imp qt, 1.69 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a research
octane number of 95 or higher.(Except for ZA)
Premium gasoline (For ZA)
Tank capacity 10 L (2.2 Imp gal, 2.64 US gal)
Reserve 1.2 L (0.26 Imp gal, 0.32 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 62/22 (2.818)
Secondary reduction system Chain drive
Secondary reduction ratio 50/14 (3.571)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 29/12 (2.416)
2nd 26/15 (1.733)
3rd 21/16 (1.312)
4th 21/20 (1.050)
5th 21/25 (0.840)
Chassis:
Frame type Semi double cradle
Caster angle 27.2˚
Trail 118 mm (4.65 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (USA, CDN, ZA)
90/90-21 54R (EUROPE, AUS, NZ)
Size (rear) 110/100-18 64M (USA, CDN, ZA)
130/90-18 69R (EUROPE, AUS, NZ)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2

, 15 psi)
2

3 - 3
INSP
ADJ

MAINTENANCE INTERVALS
* marked: For USA
FRONT FORKS
Inspect and adjust
Replace oil
Replace oil seal
●

●

●

●

●
Suspension oil “01”
FRONT FORK OIL SEAL AND DUST
SEAL
Clean and lube
●

●
Lithium base grease
REAR SHOCK ABSORBER
Inspect and adjust
Lube
Retighten
●

●

●

●

●
(After
rain ride)
● Molybdenum disulfide
grease
DRIVE CHAIN GUARD AND ROLL-
ERS
Inspect
● ●
DRIVE CHAIN STOPPER
Inspect
●
SWINGARM
Inspect, lube and retighten
● ● Molybdenum disulfide
grease
RELAY ARM, CONNECTING ROD
Inspect, lube and retighten
● ● Molybdenum disulfide
grease
SIDESTAND
Lubricate
●Lithium base grease
STEERING HEAD
Inspect free play and retighten
Clean and lube
Replace bearing
● ●
●
● Lithium base grease
TIRE, WHEELS
Inspect air pressure, wheel run-out,
tire wear and spoke looseness
Retighten sprocket bolt
Inspect bearings
Replace bearings
Lubricate
●
●
●
●
●
●
●
Lithium base grease
THROTTLE, CONTROL CABLE
Check routing and connection
Lubricate
●
●
●
● Yamaha cable lube or
SAE 10W-30 motor oil
HOT STARTER, CLUTCH LEVER
Inspect free play
●
BATTERY
Check terminal for looseness and
corrosion
●
ItemAfter
break-inEvery
race
Every
third
(or
500 km)Every
fifth
(or
1,000 km)As re-
quiredRemarks

3 - 4
INSP
ADJ
PRE-OPERATION INSPECTION AND MAINTENANCE
EC320000
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
CoolantCheck that coolant is filled up to the radiator filler cap.
Check the cooling system for leakage.P.3-5 ~ 9
FuelCheck that a fresh gasoline is filled in the fuel tank. Check the
fuel line for leakage.P.1-14
Engine oilCheck that the oil level is correct. Check the crankcase and
frame oil line for leakage.P.3-14 ~ 18
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-10
Throttle grip/HousingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-10 ~ 11
Brakes Check the play of front brake and effect of front and rear brake. P.3-26 ~ 32
ChainCheck chain slack and alignment. Check that the chain is lubri-
cated properly.P.3-33 ~ 36
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-44 ~ 45
SteeringCheck that the handlebar can be turned smoothly and have no
excessive play.P.3-45 ~ 46
Front forks and rear shock
absorberCheck that they operate smoothly and there is no oil leakage. P.3-36 ~ 43
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or
when the front forks travel up and down.—
Muffler Check that the muffler is tightly mounted and has no cracks.—
Sprocket Check that the driven sprocket tightening bolt is not loose. P.3-33
Lubrication Check for smooth operation. Lubricate if necessary. P.3-47
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P.1-19
Lead connectorsCheck that the AC magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-6
SettingsIs the machine set suitably for the condition of the racing course
and weather or by taking into account the results of test runs
before racing? Are inspection and maintenance completely
done?P.7-1 ~ 21

3 - 44
INSP
ADJTIRE PRESSURE CHECK/SPOKES INSPECTION AND
TIGHTENING/WHEEL INSPECTION
EC36Q000
TIRE PRESSURE CHECK
1. Measure:
Tire pressure
Out of specification → Adjust.
NOTE:
Check the tire while it is cold.
Loose bead stoppers allow the tire to slip off
its position on the rim when the tire pressure
is low.
A tilted tire valve stem indicates that the tire
slips off its position on the rim.
If the tire valve stem is found tilted, the tire is
considered to be slipping off its position. Cor-
rect the tire position.
Standard tire pressure:
100 kPa (1.0 kgf/cm2, 15 psi)
EC36S002
SPOKES INSPECTION AND TIGHTENING
1. Inspect:
Spokes 1
Bend/damage → Replace.
Loose spoke → Retighten.
2. Tighten:
Spokes
NOTE:
Be sure to retighten these spokes before and
after break-in. After a practice or a race check
spokes for looseness.
T R..3 Nm (0.3 m · kg, 2.2 ft · lb)
EC36T000
WHEEL INSPECTION
1. Inspect:
Wheel runout
Elevate the wheel and turn it.
Abnormal runout → Replace.

7 - 11
TUNSETTING

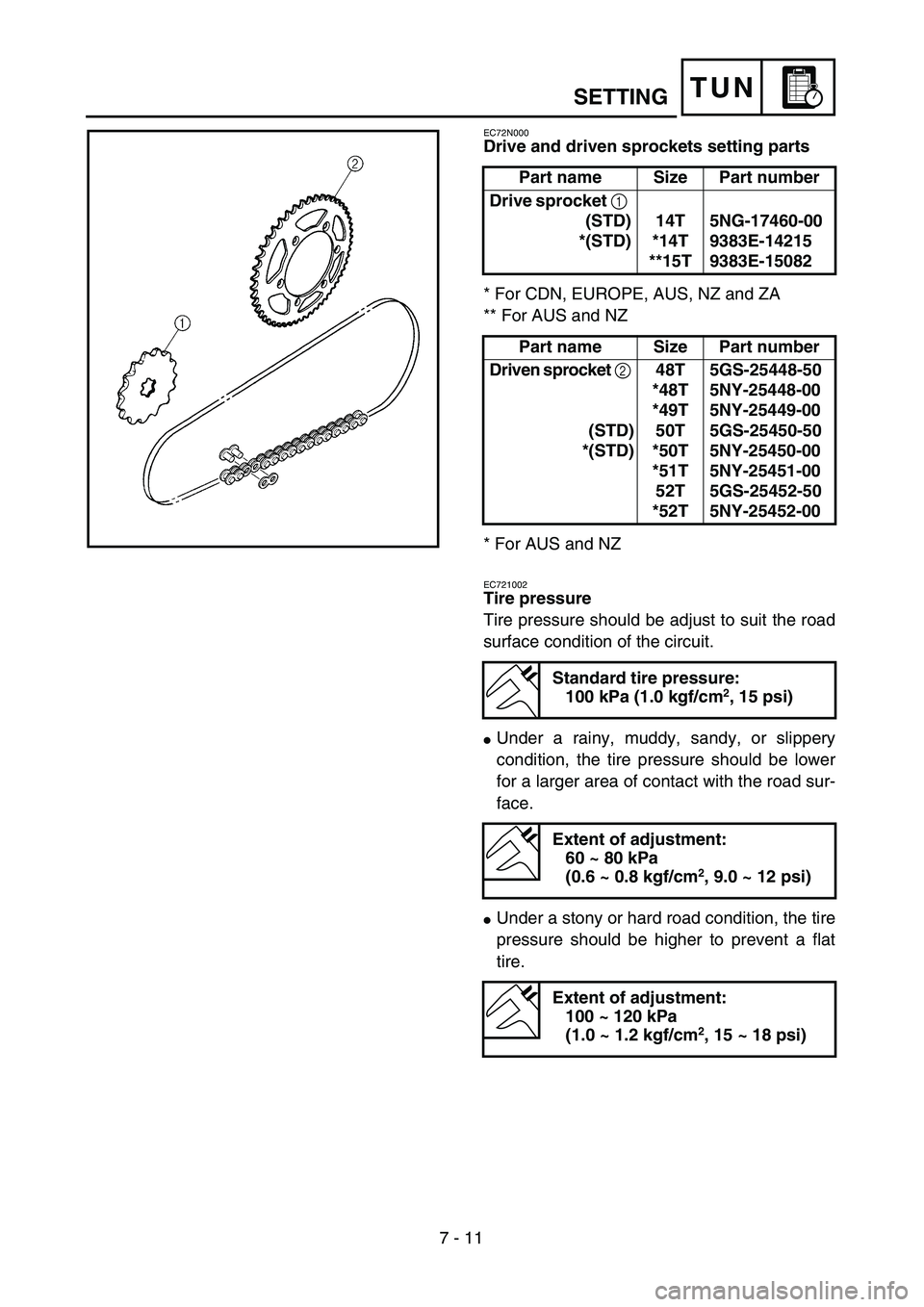

EC72N000
Drive and driven sprockets setting parts
* For CDN, EUROPE, AUS, NZ and ZA
** For AUS and NZ
* For AUS and NZ
EC721002
Tire pressure
Tire pressure should be adjust to suit the road
surface condition of the circuit.
Under a rainy, muddy, sandy, or slippery
condition, the tire pressure should be lower
for a larger area of contact with the road sur-
face.
Under a stony or hard road condition, the tire
pressure should be higher to prevent a flat
tire.Part name Size Part number
Drive sprocket 1
(STD)
*(STD)14T
*14T
**15T5NG-17460-00
9383E-14215
9383E-15082
Part name Size Part number
Driven sprocket 2
(STD)
*(STD)48T
*48T
*49T
50T
*50T
*51T
52T
*52T5GS-25448-50
5NY-25448-00
5NY-25449-00
5GS-25450-50
5NY-25450-00
5NY-25451-00
5GS-25452-50
5NY-25452-00
Standard tire pressure:
100 kPa (1.0 kgf/cm2, 15 psi)
Extent of adjustment:
60 ~ 80 kPa
(0.6 ~ 0.8 kgf/cm
2, 9.0 ~ 12 psi)
Extent of adjustment:
100 ~ 120 kPa
(1.0 ~ 1.2 kgf/cm
2, 15 ~ 18 psi)
