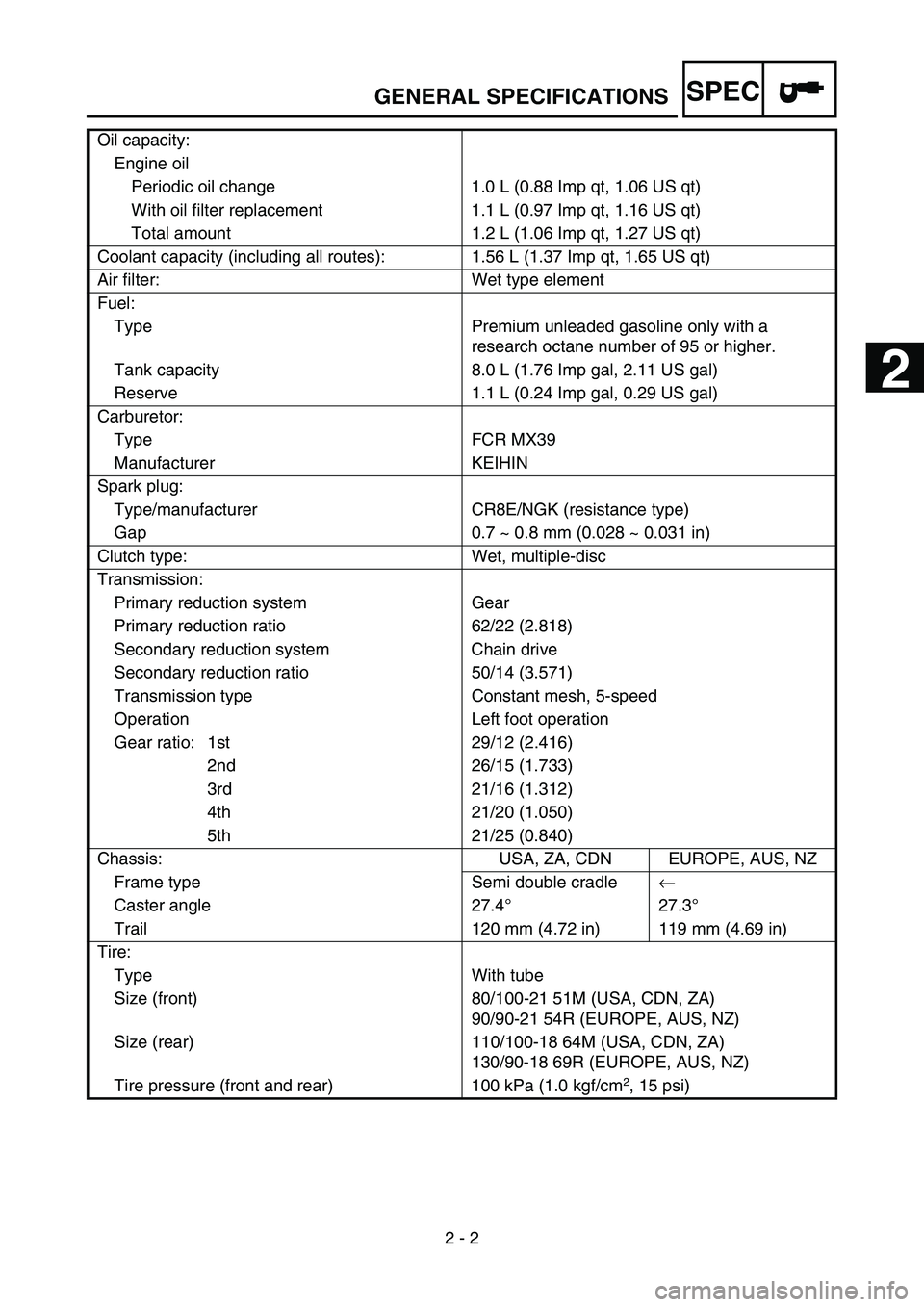

SPEC
2 - 2 Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement 1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 1.56 L (1.37 Imp qt, 1.65 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a
research octane number of 95 or higher.
Tank capacity 8.0 L (1.76 Imp gal, 2.11 US gal)
Reserve 1.1 L (0.24 Imp gal, 0.29 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 62/22 (2.818)
Secondary reduction system Chain drive
Secondary reduction ratio 50/14 (3.571)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 29/12 (2.416)
2nd 26/15 (1.733)
3rd 21/16 (1.312)
4th 21/20 (1.050)
5th 21/25 (0.840)
Chassis: USA, ZA, CDN EUROPE, AUS, NZ
Frame type Semi double cradle←
Caster angle 27.4°27.3°
Trail 120 mm (4.72 in) 119 mm (4.69 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (USA, CDN, ZA)
90/90-21 54R (EUROPE, AUS, NZ)
Size (rear) 110/100-18 64M (USA, CDN, ZA)
130/90-18 69R (EUROPE, AUS, NZ)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2, 15 psi)
GENERAL SPECIFICATIONS
2
7 - 10
TUNSETTING
EC72N000
Drive and driven sprockets setting parts
* For CDN, EUROPE, AUS, NZ and ZA
** For AUS and NZ
* For AUS and NZ
EC721002
Tire pressure
Tire pressure should be adjust to suit the road
surface condition of the circuit.
•Under a rainy, muddy, sandy, or slippery
condition, the tire pressure should be lower
for a larger area of contact with the road sur-
face.
•Under a stony or hard road condition, the tire
pressure should be higher to prevent a flat
tire.Part name Size Part number
Drive sprocket
1
(STD)
*(STD)14T
*14T
**15T5NG-17460-00
9383E-14215
9383E-15082
Part name Size Part number
Driven sprocket
2
(STD)
*(STD)48T
*48T
*49T
50T
*50T
*51T
52T
*52T5GS-25448-50
1C3-25448-00
1C3-25449-00
5TJ-25450-80
1C3-25450-00
1C3-25451-00
5TJ-25452-80
1C3-25452-00
Standard tire pressure:
100 kPa (1.0 kgf/cm2, 15 psi)
Extent of adjustment:
60 ~ 80 kPa
(0.6 ~ 0.8 kgf/cm
2, 9.0 ~ 12 psi)
Extent of adjustment:
100 ~ 120 kPa
(1.0 ~ 1.2 kgf/cm
2, 15 ~ 18 psi)
