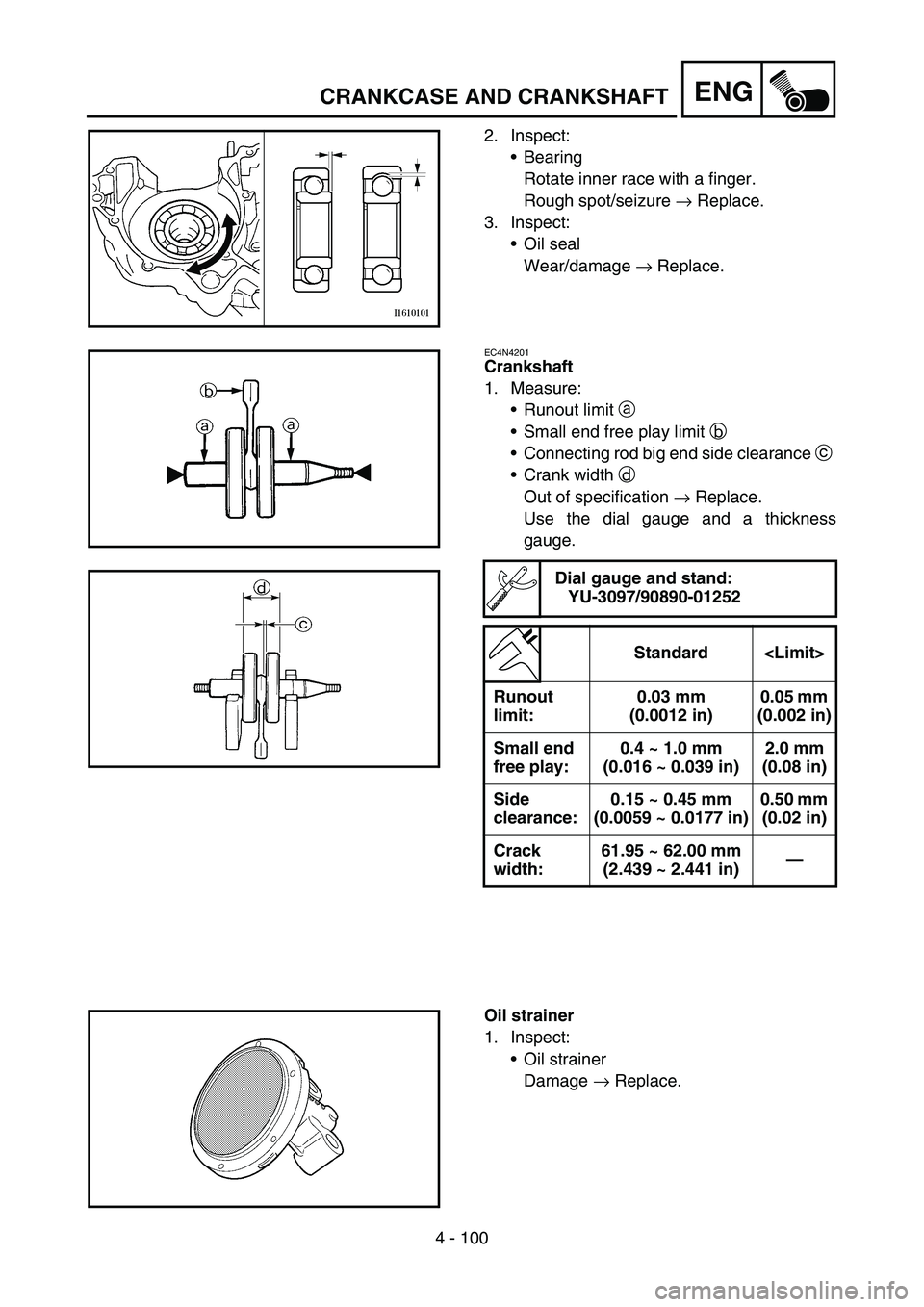

ENGCRANKCASE AND CRANKSHAFT
2. Inspect:
Bearing
Rotate inner race with a finger.
Rough spot/seizure → Replace.
3. Inspect:
Oil seal
Wear/damage → Replace.
EC4N4201
Crankshaft
1. Measure:
Runout limit a
Small end free play limit b
Connecting rod big end side clearance c
Crank width d
Out of specification → Replace.
Use the dial gauge and a thickness
gauge.
Dial gauge and stand:
YU-3097/90890-01252
Standard
Runout
limit:0.03 mm
(0.0012 in)0.05 mm
(0.002 in)
Small end
free play:0.4 ~ 1.0 mm
(0.016 ~ 0.039 in)2.0 mm
(0.08 in)
Side
clearance:0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)0.50 mm
(0.02 in)
Crack
width:61.95 ~ 62.00 mm
(2.439 ~ 2.441 in)—
Oil strainer
1. Inspect:
Oil strainer
Damage → Replace.
