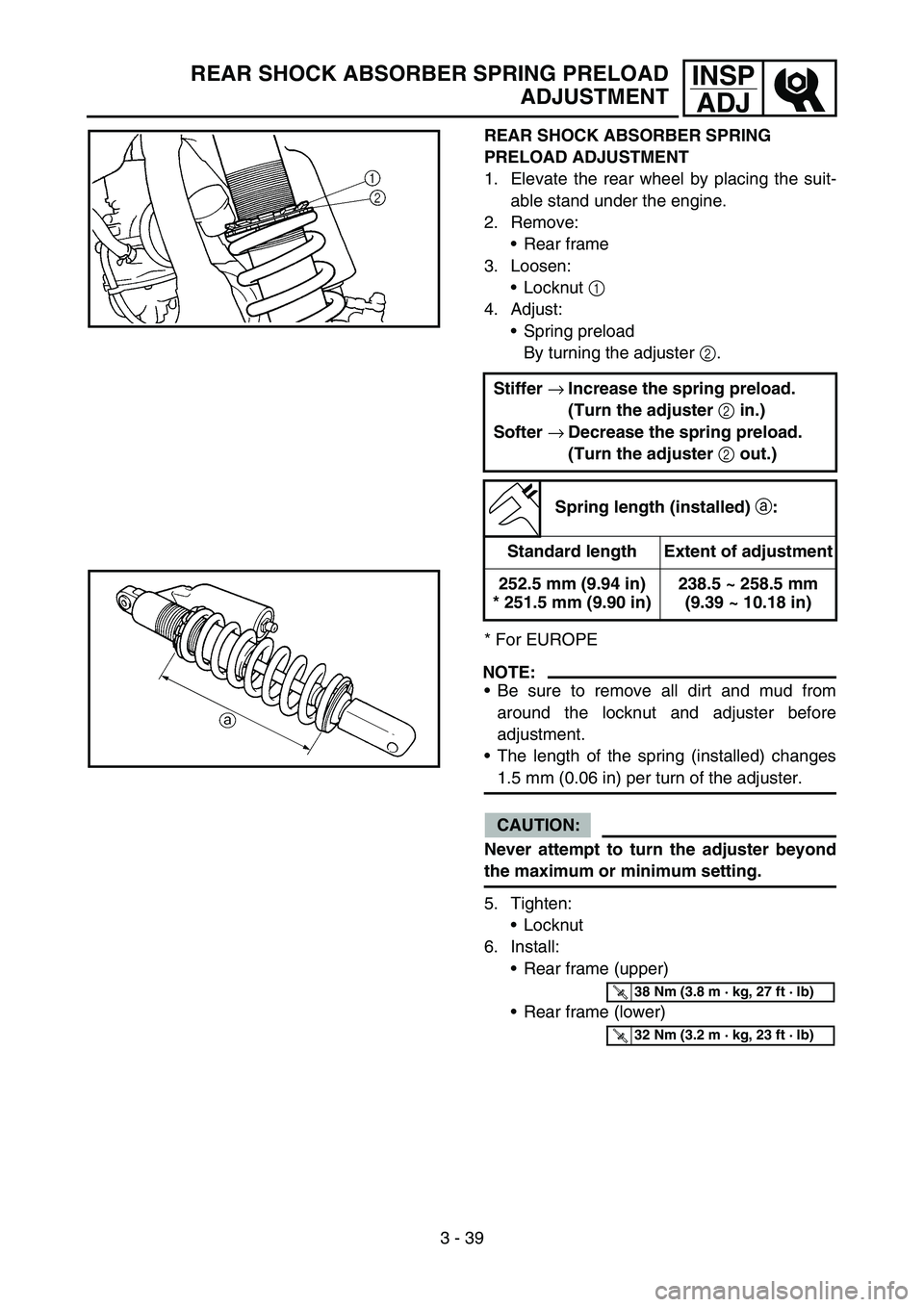

3 - 39
INSP
ADJREAR SHOCK ABSORBER SPRING PRELOAD
ADJUSTMENT
REAR SHOCK ABSORBER SPRING
PRELOAD ADJUSTMENT
1. Elevate the rear wheel by placing the suit-
able stand under the engine.
2. Remove:
Rear frame
3. Loosen:
Locknut 1
4. Adjust:
Spring preload
By turning the adjuster 2.
* For EUROPE
NOTE:
Be sure to remove all dirt and mud from
around the locknut and adjuster before
adjustment.
The length of the spring (installed) changes
1.5 mm (0.06 in) per turn of the adjuster.
CAUTION:
Never attempt to turn the adjuster beyond
the maximum or minimum setting.
5. Tighten:
Locknut
6. Install:
Rear frame (upper)
Rear frame (lower) Stiffer
→Increase the spring preload.
(Turn the adjuster
2 in.)
Softer
→Decrease the spring preload.
(Turn the adjuster
2 out.)
Spring length (installed)
a:
Standard length Extent of adjustment
252.5 mm (9.94 in)
* 251.5 mm (9.90 in)238.5 ~ 258.5 mm
(9.39 ~ 10.18 in)
T R..38 Nm (3.8 m · kg, 27 ft · lb)
T R..32 Nm (3.2 m · kg, 23 ft · lb)

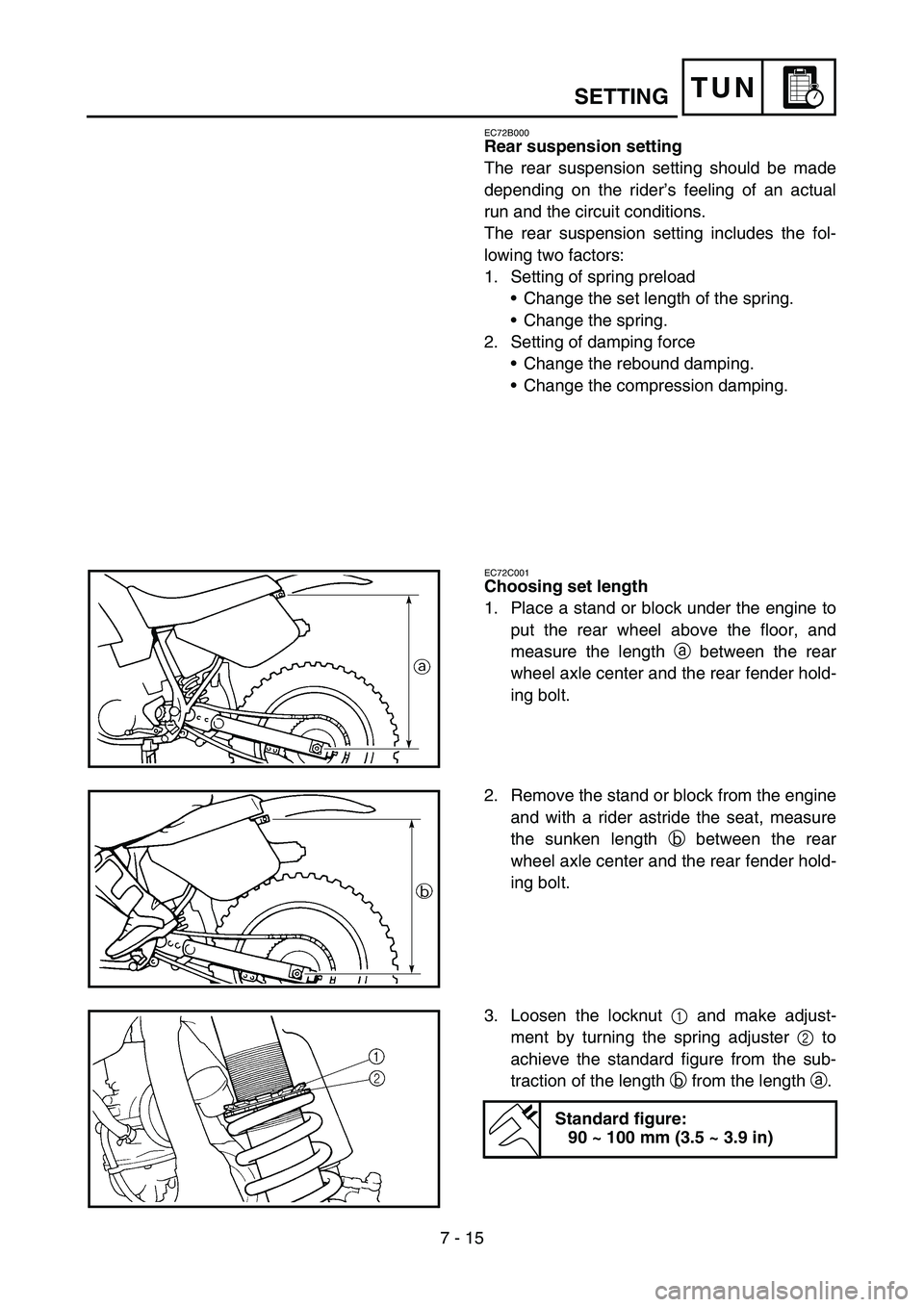

7 - 15
TUN
EC72B000
Rear suspension setting
The rear suspension setting should be made
depending on the rider’s feeling of an actual
run and the circuit conditions.
The rear suspension setting includes the fol-
lowing two factors:
1. Setting of spring preload
•Change the set length of the spring.
•Change the spring.
2. Setting of damping force
•Change the rebound damping.
•Change the compression damping.
EC72C001
Choosing set length
1. Place a stand or block under the engine to
put the rear wheel above the floor, and
measure the length a between the rear
wheel axle center and the rear fender hold-
ing bolt.
2. Remove the stand or block from the engine
and with a rider astride the seat, measure
the sunken length b between the rear
wheel axle center and the rear fender hold-
ing bolt.
3. Loosen the locknut 1 and make adjust-
ment by turning the spring adjuster 2 to
achieve the standard figure from the sub-
traction of the length b from the length a.
Standard figure:
90 ~ 100 mm (3.5 ~ 3.9 in)
SETTING
