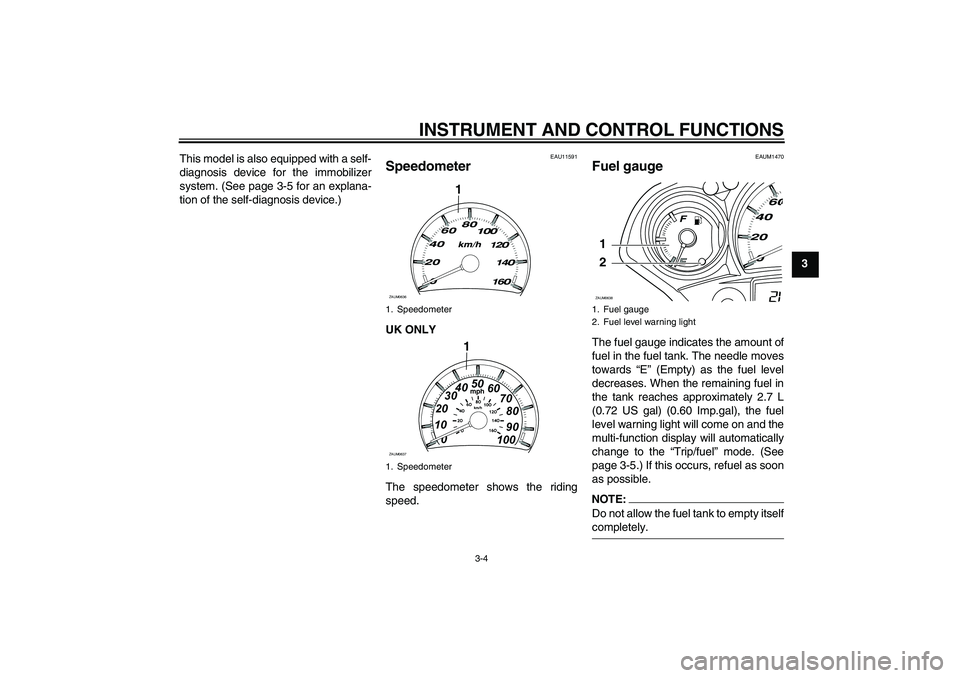

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-5 for an explana-
tion of the self-diagnosis device.)
EAU11591
Speedometer UK ONLY
The speedometer shows the riding
speed.
EAUM1470
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 2.7 L
(0.72 US gal) (0.60 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-5.) If this occurs, refuel as soon
as possible.NOTE:Do not allow the fuel tank to empty itselfcompletely.
1. Speedometer
1. Speedometer
1
ZAUM0636
1mph
0 1020304050
60
70
80
90
100
ZAUM0637
1. Fuel gauge
2. Fuel level warning light1
2ZAUM0638
U16PE0E0.book Page 4 Tuesday, May 8, 2007 10:26 AM

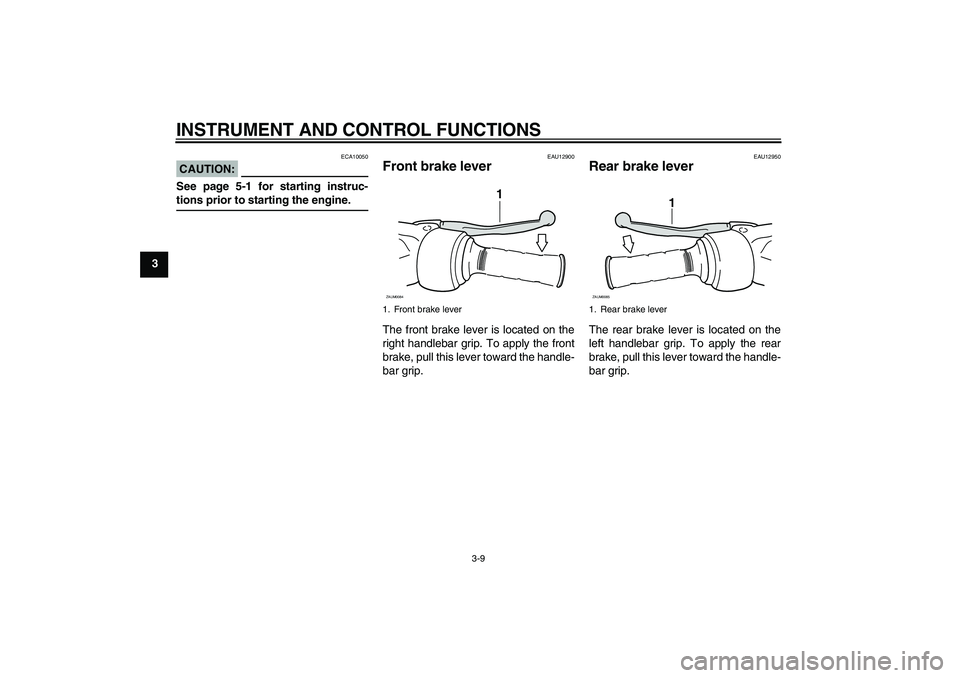

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12900
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
1. Front brake lever
1
ZAUM0084
1. Rear brake lever
1
ZAUM0085
U16PE0E0.book Page 9 Tuesday, May 8, 2007 10:26 AM

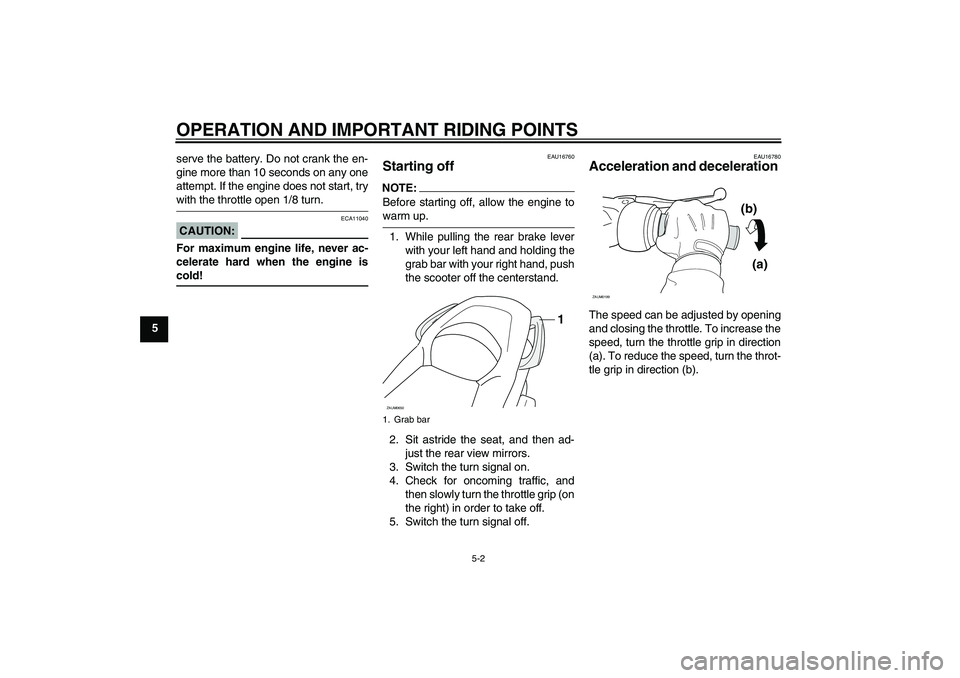

OPERATION AND IMPORTANT RIDING POINTS
5-2
5serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt. If the engine does not start, try
with the throttle open 1/8 turn.CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!
EAU16760
Starting off NOTE:Before starting off, allow the engine towarm up.
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.
2. Sit astride the seat, and then ad-
just the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip (on
the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and deceleration The speed can be adjusted by opening
and closing the throttle. To increase the
speed, turn the throttle grip in direction
(a). To reduce the speed, turn the throt-
tle grip in direction (b).
1. Grab bar
1
ZAUM0650
(b)
(a)
ZAUM0199
U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM

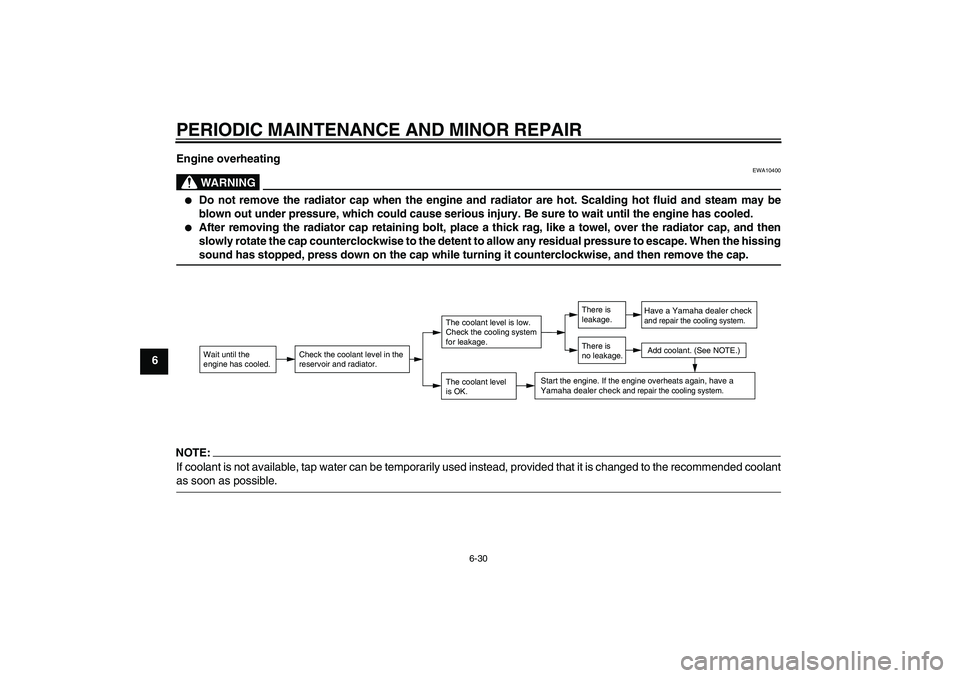

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
