SPECIFICATIONS
8-2
8

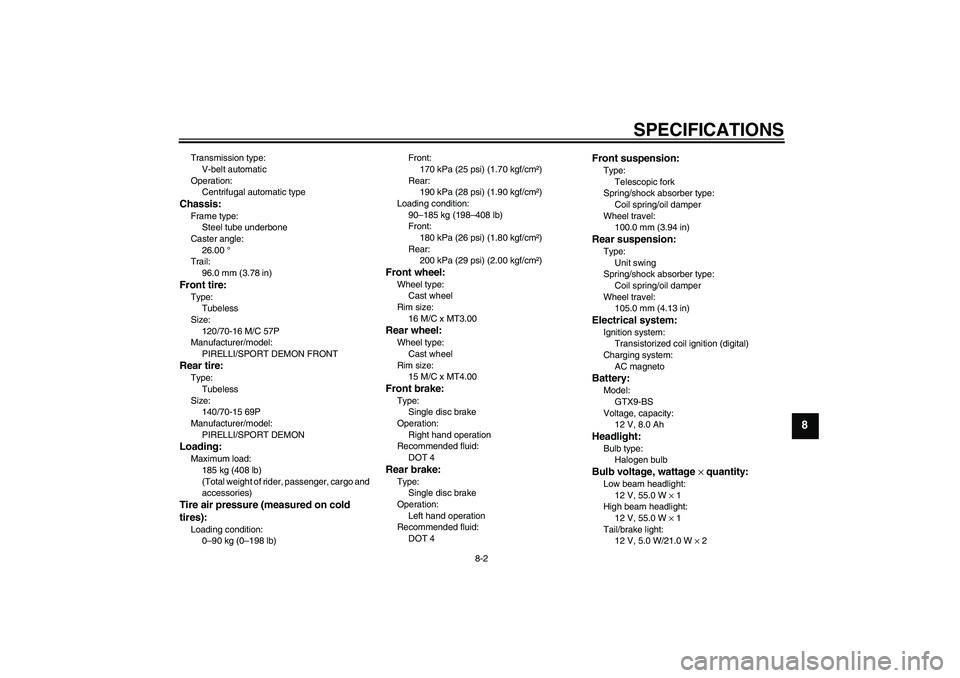

Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
96.0 mm (3.78 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
170 kPa (25 psi) (1.70 kgf/cm²)
Rear:
190 kPa (28 psi) (1.90 kgf/cm²)
Loading condition:
90–185 kg (198–408 lb)
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
200 kPa (29 psi) (2.00 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
5.0 A
ECU fuse:
5.0 ABackup fuse:
5.0 A

CONSUMER INFORMATION
9-1
9
EAU26351

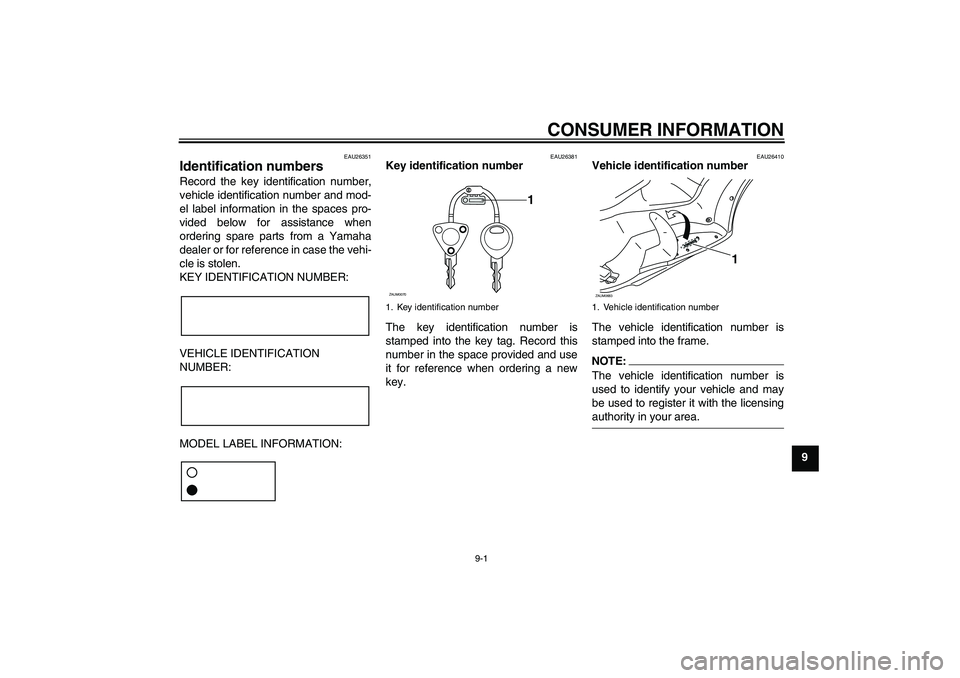

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
1
ZAUM0070
1. Vehicle identification numberZAUM0683
1

CONSUMER INFORMATION
9-2
9
EAU26490

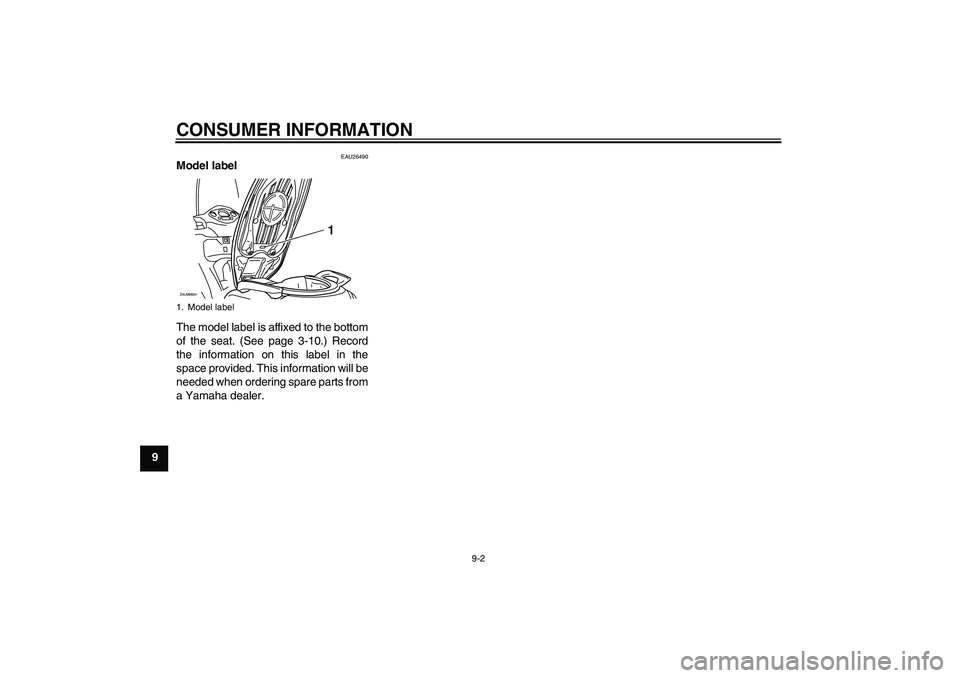

Model label
The model label is affixed to the bottom
of the seat. (See page 3-10.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model labelZAUM0684
1

INDEX

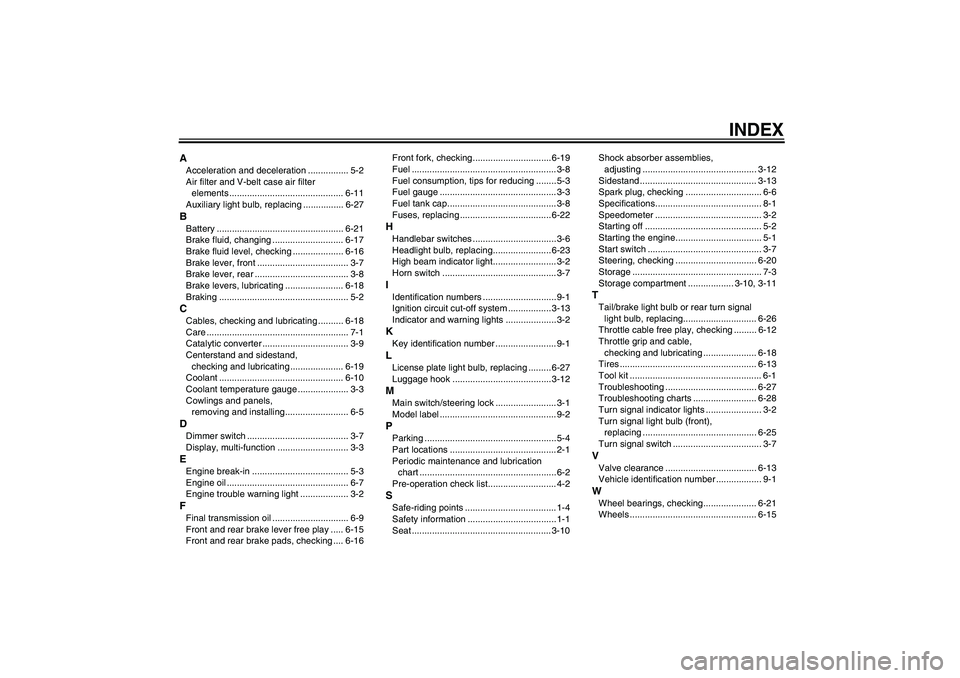

AAcceleration and deceleration ................ 5-2
Air filter and V-belt case air filter
elements ............................................. 6-11
Auxiliary light bulb, replacing ................ 6-27BBattery .................................................. 6-21
Brake fluid, changing ............................ 6-17
Brake fluid level, checking .................... 6-16
Brake lever, front .................................... 3-7
Brake lever, rear ..................................... 3-8
Brake levers, lubricating ....................... 6-18
Braking ................................................... 5-2CCables, checking and lubricating .......... 6-18
Care ........................................................ 7-1
Catalytic converter .................................. 3-9
Centerstand and sidestand,
checking and lubricating ..................... 6-19
Coolant ................................................. 6-10
Coolant temperature gauge .................... 3-3
Cowlings and panels,
removing and installing......................... 6-5DDimmer switch ........................................ 3-7
Display, multi-function ............................ 3-3EEngine break-in ...................................... 5-3
Engine oil ................................................ 6-7
Engine trouble warning light ................... 3-2FFinal transmission oil .............................. 6-9
Front and rear brake lever free play ..... 6-15
Front and rear brake pads, checking .... 6-16Front fork, checking...............................6-19
Fuel ......................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-3
Fuel tank cap........................................... 3-8
Fuses, replacing .................................... 6-22
HHandlebar switches ................................. 3-6
Headlight bulb, replacing....................... 6-23
High beam indicator light......................... 3-2
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-13
Indicator and warning lights .................... 3-2KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-27
Luggage hook ....................................... 3-12MMain switch/steering lock ........................ 3-1
Model label .............................................. 9-2PParking ....................................................5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list........................... 4-2SSafe-riding points .................................... 1-4
Safety information ...................................1-1
Seat ....................................................... 3-10Shock absorber assemblies,
adjusting ............................................. 3-12
Sidestand .............................................. 3-13
Spark plug, checking .............................. 6-6
Specifications.......................................... 8-1
Speedometer .......................................... 3-2
Starting off .............................................. 5-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-7
Steering, checking ................................ 6-20
Storage ................................................... 7-3
Storage compartment .................. 3-10, 3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing............................. 6-26
Throttle cable free play, checking ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-18
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-27
Troubleshooting charts ......................... 6-28
Turn signal indicator lights ...................... 3-2
Turn signal light bulb (front),
replacing ............................................. 6-25
Turn signal switch ................................... 3-7VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-21
Wheels .................................................. 6-15
