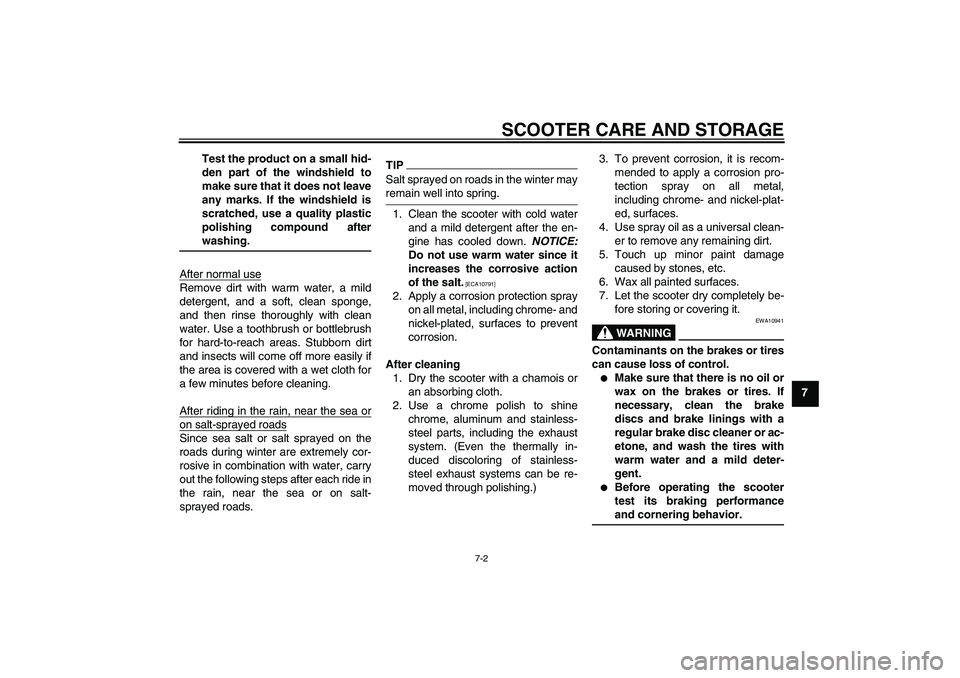

Page 71 of 80
SCOOTER CARE AND STORAGE
7-2
7 Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on the
roads during winter are extremely cor-
rosive in combination with water, carry
out the following steps after each ride in
the rain, near the sea or on salt-
sprayed roads.
TIPSalt sprayed on roads in the winter mayremain well into spring.
1. Clean the scooter with cold water
and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10791]
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the scooter with a chamois or
an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
er to remove any remaining dirt.
5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be-
fore storing or covering it.
WARNING
EWA10941
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.
Before operating the scooter
test its braking performanceand cornering behavior.
U5B2E1E0.book Page 2 Tuesday, July 22, 2008 2:49 PM

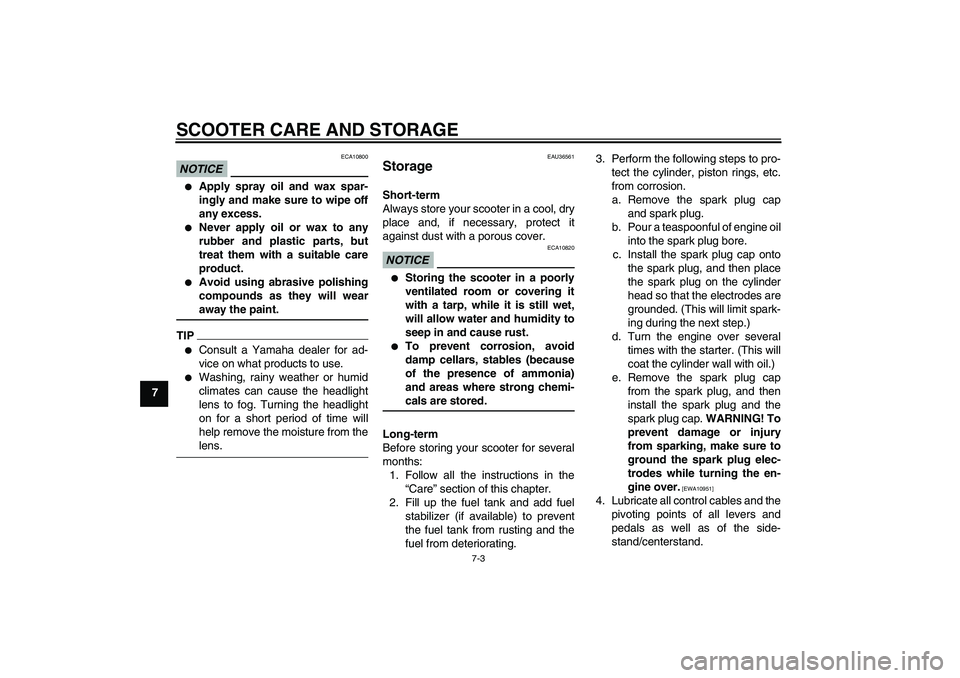

Page 72 of 80
SCOOTER CARE AND STORAGE
7-3
7
NOTICE
ECA10800
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.
Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from thelens.
EAU36561
Storage Short-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover.NOTICE
ECA10820
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your scooter for several
months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
U5B2E1E0.book Page 3 Tuesday, July 22, 2008 2:49 PM

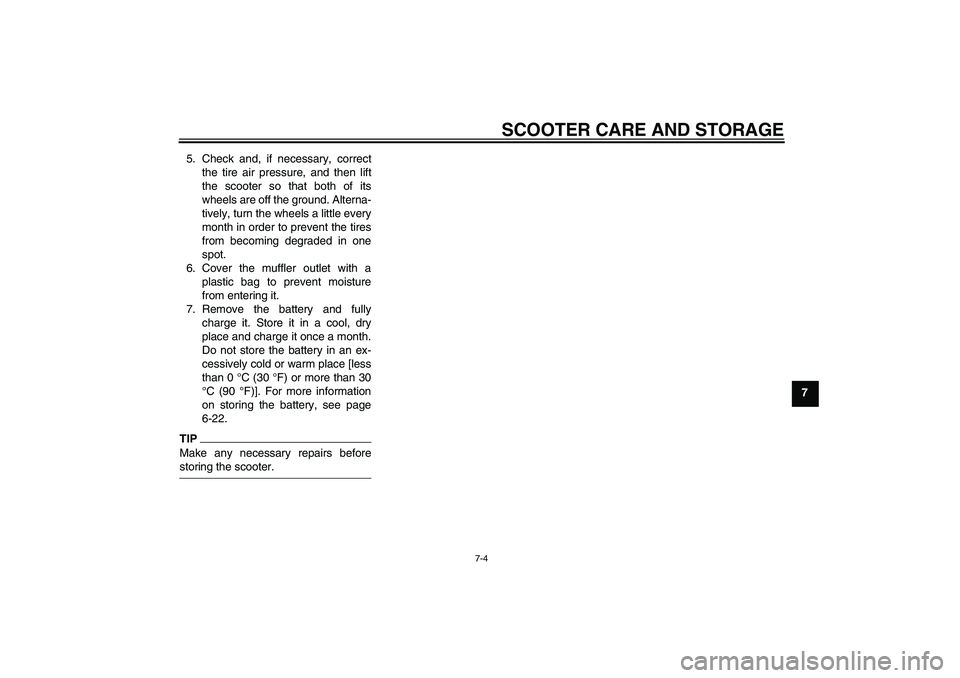

Page 73 of 80
SCOOTER CARE AND STORAGE
7-4
7 5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-22.
TIPMake any necessary repairs beforestoring the scooter.
U5B2E1E0.book Page 4 Tuesday, July 22, 2008 2:49 PM
Page 74 of 80
SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2175 mm (85.6 in) (without rear carrier)
2215 mm (87.2 in) (with rear carrier)
Overall width:
785 mm (30.9 in)
Overall height:
1475 mm (58.1 in)
Seat height:
790 mm (31.1 in)
Wheelbase:
1470 mm (57.9 in)
Ground clearance:
165 mm (6.50 in)
Minimum turning radius:
2400 mm (94.5 in)Weight:With oil and fuel:
173.0 kg (381 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249.8 cm³
Bore × stroke:
69.0 × 66.8 mm (2.72 × 2.63 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Periodic oil change:
1.20 L (1.27 US qt, 1.06 Imp.qt)Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.20 L (0.21 US qt, 0.18 Imp.qt)
Radiator capacity (including all routes):
1.02 L (1.08 US qt, 0.90 Imp.qt)
Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
10.5 L (2.77 US gal, 2.31 Imp.gal)
Fuel reserve amount:
2.7 L (0.72 US gal, 0.60 Imp.gal)Fuel injection:Throttle body:
Manufacturer:
AISAN
Type/quantity:
EFI / 1Spark plug (s):Manufacturer/model:
NGK/DPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
40/15 (2.666)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
42/14 (3.000)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U5B2E1E0.book Page 1 Tuesday, July 22, 2008 2:49 PM

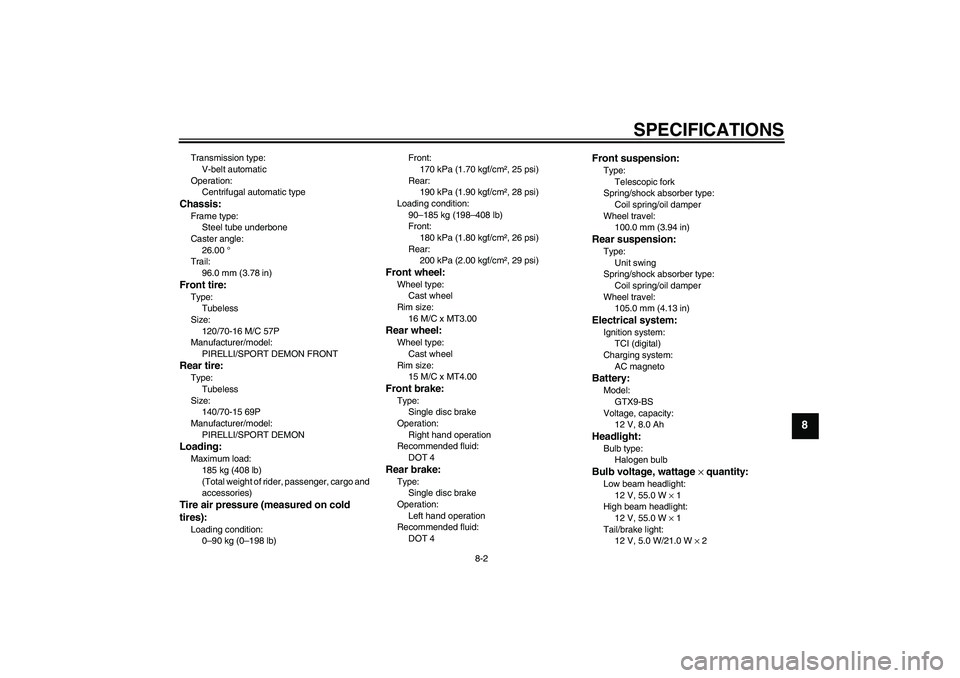

Page 75 of 80
SPECIFICATIONS
8-2
8
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
96.0 mm (3.78 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
170 kPa (1.70 kgf/cm², 25 psi)
Rear:
190 kPa (1.90 kgf/cm², 28 psi)
Loading condition:
90–185 kg (198–408 lb)
Front:
180 kPa (1.80 kgf/cm², 26 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
U5B2E1E0.book Page 2 Tuesday, July 22, 2008 2:49 PM

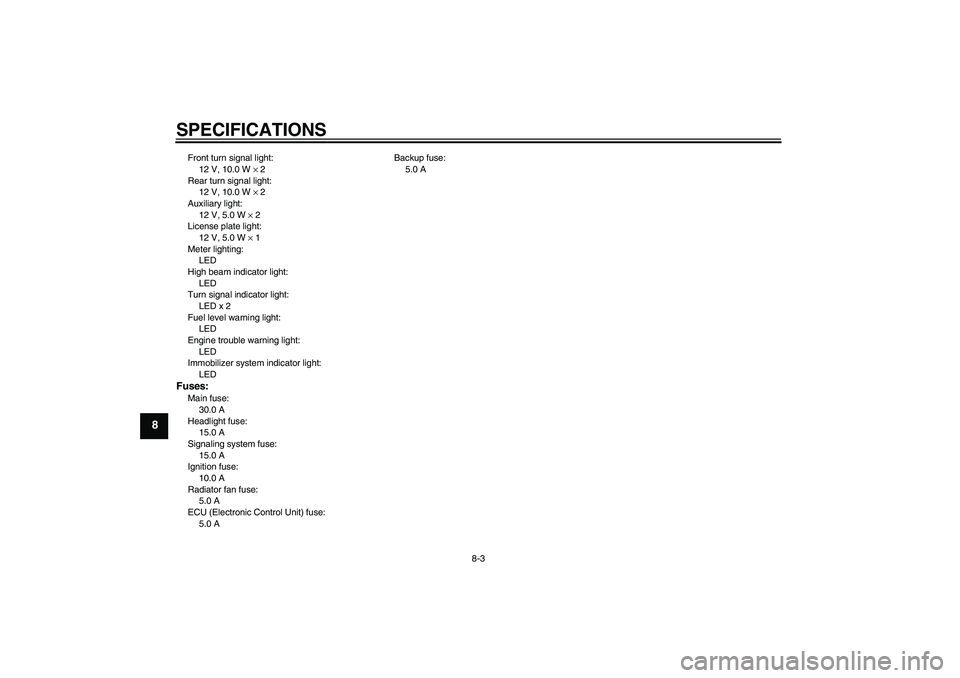

Page 76 of 80
SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
5.0 A
ECU (Electronic Control Unit) fuse:
5.0 ABackup fuse:
5.0 A
U5B2E1E0.book Page 3 Tuesday, July 22, 2008 2:49 PM

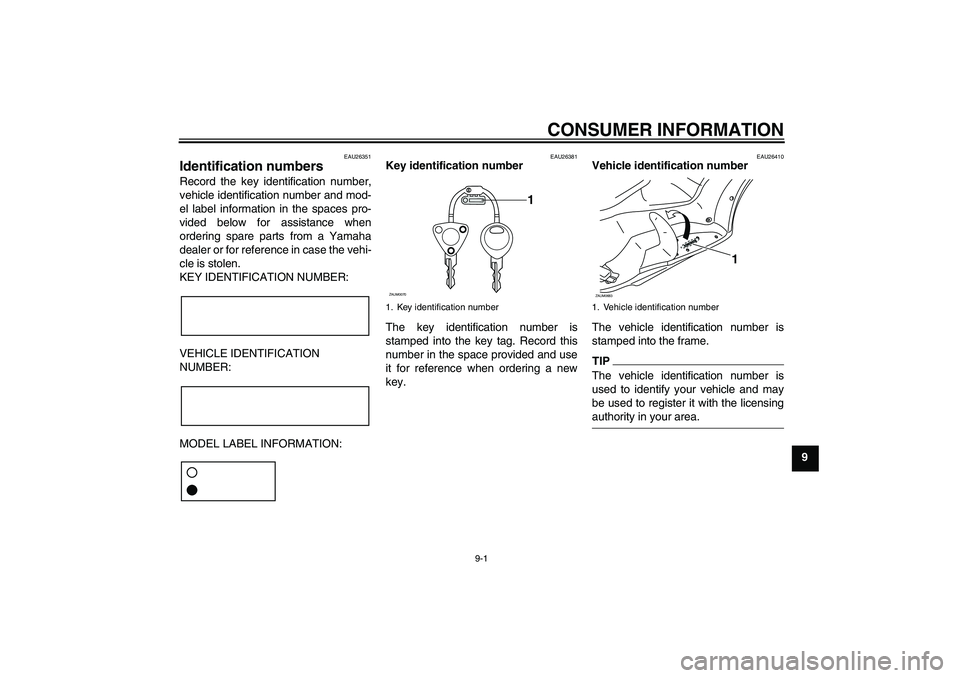

Page 77 of 80
CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
1
ZAUM0070
1. Vehicle identification numberZAUM0683
1
U5B2E1E0.book Page 1 Tuesday, July 22, 2008 2:49 PM

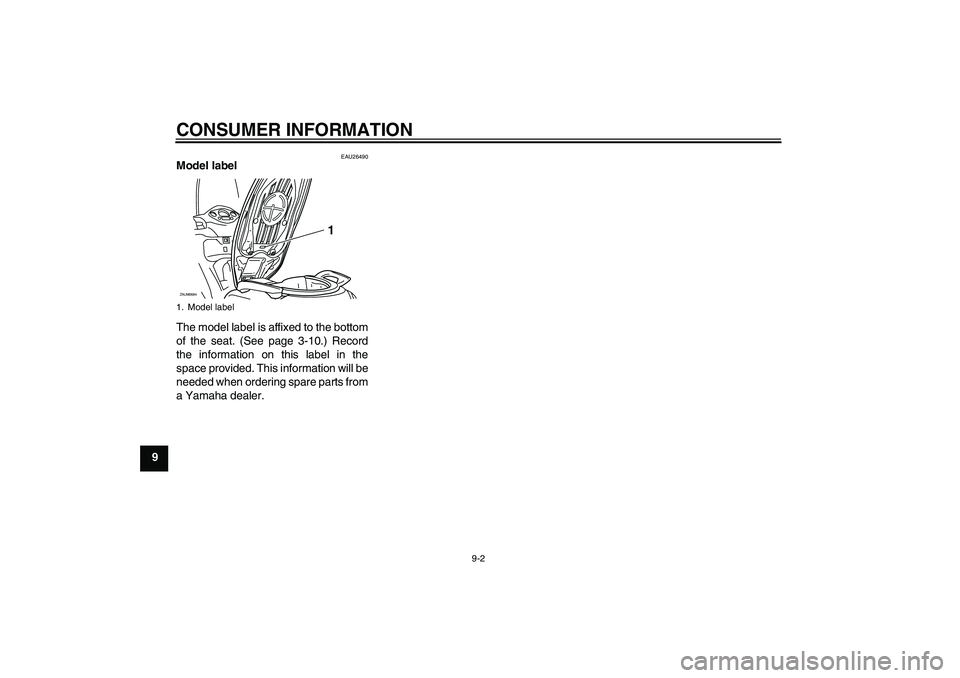

Page 78 of 80
CONSUMER INFORMATION
9-2
9
EAU26490
Model label
The model label is affixed to the bottom
of the seat. (See page 3-10.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model labelZAUM0684
1
U5B2E1E0.book Page 2 Tuesday, July 22, 2008 2:49 PM
Page 79 of 80

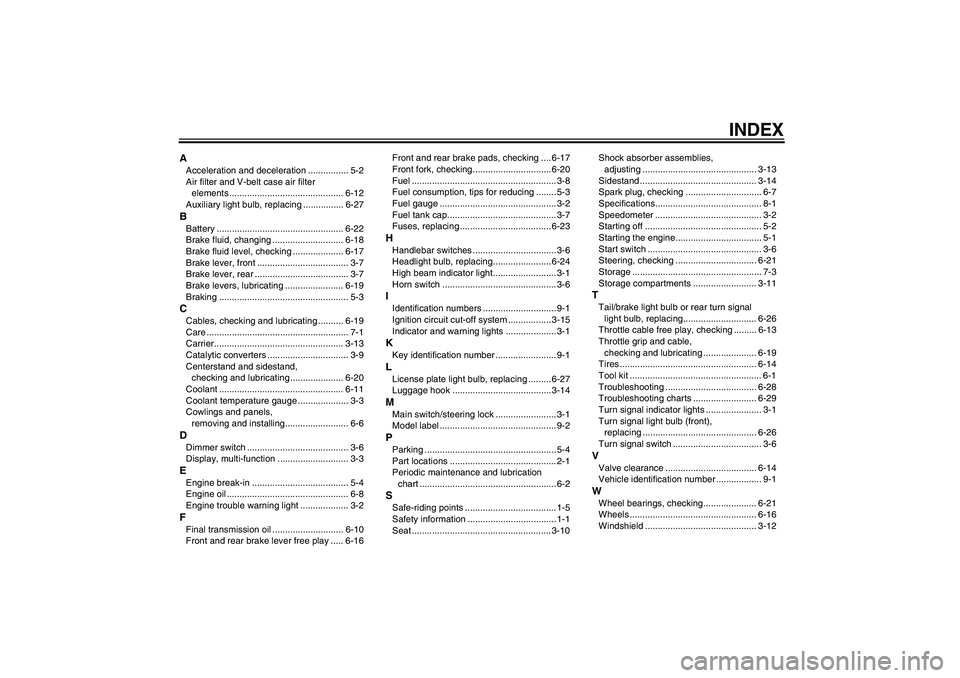

INDEX
AAcceleration and deceleration ................ 5-2
Air filter and V-belt case air filter
elements ............................................. 6-12
Auxiliary light bulb, replacing ................ 6-27BBattery .................................................. 6-22
Brake fluid, changing ............................ 6-18
Brake fluid level, checking .................... 6-17
Brake lever, front .................................... 3-7
Brake lever, rear ..................................... 3-7
Brake levers, lubricating ....................... 6-19
Braking ................................................... 5-3CCables, checking and lubricating .......... 6-19
Care ........................................................ 7-1
Carrier................................................... 3-13
Catalytic converters ................................ 3-9
Centerstand and sidestand,
checking and lubricating ..................... 6-20
Coolant ................................................. 6-11
Coolant temperature gauge .................... 3-3
Cowlings and panels,
removing and installing......................... 6-6DDimmer switch ........................................ 3-6
Display, multi-function ............................ 3-3EEngine break-in ...................................... 5-4
Engine oil ................................................ 6-8
Engine trouble warning light ................... 3-2FFinal transmission oil ............................ 6-10
Front and rear brake lever free play ..... 6-16Front and rear brake pads, checking .... 6-17
Front fork, checking...............................6-20
Fuel ......................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-2
Fuel tank cap........................................... 3-7
Fuses, replacing .................................... 6-23
HHandlebar switches ................................. 3-6
Headlight bulb, replacing....................... 6-24
High beam indicator light......................... 3-1
Horn switch ............................................. 3-6IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-15
Indicator and warning lights .................... 3-1KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-27
Luggage hook ....................................... 3-14MMain switch/steering lock ........................ 3-1
Model label .............................................. 9-2PParking ....................................................5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ......................................................6-2SSafe-riding points .................................... 1-5
Safety information ...................................1-1
Seat ....................................................... 3-10Shock absorber assemblies,
adjusting ............................................. 3-13
Sidestand .............................................. 3-14
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer .......................................... 3-2
Starting off .............................................. 5-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-6
Steering, checking ................................ 6-21
Storage ................................................... 7-3
Storage compartments ......................... 3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing............................. 6-26
Throttle cable free play, checking ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-19
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-28
Troubleshooting charts ......................... 6-29
Turn signal indicator lights ...................... 3-1
Turn signal light bulb (front),
replacing ............................................. 6-26
Turn signal switch ................................... 3-6VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-21
Wheels .................................................. 6-16
Windshield ............................................ 3-12
U5B2E1E0.book Page 1 Tuesday, July 22, 2008 4:46 PM
Page 80 of 80
YAMAHA MOTOR CO., LTD.
PRINTED IN FRANCE
2008.07 (E)
PANTONE285CVC
