Periodic maintenance and adjustment
6-4
1
2
3
4
567
8
9
10
11
12
EAU46921
Periodic maintenance chart fo r the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
1 * Fuel line Check fuel hoses for cracks or
damage. 
2 Spark plug Check condition.
Clean and regap.

Replace. 
3 * Valves Check valve clearance.
Adjust. 
4 * Fuel injection Check engine idle speed. 
5 * Exhaust system Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary. 
U53BE1E0 4 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment
6-6
1
2
3
4
567
8
9
10
11
12
12 *Front brake lever
pivot shaft Lubricate with lithium-soap-based
grease. 
13 *Rear brake lever
pivoting points Lubricate with silicone grease.

14 Centerstand Check operation.
Lubricate. 
15 *Front fork Check operation and for oil
leakage. 
16 *Shock absorber
assembly Check operation and shock
absorber for oil leakage. 
17 Engine oil Change. (See page 3-2.)
When the oil change indicator comes on [5000 km (3000 mi) after
the initial 1000 km (600 mi) and every 6000 km (3500 mi) thereafter]
Check oil level and vehicle for oil leakage. Every 3000 km (1800 mi)

18 Engine oil strainer Clean. 5000 km (3000 mi) after the initial 1000 km (600 mi) and every
6000 km (3500 mi) thereafter
19 * Cooling system Check coolant level and vehicle
for coolant leakage. 
Change coolant. Every 3 years
20 Final transmission
oil Check vehicle for oil leakage.
 
Change. 
21 *V-belt Replace. When the V-belt replacement indicator comes on
22 *Front and rear brake
switches Check operation.

23 Moving parts and
cables Lubricate.

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
U53BE1E0 6 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment6-10
1
2
3
4
567
8
9
10
11
12
To install the panel
1. Insert the projections on the panel
into the slots as shown, and then
install the screws.
2. Close the seat.
EAUT1837
Checking the spark plugThe spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug 1. Place the vehicle on the center- stand.
2. Remove panel C. (See page 6-8.)
3. Remove the spark plug cap.
4. Remove the spark plug as shown, with the spark plug wrench includ-
ed in the owner’s tool kit. To check the spark plug
1. Check that the porcelain insulator around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.
2. Check the spark plug for electrode erosion and excessive carbon or
other deposits, and replace it if
1. Projection
1
1. Spark plug wrench
1
U53BE1E0 10 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment
6-11
1
2
3
4
56
7
8
9
10
11
12 necessary.
3. Measure the spark plug gap with a wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
To install the spark plug 1. Clean the surface of the spark plug gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
3. Install the spark plug cap.
4. Install the panel.
EAUT3703
Engine oil and oil strainerThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil strainer
cleaned at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the scooter on the center- stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.TIPThe engine oil should be between theminimum and maximum level marks.
Specified spark plug:NGK / CPR9EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Tightening torque: Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U53BE1E0 11 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment6-12
1
2
3
4
567
8
9
10
11
12
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil filler hole, and then tighten the oil filler
cap.
To change the engine oil and clean
the oil strainer 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil. 3. Remove the engine oil filler cap
and the engine oil drain bolts A
and B to drain the oil from the
crankcase. NOTICE: When re-
moving the engine oil drain bolt
B, the O-ring, compression
spring, and oil strainer will fall
out. Take care not to lose these
parts.
[ECAT1022]
4. Clean the oil strainer with solvent, and then check it for damage and
replace it if necessary.
5. Check the O-ring for damage and replace it if necessary.
6. Install the oil strainer, compression
1. Oil filler cap
2. Maximum level mark
3. Minimum level mark
23 1
1. Oil filler cap
1

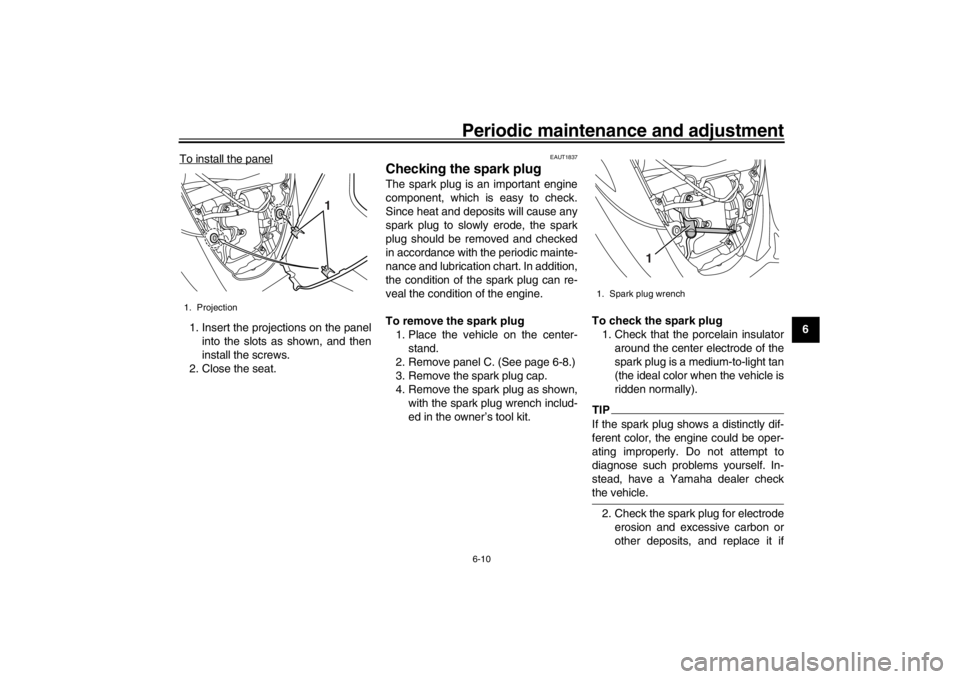

1. Engine oil drain bolt A
1. Engine oil drain bolt B
1
1
U53BE1E0 12 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment
6-13
1
2
3
4
56
7
8
9
10
11
12 spring, O-ring and engine oil drain
bolt B.
TIPMake sure that the O-ring is properlyseated.
7. Install engine oil drain bolt A, and then tighten both drain bolts to
their specified torques.
8. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.NOTICE
ECA11671

Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Be sure no foreign material en-ters the crankcase.
9. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
10. Turn the engine off, and then check the oil level and correct it if
necessary.
To reset the oil change indicator
and oil change tripmeter
TIPThe oil change indicator and oil change
tripmeter can be reset when "OIL
CHANGE" and "OIL TRIP" appear in
the multi-function display. (Seepage 3-3.)
EAU20067
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart. 1. Start the engine, warm up the final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center- stand.
3. Place an oil pan under the final transmission case to collect the
used oil.
4. Remove the final transmission oil filler cap and its O-ring from the fi-
nal transmission case.
Tightening torque:Engine oil drain bolt A: 20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Engine oil drain bolt B:
32 Nm (3.2 m·kgf, 23.1 ft·lbf)
Recommended engine oil: See page 8-1.
Oil change quantity:
1.10 L (1.16 US qt, 0.97 Imp.qt)
U53BE1E0 13 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment6-14
1
2
3
4
567
8
9
10
11
12
5. Remove the final transmission oil
drain bolt and its gasket to drain
the oil from the final transmission
case.
6. Install the final transmission oil drain bolt and its new gasket, and then tighten the bolt to the speci-
fied torque.
7. Refill with the specified amount of the recommended final transmis-
sion oil. WARNING! Make sure
that no foreign material enters
the final transmission case.
Make sure that no oil gets on the
tire or wheel.
[EWA11312]
8. Install the final tr ansmission oil fill-
er cap and its new O-ring, and then
tighten the oil filler cap.
9. Check the final transmission case for oil leakage. If oil is leaking,
check for the cause.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUT3693
To check the coolant level
The coolant level should be checked as
follows before each ride. In addition,
the coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.1. Place the vehicle on the center- stand.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Open the seat. (See page 3-11.)

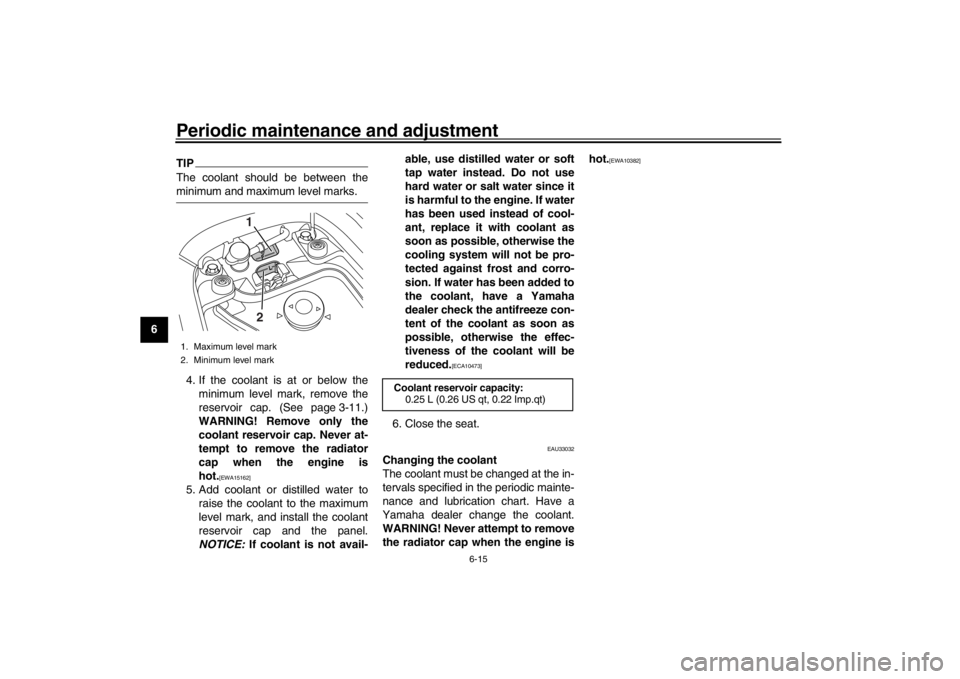

3. Check the coolant level in the cool- ant reservoir.
1. Final transmission oil filler cap
1. Final transmission oil drain bolt
1
1
Tightening torque:Final transmission oil drain bolt:20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Recommended final transmission
oil: See page 8-1.
Oil quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
U53BE1E0 14 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment
6-15
1
2
3
4
56
7
8
9
10
11
12
TIPThe coolant should be between theminimum and maximum level marks.
4. If the coolant is at or below the minimum level mark, remove the
reservoir cap. (See page 3-11.)
WARNING! Remove only the
coolant reservoir cap. Never at-
tempt to remove the radiator
cap when the engine is
hot.
[EWA15162]
5. Add coolant or distilled water toraise the coolant to the maximum
level mark, and install the coolant
reservoir cap and the panel.
NOTICE: If coolant is not avail- able, use distilled water or soft
tap water instead. Do not use
hard water or salt water since it
is harmful to the engine. If water
has been used instead of cool-
ant, replace it with coolant as
soon as possible, otherwise the
cooling system will not be pro-
tected against frost and corro-
sion. If water has been added to
the coolant, have a Yamaha
dealer check the antifreeze con-
tent of the coolant as soon as
possible, otherwise the effec-
tiveness of the coolant will be
reduced.
[ECA10473]
6. Close the seat.
EAU33032
Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10382]
1. Maximum level mark
2. Minimum level mark
12
Coolant reservoir capacity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
U53BE1E0 15 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment6-16
1
2
3
4
567
8
9
10
11
12
EAUT3551
Air filter and V-belt case air
filter elementsThe air filter and V-belt case air filter el-
ements should be cleaned or replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Check both filter elements more fre-
quently if you are riding in unusually
wet or dusty areas. The air filter check
hose must be frequently checked and
cleaned if necessary.
Replacing the air filter element 1. Place the scooter on the center- stand.
2. Remove the screw cover and air filter case cover by removing the
screws. 3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
5. Install the air filter case cover by in- stalling the screws and the screw
cover. Cleaning the air filter check hose
1. Check the hose on the rear side of the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove the hose, clean it, and then install
it.
Cleaning the V-belt case air filter el-
ement 1. Remove panel B. (See page 6-9.)
2. Remove the V-belt air filter case cover by removing the bolts.
3. Pull the air filter element out, and then clean it with compressed air.
NOTICE: To avoid damaging the

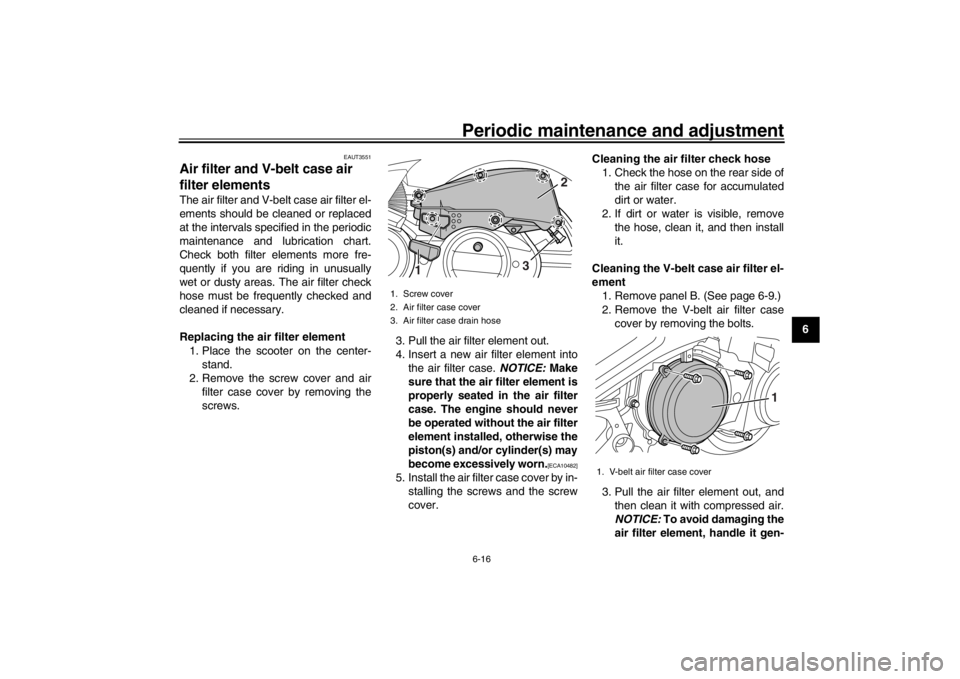

air filter element, handle it gen-1. Screw cover
2. Air filter case cover
3. Air filter case drain hose
2
3
1
1. V-belt air filter case cover
1
U53BE1E0 16 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Periodic maintenance and adjustment
6-17
1
2
3
4
56
7
8
9
10
11
12 tly and carefully, and do not
twist it.
[ECA10522]
4. Insert the element into the air filter
case.
5. Install the V-belt air filter case cov- er by installing the bolts.
6. Install the panel.
EAU44735
Checking the engine idling
speedCheck the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
EAU21386
Checking the throttle grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
1. V-belt case air filter element
1
Engine idling speed: 1600–1800 r/min
1. Throttle grip free playThrottle grip free play:3.0–5.0 mm (0.12–0.20 in)
1
U53BE1E0 17 ページ ２０１５年９月１５日　火曜日　午後１時４８分
