YAMAHA XENTER 125 2016 Owner's Manual

Instrument and control functions
3-6
1
234
5
6
7
8
9
10
11
12
TIP
If the ambient temperature falls be-
low –10 C, a lower temperature
than –10 C will not be displayed.

If the ambient temperature climbs
above 40  C, a higher temperature
than 40 C will not be displayed.

The accuracy of the temperature
reading may be affected when rid-
ing slowly (approximately under 20
km/h (12 mi/h)) or when stopped at
traffic signals, railroad crossings,etc.
Clock
To set the clock:
1. Push the “SELECT” button and “RESET” button together for at
least two seconds.
2. When the hour digits start flashing, push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and the minute digits will start flashing.
4. Push the “RESET” button to set the minute digits.
5. Push the “SELECT” button and then release it to start the clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the bottom segment
of the fuel meter and fuel level warning
indicator “*” starts flashing, refuel as
soon as possible. When the key is
turned to “ON”, all of the display seg-
ments of the fuel meter will appear for a
few seconds, and then shows the actu-
al fuel level.
Brightness control mode
This function allows you to adjust the
brightness of the speedometer panel to
suit the outside lighting conditions.
To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but- ton.
3. Turn the key to “ON”, and then re- lease the “SELECT” button after
five seconds. The display will
change to brightness control mode.
4. Push the “RESET” button to select the desired brightness level in the
following order: BL-01  BL-02 
BL-03  BL-04  BL-05 
BL-01.
5. Turn the key to “OFF”.
U53BE1E0 6 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-7
1
23
4
5
6
7
8
9
10
11
12
EAU1234H

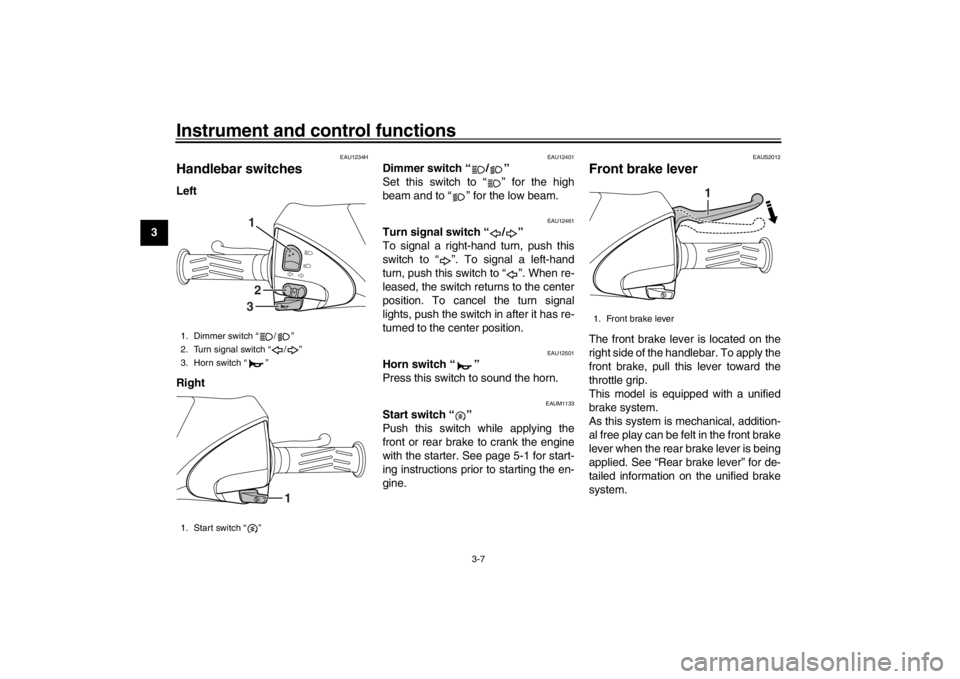

Handlebar switchesLeft
Right
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAUM1133
Start switch “ ”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAUS2012
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
This model is equipped with a unified
brake system.
As this system is mechanical, addition-
al free play can be felt in the front brake
lever when the rear brake lever is being
applied. See “Rear brake lever” for de-
tailed information on the unified brake
system.
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1. Start switch “ ”
132
1
1. Front brake lever
1
U53BE1E0 7 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-8
1
234
5
6
7
8
9
10
11
12
EAUS1963

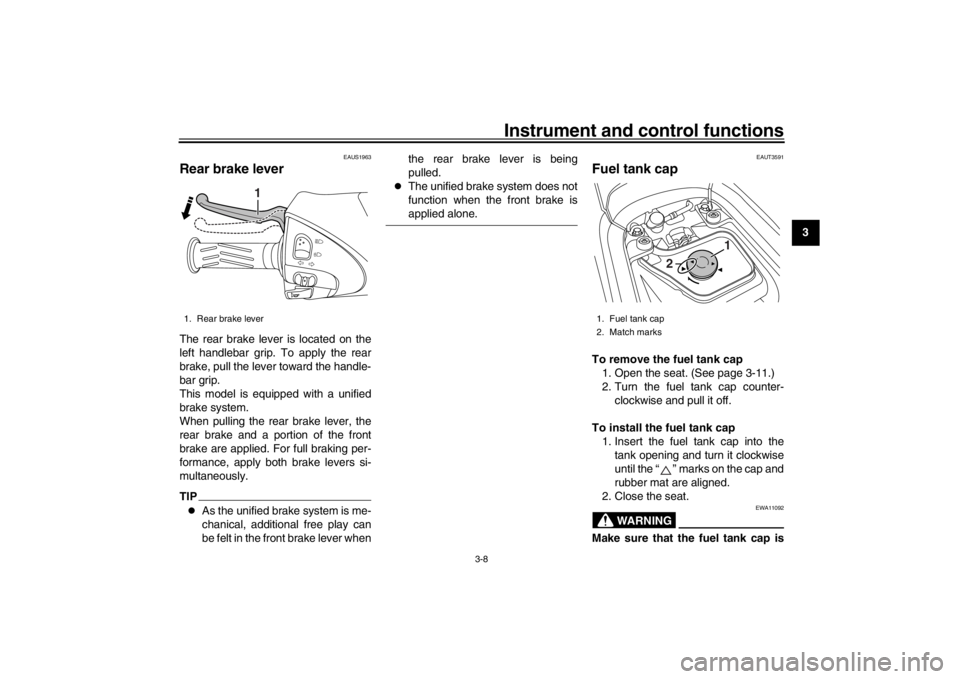

Rear brake leverThe rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull the lever toward the handle-
bar grip.
This model is equipped with a unified
brake system.
When pulling the rear brake lever, the
rear brake and a portion of the front
brake are applied. For full braking per-
formance, apply both brake levers si-
multaneously.TIP
As the unified brake system is me-
chanical, additional free play can
be felt in the front brake lever when the rear brake lever is being
pulled.

The unified brake system does not
function when the front brake isapplied alone.
EAUT3591
Fuel tank capTo remove the fuel tank cap
1. Open the seat. (See page 3-11.)
2. Turn the fuel tank cap counter- clockwise and pull it off.
To install the fuel tank cap 1. Insert the fuel tank cap into the tank opening and turn it clockwise
until the “ ” marks on the cap and
rubber mat are aligned.
2. Close the seat.
WARNING
EWA11092
Make sure that the fuel tank cap is
1. Rear brake lever
1
1. Fuel tank cap
2. Match marks
1
2
U53BE1E0 8 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-9
1
23
4
5
6
7
8
9
10
11
12 properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-

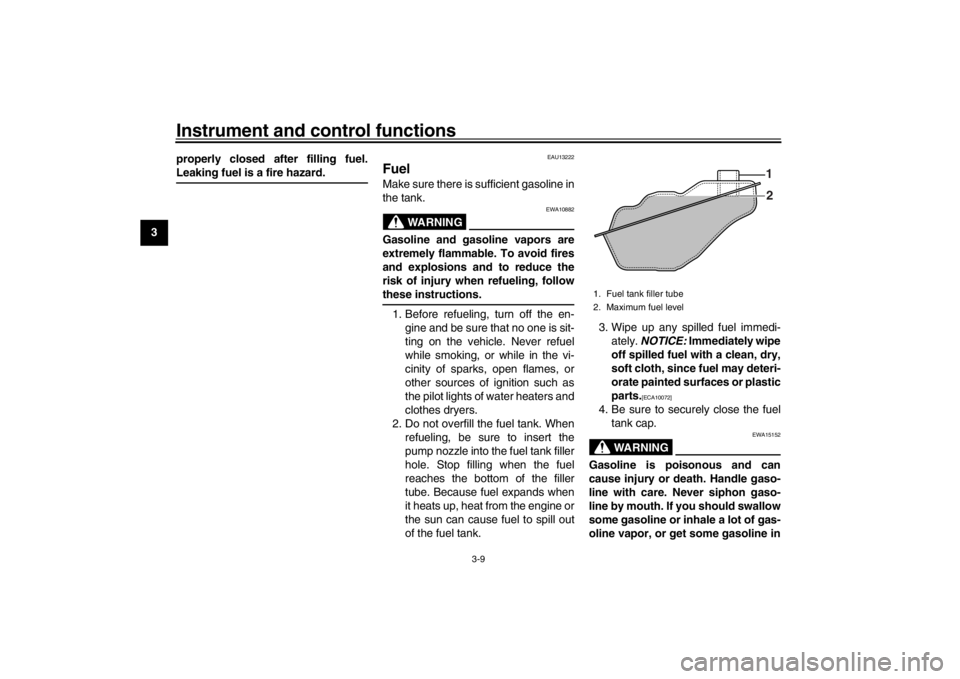

oline vapor, or get some gasoline in1. Fuel tank filler tube
2. Maximum fuel level
1
2
U53BE1E0 9 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-10
1
234
5
6
7
8
9
10
11
12
your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU33524
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
NOTICE
ECA10702
Use only unleaded gasoline. The use
of leaded gasoline will cause unre- pairable damage to the catalytic
converter.
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity: 8.0 L (2.1 US gal, 1.8 Imp.gal)
U53BE1E0 10 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-11
1
23
4
5
6
7
8
9
10
11
12
EAU13933

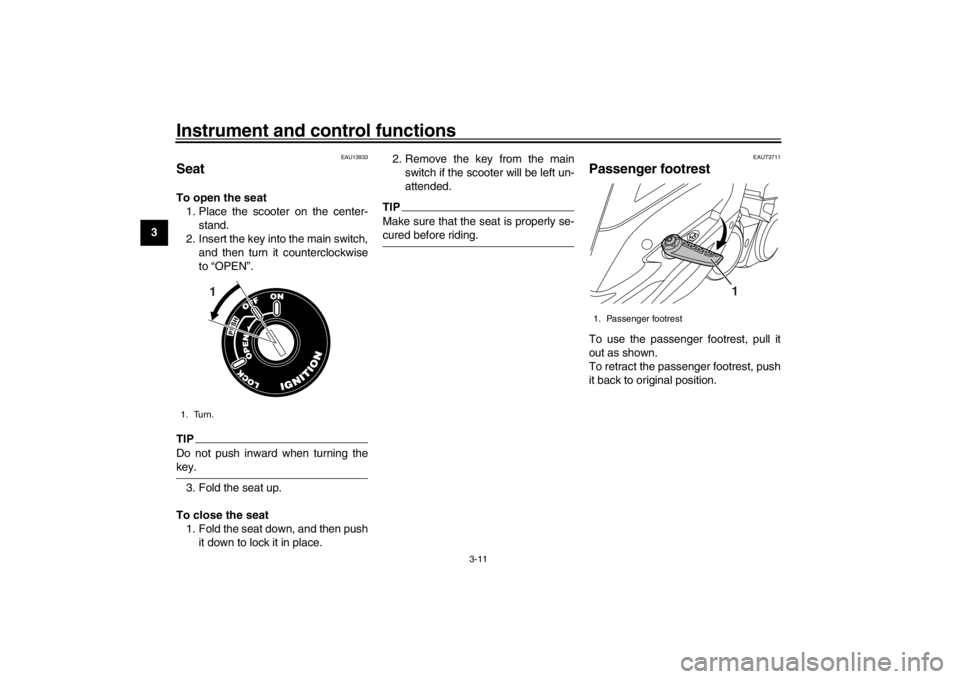

SeatTo open the seat 1. Place the scooter on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to “OPEN”.TIPDo not push inward when turning thekey.
3. Fold the seat up.
To close the seat 1. Fold the seat down, and then push it down to lock it in place. 2. Remove the key from the main
switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
EAUT3711
Passenger footrestTo use the passenger footrest, pull it
out as shown.
To retract the passenger footrest, push
it back to original position.
1. Turn.
1
1. Passenger footrest
1
U53BE1E0 11 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-12
1
234
5
6
7
8
9
10
11
12
EAUT4870

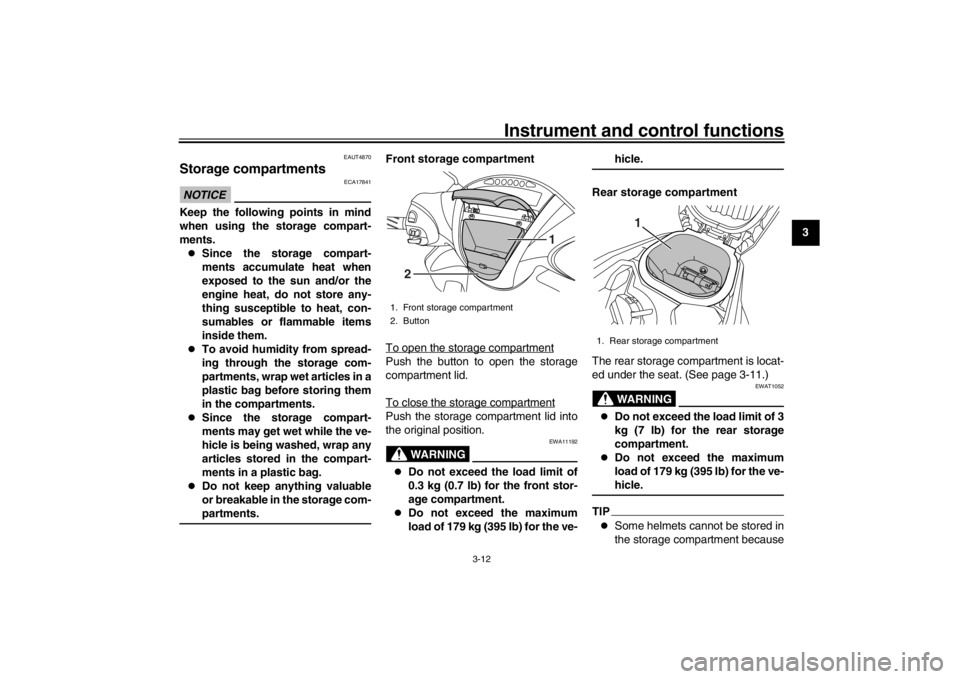

Storage compartmentsNOTICE
ECA17841
Keep the following points in mind
when using the storage compart-
ments.
Since the storage compart-
ments accumulate heat when
exposed to the sun and/or the
engine heat, do not store any-
thing susceptible to heat, con-
sumables or flammable items
inside them.

To avoid humidity from spread-
ing through the storage com-
partments, wrap wet articles in a
plastic bag before storing them
in the compartments.

Since the storage compart-
ments may get wet while the ve-
hicle is being washed, wrap any
articles stored in the compart-
ments in a plastic bag.

Do not keep anything valuable
or breakable in the storage com-partments. Front storage compartment
To open the storage compartment
Push the button to open the storage
compartment lid.
To close the storage compartmentPush the storage compartment lid into
the original position.
WARNING
EWA11192

Do not exceed the load limit of
0.3 kg (0.7 lb) for the front stor-
age compartment.

Do not exceed the maximum
load of 179 kg (395 lb) for the ve-
hicle.
Rear storage compartment
The rear storage compartment is locat-
ed under the seat. (See page 3-11.)WARNING
EWAT1052

Do not exceed the load limit of 3
kg (7 lb) for the rear storage
compartment.

Do not exceed the maximum
load of 179 kg (395 lb) for the ve-hicle.
TIP
Some helmets cannot be stored in
the storage compartment because

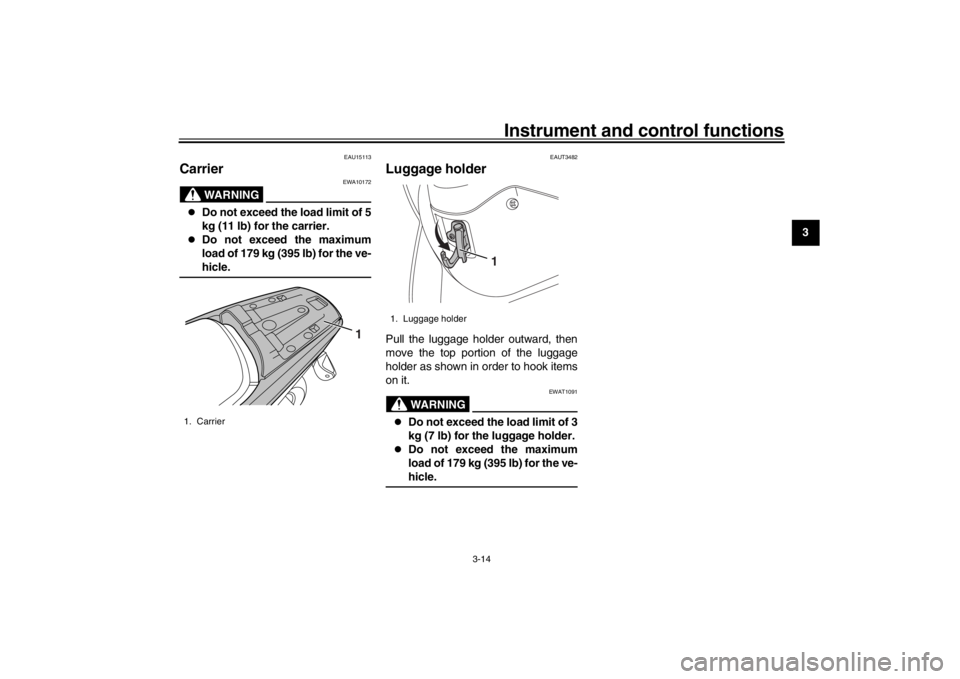

1. Front storage compartment
2. Button
1
2
1. Rear storage compartment
1
U53BE1E0 12 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-13
1
23
4
5
6
7
8
9
10
11
12 of their size or shape.

Do not leave your scooter unat-tended with the seat open.
EAU46023

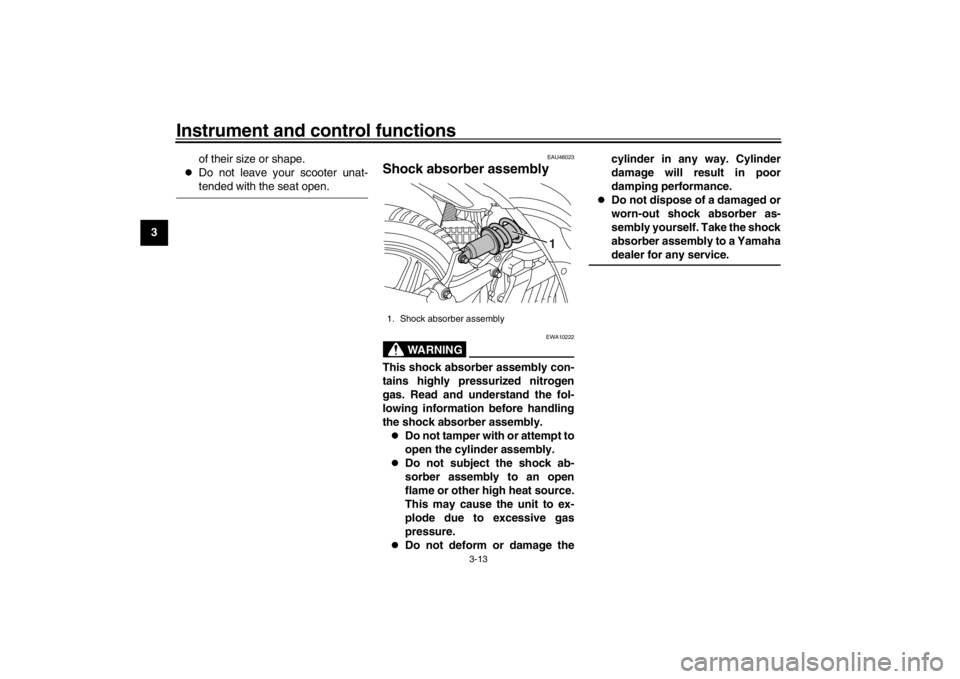

Shock absorber assembly
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage the cylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.
1. Shock absorber assembly
1
U53BE1E0 13 ページ ２０１５年９月１５日　火曜日　午後１時４８分

Instrument and control functions
3-14
1
234
5
6
7
8
9
10
11
12
EAU15113
Carrier
WARNING
EWA10172

Do not exceed the load limit of 5
kg (11 lb) for the carrier.

Do not exceed the maximum
load of 179 kg (395 lb) for the ve-hicle.
EAUT3482
Luggage holderPull the luggage holder outward, then
move the top portion of the luggage
holder as shown in order to hook items
on it.
WARNING
EWAT1091

Do not exceed the load limit of 3
kg (7 lb) for the luggage holder.

Do not exceed the maximum
load of 179 kg (395 lb) for the ve-hicle.
1. Carrier
1
1. Luggage holder
1
U53BE1E0 14 ページ ２０１５年９月１５日　火曜日　午後１時４８分

4-1
1
2
34
5
6
7
8
9
10
11
12
For your safety – pre-operation checks
EAU15599
Inspect your vehicle each time you use it to make sure the vehi cle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage. 3-9
Engine oil Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage. 6-11
Final transmission oil Check vehicle for oil leakage. 6-13
Coolant Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage. 6-14
Front brake Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check lever free play.
Adjust if necessary.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add specified brake fluid to specified level.
Check hydraulic system for leakage. 6-20, 6-21, 6-22
U53BE1E0 1 ページ ２０１５年９月１５日　火曜日　午後１時４８分
