1-2
Q
SAFETY INFORMATION
• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
● The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foot-
rests. Never carry a passenger
unless he or she can firmly
place both feet on the passen-
ger footrests.● Never ride under the infl uence of
alcohol or other drugs.● This scooter is designed for on-
road use only. It is not suitable for off-road use.
Protective Apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
● Always wear an approved helmet.● Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.● The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or reducing
abrasions or lacerations.● Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.● Always wear protective clothing
that covers your legs, ankles,
and feet. The engine or exhaust
system become very hot during
or after operation and can cause
burns.
● A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing
carbon monoxide can cause head-
aches, dizziness, drowsiness, nausea,
confusion, and eventually death.
Carbon Monoxide is a colorless,
odorless, tasteless gas which may
be present even if you do not see or
smell any engine exhaust. Deadly
levels of carbon monoxide can collect
rapidly and you can quickly be over-
come and unable to save yourself.
Also, deadly levels of carbon mon-
oxide can linger for hours or days in
enclosed or poorly ventilated areas.
If you experience any symptoms of
carbon monoxide poisoning, leave the
area immediately, get fresh air, and
SEEK MEDICAL TREATMENT.●
Do not run engine indoors. Even
if you try to ventilate engine ex-
haust with fans or open windows
and doors, carbon monoxide can
rapidly reach dangerous levels.
52S-F8199-E0_CS.indd 1-252S-F8199-E0_CS.indd 1-2
2011/11/16 13:06:592011/11/16 13:06:59
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
4-3
EAU15582
FOR YOUR SAFETY - PRE-OPERATION CHECKS
ITEM CHECKS PAGE
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-17~6-19
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.3-7~3-8, 6-23
Centerstand• Make sure that operation is smooth.
• Lubricate pivot if necessary.6-23
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.-
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.3-2~3-7
52S-F8199-E0_CS.indd 4-352S-F8199-E0_CS.indd 4-3
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-1
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUS1823
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most effi cient condition
possible. Safety is an obligation of
the vehicle owner/operator. The most
important points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However,
depending on the weather, terrain,
geographical location, and individual
use, the maintenance intervals may
need to be shortened.
EWA10321
WARNING
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle.
If you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15122
WARNING
Turn off the engine when perform-
ing maintenance unless otherwise
speci ed.● A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
res.● Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monox-
ide poisoning - possibly lead-
ing to death. See page 1-2 for
more information about carbon
monoxide.
EWA10330
WARNING
This scooter is designed for use
on paved roads only. If this scooter
is operated in abnormally dusty,
muddy or wet conditions, the air
lter element should be cleaned or
replaced more frequently, other-
wise rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EWA15460
WARNING
Brake discs, calipers, drums, and
linings can become very hot dur-
ing use. To avoid possible burns,
let brake components cool before
touching them.
52S-F8199-E0_CS.indd 6-152S-F8199-E0_CS.indd 6-1
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

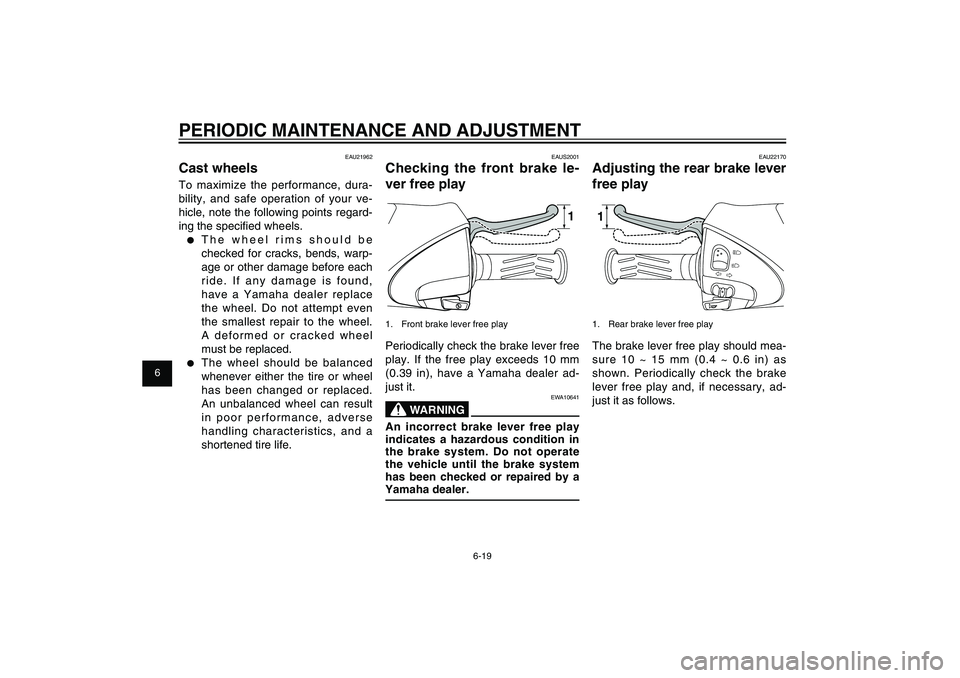

6-19
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU22170
Adjusting the rear brake lever
free play11. Rear brake lever free playThe brake lever free play should mea-
sure 10 ~ 15 mm (0.4 ~ 0.6 in) as
shown. Periodically check the brake
lever free play and, if necessary, ad-
just it as follows.
EAUS2001
Checking the front brake le-
ver free play
1
1. Front brake lever free playPeriodically check the brake lever free
play. If the free play exceeds 10 mm
(0.39 in), have a Yamaha dealer ad-
just it.
EWA10641
WARNING
An incorrect brake lever free play
indicates a hazardous condition in
the brake system. Do not operate
the vehicle until the brake system
has been checked or repaired by a
Yamaha dealer.
EAU21962
Cast wheelsTo maximize the performance, dura-
bility, and safe operation of your ve-
hicle, note the following points regard-
ing the specifi ed wheels.● The wheel rims should be
checked for cracks, bends, warp-
age or other damage before each
ride. If any damage is found,
have a Yamaha dealer replace
the wheel. Do not attempt even
the smallest repair to the wheel.
A deformed or cracked wheel
must be replaced.● The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
52S-F8199-E0_CS.indd 6-1952S-F8199-E0_CS.indd 6-19
2011/11/16 13:07:012011/11/16 13:07:01
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

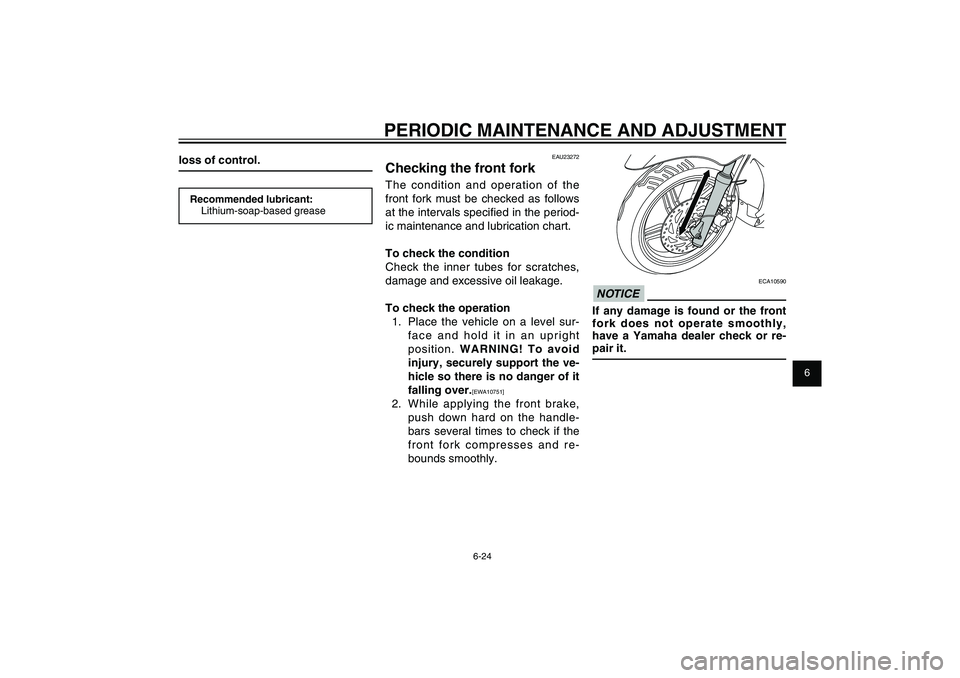

6-24
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
ECA10590
NOTICEIf any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23272
Checking the front forkThe condition and operation of the
front fork must be checked as follows
at the intervals specifi ed in the period-
ic maintenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright
position. WARNING! To avoid
injury, securely support the ve-
hicle so there is no danger of it
falling over.
[EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
loss of control.Recommended lubricant:
Lithium-soap-based grease
52S-F8199-E0_CS.indd 6-2452S-F8199-E0_CS.indd 6-24
2011/11/16 13:07:022011/11/16 13:07:02
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
8-2
SPECIFICATIONS
Caster angle
23.83 degree
Trail
84 mm (3.3 in)Front tireType
Tubeless
Size
100 / 80 - 16M/C 50P
Manufacturer/model
DURO / DM1157FRear tireType
Tubeless
Size
120 / 80 - 16M/C 60P
Manufacturer/model
DURO / DM1157LoadingMaximum load
179 kg (395 lb)Tire air pressure (measured on cold
tires)Loading condition
90 kg (198 lb)
Front
175 kPa (1.75 kgf/cm
2, 25 psi, 1.75 bar)
Rear
200 kPa (2.00 kgf/cm2, 29 psi, 2.00 bar)
Loading condition
90 kg - maximum load
Front
175 kPa (1.75 kgf/cm2, 25 psi, 1.75 bar)Rear
225 kPa (2.25 kgf/cm
2, 33 psi, 2.25 bar)
Front wheelWheel type
Cast wheel
Rim size
J 16M/C x MT2.50Rear wheelWheel type
Cast wheel
Rim size
J 16M/C x MT2.75Front brakeType
Single disc brake
Operation
Right hand operation
Specifi ed brake fl uid
DOT 4Rear brakeType
Drum brake
Operation
Left hand operationFront suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
100.0 mm (3.94 in)Rear suspensionType
Unit swingSpring/shock absorber type
Coil spring/gas-oil damper
Wheel travel
92.0 mm (3.62 in)
Electrical systemIgnition system
TCI
Charging system
AC magnetoBatteryModel
GT7B-4
Voltage, capacity
12 V, 6.5 AhHeadlightBulb type
Halogen bulbBulb voltage, wattage x quantityHeadlight
12 V, 55 W x 2
Tail/brake light
12V, 0.25 / 1.4W x 1 (LED ASSY)
Front turn signal light
12 V, 10.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
Auxiliary light
12 V, 5.0 W x 2
License plate light
12 V, 5.0 W x 1
Meter lighting
12V,LED x 6
High beam indicator light
12V,LED x 1
