Instrument and control functions
EAU10462
Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10551
ON
All electrical circui ts are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10662
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10687
LOCK
The steering is lock ed and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turningthe handlebars back to the right slightly.
ON
OFFLOCK
1. Push.
2. Turn.
1
2
U52SE1E0 1 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Instrument and control functions
3-9
1
23
4
5
6
7
8
9
10
11
12 properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in1. Fuel tank filler tube
2. Maximum fuel level
1
2
U52SE1E0 9 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Periodic maintenance and adjustment6-28
1
2
3
4
567
8
9
10
11
12
EAUT3752
Replacing the fusesThe fuse box is located beside the bat-
tery compartment under panel A. (See
page 6-8.)
If a fuse is blown, replace it as follows. 1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
TIPAfter removing and installing the main
fuse, be sure to turn the main switch
from “ON” to “OFF” three times in
three-second intervals to initialize theidle speed control system.
3. Turn the key to “ON” and turn on the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAUT3661
Replacing the headlight bulbThis model is equipped with a halogen
bulb headlight. If a headlight bulb burns
out, replace it as follows.NOTICE
ECA10651
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.

Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Remove cowling A together with the headlight unit. (See page 6-8.)

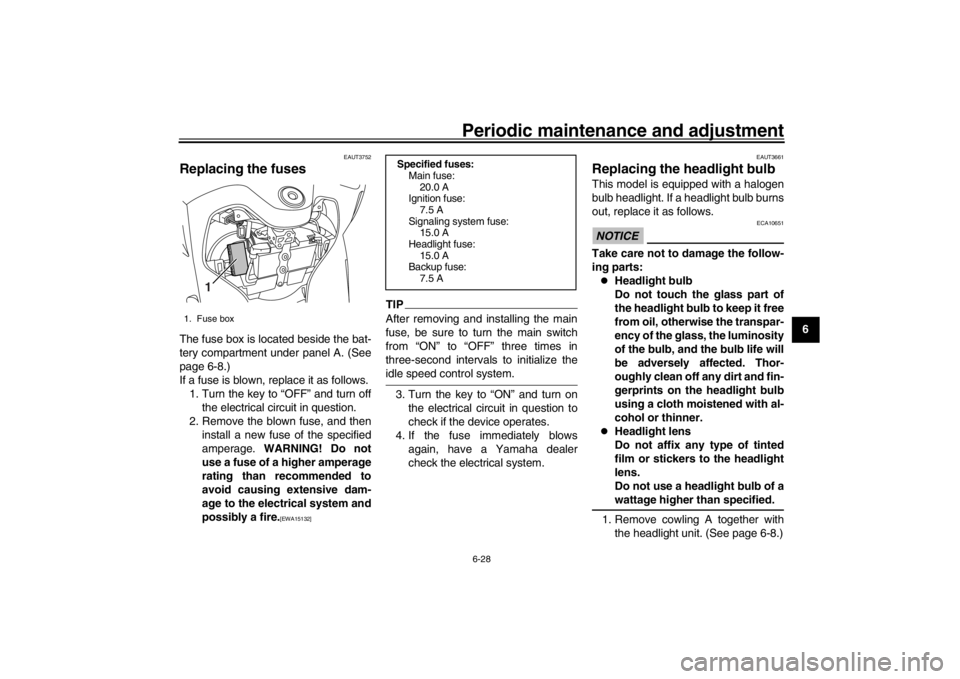

1. Fuse box
1
Specified fuses:Main fuse:20.0 A
Ignition fuse:
7.5 A
Signaling system fuse: 15.0 A
Headlight fuse: 15.0 A
Backup fuse:
7.5 A
U52SE1E0 28 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Periodic maintenance and adjustment6-32
1
2
3
4
567
8
9
10
11
12
EAU24331
License plate lightIf the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU25882
TroubleshootingAlthough Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15142
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
U52SE1E0 32 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Periodic maintenance and adjustment
6-33
1
2
3
4
56
7
8
9
10
11
12
EAU42706

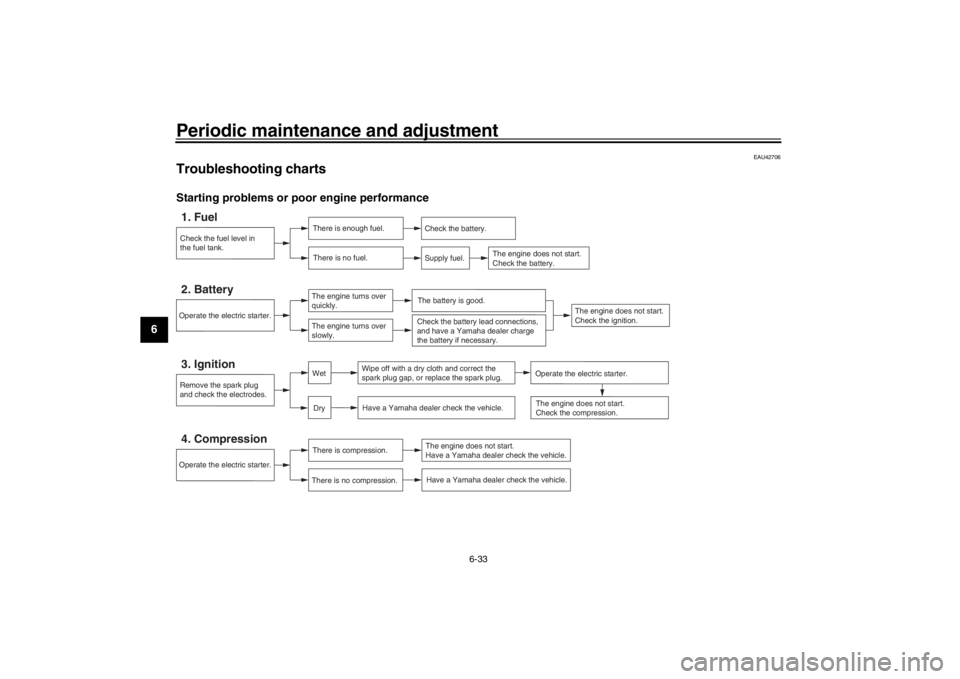

Troubleshooting chartsStarting problems or poor engine performanceCheck the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Operate the electric starter.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
The engine does not start.
Check the ignition.
U52SE1E0 33 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Specifications
8-2
1
2
3
4
5
6
789
10
11
12
Manufacturer/model: DURO / DM1157FRear tire:Type:Tubeless
Size: 120 / 80 - 16M/C 60P
Manufacturer/model:
DURO / DM1157Loading:Maximum load:179 kg (395 lb)
* (Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measured on cold
tires):Loading condition:90 kg (198 lb)
Front: 175 kPa (1.75 kgf/cm
2, 25 psi)
Rear: 200 kPa (2.00 kgf/cm2, 29 psi)
Loading condition:
90 kg - maximum load
Front: 175 kPa (1.75 kgf/cm2, 25 psi)
Rear: 225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type:Cast wheel
Rim size: J 16M/C × MT2.50
Rear wheel:Wheel type:Cast wheel
Rim size: J 16M/C × MT2.75Front brake:Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4Rear brake:Type:
Mechanical leading trailing drum brakeFront suspension:Type:Telescopic fork
Spring:
Coil spring
Shock absorber: Hydraulic damper
Wheel travel: 100 mm (3.9 in)Rear suspension:Type:Unit swing
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 92 mm (3.6 in)Electrical system:System voltage:
12 V Ignition system:
TCI
Charging system:
AC magneto
Battery:Model:GT7B-4
Voltage, capacity:
10 V, 6.5 Ah (10 HR)Headlight:Bulb type:Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 55.0 W  2
Brake/tail light: LED
Front turn signal light:
12 V, 10.0 W  2
Rear turn signal light: 12 V, 10.0 W  2
Auxiliary light: 12 V, 5.0 W  2
License plate light:
12 V, 5.0 W  1
Meter lighting: LED
High beam indicator light: LED
Turn signal indicator light:
LED
Coolant temperature warning light: LED
U52SE1E0 2 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Specifications
8-3
1
2
3
4
5
6
78
9
10
11
12
Engine trouble warning light: LEDFuse:Main fuse:20.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
15.0 A
Ignition fuse: 7.5 A
Backup fuse: 7.5 A
