turn signal bulb YAMAHA XJ6-N 2009 Owners Manual

TABLE OF CONTENTS
Replacing the headlight bulb ........ 6-33
Replacing the tail/brake light
bulb ........................................... 6-35
Replacing a turn signal light
bulb ........................................... 6-36
Replacing the license plate light
bulb ........................................... 6-36
Replacing the auxiliary light
bulb ........................................... 6-37
Supporting the motorcycle ............ 6-38
Front wheel ................................... 6-38
Rear wheel ................................... 6-39
Troubleshooting ............................ 6-41
Troubleshooting charts ................. 6-42
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U20SE0E0.book Page 2 Friday, September 19, 2008 9:27 AM

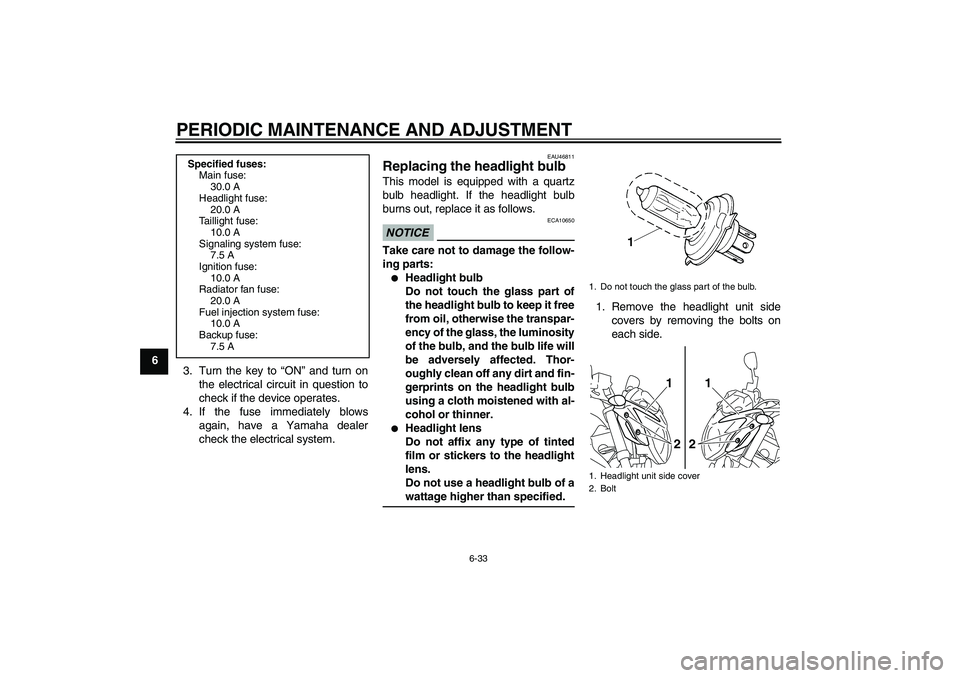

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU46811
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.1. Remove the headlight unit side
covers by removing the bolts on
each side.
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
1. Do not touch the glass part of the bulb.
1. Headlight unit side cover
2. Bolt
1
1
22
U20SE0E0.book Page 33 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

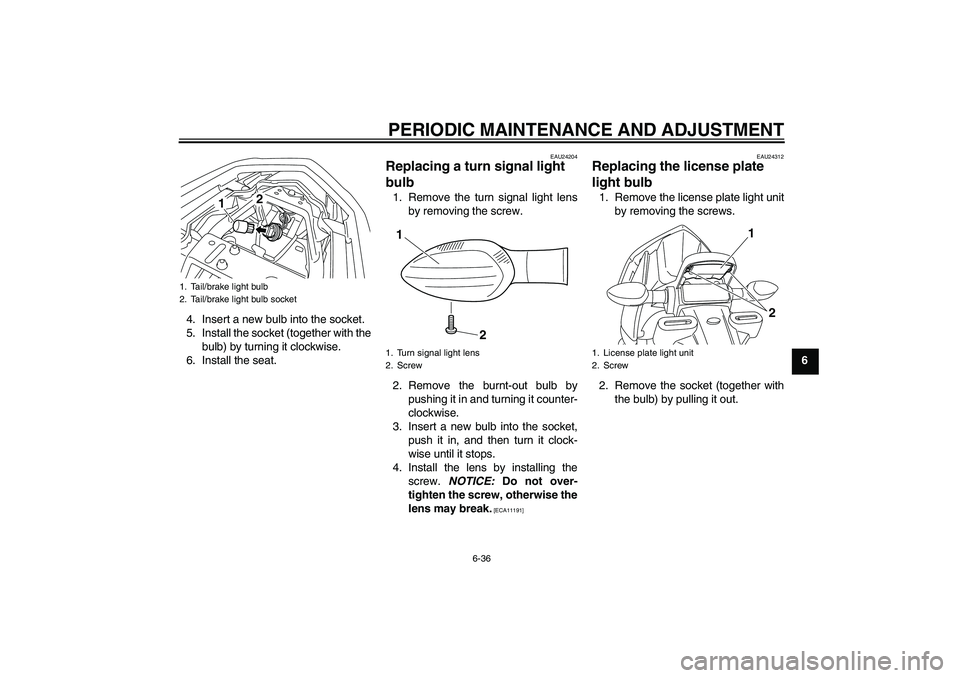

6-36
6 4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24312
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Tail/brake light bulb
2. Tail/brake light bulb socket
2
1
1. Turn signal light lens
2. Screw
2
1
1. License plate light unit
2. Screw
2
1
U20SE0E0.book Page 36 Friday, September 19, 2008 9:27 AM

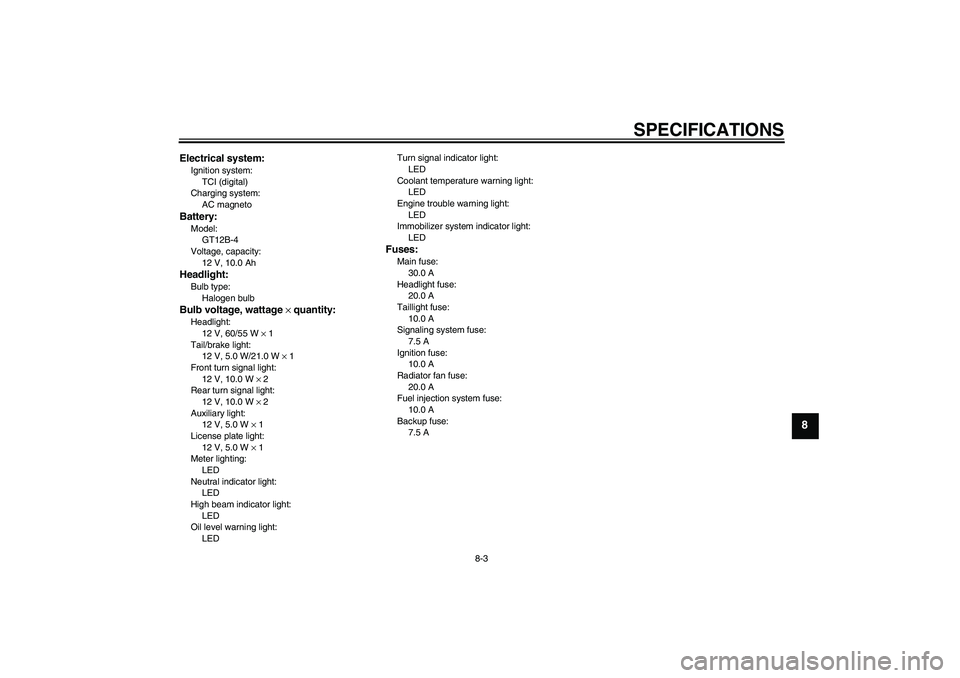

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60/55 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
U20SE0E0.book Page 3 Friday, September 19, 2008 9:27 AM

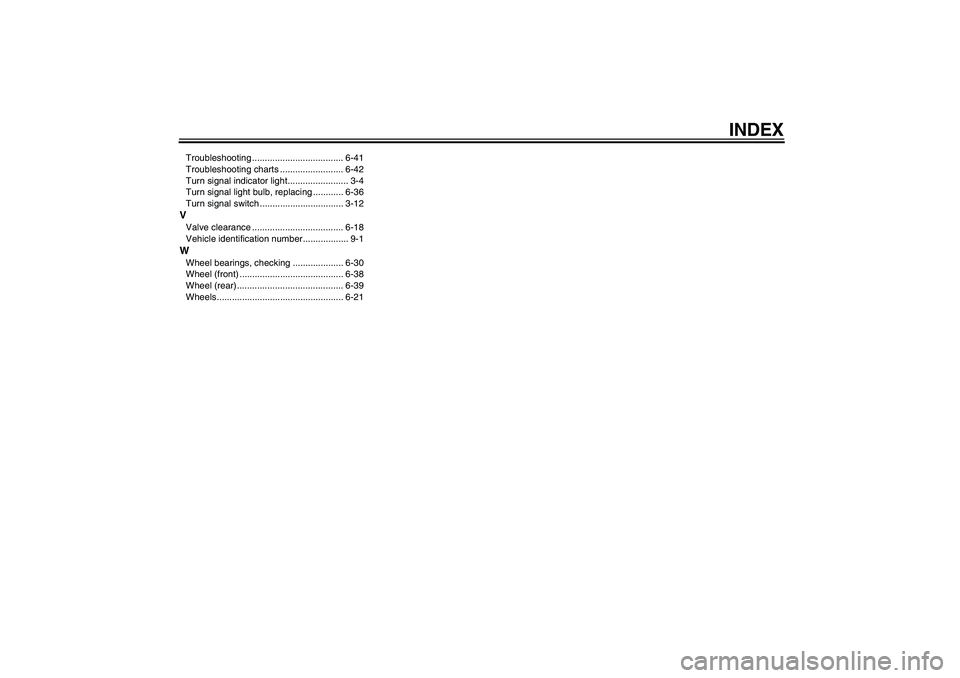

INDEX
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator light........................ 3-4
Turn signal light bulb, replacing ............ 6-36
Turn signal switch ................................. 3-12VValve clearance .................................... 6-18
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-30
Wheel (front) ......................................... 6-38
Wheel (rear).......................................... 6-39
Wheels.................................................. 6-21
U20SE0E0.book Page 2 Friday, September 19, 2008 9:27 AM
