YAMAHA XJ6-N 2016 Owner's Guide

Instrument and control functions
3-17
3
EAU55512
Fuel tank breather hose an d
overflow hose
Before operating the motorcycle:
 Check each hose connection.
 Check each hose for cracks or
damage, and replace if necessary.
 Make sure that the end of each
hose is not blocked, and clean if
necessary.
 Make sure that each hose is rout-
ed through the clamp.
 Make sure that the paint mark on
each hose is below the clamp.
EAU13434
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where pe destrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
paira ble damag e to the catalytic
converter.
1. Fuel tank breather hose and overflow hose
2. Clamp
3. Original position (paint mark)
3
1
2
UB61E1E0.book Page 17 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-18
3
EAU32981
Seat
To remove the seat
1. Insert the key into the seat lock, and then turn it counterclockwise.
2. While holding the key in that posi- tion, lift the rear of the seat up, and
then pull the seat off.
To install the seat 1. Insert the projection on the front of the seat into the seat holder as
shown.
2. Push the rear of the seat down to lock it in place.
3. Remove the key.
TIP
Make sure that the seat is properly se-
cured before riding.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1 2
1
2
UB61E1E0.book Page 18 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-19
3
EAU46752
Helmet hold er
The helmet holder is located under the
seat. A helmet holding cable is provid-
ed in the owner’s tool kit to secure a
helmet to the helmet holder.
To secure a helmet to the helmet
holder
1. Remove the seat. (See page 3-18.)
2. Pass the helmet holding cable through the buckle on the helmet
strap as shown, and then hook the
cable loops over the helmet hold-
er. 3. Place the helmet on the right side
of the vehicle, and then install the
seat. WARNING! Never ri de with
a helmet attache d to the helmet
hol der, since the helmet may hit
o b jects, causin g loss of control
an d possi bly an acci dent.
[EWA10162]
To release the helmet from the hel-
met hol der
Remove the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then install the
seat.
1. Helmet holder
2. Owner’s tool kit
3. Helmet holding cable
1. Helmet
2. Helmet holding cable
3. Helmet holder
2
3
1
123
UB61E1E0.book Page 19 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-20
3
EAU14454
Stora ge compartment
The storage compartment is located
under the seat. (See page 3-18.)
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the vehicle, be careful
not to let any water enter the storage
compartment.
WARNING
EWA10962
 Do not exceed the load limit of 3
k g (7 l b) for the stora ge com-
partment.
 Do not exceed the maximum
loa d of 190 k g (419 lb ) (XJ6NA)
195 k g (430 lb ) (XJ6N) for the ve-
hicle.
EAU46833
Han dle bar position
The handlebar can be adjusted to one
of two positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebar.
1. Storage compartment
1
1. Handlebar
1
UB61E1E0.book Page 20 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-21
3
EAU47001
A djustin g the shock a bsor ber
assem bly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10102
To avoi d d amag ing the mechanism,
d o not attempt to turn beyon d the
maximum or minimum settin gs.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing ring in direction (b).
 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the special wrench and ex-
tension bar included in the own-
er’s tool kit to make the
adjustment.
WARNING
EWA10222
This shock ab sorber assem bly con-
tains hig hly pressurize d nitro gen
g as. Rea d an d un derstan d the fol-
lowin g information before han dlin g
the shock a bsor ber assem bly.
 Do not tamper with or attempt
to open the cylind er assembly.
 Do not su bject the shock a b-
sor ber assem bly to an open
flame or other hi gh heat source.
This may cause the unit to ex-
plo de due to excessive gas
pressure.
 Do not deform or damag e the
cylin der in any way. Cylin der
d amag e will result in poor
d ampin g performance.
 Do not dispose of a d amaged or
worn-out shock a bsor ber as-
sem bly

yourself. Take the shock
a b sor ber assem bly to a Yamaha
d ealer for any service.
1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicator
1
2
3
4
5
6
7
1 2
3(a)
(b)
4
Sprin
g preloa d settin g:
Minimum (soft): 1
Standard:
3
Maximum (hard): 7
UB61E1E0.book Page 21 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-22
3
EAU15306
Si destan d
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See the following section for an
explanation of the ignition circuit cut-
off system.)
WARNING
EWA10242
The vehicle must not be ri dden with
the si destan d d own, or if the si de-
stan d cannot b e properly move d up
(or does not stay up), otherwise the
si destan d coul d contact the groun d
an d d istract the operator, resultin g
in a possi ble loss of control.
Yamaha’s i gnition circuit cut-off
system has been desi gne d to assist
the operator in fulfillin g the respon-
si bility of raisin g the si destan d b e-
fore startin g off. Therefore, check
this system re gularly an d have a
Yamaha dealer repair it if it does not
function properly.
EAU66730
I g nition circuit cut-off system
The ignition circuit cut-off system
(comprising the sidestand switch,
clutch switch and neutral switch) has
the following functions.
 It prevents starting when the
transmission is in gear and the
sidestand is up, but the clutch le-
ver is not pulled.
 It prevents starting when the
transmission is in gear and the
clutch lever is pulled, but the side-
stand is still down.
 It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system accord-
ing to the following procedure.
UB61E1E0.book Page 22 Wednesday, October 21, 2015 11:19 AM

Instrument and control functions
3-23
3

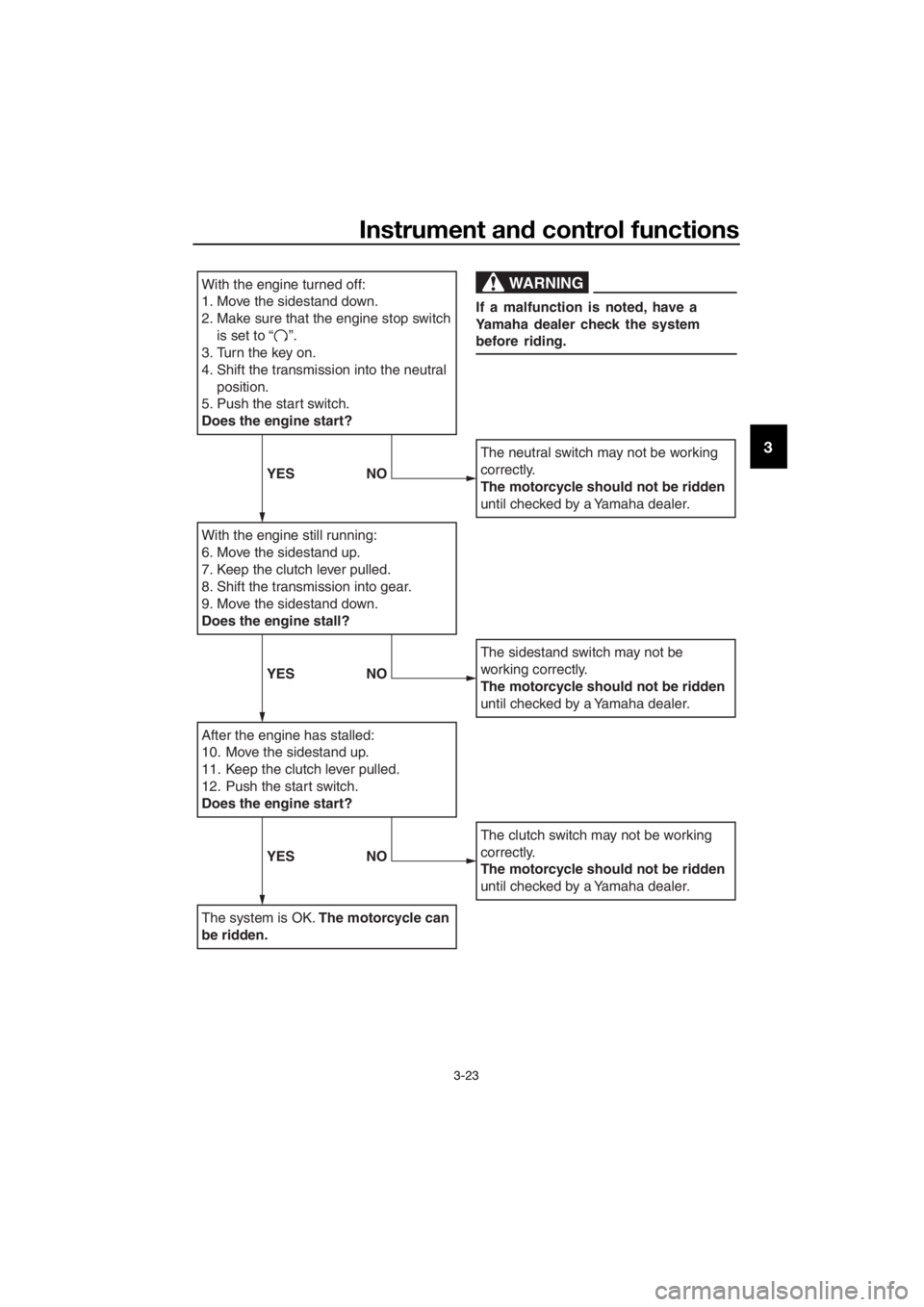

With the engine turned off:
1. Move the sidestand down.
2.
Make sure that the engine stop switch
is set to “ ”.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can
be ridden.
The neutral switch may not be working
correctly.
The motorcycle should not be ridden
until checked by a Yamaha dealer.
The sidestand switch may not be
working correctly.
The motorcycle should not be ridden
until checked by a Yamaha dealer.
The clutch switch may not be working
correctly.
The motorcycle should not be ridden
until checked by a Yamaha dealer.
WARNING
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
YES NO
YESNO
YESNO
UB61E1E0.book Page 23 Wednesday, October 21, 2015 11:19 AM

For your safety – pre-operation checks
4-1
4
EAU63440
Inspect your vehicle each time you use it to make sure the vehicle is in safe oper-
ating condition. Always follow the inspection and maintenance procedures and
schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility
of an acci dent or equipment d amage. Do not operate the vehicle if you fin d
any pro blem. If a pro blem cannot be correcte d b y the proce dures provi ded
in this manual, have the vehicle inspecte d b y a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKSPAGE
Fuel • Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank breather hose and overflow hose for
obstructions, cracks or damage, and check hose con-
nections. 3-15,
3-17
En gine oil • Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage. 6-9
Coolant • Check coolant level in reservoir.
• If necessary, add recommended coolant to specified
level.
• Check cooling system for leakage. 6-12
Front brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-24,
6-25
Rear brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-24,
6-25
Clutch • Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary. 6-22
UB61E1E0.book Page 1 Wednesday, October 21, 2015 11:19 AM

For your safety – pre-operation checks
4-2
4
Throttle grip • Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip
free play and lubricate cable and grip housing. 6-18,
6-29
Control ca bles • Make sure that operation is smooth.
• Lubricate if necessary.
6-28
Drive chain • Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary. 6-26,
6-28
Wheels an d tires •Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary. 6-19,
6-21
Brake an d shift pe dals • Make sure that operation is smooth.
• Lubricate pedal pivoting points if necessary. 6-29
Brake an d clutch le-
vers • Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.
6-30
Si destan d • Make sure that operation is smooth.
• Lubricate pivot if necessary. 6-30
Chassis fasteners • Make sure that all nuts, bolts and screws are properly
tightened.
• Tighten if necessary. —
Instruments, li ghts,
si gnals an d switches • Check operation.
• Correct if necessary.
—
Si destan d switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer
check vehicle. 3-22
ITEM
CHECKSPAGE
UB61E1E0.book Page 2 Wednesday, October 21, 2015 11:19 AM

Operation and important rid ing points
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU47152
TIP
This model is equipped with:  a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the display will indicate error
code 30, but this is not a malfunc-
tion. Turn the key to “OFF” and
then to “ON” to clear the error co-
de. Failing to do so will prevent the
engine from starting even though
the engine will crank when push-
ing the start switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the display will indicate error code
70, but this is not a malfunction.
Push the start switch to clear the
error code and to restart the en-
gine.
UB61E1E0.book Page 1 Wednesday, October 21, 2015 11:19 AM
