YAMAHA XJ6-S 2014 Workshop Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
20*Front fork • Check operation and for oil leak-
age. √√√√
21 *Shock a
bsor ber as-
sem bly • Check operation and shock ab-
sorber for oil leakage. √√√√
22 En gine oil • Change.
• Check oil level and vehicle for oil
leakage. √√√√√√
23 En
gine oil filter car-
tri dg e •Replace.
√√√
24 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change coolant. Every 3 years
25 *Front an
d rear
b rake switches • Check operation.
√√√√√√
26 Movin
g parts an d
ca bles • Lubricate.
√√√√√
27 *Throttle g rip • Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing. √√√√√
28 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
U36CE4E0.book Page 6 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18681
TIPAir filter
• This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com- pressed air to avoid damaging it.
• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
 Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
U36CE4E0.book Page 7 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18713
Removing an d installin g cowl-
in gs an d panelsThe cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU55880
Cowlin g A
To remove the cowlingRemove the bolts, and then take the
cowling off.
To install the cowlingPlace the cowling in the original posi-
tion, and then install the bolts.
1. Cowling A
2. Cowling B12

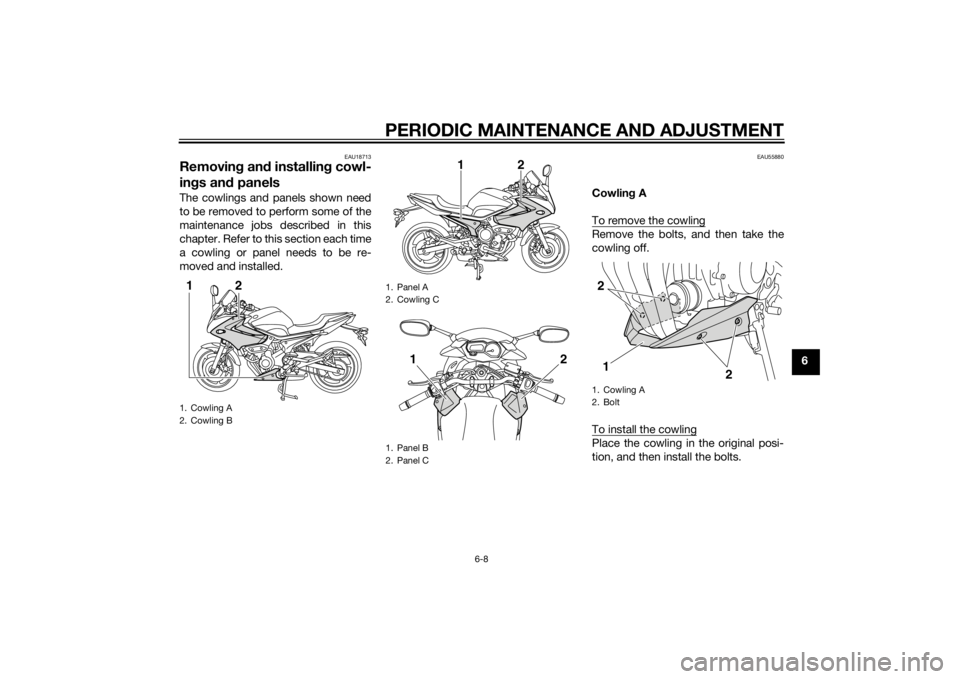

1. Panel A
2. Cowling C
1. Panel B
2. Panel C
2
1
2
1
1. Cowling A
2. Bolt
2
2
1
U36CE4E0.book Page 8 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6Cowlin
gs B an d C
To remove a cowling
1. Remove panel B (if removing cowling B) or panel C (if removing
cowling C).
2. Remove the quick fastener and the bolts, and then take the cowl-
ing off.
3. Disconnect the turn signal light lead connectors. To install a cowling
1. Connect the turn signal light lead
connectors.
2. Place the cowling in the original position, and then install the bolts
and the quick fastener.
3. Install panel B or C.
EAU56080
Panel A
To remove the panelRemove the bolt and the quick fasten-
er, and then take the panel off.
To install the panelPlace the panel in the original position,
and then install the bolt and the quick
fastener.

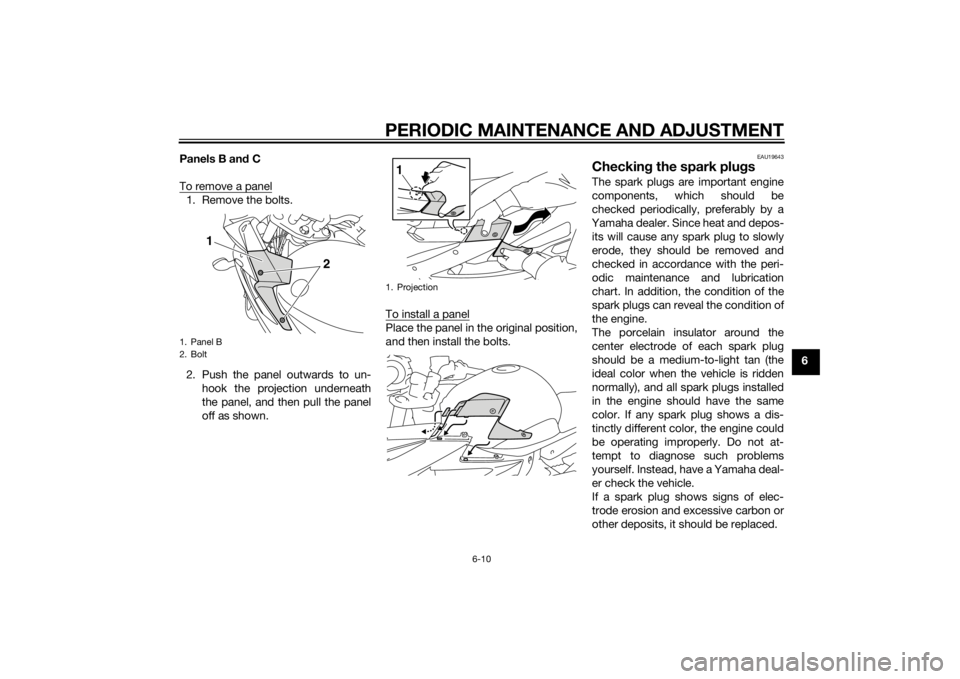

1. Cowling B
2. Bolt
3. Quick fastener
3
1
2

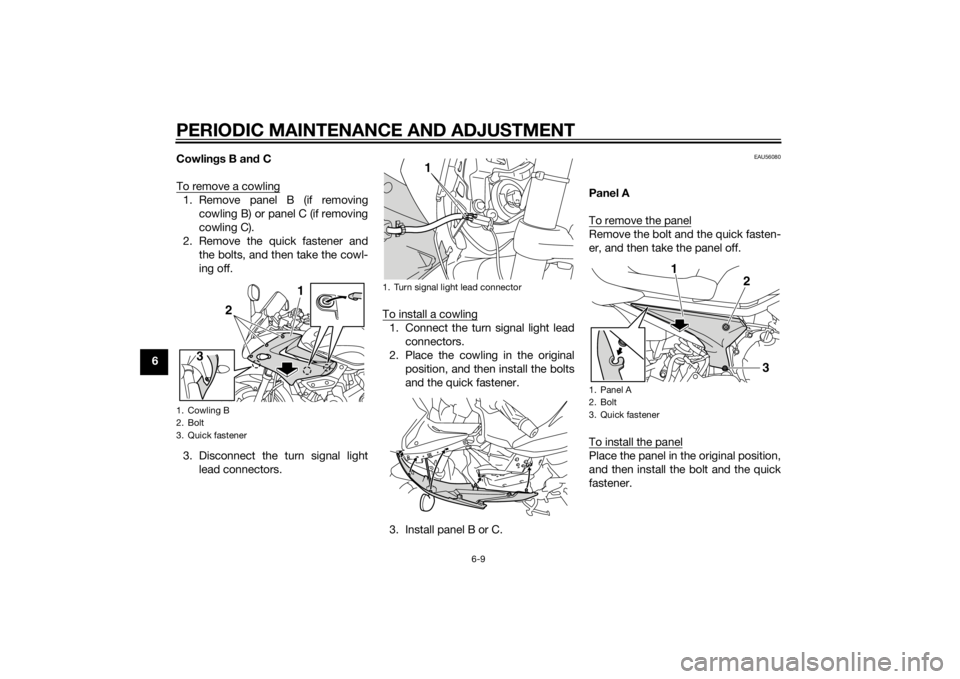

1. Turn signal light lead connector
1
1. Panel A
2. Bolt
3. Quick fastener
1
2 3
U36CE4E0.book Page 9 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
Panels B an
d C
To remove a panel
1. Remove the bolts.
2. Push the panel outwards to un- hook the projection underneath
the panel, and then pull the panel
off as shown. To install a panel
Place the panel in the original position,
and then install the bolts.
EAU19643
Checkin
g the spark plu gsThe spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos-
its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Panel B
2. Bolt
2
1
1. Projection1
U36CE4E0.book Page 10 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
EAU47552
En
gine oil an d oil filter car-
tri dg eThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the en gine oil level
1. Place the vehicle on the center- stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles.
4. Remove the engine oil dipstick and wipe it clean, insert it back
into the hole (without screwing it
in), and then remove it again to
check the oil level.TIPThe engine oil should be between the
minimum and maximum level marks.
Specifie d spark plu g:

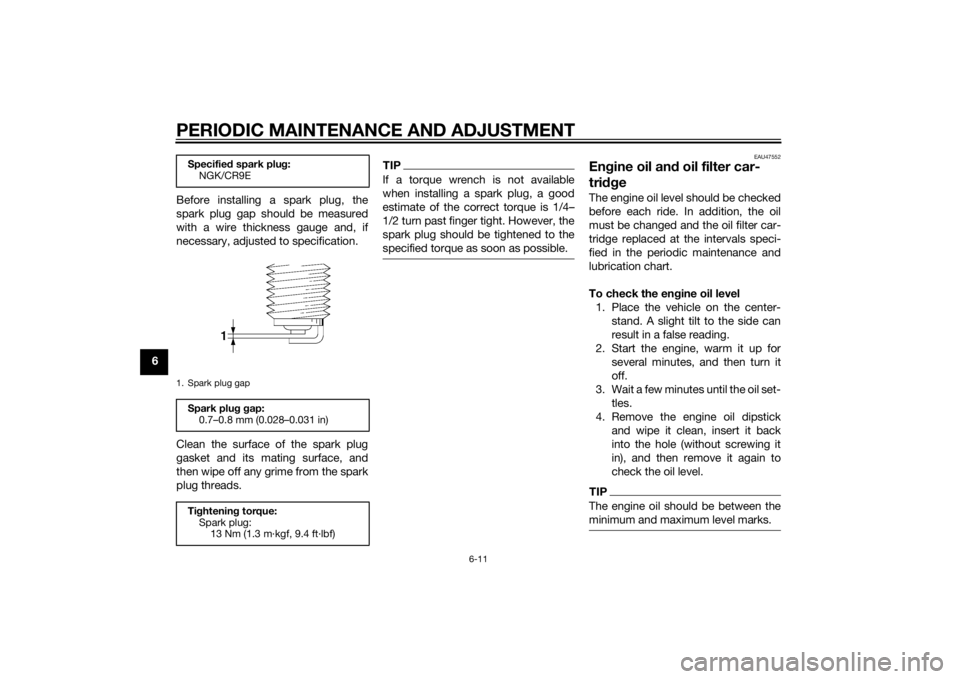

NGK/CR9E1. Spark plug gapSpark plu g g ap:
0.7–0.8 mm (0.028–0.031 in)
Ti ghtenin g torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U36CE4E0.book Page 11 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
5. If the engine oil is at or below the
minimum level mark, remove the
oil filler cap, and then add suffi-
cient oil of the recommended type
to raise it to the correct level. 6. Insert and tighten the engine oil
dipstick, and then install and tight-
en the oil filler cap.
To chan ge the en gine oil (with or
without oil filter cartri dge replace-
ment) 1. Remove cowling A. (See page 6-8.)
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5–7 if the oil filter cartridge
is not being replaced.5. Remove the oil filter cartridge withan oil filter wrench.

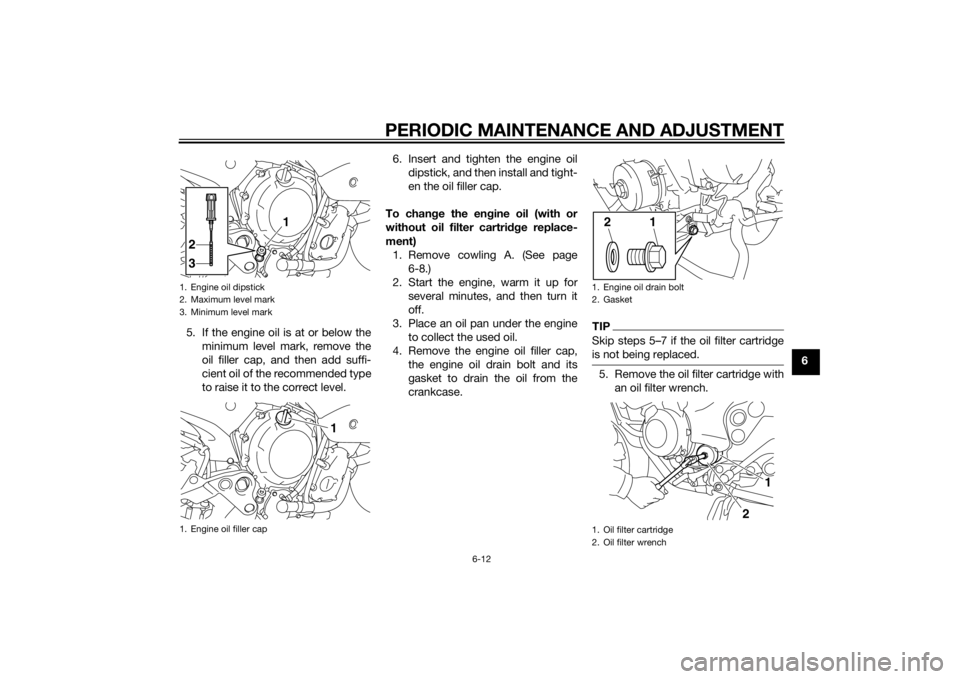

1. Engine oil dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
1
2
3
1
1. Engine oil drain bolt
2. Gasket

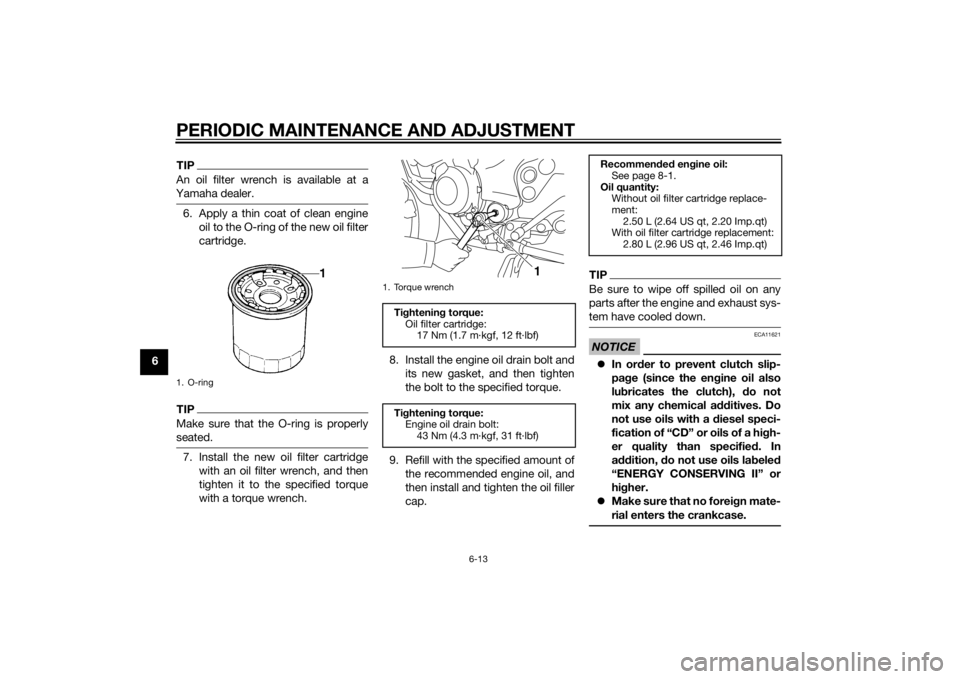

1. Oil filter cartridge
2. Oil filter wrench
1
2
1
2
U36CE4E0.book Page 12 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
TIPAn oil filter wrench is available at a
Yamaha dealer.6. Apply a thin coat of clean engine oil to the O-ring of the new oil filter
cartridge.TIPMake sure that the O-ring is properly
seated.7. Install the new oil filter cartridgewith an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench. 8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a hi gh-
er quality than specifie d. In
a ddition, do not use oils la beled
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.
1. O-ring
1. Torque wrenchTi ghtenin g torque:
Oil filter cartridge: 17 Nm (1.7 m·kgf, 12 ft·lbf)
Ti ghtenin g torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
1
Recommen ded en gine oil:
See page 8-1.
Oil quantity: Without oil filter cartridge replace-
ment:2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
U36CE4E0.book Page 13 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIPAfter the engine is started, the engine
oil level warning light should go off if
the oil level is sufficient.NOTICE
ECA10402
If the oil level warnin g li ght flickers
or remains on even if the oil level is
correct, imme diately turn the en gine
off an d have a Yamaha d ealer check
the vehicle.11. Turn the engine off, wait a few minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
12. Install the cowling.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU47561
To check the coolant level 1. Place the vehicle on the center- stand.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, remove the
coolant reservoir breather hose
from the guide, and then remove

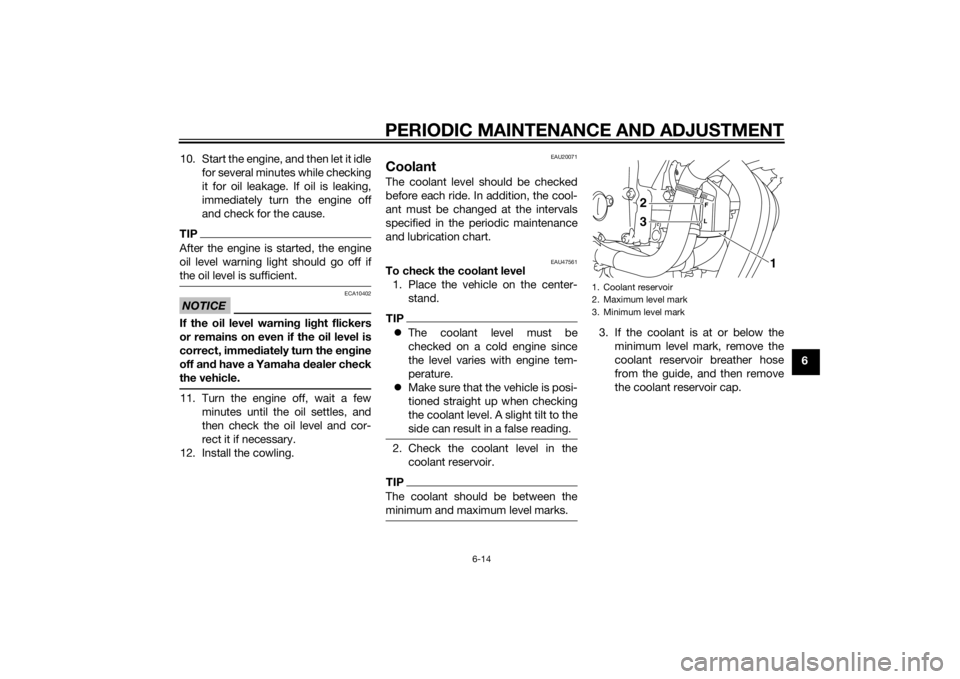

the coolant reservoir cap.1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1
2
3
U36CE4E0.book Page 14 Tuesday, July 2, 2013 3:47 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
64. Add coolant to the maximum level
mark, and then install the coolant
reservoir cap. WARNING! Re-
move only the coolant reservoir
cap. Never attempt to remove
the ra diator cap when the en-
g ine is hot.
[EWA15162]
NOTICE: If
coolant is not availa ble, use dis-
tille d water or soft tap water in-
stea d. Do not use har d water or
salt water since it is harmful to
the en gine. If water has been
use d instea d of coolant, replace
it with coolant as soon as possi-
b le, otherwise the coolin g sys-
tem will not be protected a
g ainst frost an d corrosion. If
water has been adde d to the
coolant, have a Yamaha d ealer
check the antifreeze content of
the coolant as soon as possi ble,
otherwise the effectiveness of
the coolant will b e reduced.
[ECA10473]
5. Route the coolant reservoir
breather hose through the guide
as shown.
EAU47574
To chan ge the coolant
1. Place the vehicle on the center- stand.
2. Remove cowlings A and C. (See page 6-8.)
3. Place a container under the en- gine to collect the used coolant.
4. Remove the radiator cap retaining bolt, radiator cap retainer and ra-
diator cap. WARNING! Never at-
tempt to remove the ra diator
cap when the en gine is hot.
[EWA10382]

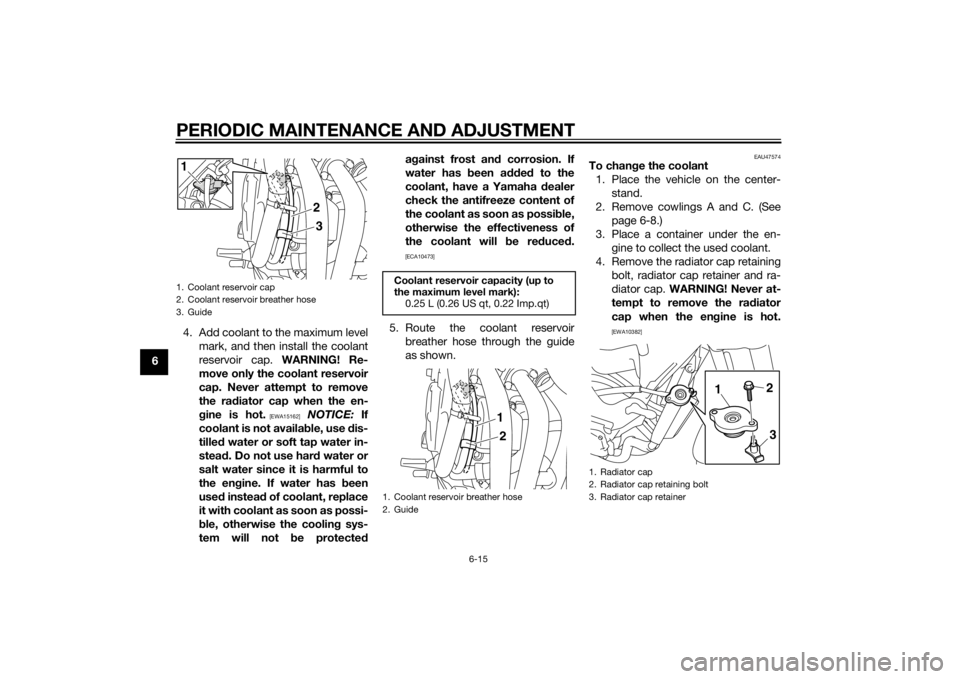

1. Coolant reservoir cap
2. Coolant reservoir breather hose
3. Guide
3
1
2
Coolant reservoir capacity (up to
the maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)1. Coolant reservoir breather hose
2. Guide
2
1
1. Radiator cap
2. Radiator cap retaining bolt
3. Radiator cap retainer
2
1
3
U36CE4E0.book Page 15 Tuesday, July 2, 2013 3:47 PM
