fuel consumption YAMAHA XJ600N 2002 Owners Manual

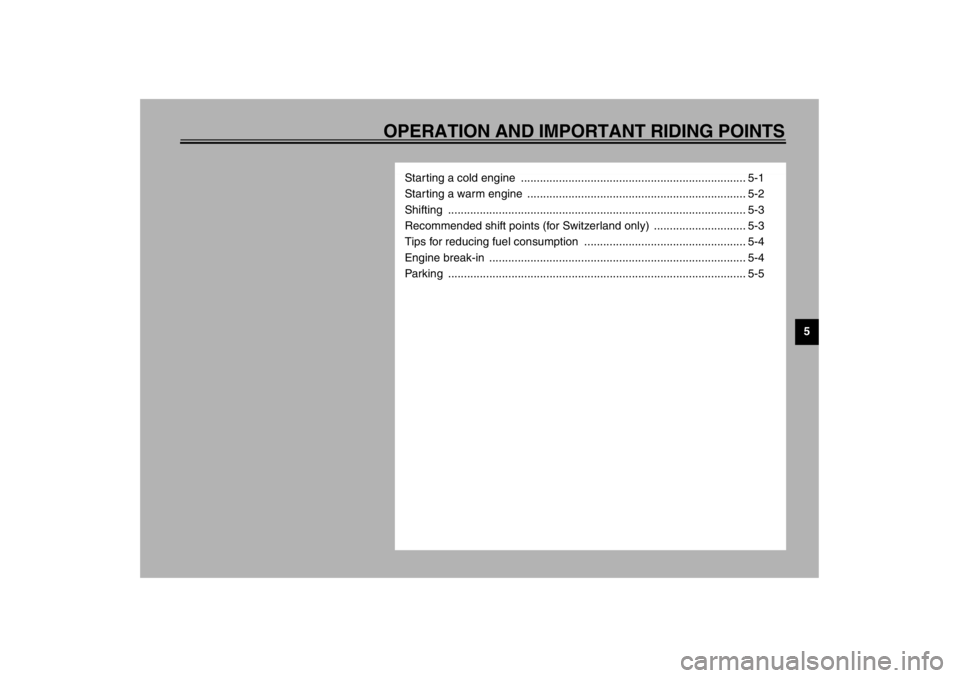

OPERATION AND IMPORTANT RIDING POINTS
5
Starting a cold engine ....................................................................... 5-1
Starting a warm engine ..................................................................... 5-2
Shifting .............................................................................................. 5-3
Recommended shift points (for Switzerland only) ............................. 5-3
Tips for reducing fuel consumption ................................................... 5-4
Engine break-in ................................................................................. 5-4
Parking .............................................................................................. 5-5
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU00424
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Thoroughly warm up the engine.


Turn the starter (choke) off as
soon as possible.


Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU00436
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,000 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,000 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
EAU00440*
0–150 km

Avoid prolonged operation above
5,000 r/min.


After every hour of operation, stop
the engine, and then let it cool for
five to ten minutes.


Vary the engine speed from time
to time. Do not operate the engine
at one set throttle position.
150–500 km


Avoid prolonged operation above
6,000 r/min.


Rev the engine freely through the
gears, but do not use full throttle at
any time.
E_4br.book Page 4 Wednesday, July 25, 2001 1:40 PM

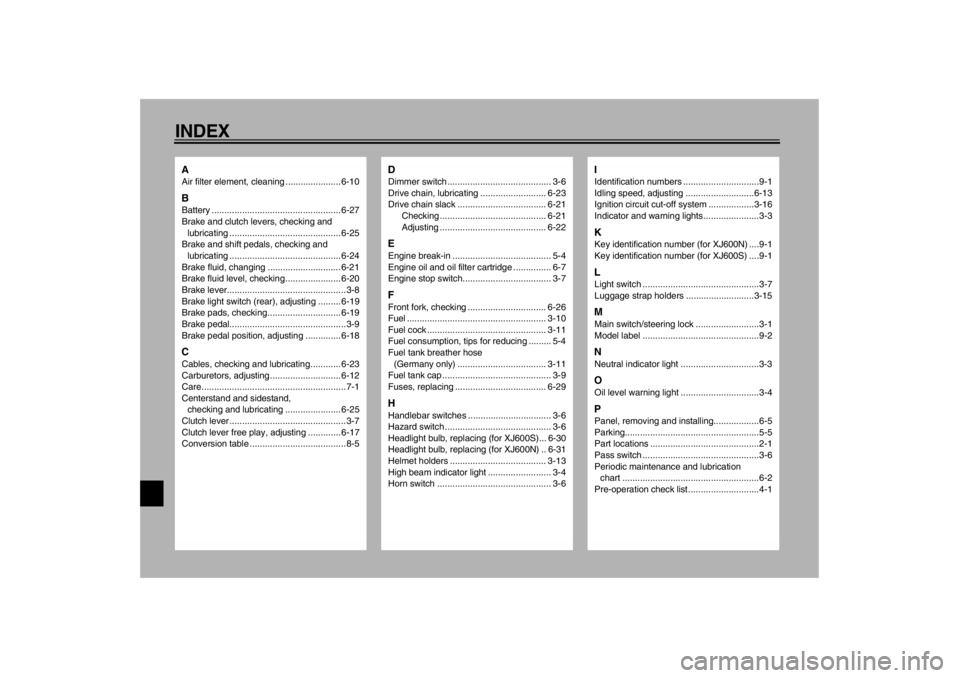

10-INDEXAAir filter element, cleaning ...................... 6-10BBattery ................................................... 6-27
Brake and clutch levers, checking and
lubricating ............................................ 6-25
Brake and shift pedals, checking and
lubricating ............................................ 6-24
Brake fluid, changing ............................. 6-21
Brake fluid level, checking...................... 6-20
Brake lever...............................................3-8
Brake light switch (rear), adjusting ......... 6-19
Brake pads, checking............................. 6-19
Brake pedal..............................................3-9
Brake pedal position, adjusting .............. 6-18CCables, checking and lubricating............ 6-23
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Centerstand and sidestand,
checking and lubricating ...................... 6-25
Clutch lever ..............................................3-7
Clutch lever free play, adjusting ............. 6-17
Conversion table ......................................8-5
DDimmer switch ......................................... 3-6
Drive chain, lubricating .......................... 6-23
Drive chain slack ................................... 6-21
Checking .......................................... 6-21
Adjusting .......................................... 6-22EEngine break-in ....................................... 5-4
Engine oil and oil filter cartridge ............... 6-7
Engine stop switch................................... 3-7FFront fork, checking ............................... 6-26
Fuel ....................................................... 3-10
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ......... 5-4
Fuel tank breather hose
(Germany only) ................................... 3-11
Fuel tank cap ........................................... 3-9
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-6
Hazard switch .......................................... 3-6
Headlight bulb, replacing (for XJ600S)... 6-30
Headlight bulb, replacing (for XJ600N) .. 6-31
Helmet holders ...................................... 3-13
High beam indicator light ......................... 3-4
Horn switch ............................................. 3-6
IIdentification numbers ..............................9-1
Idling speed, adjusting ...........................6-13
Ignition circuit cut-off system ..................3-16
Indicator and warning lights......................3-3KKey identification number (for XJ600N) ....9-1
Key identification number (for XJ600S) ....9-1LLight switch ..............................................3-7
Luggage strap holders ...........................3-15MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-3OOil level warning light ...............................3-4PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-6
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1
