PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU01470

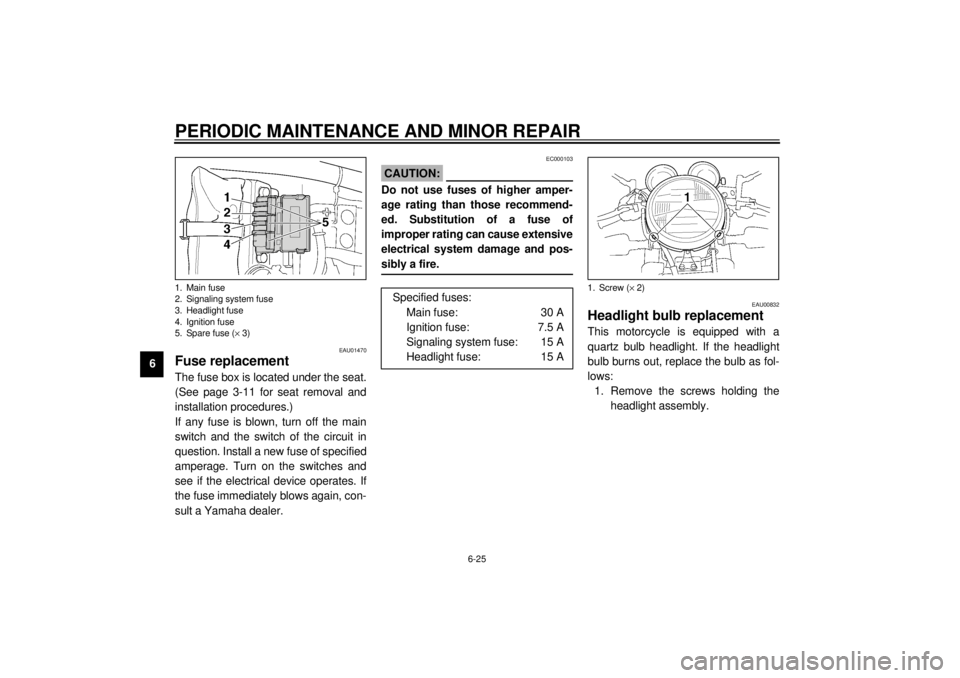

Fuse replacementThe fuse box is located under the seat.
(See page 3-11 for seat removal and
installation procedures.)
If any fuse is blown, turn off the main
switch and the switch of the circuit in
question. Install a new fuse of specified
amperage. Turn on the switches and
see if the electrical device operates. If
the fuse immediately blows again, con-
sult a Yamaha dealer.
EC000103
CAUTION:@ Do not use fuses of higher amper-
age rating than those recommend-
ed. Substitution of a fuse of
improper rating can cause extensive
electrical system damage and pos-
sibly a fire. @
EAU00832
Headlight bulb replacementThis motorcycle is equipped with a
quartz bulb headlight. If the headlight
bulb burns out, replace the bulb as fol-
lows:
1. Remove the screws holding the
headlight assembly.
1. Main fuse
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Spare fuse (´ 3)
Specified fuses:
Main fuse: 30 A
Ignition fuse: 7.5 A
Signaling system fuse: 15 A
Headlight fuse: 15 A
1. Screw (´ 2)
