Page 43 of 100
6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing the panel ....................... 6-5
Checking the spark plugs .................................... 6-6
Engine oil and oil filter element ............................ 6-7
Cleaning the air filter element ............................ 6-11
Adjusting the carburetors ................................... 6-12
Adjusting the engine idling speed ...................... 6-13
Adjusting the throttle cable free play .................. 6-13
Adjusting the valve clearance ............................ 6-14
Tires ................................................................... 6-14
Wheels ............................................................... 6-17
Adjusting the brake pedal position ..................... 6-17
Rear brake light switch adjustment .................... 6-18
Checking the front and rear brake pads ............. 6-19
Checking the brake fluid level ............................ 6-19
Changing the brake fluid .................................... 6-20
Drive chain slack ................................................ 6-21
Lubricating the drive chain ................................. 6-22
Checking and lubricating the cables .................. 6-23Checking and lubricating the throttle
grip and cable ................................................. 6-23
Checking and lubricating the brake and
shift pedals ...................................................... 6-24
Checking and lubricating the brake and
clutch levers .................................................... 6-24
Checking and lubricating the centerstand and
sidestand ......................................................... 6-25
Checking the front fork ...................................... 6-25
Checking the steering ....................................... 6-26
Checking the wheel bearings ............................ 6-27
Battery ............................................................... 6-27
Replacing the fuses .......................................... 6-29
Replacing the headlight bulb ............................. 6-29
Replacing the tail/brake light bulb ..................... 6-31
Replacing a turn signal light bulb ...................... 6-31
Front wheel ....................................................... 6-32
Rear wheel ........................................................ 6-34
Troubleshooting ................................................. 6-36
Troubleshooting chart ........................................ 6-37
E_5ea.book Page 1 Wednesday, October 4, 2000 4:14 PM
Page 72 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
EAU01470*

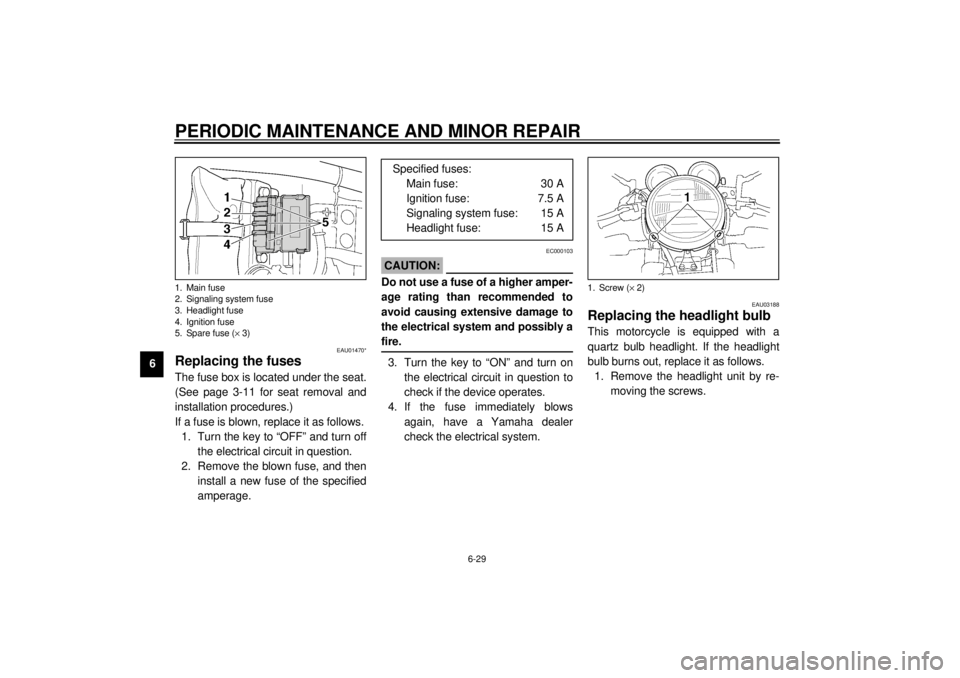

Replacing the fuses The fuse box is located under the seat.
(See page 3-11 for seat removal and
installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU03188
Replacing the headlight bulb This motorcycle is equipped with a
quartz bulb headlight. If the headlight
bulb burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.
1. Main fuse
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Spare fuse (´ 3)
Specified fuses:
Main fuse: 30 A
Ignition fuse: 7.5 A
Signaling system fuse: 15 A
Headlight fuse: 15 A
1. Screw (´ 2)
E_5ea.book Page 29 Wednesday, October 4, 2000 4:14 PM
Page 73 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30

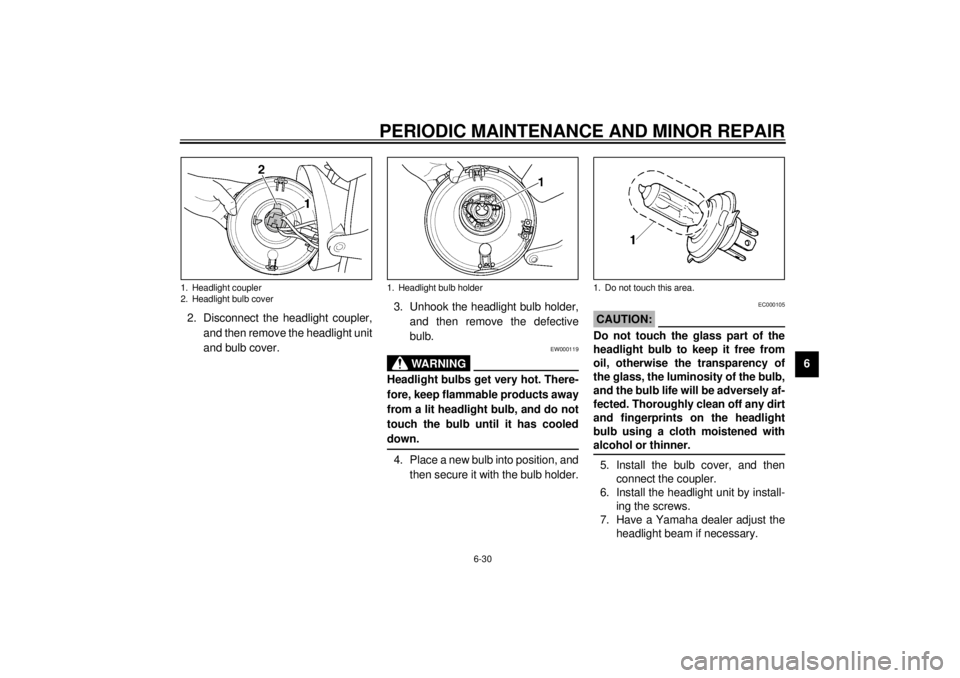

6 2. Disconnect the headlight coupler,
and then remove the headlight unit
and bulb cover.3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EW000119
WARNING
_ Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down. _4. Place a new bulb into position, and
then secure it with the bulb holder.
EC000105
CAUTION:_ Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with
alcohol or thinner. _5. Install the bulb cover, and then
connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
1. Do not touch this area.
E_5ea.book Page 30 Wednesday, October 4, 2000 4:14 PM
Page 90 of 100
SPECIFICATIONS
8-3
8
90 kg–maximum*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 ´ MT 3.50
Rear
Type Cast wheel
Size 17 ´ MT 5.50
Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4Suspension
Front Telescopic fork
Rear Swingarm
Springs/shock absorbers
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 130 mm
Rear 110 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. generator
Standard output 13.5 V, 28 A @ 5,000 r/min
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeQuartz bulb (halogen)
E_5ea.book Page 3 Wednesday, October 4, 2000 4:14 PM
Page 91 of 100
SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 2
Auxiliary light 12 V, 4 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Meter lighting 12 V, 1.7 W ´ 4
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 3.4 W ´ 1
Oil level warning light 12 V, 1.7 W ´ 1
Turn signal indicator light 12 V, 1.7 W ´ 2
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 7.5 A
E_5ea.book Page 4 Wednesday, October 4, 2000 4:14 PM
Page 96 of 100
INDEXAAir filter element, cleaning ...................... 6-11
Anti-theft alarm ........................................3-3BBattery ................................................... 6-27
Brake and clutch levers, checking and
lubricating ............................................ 6-24
Brake and shift pedals, checking and
lubricating ............................................ 6-24
Brake fluid, changing ............................. 6-20
Brake fluid level, checking...................... 6-19
Brake lever...............................................3-7
Brake light switch (rear), adjusting ......... 6-18
Brake pads, checking............................. 6-19
Brake pedal..............................................3-7
Brake pedal position, adjusting .............. 6-17CCables, checking and lubricating............ 6-23
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Centerstand and sidestand, checking
and lubricating ..................................... 6-25
Clutch lever ..............................................3-5
Conversion table ......................................8-5DDimmer switch .........................................3-4
Drive chain, lubricating ........................... 6-22
Drive chain slack .................................... 6-21
Adjusting .......................................... 6-21
Checking .......................................... 6-21
EEngine break-in ....................................... 5-4
Engine oil and oil filter element ................ 6-7
Engine stop switch................................... 3-5FFront fork, adjusting ............................... 3-12
Front fork, checking ............................... 6-25
Fuel ......................................................... 3-9
Fuel cock ................................................. 3-9
Fuel consumption, tips for reducing ......... 5-4
Fuel gauge .............................................. 3-4
Fuel tank cap ........................................... 3-8
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-4
Headlight bulb, replacing ....................... 6-29
Helmet holder ........................................ 3-11
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Idling speed, adjusting ........................... 6-13
Ignition circuit cut-off system.................. 3-16
Indicator and warning lights ..................... 3-2KKey identification number ........................ 9-1LLight switch.............................................. 3-5
Luggage strap holders ........................... 3-15
MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level warning light ...............................3-2PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-4
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seat .......................................................3-11
Shifting .....................................................5-3
Shift pedal ................................................3-6
Shift points (for Switzerland only) .............5-3
Shock absorber assemblies,
adjusting ............................................... 3-13
Sidestand ...............................................3-15
Spark plugs, checking ..............................6-6
Specifications ...........................................8-1
Speedometer unit.....................................3-3
Starter (choke) lever...............................3-10
Starting a cold engine ..............................5-1
Starting a warm engine ............................5-2
Start switch ..............................................3-5
E_5ea.book Page 1 Wednesday, October 4, 2000 4:14 PM
