6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
_ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. _
EAU03758

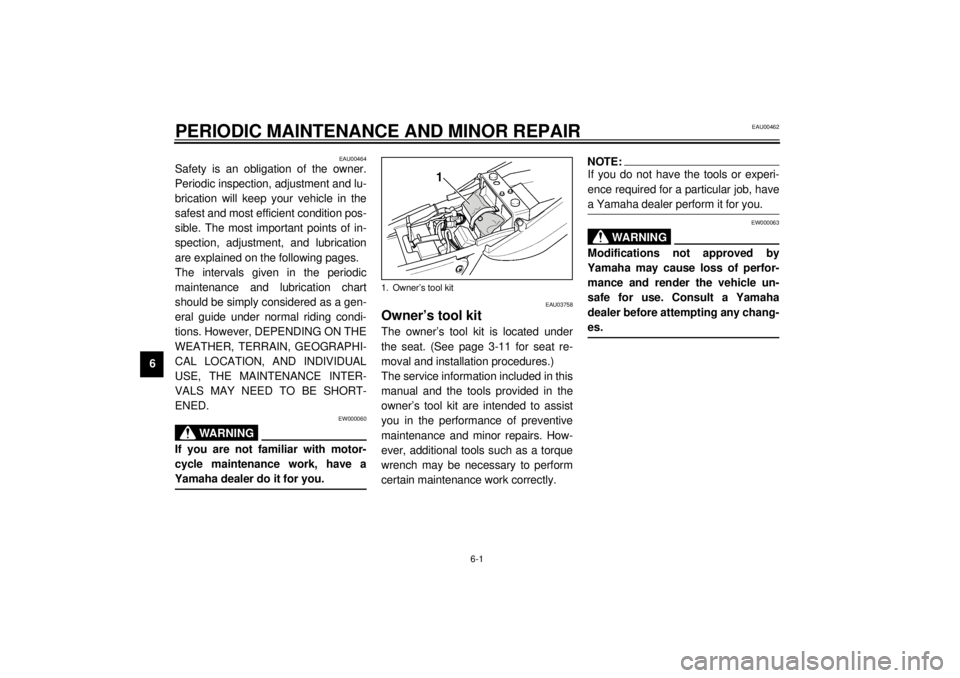

Owner’s tool kit The owner’s tool kit is located under
the seat. (See page 3-11 for seat re-
moval and installation procedures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:_ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. _
EW000063
WARNING
_ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. _
1. Owner’s tool kit
E_5ea.book Page 1 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6To install a spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:_ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. _4. Install the spark plug cap.
EAU03759
Engine oil and oil filter
element The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the motorcycle on the cen-
terstand.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _2. Start the engine, warm it up for
several minutes, and then turn it
off.
a. Spark plug gapSpark plug gap:
0.8–0.9 mm
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kg)
E_5ea.book Page 7 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
66. Remove and replace the oil filter
element and O-ring.7. Install the oil filter element cover
by aligning the projection on the
cover with the slot in the crank-
case, installing the bolt, then tight-
ening it to the specified torque.
NOTE:_ Make sure that the O-ring is properly
seated. _
8. Install the oil filter element drain
screw, and then tighten it to the
specified torque.
9. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
10. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.

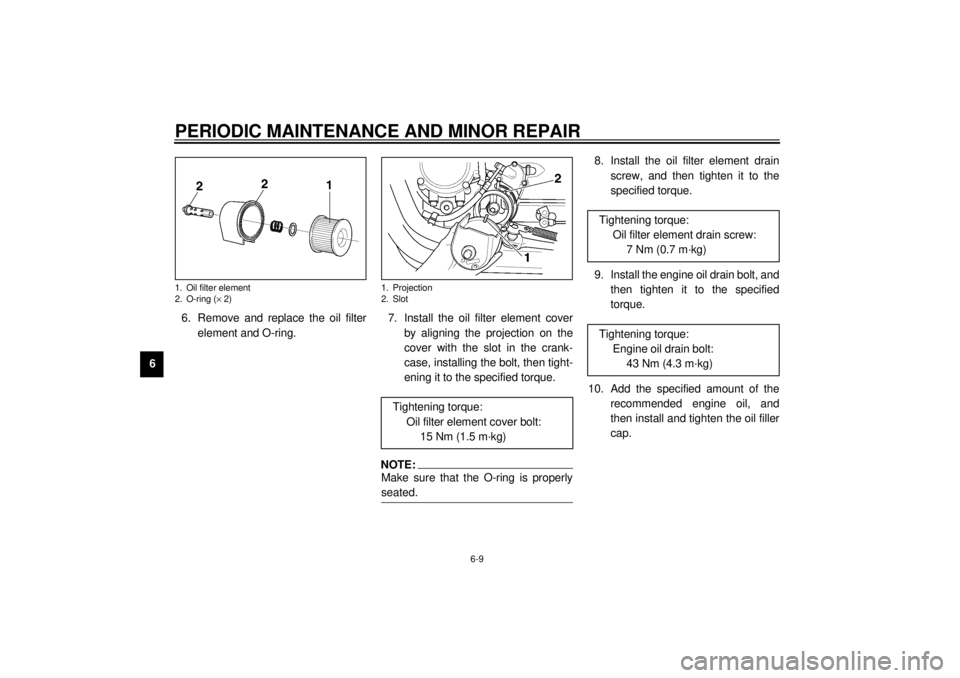

1. Oil filter element
2. O-ring (´ 2)
1. Projection
2. Slot
Tightening torque:
Oil filter element cover bolt:
15 Nm (1.5 m·kg)
Tightening torque:
Oil filter element drain screw:
7 Nm (0.7 m·kg)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kg)
E_5ea.book Page 9 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
NOTE:_ Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-
tion for proper wheel alignment. _
EC000096
CAUTION:_ Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits. _3. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
EAU03006
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
EC000097
CAUTION:_ The drive chain must be lubricated
after washing the motorcycle or
riding in the rain. _1. Clean the drive chain with kero-
sene and a small soft brush.
ECA00053
CAUTION:_ To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents. _2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
ECA00052
CAUTION:_ Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings. _
Tightening torque:
Axle nut:
150 Nm (15.0 m·kg)
E_5ea.book Page 22 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU01758

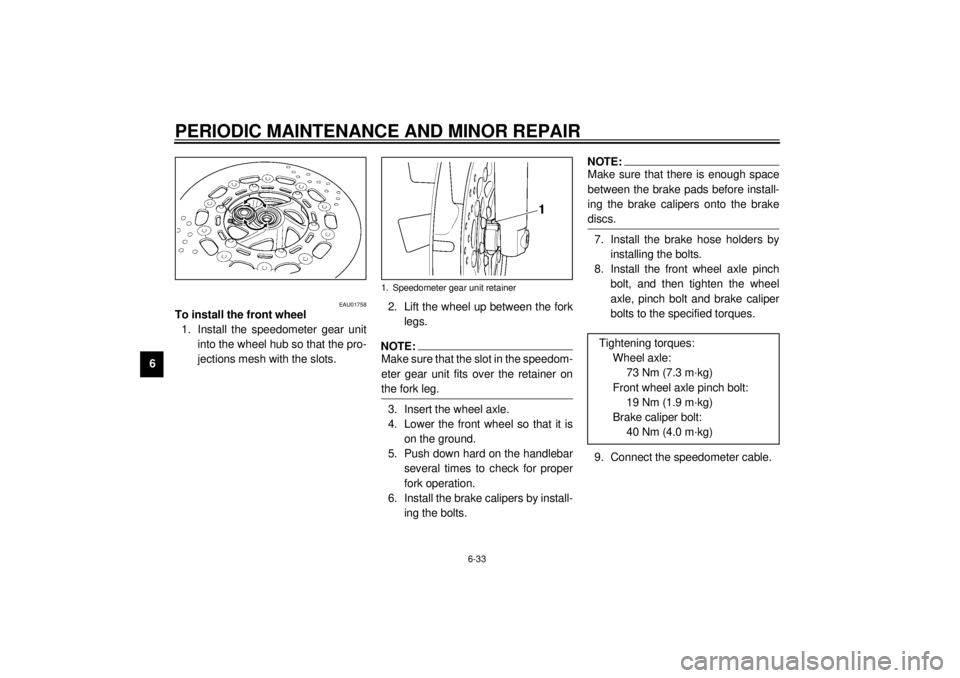

To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jections mesh with the slots.2. Lift the wheel up between the fork
legs.
NOTE:_ Make sure that the slot in the speedom-
eter gear unit fits over the retainer on
the fork leg. _3. Insert the wheel axle.
4. Lower the front wheel so that it is
on the ground.
5. Push down hard on the handlebar
several times to check for proper
fork operation.
6. Install the brake calipers by install-
ing the bolts.
NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs. _7. Install the brake hose holders by
installing the bolts.
8. Install the front wheel axle pinch
bolt, and then tighten the wheel
axle, pinch bolt and brake caliper
bolts to the specified torques.
9. Connect the speedometer cable.
1. Speedometer gear unit retainer
Tightening torques:
Wheel axle:
73 Nm (7.3 m·kg)
Front wheel axle pinch bolt:
19 Nm (1.9 m·kg)
Brake caliper bolt:
40 Nm (4.0 m·kg)
E_5ea.book Page 33 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
EAU03760
Rear wheel To remove the rear wheel
EW000122
WARNING
_ l
It is advisable to have a Yamaha
dealer service the wheel.
l
Securely support the motor-
cycle so that there is no danger
of it falling over.
_1. Loosen the axle nut and the brake
caliper bolts.2. Disconnect the brake torque rod
from the brake caliper by removing
the nut and the bolt.
3. Place the motorcycle on the cen-
terstand.
4. Remove the axle nut and the
brake caliper by removing the
bolts.
5. Loosen the locknut and drive
chain slack adjusting nut on each
side of the swingarm.
6. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:_ The drive chain does not need to be
disassembled in order to remove and
install the rear wheel. _

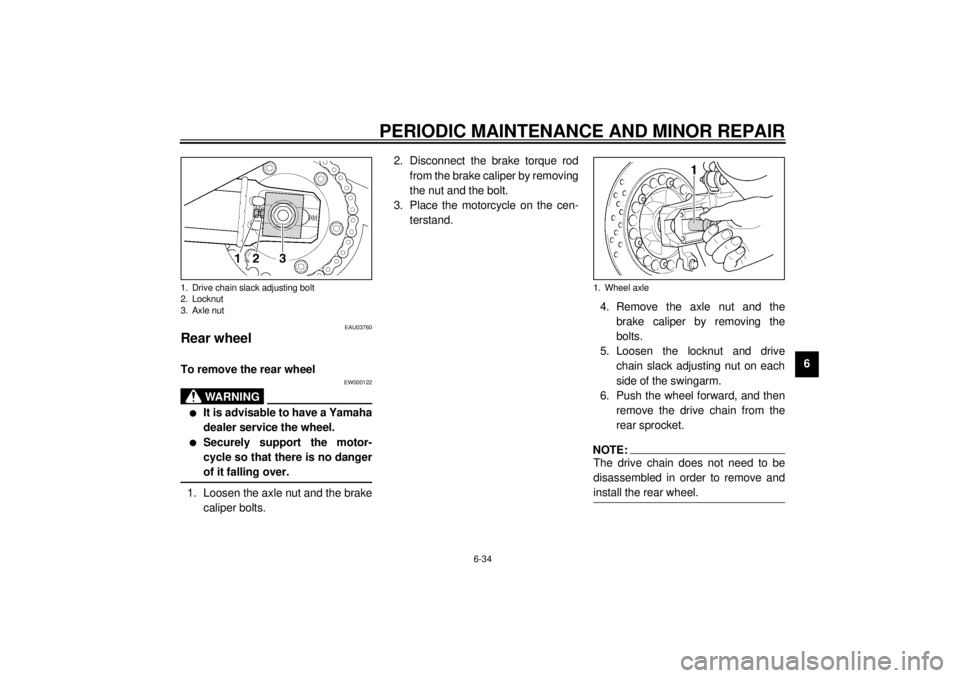

1. Drive chain slack adjusting bolt
2. Locknut
3. Axle nut
1. Wheel axle
E_5ea.book Page 34 Wednesday, October 4, 2000 4:14 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
67. While supporting the brake caliper
bracket, pull the wheel axle out.
8. Remove the wheel.
ECA00048
CAUTION:_ Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise the
brake pads will be forced shut. _
EAU03793
To install the rear wheel
1. Insert the wheel axle through the
brake caliper bracket and wheel
from the right-hand side.
2. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-21 for
drive chain slack adjustment pro-
cedures.)
3. Connect the brake torque rod to
the brake caliper bracket by in-
stalling the bolt and the nut.
4. Install the brake caliper by install-
ing the bolts.NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brake
disc. _5. Take the motorcycle off the cen-
terstand so that the rear wheel is
on the ground.
6. Tighten the axle nut, brake caliper
bolts and brake torque rod nut to
the specified torques.Tightening torques:
Axle nut:
150 Nm (15.0 m·kg)
Brake caliper bolt:
40 Nm (4.0 m·kg)
Brake torque rod nut:
23 Nm (2.3 m·kg)
E_5ea.book Page 35 Wednesday, October 4, 2000 4:14 PM

SPECIFICATIONS
8-5
8
EAU01064
Conversion table CS-02EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
ExampleMETRIC MULTIPLIER IMPERIAL
** mm´ 0.03937 = ** in
2 mm´ 0.03937 = 0.08 in
Conversion tableMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/h 0.6214 mi/h
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm3)
cc (cm3)
L (liter)
L (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
