PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
EC000102
CAUTION:_

Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (con-
stant-voltage) battery charger is
required. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
_
EAU04410*

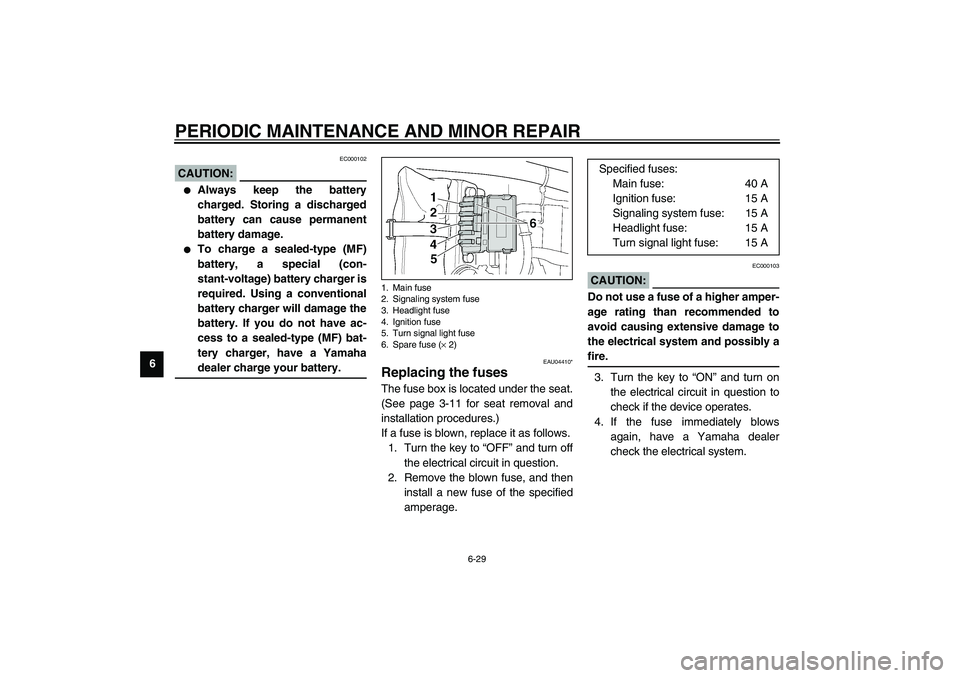

Replacing the fuses The fuse box is located under the seat.
(See page 3-11 for seat removal and
installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Turn signal light fuse
6. Spare fuse (× 2)
Specified fuses:
Main fuse: 40 A
Ignition fuse: 15 A
Signaling system fuse: 15 A
Headlight fuse: 15 A
Turn signal light fuse: 15 A
U5WME0.book Page 29 Monday, July 29, 2002 10:25 AM

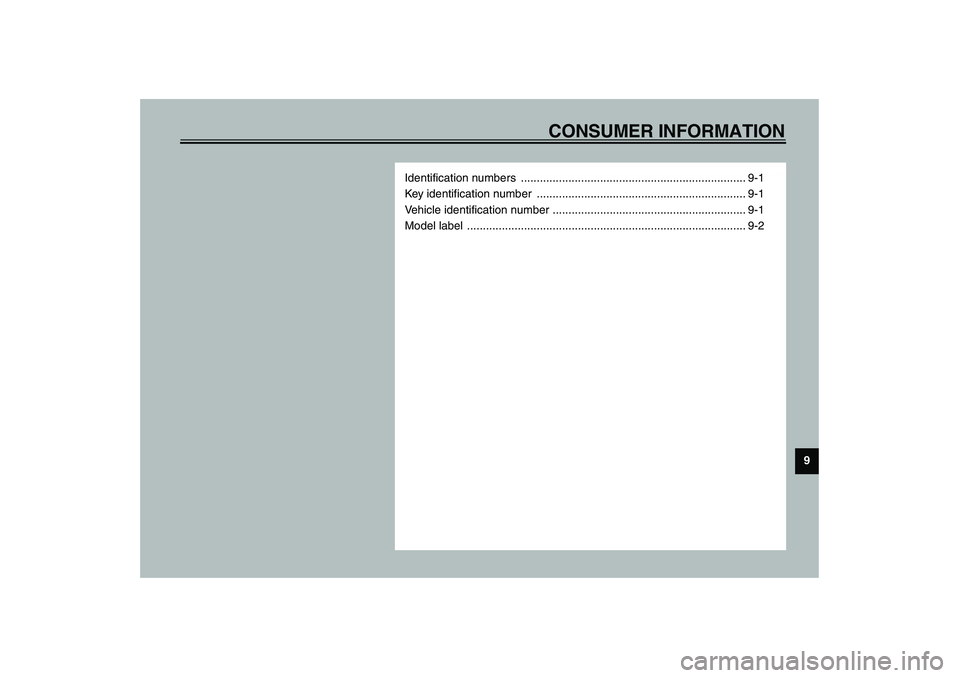

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

9-1
9
EAU01039

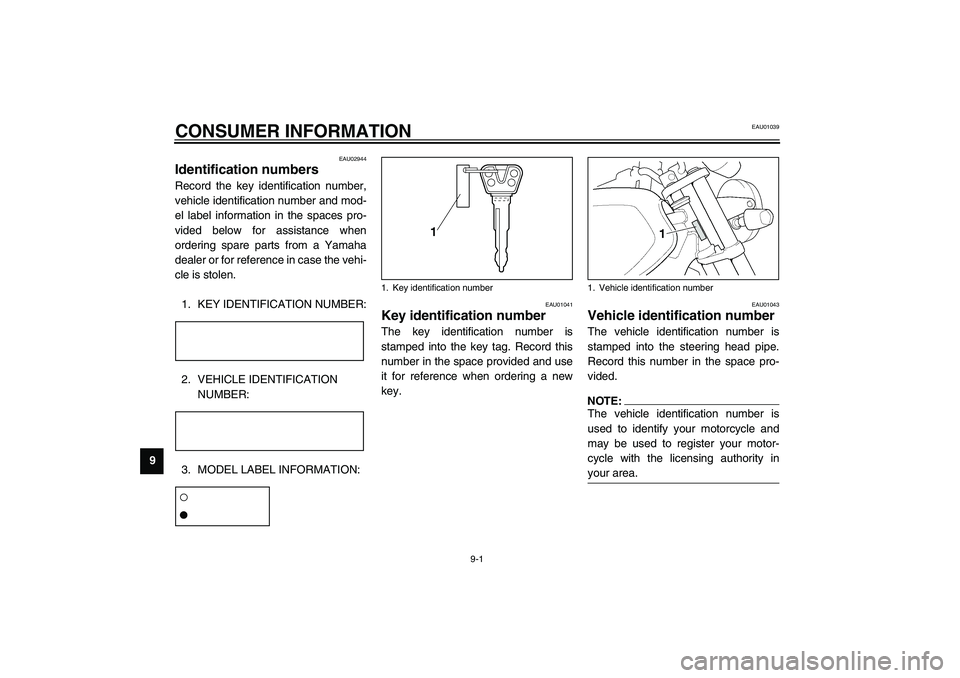

9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:_ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. _
1. Key identification number
1. Vehicle identification number
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

INDEXAAir filter element, cleaning ...................... 6-11
Anti-theft alarm ........................................3-4BBattery ................................................... 6-28
Brake and clutch fluid levels, checking ... 6-20
Brake and clutch fluids, changing........... 6-21
Brake and clutch levers, checking and
lubricating ............................................ 6-25
Brake and shift pedals, checking and
lubricating ............................................ 6-25
Brake lever...............................................3-7
Brake light switch (rear), adjusting ......... 6-19
Brake pads, checking............................. 6-19
Brake pedal..............................................3-7
Brake pedal position, adjusting .............. 6-18CCables, checking and lubricating............ 6-24
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Centerstand and sidestand,
checking and lubricating ...................... 6-25
Clutch lever ..............................................3-5
Clutch lever free play ............................. 6-17
Conversion table ......................................8-5DDimmer switch .........................................3-4
Drive chain, lubricating ........................... 6-23
Drive chain slack .................................... 6-22
Adjusting .......................................... 6-23
Checking .......................................... 6-22
EEngine break-in ....................................... 5-4
Engine idling speed ............................... 6-13
Engine oil and oil filter element ................ 6-7
Engine stop switch................................... 3-5FFront fork, adjusting ............................... 3-13
Front fork, checking ............................... 6-26
Fuel ......................................................... 3-9
Fuel cock ............................................... 3-10
Fuel consumption, tips for reducing ......... 5-4
Fuel gauge .............................................. 3-3
Fuel tank breather hose ......................... 3-10
Fuel tank cap ........................................... 3-8
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-4
Hazard switch .......................................... 3-4
Headlight bulb, replacing ....................... 6-30
Helmet holder ........................................ 3-12
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system.................. 3-17
Indicator and warning lights ..................... 3-2KKey identification number ........................ 9-1
LLight switch ..............................................3-5
Luggage strap holders ...........................3-16MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level warning light ...............................3-2PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-4
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seat .......................................................3-11
Shifting .....................................................5-3
Shift pedal ................................................3-6
Shift points (for Switzerland only) .............5-3
Shock absorber assemblies, adjusting ...3-15
Sidestand ...............................................3-17
Spark plugs, checking ..............................6-6
Specifications ...........................................8-1
Speedometer unit.....................................3-3
