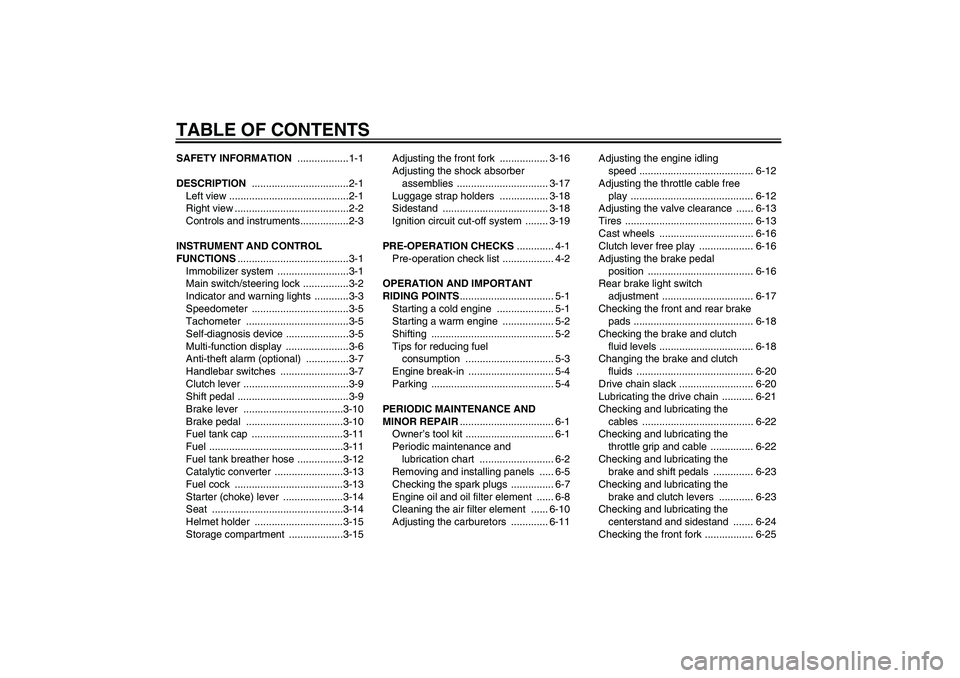

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Speedometer ..................................3-5
Tachometer ....................................3-5
Self-diagnosis device ......................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-7
Handlebar switches ........................3-7
Clutch lever .....................................3-9
Shift pedal .......................................3-9
Brake lever ...................................3-10
Brake pedal ..................................3-10
Fuel tank cap ................................3-11
Fuel ...............................................3-11
Fuel tank breather hose ................3-12
Catalytic converter ........................3-13
Fuel cock ......................................3-13
Starter (choke) lever .....................3-14
Seat ..............................................3-14
Helmet holder ...............................3-15
Storage compartment ...................3-15Adjusting the front fork ................. 3-16
Adjusting the shock absorber
assemblies ................................ 3-17
Luggage strap holders ................. 3-18
Sidestand ..................................... 3-18
Ignition circuit cut-off system ........ 3-19
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting a cold engine .................... 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5
Checking the spark plugs ............... 6-7
Engine oil and oil filter element ...... 6-8
Cleaning the air filter element ...... 6-10
Adjusting the carburetors ............. 6-11Adjusting the engine idling
speed ........................................ 6-12
Adjusting the throttle cable free
play ........................................... 6-12
Adjusting the valve clearance ...... 6-13
Tires ............................................. 6-13
Cast wheels ................................. 6-16
Clutch lever free play ................... 6-16
Adjusting the brake pedal
position ..................................... 6-16
Rear brake light switch
adjustment ................................ 6-17
Checking the front and rear brake
pads .......................................... 6-18
Checking the brake and clutch
fluid levels ................................. 6-18
Changing the brake and clutch
fluids ......................................... 6-20
Drive chain slack .......................... 6-20
Lubricating the drive chain ........... 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-23
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-24
Checking the front fork ................. 6-25U5WME1E0.book Page 1 Thursday, September 11, 2003 11:10 AM

DESCRIPTION
2-3
2
EAU10430

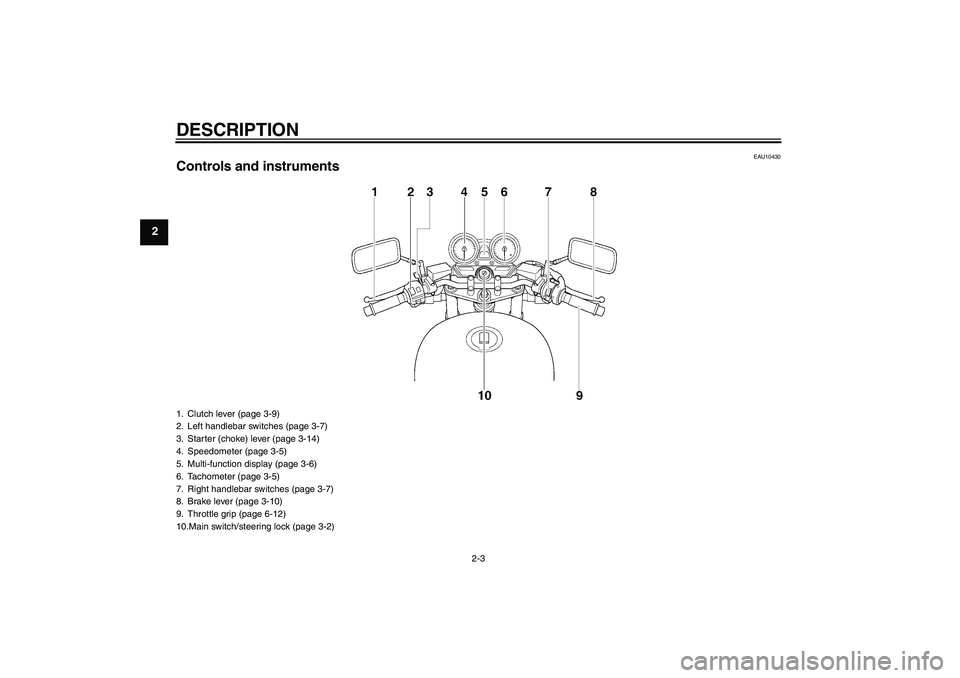

Controls and instruments1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Starter (choke) lever (page 3-14)
4. Speedometer (page 3-5)
5. Multi-function display (page 3-6)
6. Tachometer (page 3-5)
7. Right handlebar switches (page 3-7)
8. Brake lever (page 3-10)
9. Throttle grip (page 6-12)
10.Main switch/steering lock (page 3-2)U5WME1E0.book Page 3 Thursday, September 11, 2003 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 9500 r/min and above
EAU11990
Self-diagnosis device This model is equipped with a self-diag-
nosis device for the following electrical
circuits:

throttle position sensor


speed sensor
If any of those circuits are defective, the
tachometer will repeatedly display the
following error code:
Use the table below to identify the faulty
electrical circuit.
If the tachometer displays such an error
code, note the circuit-specific number
of r/min, and then have a Yamaha deal-
er check the vehicle.
1. Speedometer
1. Tachometer
2. Tachometer red zone
Specific r/min for the faulty circuit
Throttle position sensor:
3000 r/min
Speed sensor:
4000 r/min
Current
engine
speed for
3 seconds Circuit-specific
number of r/min
for 2.5 seconds
(See the table
below.)
0 r/min for
3 seconds
U5WME1E0.book Page 5 Thursday, September 11, 2003 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
CAUTION:
ECA10040
When the tachometer displays an er-
ror code, the vehicle should be
checked as soon as possible in or-der to avoid engine damage.
EAU33572
Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel meter


a clock
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. The tripmeters can be
used to estimate the distance that can
be traveled with a full tank of fuel. This
information will enable you to plan fu-
ture fuel stops.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possible.
1. Clock
2. Fuel meter
3. Odometer/tripmeters
4.“RESET” button
5.“SELECT” button
U5WME1E0.book Page 6 Thursday, September 11, 2003 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the display segments and
symbol “” will flash. If this occurs,
have a Yamaha dealer check the elec-trical circuit.
Clock mode
To set the clock:1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flashing,
push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Push the “RESET” button to set
the minutes.
6. Push the “SELECT” button and
then release it to start the clock.
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12342
Handlebar switches Left1. Pass switch “PA S S”
2. Dimmer switch “/”
3. Hazard switch “”
4. Turn signal switch “/”
5. Horn switch “”
U5WME1E0.book Page 7 Thursday, September 11, 2003 11:10 AM

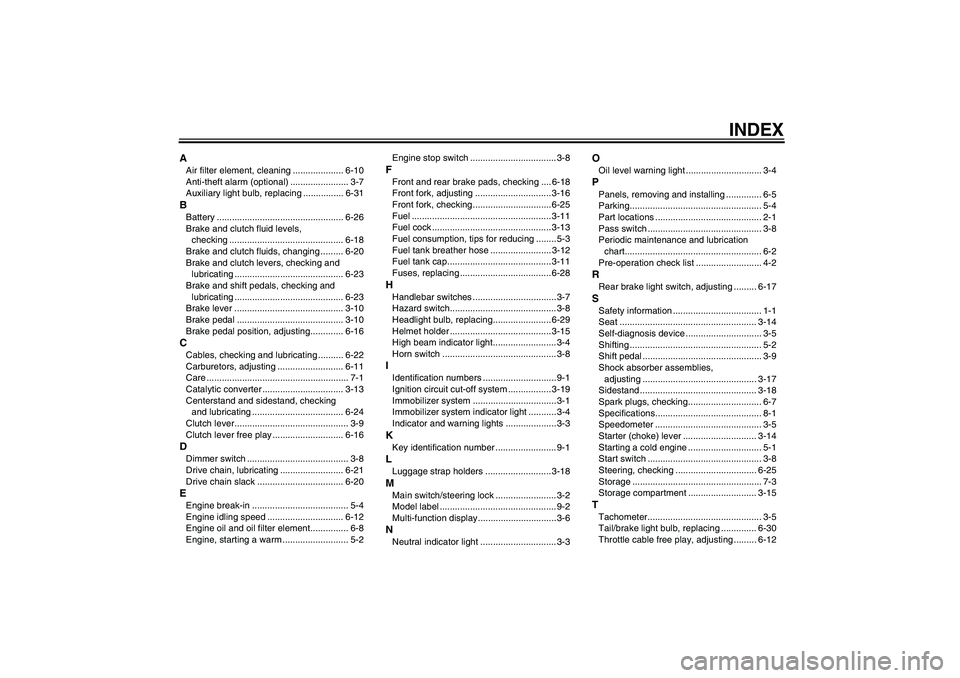

INDEX
AAir filter element, cleaning .................... 6-10
Anti-theft alarm (optional) ....................... 3-7
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch fluid levels,
checking ............................................. 6-18
Brake and clutch fluids, changing ......... 6-20
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake and shift pedals, checking and
lubricating ........................................... 6-23
Brake lever ........................................... 3-10
Brake pedal .......................................... 3-10
Brake pedal position, adjusting............. 6-16CCables, checking and lubricating .......... 6-22
Carburetors, adjusting .......................... 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever............................................. 3-9
Clutch lever free play ............................ 6-16DDimmer switch ........................................ 3-8
Drive chain, lubricating ......................... 6-21
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-4
Engine idling speed .............................. 6-12
Engine oil and oil filter element............... 6-8
Engine, starting a warm .......................... 5-2Engine stop switch .................................. 3-8
FFront and rear brake pads, checking .... 6-18
Front fork, adjusting .............................. 3-16
Front fork, checking...............................6-25
Fuel ....................................................... 3-11
Fuel cock ............................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-12
Fuel tank cap......................................... 3-11
Fuses, replacing .................................... 6-28HHandlebar switches ................................. 3-7
Hazard switch.......................................... 3-8
Headlight bulb, replacing....................... 6-29
Helmet holder ........................................ 3-15
High beam indicator light......................... 3-4
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-19
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLuggage strap holders .......................... 3-18MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-6NNeutral indicator light .............................. 3-3
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Seat ...................................................... 3-14
Self-diagnosis device .............................. 3-5
Shifting .................................................... 5-2
Shift pedal ............................................... 3-9
Shock absorber assemblies,
adjusting ............................................. 3-17
Sidestand .............................................. 3-18
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starter (choke) lever ............................. 3-14
Starting a cold engine ............................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-25
Storage ................................................... 7-3
Storage compartment ........................... 3-15TTachometer............................................. 3-5
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, adjusting ......... 6-12
U5WME1E0.book Page 1 Thursday, September 11, 2003 11:10 AM
