YAMAHA XJR 1300 2006 Workshop Manual
Manufacturer: YAMAHA, Model Year: 2006, Model line: XJR 1300, Model: YAMAHA XJR 1300 2006Pages: 90, PDF Size: 5.62 MB
Page 51 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 10. Install the panel.
11. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
12. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do notmix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
13. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20610
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page
3-14.)
2. Remove panel A. (See page 6-5.)
3. Remove the air filter case cover by
removing the screws.
4. Pull the air filter element out.
Tightening torque:
Oil filter element drain screw:
7.0 Nm (0.7 m·kgf, 5 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
3.00 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement:
3.35 L (3.54 US qt) (2.95 Imp.qt)
1. Air filter case cover
2. Screw
U5WME3E0.book Page 10 Thursday, August 4, 2005 8:48 AM
Page 52 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

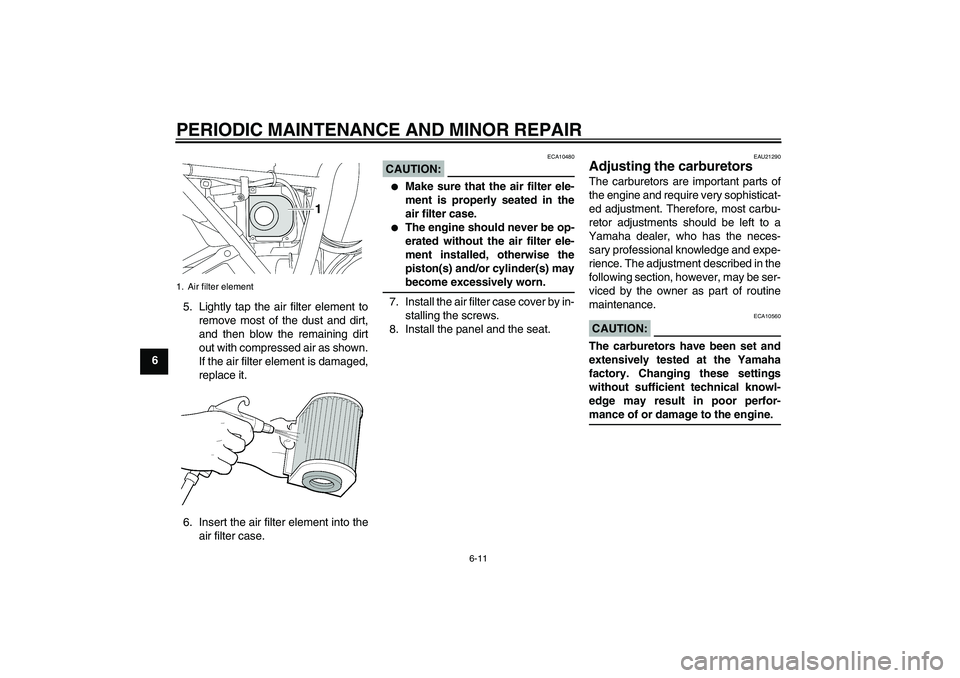

6-11
65. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
6. Insert the air filter element into the
air filter case.
CAUTION:
ECA10480
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
7. Install the air filter case cover by in-
stalling the screws.
8. Install the panel and the seat.
EAU21290
Adjusting the carburetors The carburetors are important parts of
the engine and require very sophisticat-
ed adjustment. Therefore, most carbu-
retor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.CAUTION:
ECA10560
The carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
1. Air filter elementU5WME3E0.book Page 11 Thursday, August 4, 2005 8:48 AM
Page 53 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

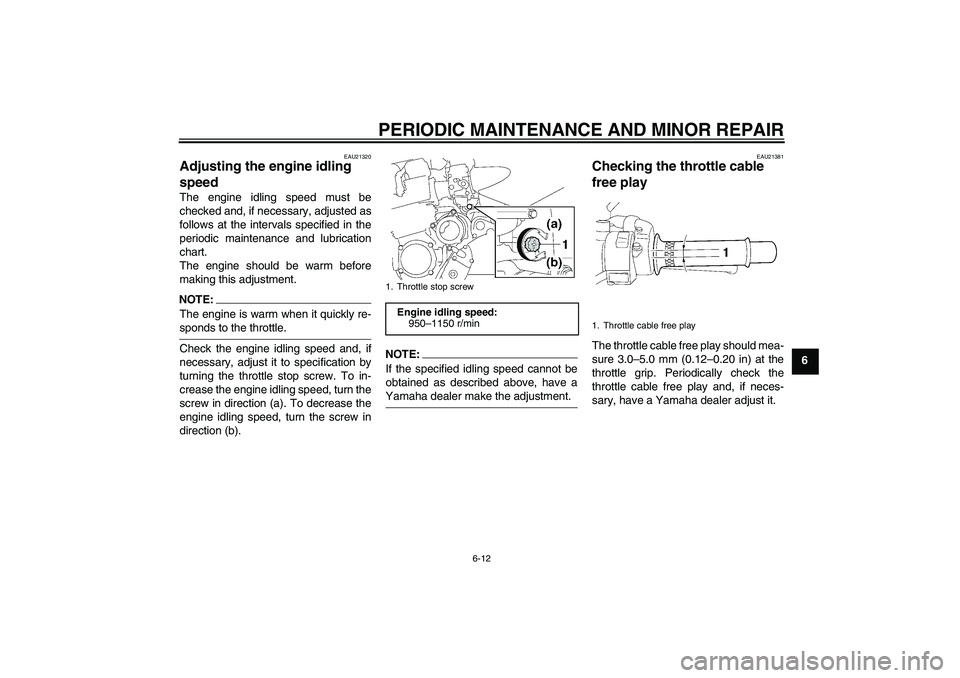

6-12
6
EAU21320
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:
The engine is warm when it quickly re-sponds to the throttle.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the throttle stop screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Throttle stop screw
Engine idling speed:
950–1150 r/min
1. Throttle cable free play
U5WME3E0.book Page 12 Thursday, August 4, 2005 8:48 AM
Page 54 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

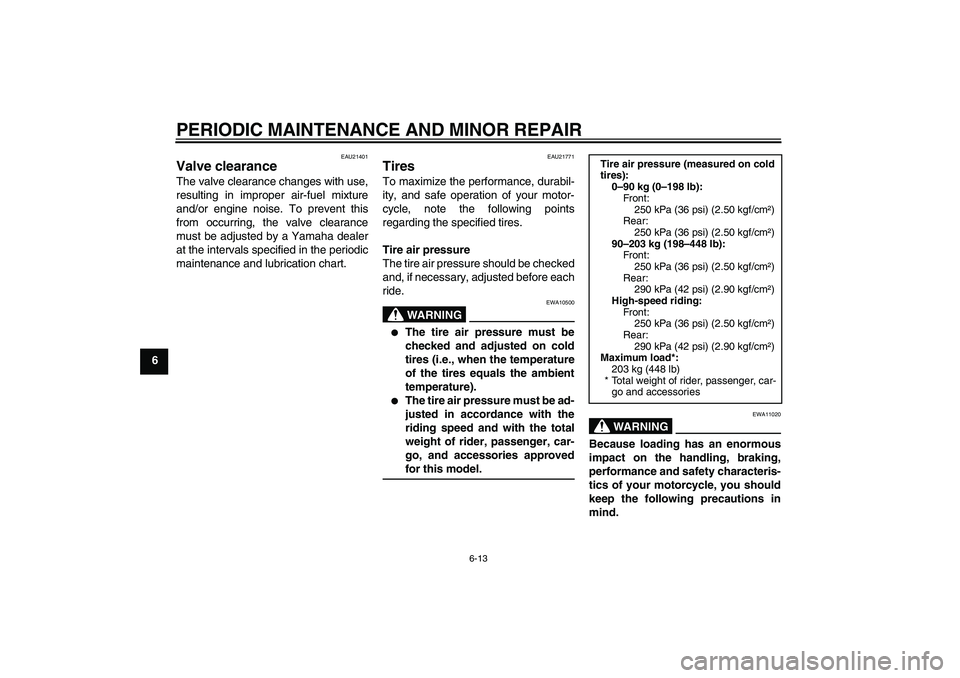

6-13
6
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
90–203 kg (198–448 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Maximum load*:
203 kg (448 lb)
* Total weight of rider, passenger, car-
go and accessories
U5WME3E0.book Page 13 Thursday, August 4, 2005 8:48 AM
Page 55 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

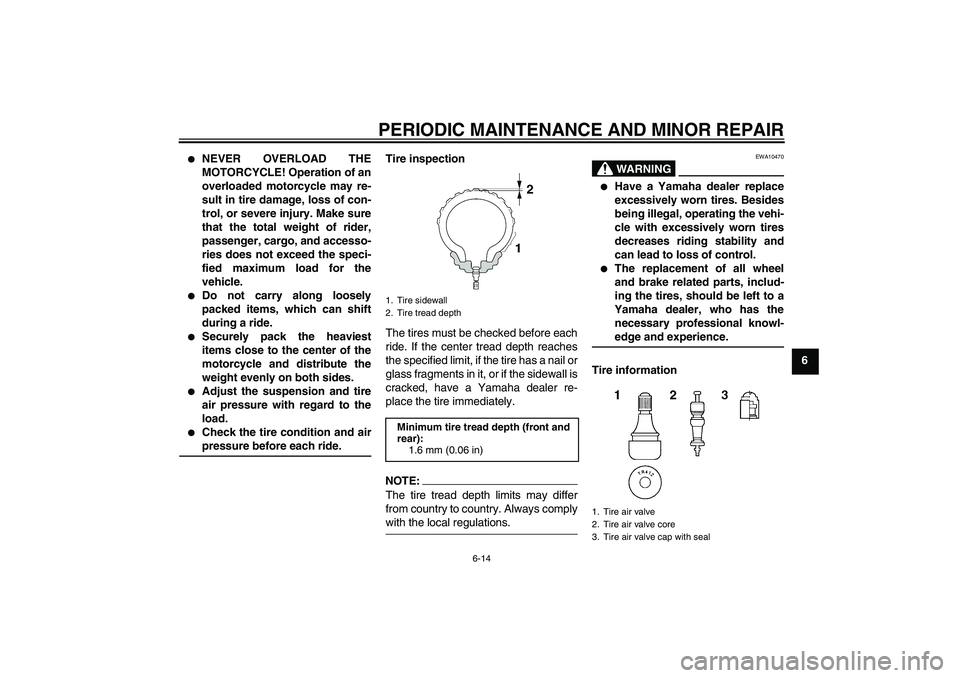

6-14
6
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and airpressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
Tire information
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
U5WME3E0.book Page 14 Thursday, August 4, 2005 8:48 AM
Page 56 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

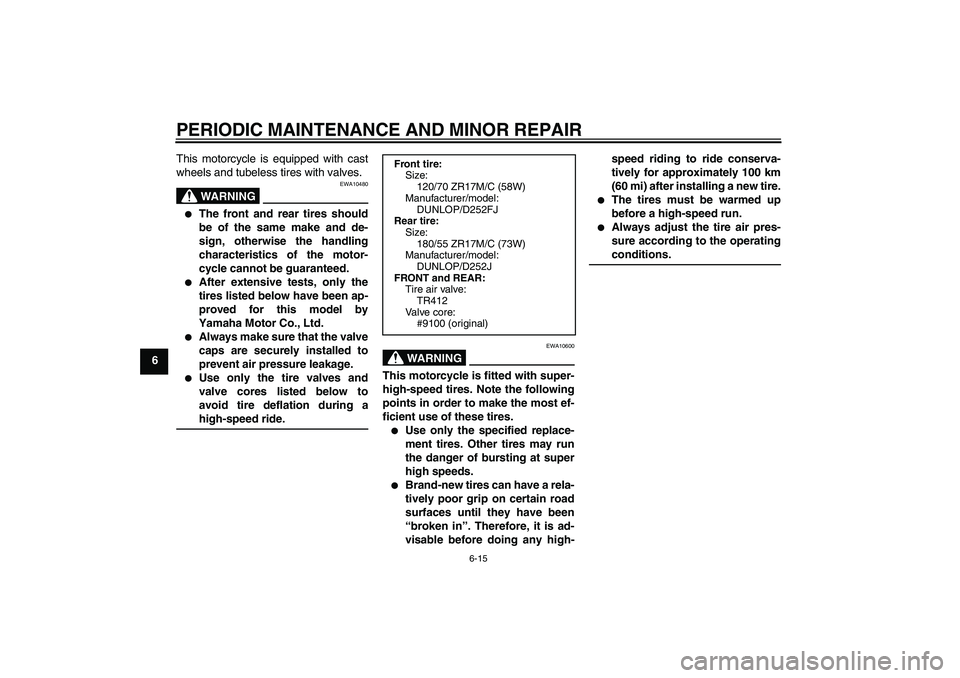

6-15
6This motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10480
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any high-speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operatingconditions.
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
DUNLOP/D252FJ
Rear tire:
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
DUNLOP/D252J
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U5WME3E0.book Page 15 Thursday, August 4, 2005 8:48 AM
Page 57 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

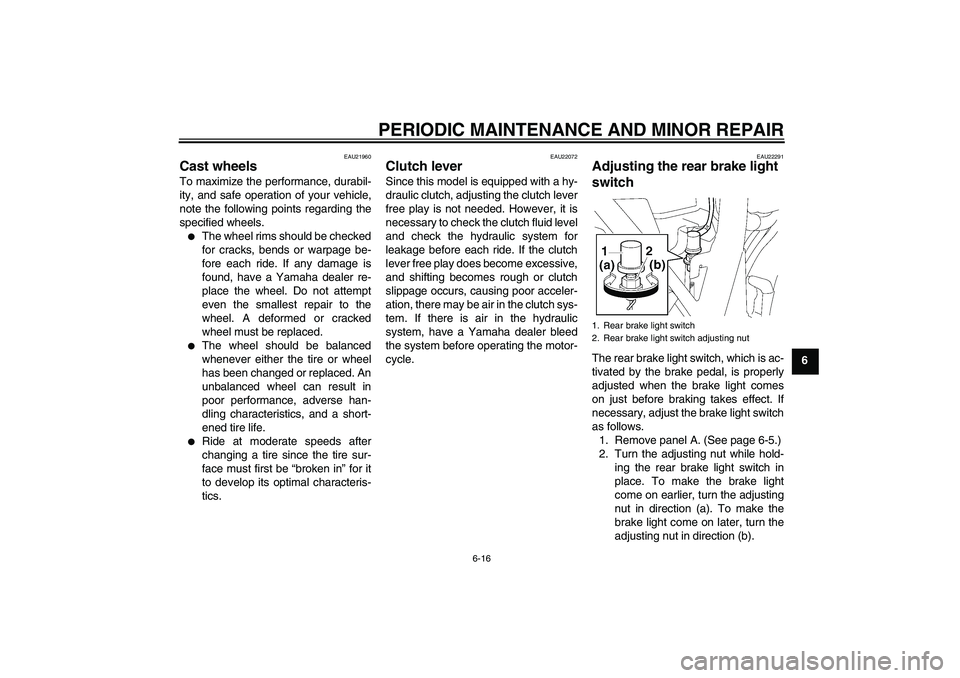

6-16
6
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU22072
Clutch lever Since this model is equipped with a hy-
draulic clutch, adjusting the clutch lever
free play is not needed. However, it is
necessary to check the clutch fluid level
and check the hydraulic system for
leakage before each ride. If the clutch
lever free play does become excessive,
and shifting becomes rough or clutch
slippage occurs, causing poor acceler-
ation, there may be air in the clutch sys-
tem. If there is air in the hydraulic
system, have a Yamaha dealer bleed
the system before operating the motor-
cycle.
EAU22291
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
1. Remove panel A. (See page 6-5.)
2. Turn the adjusting nut while hold-
ing the rear brake light switch in
place. To make the brake light
come on earlier, turn the adjusting
nut in direction (a). To make the
brake light come on later, turn the
adjusting nut in direction (b).1. Rear brake light switch
2. Rear brake light switch adjusting nut
U5WME3E0.book Page 16 Thursday, August 4, 2005 8:48 AM
Page 58 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

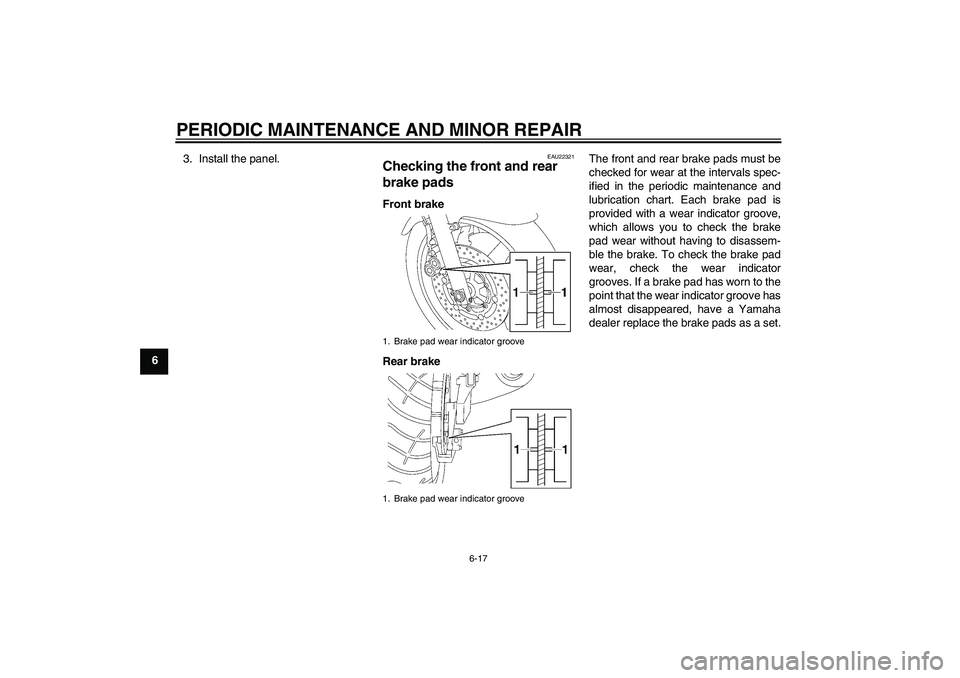

6-17
63. Install the panel.
EAU22321
Checking the front and rear
brake pads Front brake
Rear brakeThe front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator groove,
which allows you to check the brake
pad wear without having to disassem-
ble the brake. To check the brake pad
wear, check the wear indicator
grooves. If a brake pad has worn to the
point that the wear indicator groove has
almost disappeared, have a Yamaha
dealer replace the brake pads as a set.1. Brake pad wear indicator groove
1. Brake pad wear indicator groove
U5WME3E0.book Page 17 Thursday, August 4, 2005 8:48 AM
Page 59 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

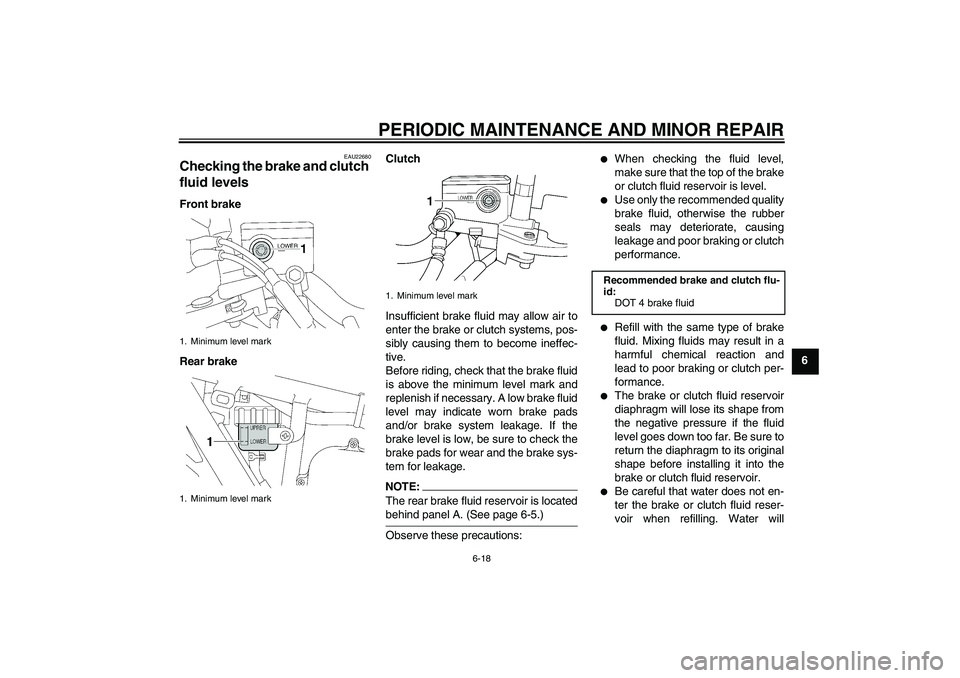

6-18
6
EAU22680
Checking the brake and clutch
fluid levels Front brake
Rear brakeClutch
Insufficient brake fluid may allow air to
enter the brake or clutch systems, pos-
sibly causing them to become ineffec-
tive.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.
NOTE:The rear brake fluid reservoir is locatedbehind panel A. (See page 6-5.)
Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
or clutch fluid reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.
The brake or clutch fluid reservoir
diaphragm will lose its shape from
the negative pressure if the fluid
level goes down too far. Be sure to
return the diaphragm to its original
shape before installing it into the
brake or clutch fluid reservoir.
Be careful that water does not en-
ter the brake or clutch fluid reser-
voir when refilling. Water will
1. Minimum level mark
1. Minimum level mark
1. Minimum level mark
Recommended brake and clutch flu-
id:
DOT 4 brake fluid
U5WME3E0.book Page 18 Thursday, August 4, 2005 8:48 AM
Page 60 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR

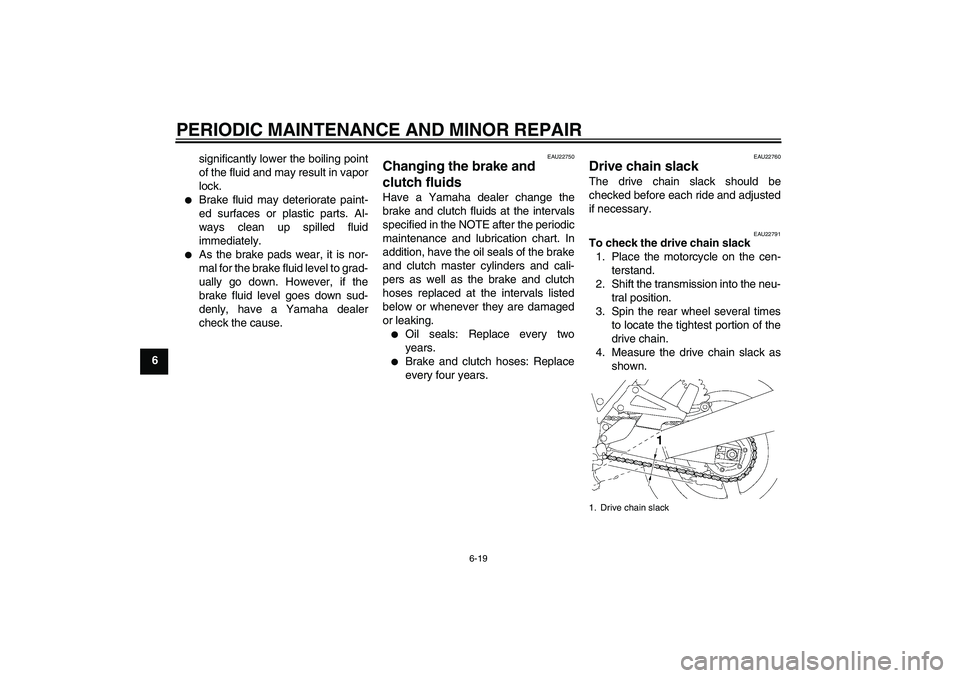

6-19
6significantly lower the boiling point
of the fluid and may result in vapor
lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22750
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the NOTE after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake and clutch hoses: Replace
every four years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22791
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.1. Drive chain slack
U5WME3E0.book Page 19 Thursday, August 4, 2005 8:48 AM
