clock YAMAHA XJR 1300 2006 Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
CAUTION:
ECA10040
When the tachometer displays an er-
ror code, the vehicle should be
checked as soon as possible in or-der to avoid engine damage.
EAU33572
Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel meter


a clock
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. The tripmeters can be
used to estimate the distance that can
be traveled with a full tank of fuel. This
information will enable you to plan fu-
ture fuel stops.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possible.
1. Clock
2. Fuel meter
3. Odometer/tripmeters
4.“RESET” button
5.“SELECT” button
U5WME3E0.book Page 6 Thursday, August 4, 2005 8:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the display segments and
symbol “” will flash. If this occurs,
have a Yamaha dealer check the elec-trical circuit.
Clock mode
To set the clock:1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flashing,
push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Push the “RESET” button to set
the minutes.
6. Push the “SELECT” button and
then release it to start the clock.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12344
Handlebar switches Left1. Pass switch “PA S S”
2. Dimmer switch “/”
3. Hazard switch “”
4. Turn signal switch “/”
5. Horn switch “”
U5WME3E0.book Page 7 Thursday, August 4, 2005 8:48 AM

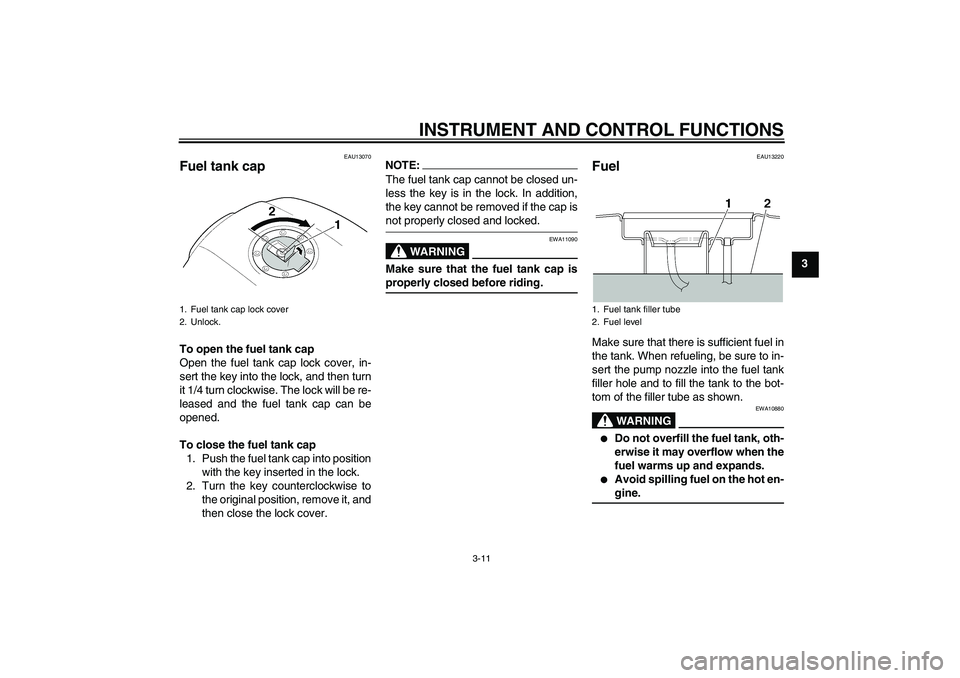

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU13070
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly closed and locked.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU13220
Fuel Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fill the tank to the bot-
tom of the filler tube as shown.
WARNING
EWA10880


Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot en-gine.
1. Fuel tank cap lock cover
2. Unlock.
1. Fuel tank filler tube
2. Fuel level
U5WME3E0.book Page 11 Thursday, August 4, 2005 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU33581
Replacing the fuses The fuse box, which contains the fuses
for the individual circuits, is located un-
der the seat. (See page 3-14.)
The parking lighting fuse is located be-
hind panel B. (See page 6-5.)1. Backup fuse (for odometer, clock and immo-
bilizer system)
2. Ignition fuse
3. Headlight fuse
4. Signaling system fuse
5. Main fuse
6. Spare fuse
U5WME3E0.book Page 27 Thursday, August 4, 2005 8:48 AM

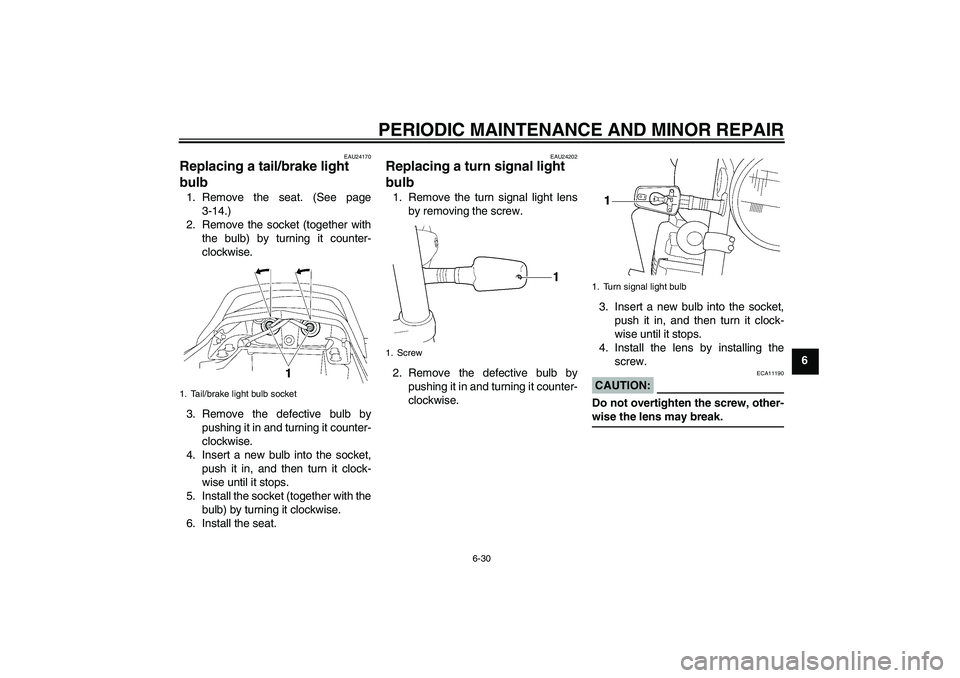

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24170
Replacing a tail/brake light
bulb 1. Remove the seat. (See page
3-14.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
1. Tail/brake light bulb socket
1. Screw
1. Turn signal light bulb
U5WME3E0.book Page 30 Thursday, August 4, 2005 8:48 AM

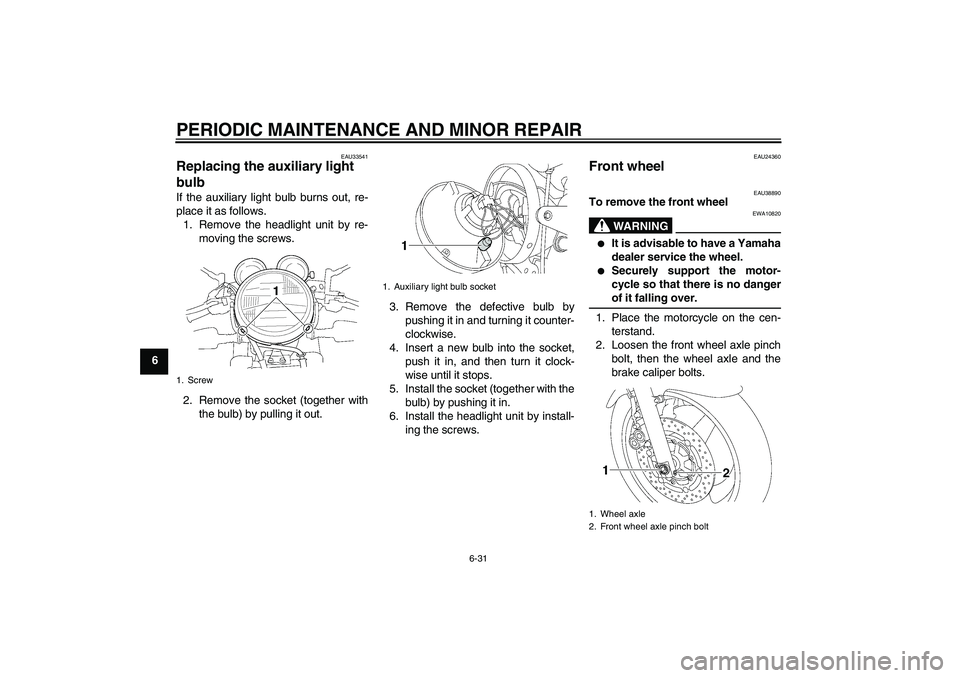

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU33541
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.
EAU24360
Front wheel
EAU38890
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.
1. Screw
1. Auxiliary light bulb socket
1. Wheel axle
2. Front wheel axle pinch bolt
U5WME3E0.book Page 31 Thursday, August 4, 2005 8:48 AM
