PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6 2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
EAU43272

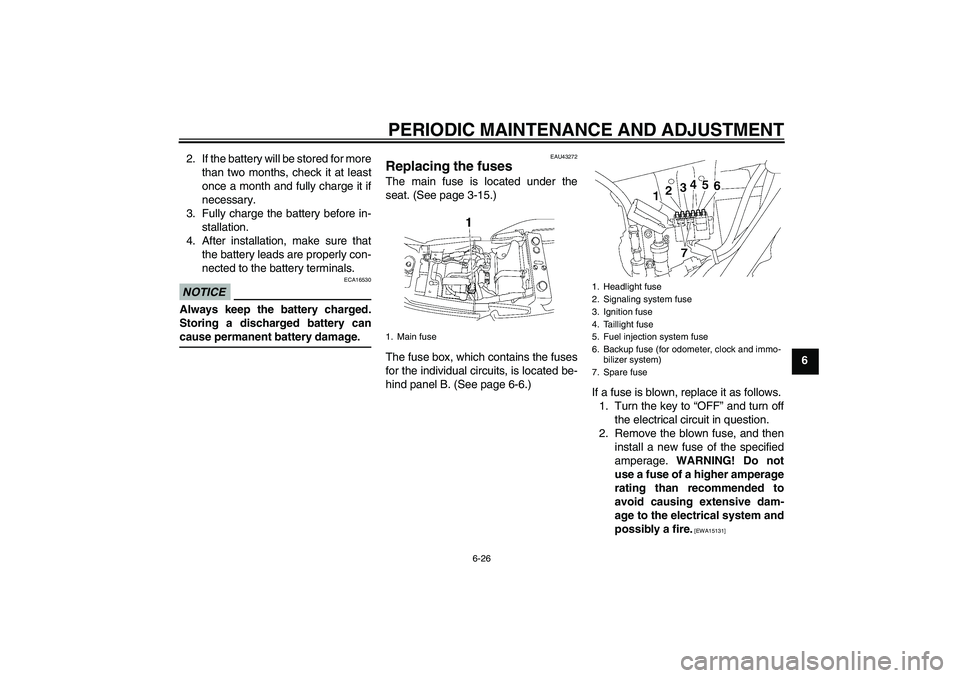

Replacing the fuses The main fuse is located under the
seat. (See page 3-15.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel B. (See page 6-6.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Spare fuse
U5WME6E0.book Page 26 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
63. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23795

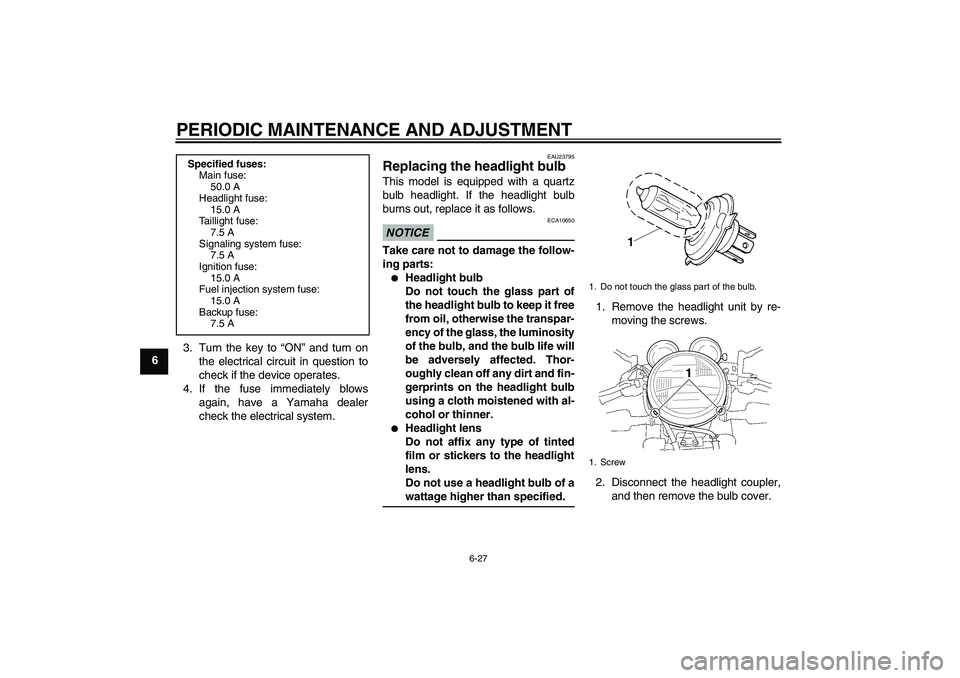

Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
1. Do not touch the glass part of the bulb.
1. Screw
U5WME6E0.book Page 27 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28

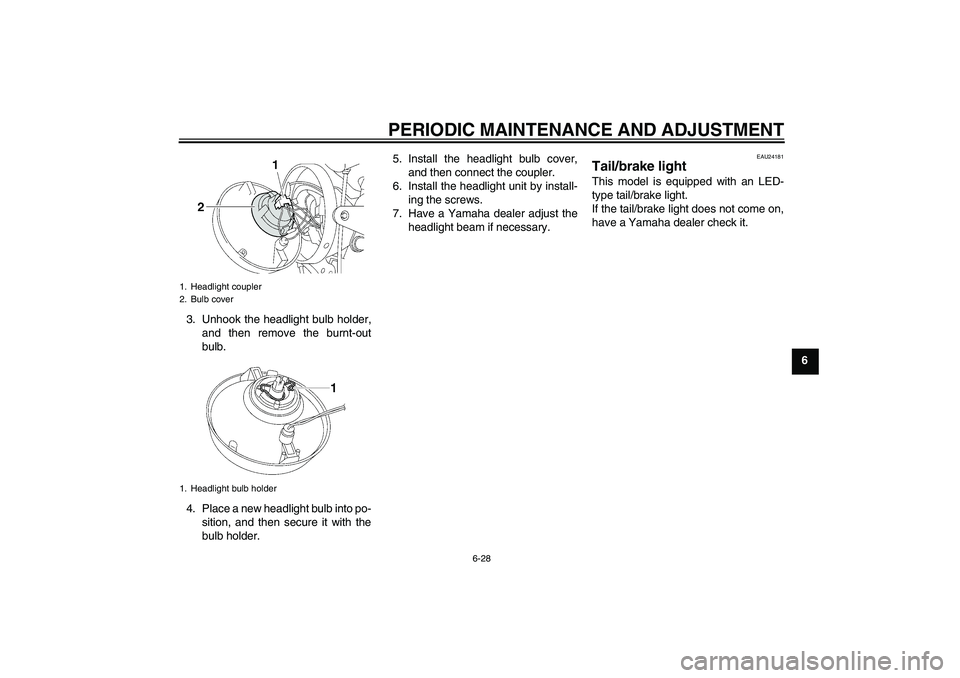

6 3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder
U5WME6E0.book Page 28 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU24204

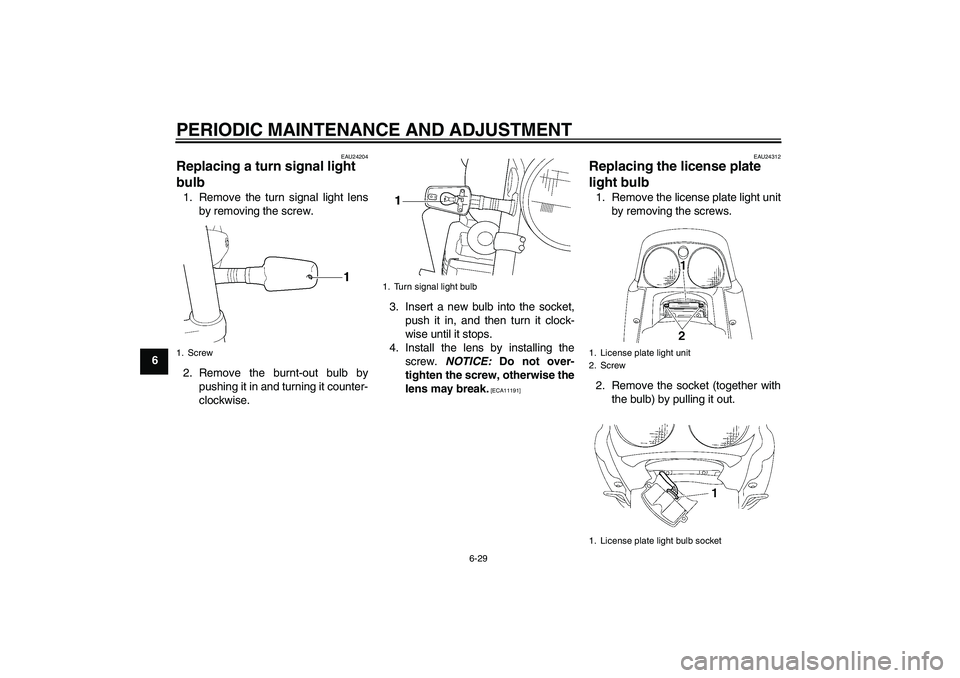

Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24312
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Screw
1. Turn signal light bulb
1. License plate light unit
2. Screw
1. License plate light bulb socket
U5WME6E0.book Page 29 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6 3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU33543

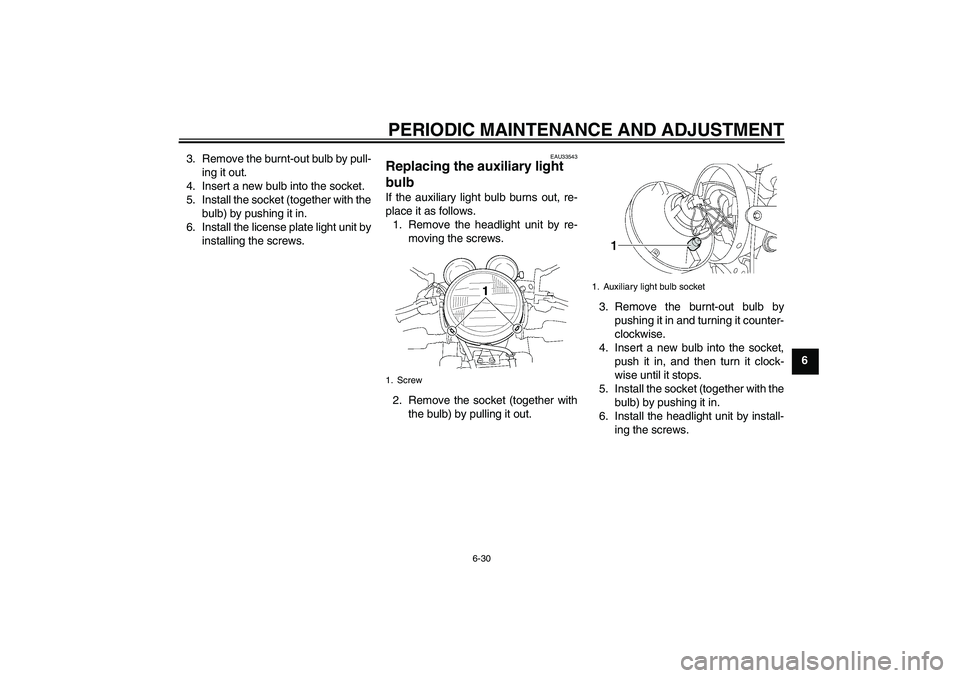

Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.1. Screw
1. Auxiliary light bulb socket
U5WME6E0.book Page 30 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU24360

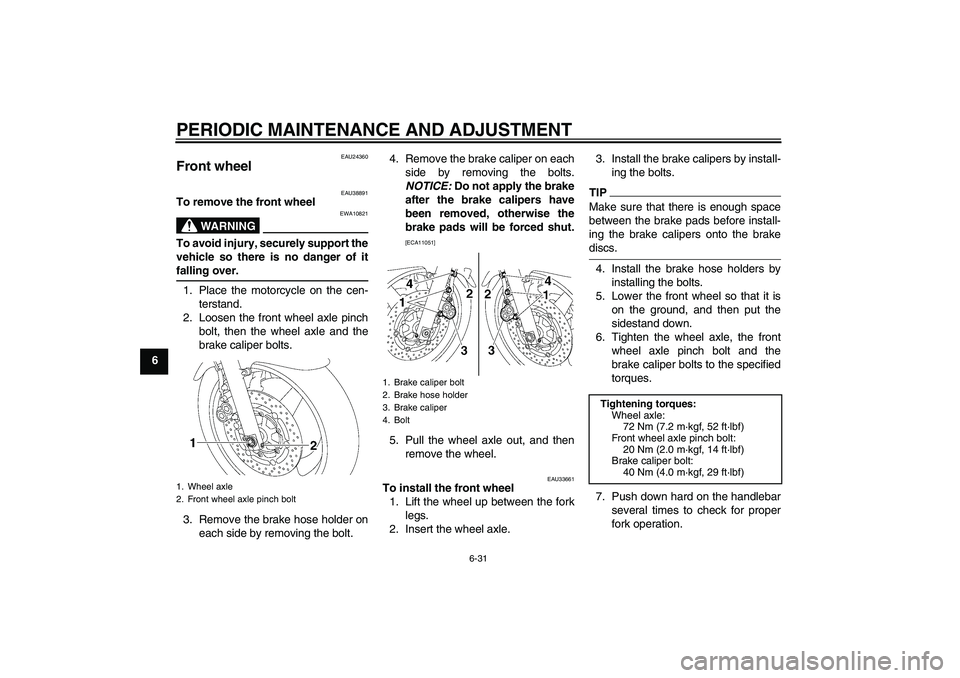

Front wheel
EAU38891
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.
3. Remove the brake hose holder on
each side by removing the bolt.4. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
5. Pull the wheel axle out, and then
remove the wheel.
EAU33661
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.3. Install the brake calipers by install-
ing the bolts.
TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brakediscs.
4. Install the brake hose holders by
installing the bolts.
5. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
6. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.
7. Push down hard on the handlebar
several times to check for proper
fork operation.
1. Wheel axle
2. Front wheel axle pinch bolt
1. Brake caliper bolt
2. Brake hose holder
3. Brake caliper
4. Bolt
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
U5WME6E0.book Page 31 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU25080

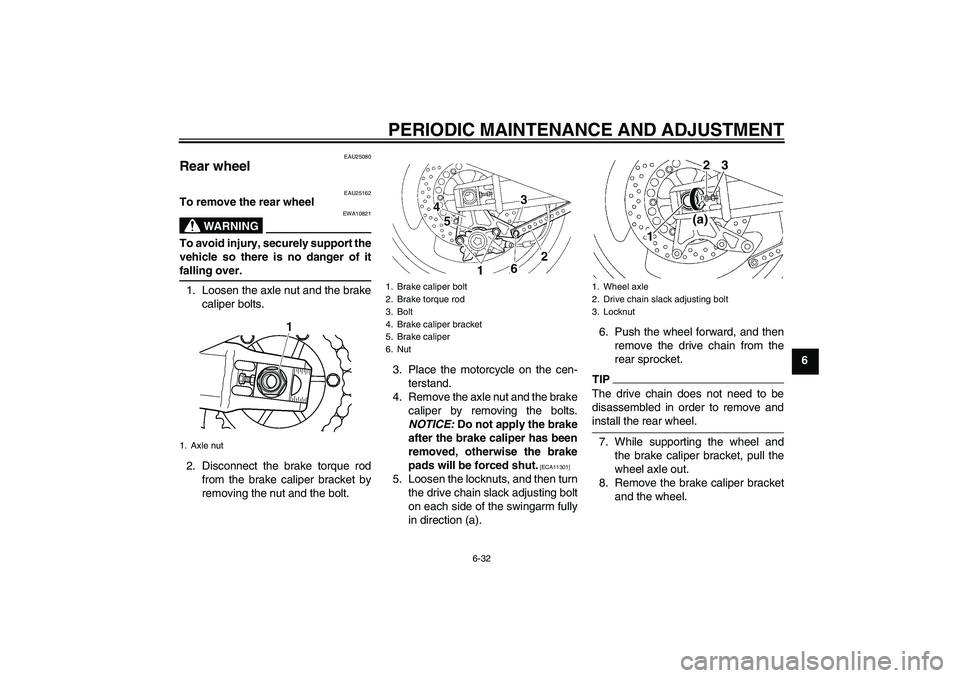

Rear wheel
EAU25162
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Loosen the axle nut and the brake
caliper bolts.
2. Disconnect the brake torque rod
from the brake caliper bracket by
removing the nut and the bolt.3. Place the motorcycle on the cen-
terstand.
4. Remove the axle nut and the brake
caliper by removing the bolts.
NOTICE: Do not apply the brake
after the brake caliper has been
removed, otherwise the brake
pads will be forced shut.
[ECA11301]
5. Loosen the locknuts, and then turn
the drive chain slack adjusting bolt
on each side of the swingarm fully
in direction (a).6. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIPThe drive chain does not need to be
disassembled in order to remove andinstall the rear wheel.
7. While supporting the wheel and
the brake caliper bracket, pull the
wheel axle out.
8. Remove the brake caliper bracket
and the wheel.
1. Axle nut
1. Brake caliper bolt
2. Brake torque rod
3. Bolt
4. Brake caliper bracket
5. Brake caliper
6. Nut
1. Wheel axle
2. Drive chain slack adjusting bolt
3. Locknut
123
(a)
U5WME6E0.book Page 32 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU25842

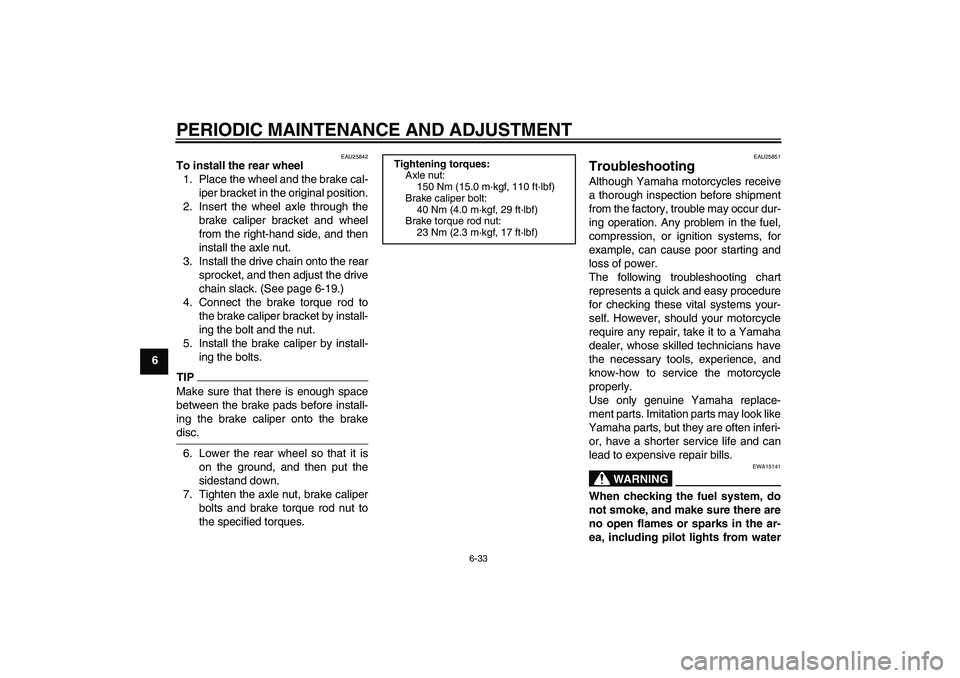

To install the rear wheel
1. Place the wheel and the brake cal-
iper bracket in the original position.
2. Insert the wheel axle through the
brake caliper bracket and wheel
from the right-hand side, and then
install the axle nut.
3. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-19.)
4. Connect the brake torque rod to
the brake caliper bracket by install-
ing the bolt and the nut.
5. Install the brake caliper by install-
ing the bolts.TIPMake sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brakedisc.
6. Lower the rear wheel so that it is
on the ground, and then put the
sidestand down.
7. Tighten the axle nut, brake caliper
bolts and brake torque rod nut to
the specified torques.
EAU25851
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
Tightening torques:
Axle nut:
150 Nm (15.0 m·kgf, 110 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
Brake torque rod nut:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U5WME6E0.book Page 33 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34

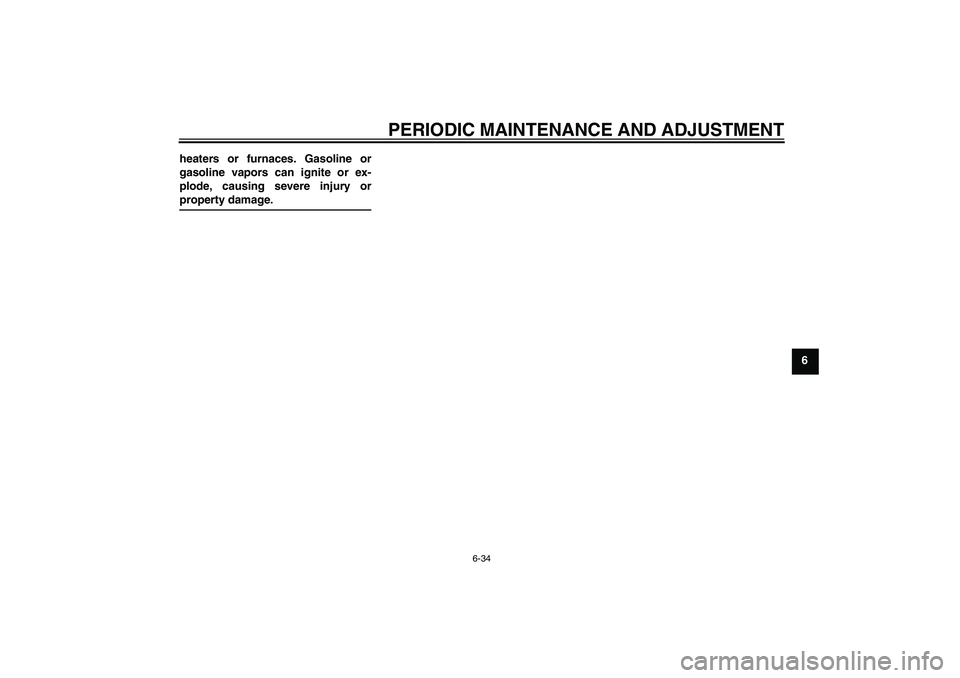

6 heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
U5WME6E0.book Page 34 Wednesday, August 20, 2008 3:23 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6
EAU42601
Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U5WME6E0.book Page 35 Wednesday, August 20, 2008 3:23 PM
