SAFETY INFORMATION
1-4

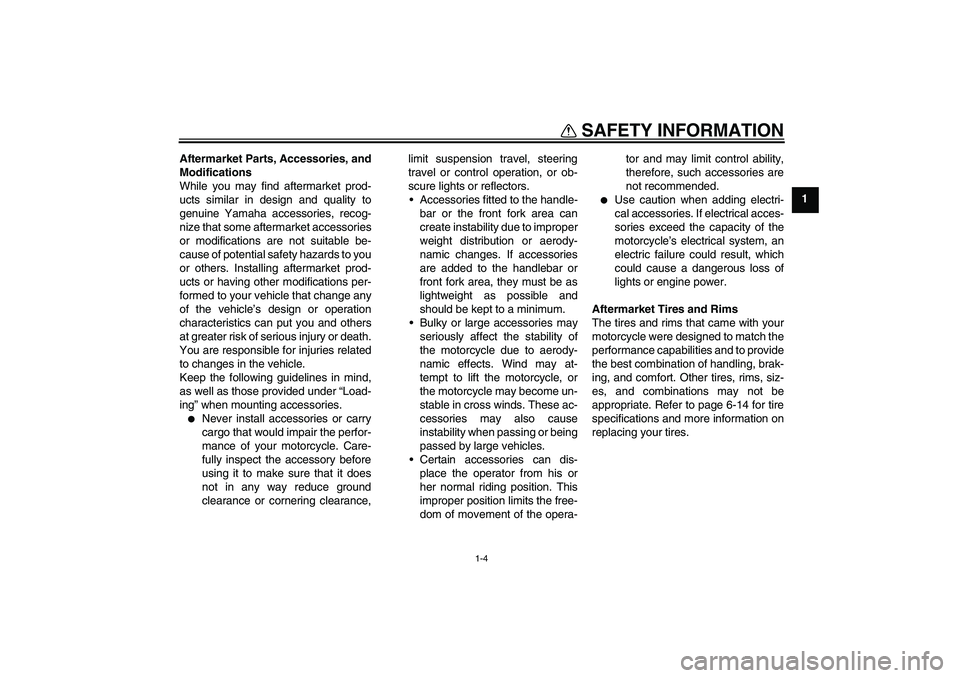

1 Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-14 for tire
specifications and more information on
replacing your tires.
U5WME7E0.book Page 4 Monday, November 16, 2009 9:09 AM

DESCRIPTION
2-1
2
EAU10410
Left view
1
2,3
4
5
6
7
8
13
12
11
10
9
1. Front fork compression damping force adjusting screw (page 3-17)
2. Front fork spring preload adjusting bolt (page 3-17)
3. Front fork rebound damping force adjusting screw (page 3-17)
4. Fuse box (page 6-28)
5. Main fuse (page 6-28)
6. Owner’s tool kit (page 6-1)
7. Luggage strap holder (page 3-21)
8. Seat lock/helmet holder (page 3-15/page 3-16)9. Shock absorber assembly compression damping force adjusting knob
(page 3-19)
10.Shock absorber assembly rebound damping force adjusting knob
(page 3-19)
11.Shock absorber assembly spring preload adjusting ring (page 3-19)
12.Shift pedal (page 3-11)
13.Engine oil filter element (page 6-9)U5WME7E0.book Page 1 Monday, November 16, 2009 9:09 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Luggage strap holder (page 3-21)
2. Storage compartment (page 3-16)
3. Battery (page 6-27)
4. Air filter element (page 6-12)
5. Engine oil filler cap (page 6-9)
6. Engine oil level check window (page 6-9)
7. Engine oil drain bolt (page 6-9)
8. Brake pedal (page 3-12)9. Rear brake light switch (page 6-18)
10.Rear brake fluid reservoir (page 6-19)
U5WME7E0.book Page 2 Monday, November 16, 2009 9:09 AM

DESCRIPTION
2-3
2
EAU10430

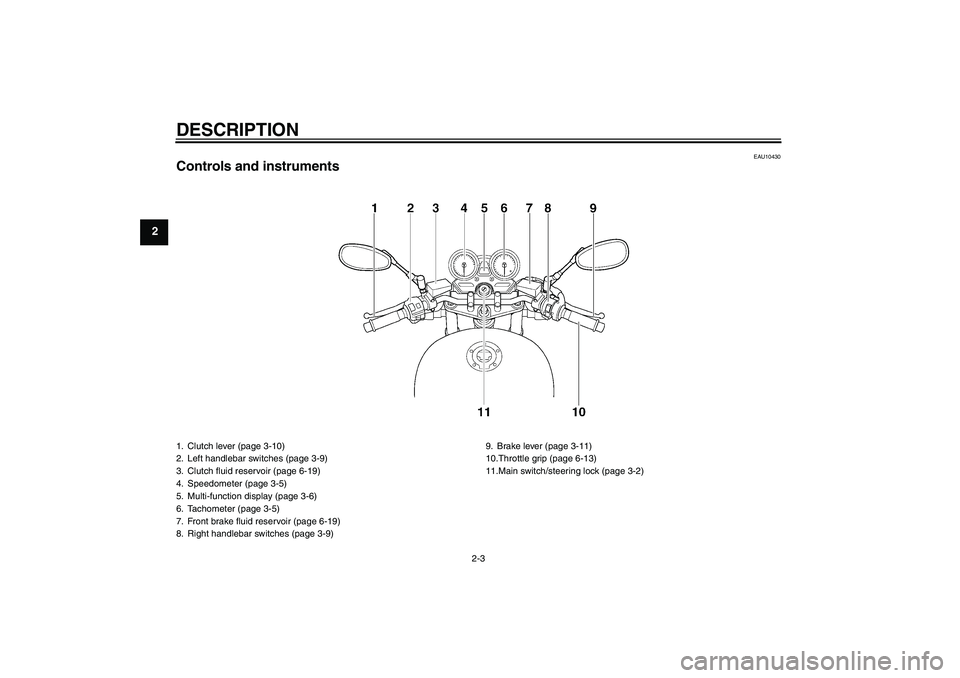

Controls and instruments1. Clutch lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Clutch fluid reservoir (page 6-19)
4. Speedometer (page 3-5)
5. Multi-function display (page 3-6)
6. Tachometer (page 3-5)
7. Front brake fluid reservoir (page 6-19)
8. Right handlebar switches (page 3-9)9. Brake lever (page 3-11)
10.Throttle grip (page 6-13)
11.Main switch/steering lock (page 3-2)U5WME7E0.book Page 3 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10976

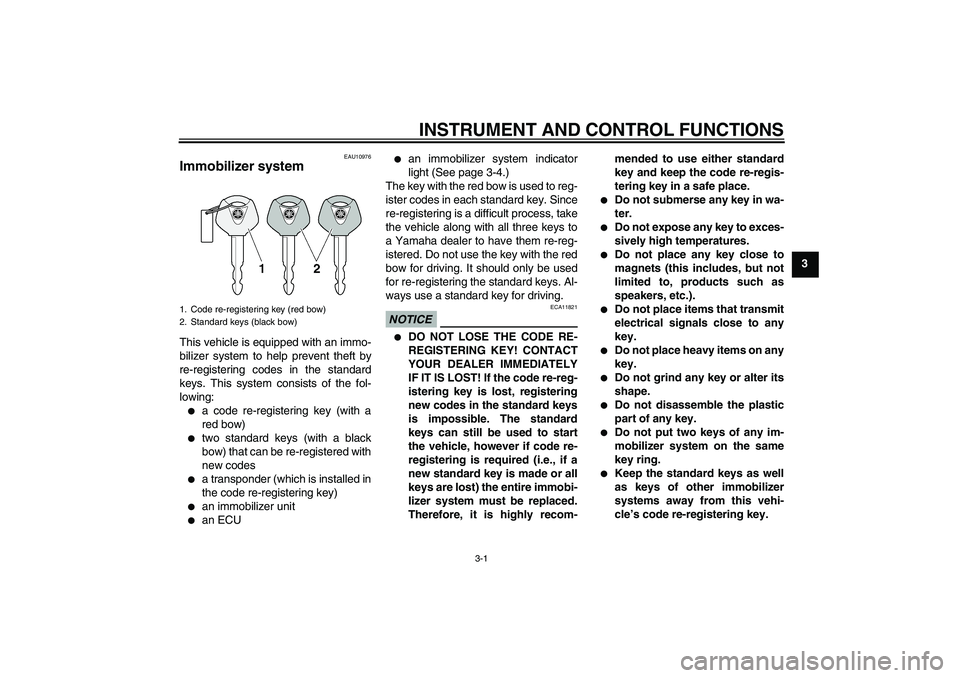

Immobilizer system This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing:

a code re-registering key (with a
red bow)


two standard keys (with a black
bow) that can be re-registered with
new codes


a transponder (which is installed in
the code re-registering key)


an immobilizer unit


an ECU


an immobilizer system indicator
light (See page 3-4.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
NOTICE
ECA11821


DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-reg-
istering key is lost, registering
new codes in the standard keys
is impossible. The standard
keys can still be used to start
the vehicle, however if code re-
registering is required (i.e., if a
new standard key is made or all
keys are lost) the entire immobi-
lizer system must be replaced.
Therefore, it is highly recom-mended to use either standard
key and keep the code re-regis-
tering key in a safe place.


Do not submerse any key in wa-
ter.


Do not expose any key to exces-
sively high temperatures.


Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).


Do not place items that transmit
electrical signals close to any
key.


Do not place heavy items on any
key.


Do not grind any key or alter its
shape.


Do not disassemble the plastic
part of any key.


Do not put two keys of any im-
mobilizer system on the same
key ring.


Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.
1. Code re-registering key (red bow)
2. Standard keys (black bow)
U5WME7E0.book Page 1 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3


Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-
ference.
EAU10472

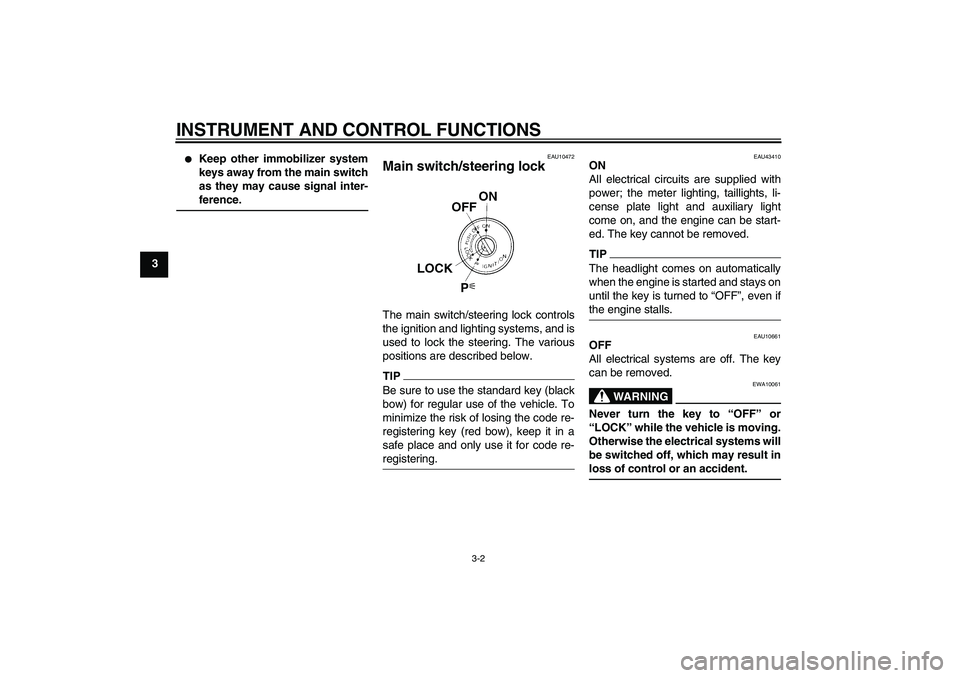

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU43410
ON
All electrical circuits are supplied with
power; the meter lighting, taillights, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
U5WME7E0.book Page 2 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU43460
(Parking)
The steering is locked, and the tail-
lights, license plate light and auxiliary
light are on. The hazard lights and turn
signal lights can be turned on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to“”.
NOTICE
ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
1. Push.
2. Turn.
1. Push.
2. Turn.
U5WME7E0.book Page 3 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11004
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11123
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.TIPEven if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11534
Engine trouble warning light“”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-7
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU38623
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
1. Left turn signal indicator light“”
2. Engine trouble warning light“”
3. Neutral indicator light“”
4. Oil level warning light“”
5. High beam indicator light“”
6. Right turn signal indicator light“”
7. Immobilizer system indicator lightU5WME7E0.book Page 4 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-7 for an explana-
tion of the self-diagnosis device.)
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 9500 r/min and above
1. Speedometer
1. Tachometer
2. Tachometer red zone
U5WME7E0.book Page 5 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU43248
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.The multi-function display is equipped
with the following:

an odometer


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a fuel meter


a clock


a self-diagnosis device


a display, speedometer, and ta-
chometer brightness control mode
TIPBe sure to turn the key to “ON” before
using the select and reset buttons, ex-
cept for setting the display, speedome-
ter and tachometer brightness control
mode.
Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “TRIP
1” and “TRIP 2” in the following order:
ODO → TRIP 1 → TRIP 2 → ODO
When approximately 4.5 L (1.19 US
gal, 0.99 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting the
distance traveled from that point. In that
case, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
TRIP F → ODO → TRIP 1 → TRIP 2 →
TRIP F
1. Clock
2. Fuel meter
3. Odometer/tripmeter/fuel reserve tripmeter
4. Reset button
5. Select button
1. Odometer/tripmeter/fuel reserve tripmeter
U5WME7E0.book Page 6 Monday, November 16, 2009 9:09 AM
