DESCRIPTION
2-2
2
EAU10420
Right view1. Luggage strap holder (page 3-21)
2. Storage compartment (page 3-16)
3. Battery (page 6-27)
4. Air filter element (page 6-12)
5. Engine oil filler cap (page 6-9)
6. Engine oil level check window (page 6-9)
7. Engine oil drain bolt (page 6-9)
8. Brake pedal (page 3-12)9. Rear brake light switch (page 6-18)
10.Rear brake fluid reservoir (page 6-19)
U5WME7E0.book Page 2 Monday, November 16, 2009 9:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3

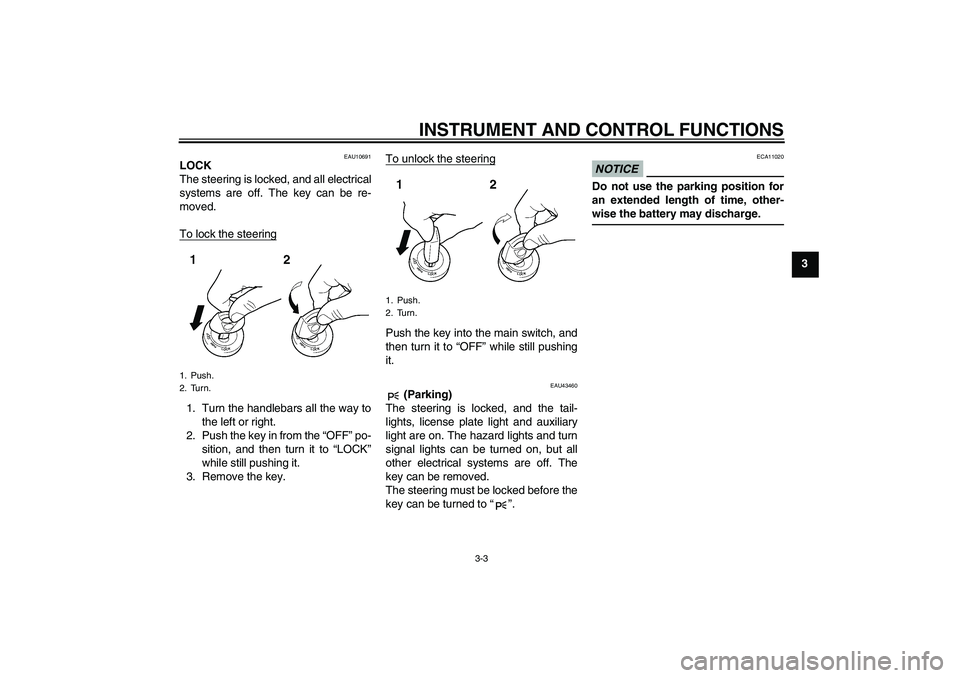

EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU43460
(Parking)
The steering is locked, and the tail-
lights, license plate light and auxiliary
light are on. The hazard lights and turn
signal lights can be turned on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to“”.
NOTICE
ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
1. Push.
2. Turn.
1. Push.
2. Turn.
U5WME7E0.book Page 3 Monday, November 16, 2009 9:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6

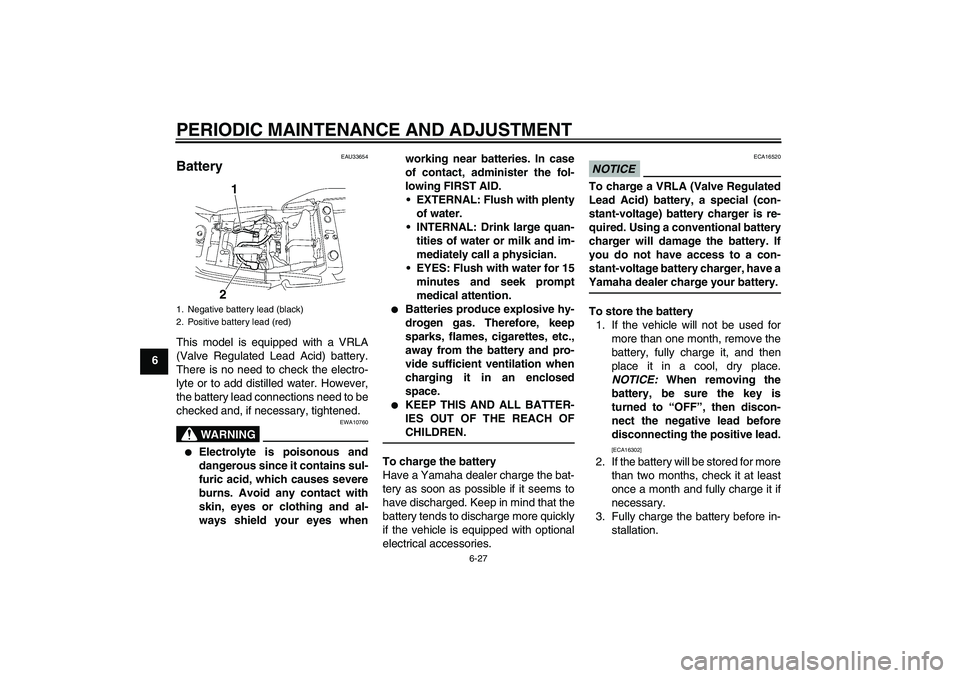

EAU33654
Battery This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes whenworking near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a
Yamaha dealer charge your battery.To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
1. Negative battery lead (black)
2. Positive battery lead (red)
1
2
U5WME7E0.book Page 27 Monday, November 16, 2009 9:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6 4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.

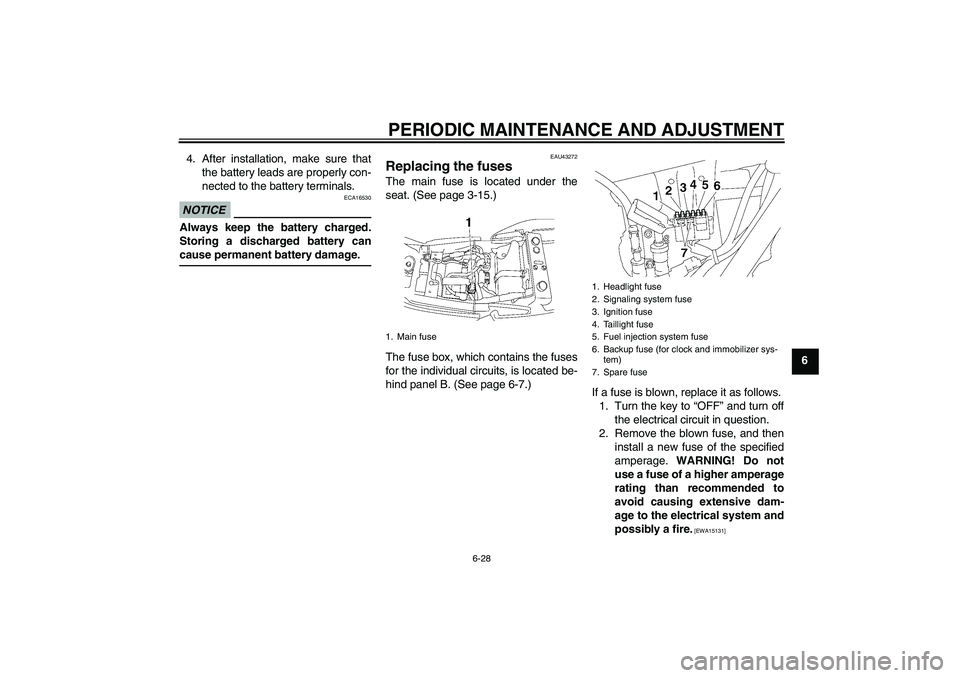

EAU43272
Replacing the fuses The main fuse is located under the
seat. (See page 3-15.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel B. (See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for clock and immobilizer sys-
tem)
7. Spare fuse
U5WME7E0.book Page 28 Monday, November 16, 2009 9:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
6

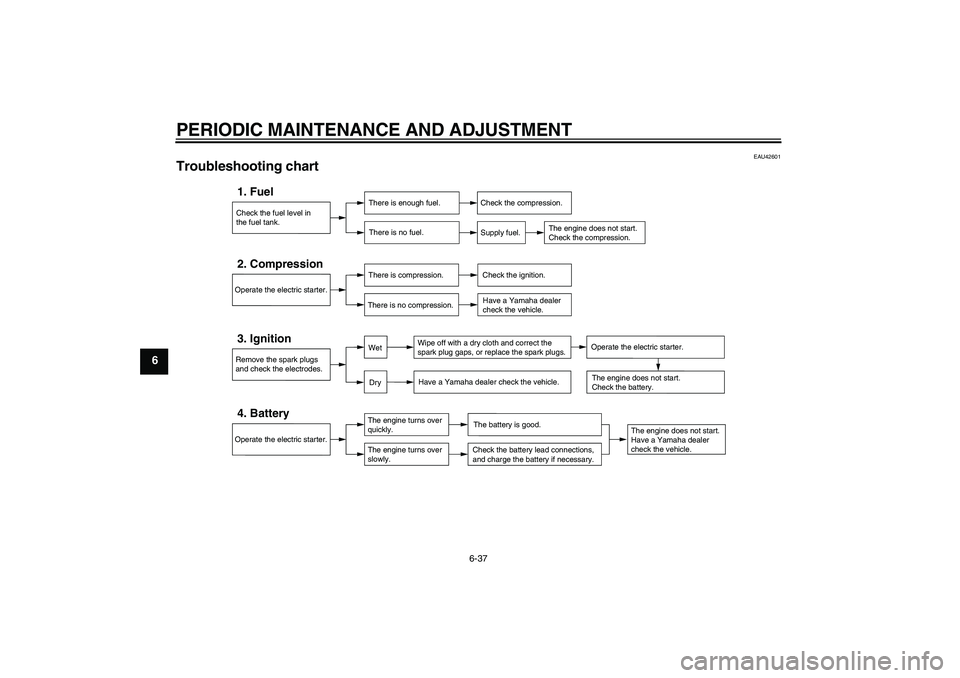

EAU42601
Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U5WME7E0.book Page 37 Monday, November 16, 2009 9:09 AM

MOTORCYCLE CARE AND STORAGE
7-4
73. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine over.
[EWA10951]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
TIPMake any necessary repairs before
storing the motorcycle.
U5WME7E0.book Page 4 Monday, November 16, 2009 9:09 AM

SPECIFICATIONS
8-2
8
4th:
31/24 (1.292)
5th:
29/26 (1.115)
Chassis:Frame type:
Double cradle
Caster angle:
25.50 °
Trail:
100.0 mm (3.94 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
DUNLOP/D252F LRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
DUNLOP/D252 LLoading:Maximum load:
205 kg (452 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition:
90–205 kg (198–452 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
110.0 mm (4.33 in)Electrical system:Ignition system:
TCI
Charging system:
AC generatorBattery:Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulb
U5WME7E0.book Page 2 Monday, November 16, 2009 9:09 AM

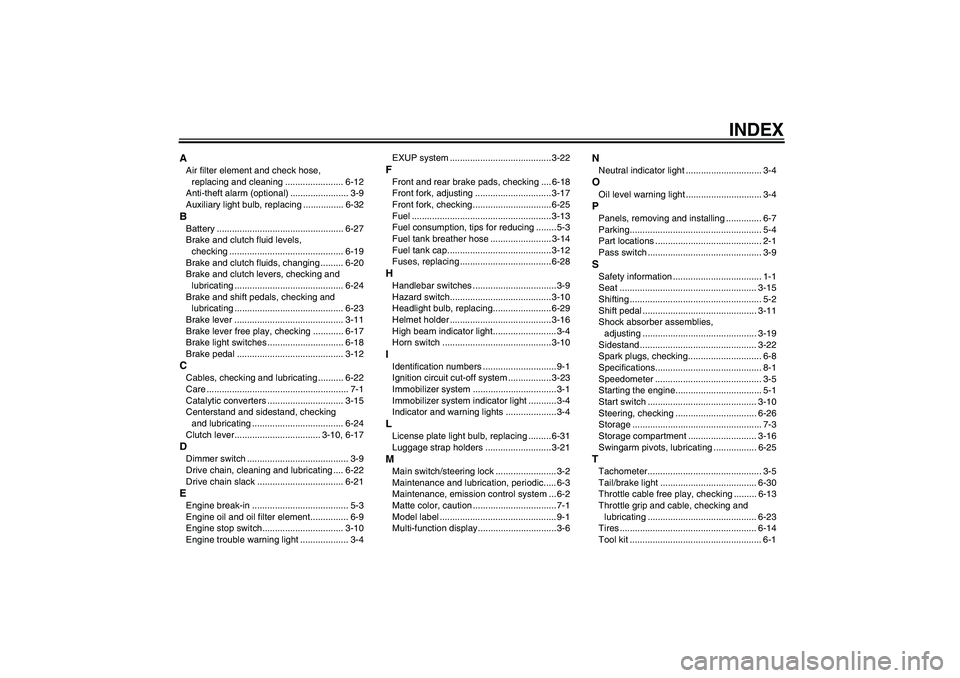

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-12
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-27
Brake and clutch fluid levels,
checking ............................................. 6-19
Brake and clutch fluids, changing ......... 6-20
Brake and clutch levers, checking and
lubricating ........................................... 6-24
Brake and shift pedals, checking and
lubricating ........................................... 6-23
Brake lever ........................................... 3-11
Brake lever free play, checking ............ 6-17
Brake light switches .............................. 6-18
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Catalytic converters .............................. 3-15
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever.................................. 3-10, 6-17DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-22
Drive chain slack .................................. 6-21EEngine break-in ...................................... 5-3
Engine oil and oil filter element............... 6-9
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-4EXUP system ........................................ 3-22
FFront and rear brake pads, checking .... 6-18
Front fork, adjusting .............................. 3-17
Front fork, checking...............................6-25
Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-28HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-29
Helmet holder ........................................ 3-16
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-23
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-4LLicense plate light bulb, replacing ......... 6-31
Luggage strap holders .......................... 3-21MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-1
Multi-function display...............................3-6
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9SSafety information ................................... 1-1
Seat ...................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assemblies,
adjusting ............................................. 3-19
Sidestand .............................................. 3-22
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Storage compartment ........................... 3-16
Swingarm pivots, lubricating ................. 6-25TTachometer............................................. 3-5
Tail/brake light ...................................... 6-30
Throttle cable free play, checking ......... 6-13
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
U5WME7E0.book Page 1 Monday, November 16, 2009 9:09 AM
