DESCRIPTION
2-1
2
EAU10410

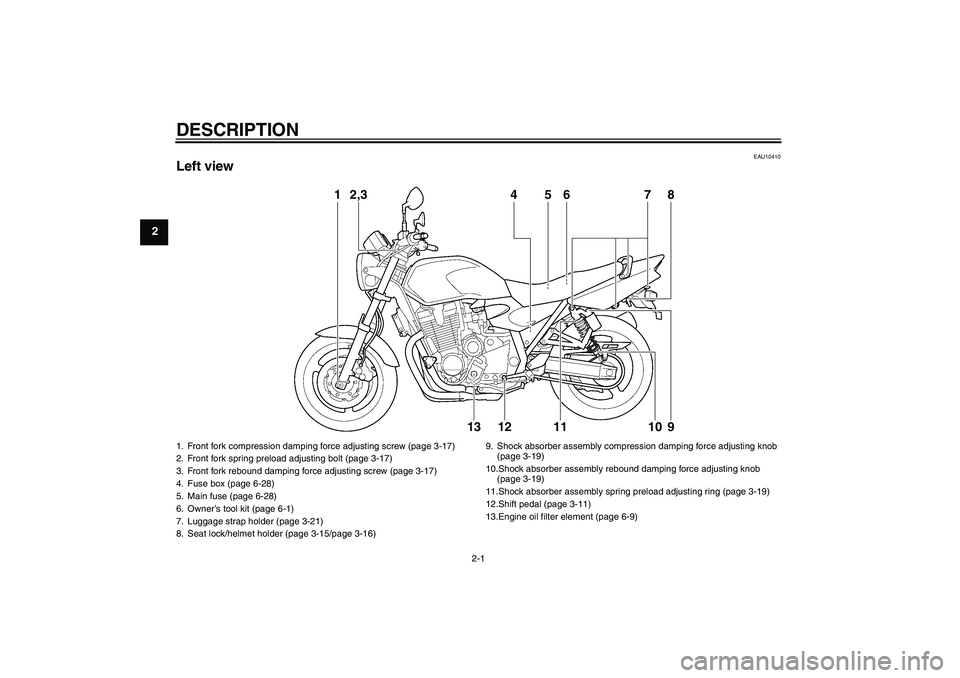

Left view
1
2,3
4
5
6
7
8
13
12
11
10
9
1. Front fork compression damping force adjusting screw (page 3-17)
2. Front fork spring preload adjusting bolt (page 3-17)
3. Front fork rebound damping force adjusting screw (page 3-17)
4. Fuse box (page 6-28)
5. Main fuse (page 6-28)
6. Owner’s tool kit (page 6-1)
7. Luggage strap holder (page 3-21)
8. Seat lock/helmet holder (page 3-15/page 3-16)9. Shock absorber assembly compression damping force adjusting knob
(page 3-19)
10.Shock absorber assembly rebound damping force adjusting knob
(page 3-19)
11.Shock absorber assembly spring preload adjusting ring (page 3-19)
12.Shift pedal (page 3-11)
13.Engine oil filter element (page 6-9)U5WME7E0.book Page 1 Monday, November 16, 2009 9:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6 4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU43272
Replacing the fuses The main fuse is located under the
seat. (See page 3-15.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel B. (See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for clock and immobilizer sys-
tem)
7. Spare fuse
U5WME7E0.book Page 28 Monday, November 16, 2009 9:09 AM
