YAMAHA XJR 1300 2011 Owners Manual
Manufacturer: YAMAHA, Model Year: 2011, Model line: XJR 1300, Model: YAMAHA XJR 1300 2011Pages: 96, PDF Size: 3.33 MB
Page 91 of 96

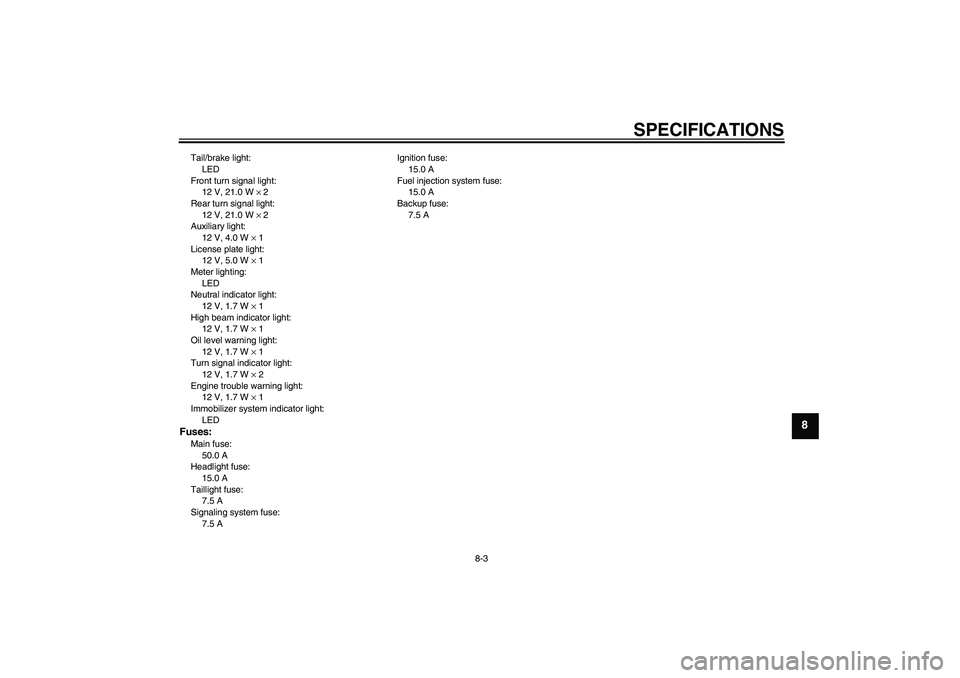

SPECIFICATIONS
8-3
8
Tail/brake light:
LED
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 4.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
12 V, 1.7 W × 1
High beam indicator light:
12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 2
Engine trouble warning light:
12 V, 1.7 W × 1
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 AIgnition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
U5WME8E0.book Page 3 Monday, August 9, 2010 3:10 PM
Page 92 of 96

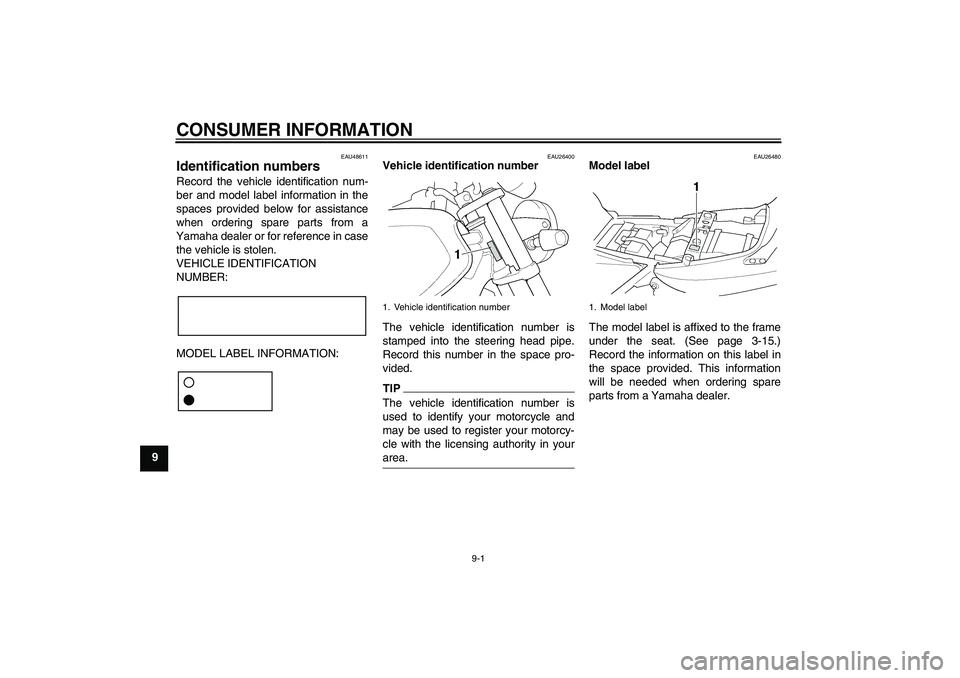

CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-15.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U5WME8E0.book Page 1 Monday, August 9, 2010 3:10 PM
Page 93 of 96

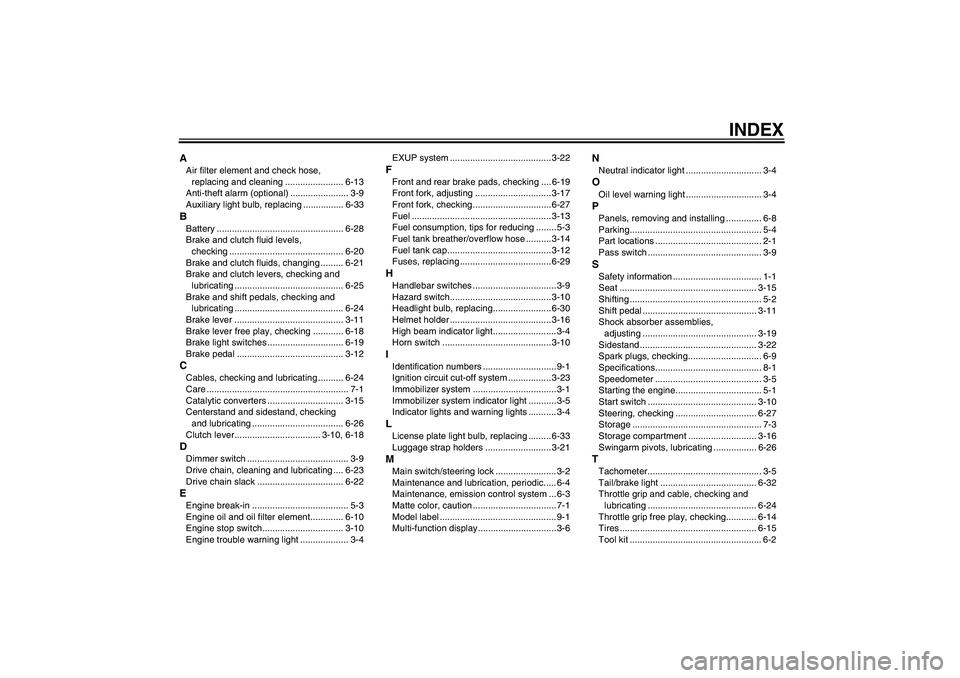

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-13
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-33BBattery .................................................. 6-28
Brake and clutch fluid levels,
checking ............................................. 6-20
Brake and clutch fluids, changing ......... 6-21
Brake and clutch levers, checking and
lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake lever ........................................... 3-11
Brake lever free play, checking ............ 6-18
Brake light switches .............................. 6-19
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters .............................. 3-15
Centerstand and sidestand, checking
and lubricating .................................... 6-26
Clutch lever.................................. 3-10, 6-18DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack .................................. 6-22EEngine break-in ...................................... 5-3
Engine oil and oil filter element............. 6-10
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-4EXUP system ........................................ 3-22
FFront and rear brake pads, checking .... 6-19
Front fork, adjusting .............................. 3-17
Front fork, checking...............................6-27
Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-30
Helmet holder ........................................ 3-16
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-23
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-33
Luggage strap holders .......................... 3-21MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1
Model label .............................................. 9-1
Multi-function display...............................3-6
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9SSafety information ................................... 1-1
Seat ...................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assemblies,
adjusting ............................................. 3-19
Sidestand .............................................. 3-22
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Storage compartment ........................... 3-16
Swingarm pivots, lubricating ................. 6-26TTachometer............................................. 3-5
Tail/brake light ...................................... 6-32
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Throttle grip free play, checking............ 6-14
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
U5WME8E0.book Page 1 Monday, August 9, 2010 3:10 PM
Page 94 of 96

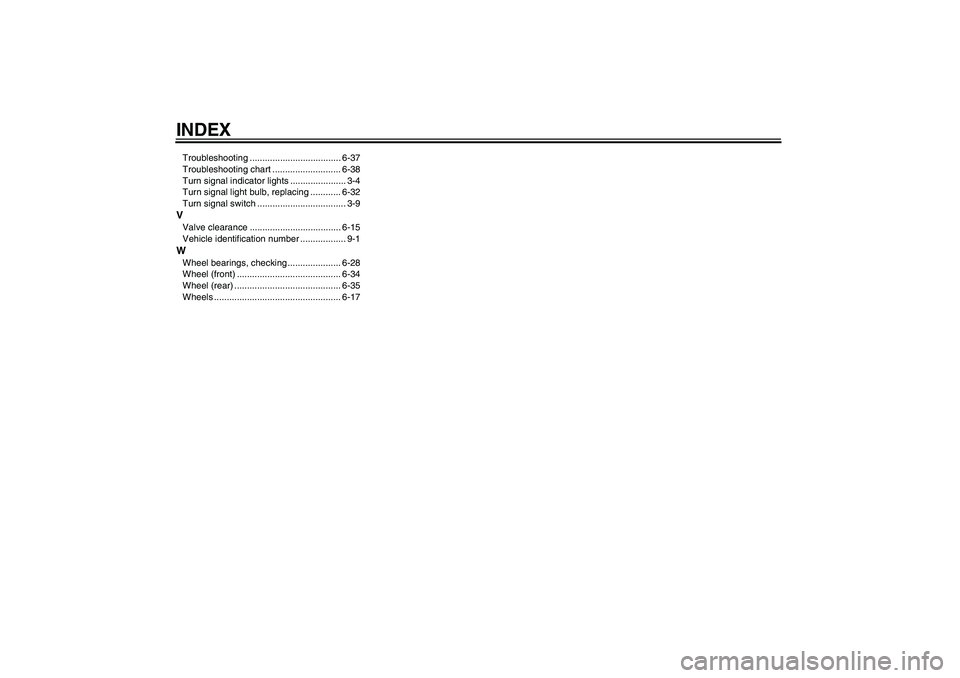

INDEXTroubleshooting .................................... 6-37
Troubleshooting chart ........................... 6-38
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-32
Turn signal switch ................................... 3-9VValve clearance .................................... 6-15
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-28
Wheel (front) ......................................... 6-34
Wheel (rear) .......................................... 6-35
Wheels .................................................. 6-17
U5WME8E0.book Page 2 Monday, August 9, 2010 3:10 PM
Page 95 of 96
U5WME8E0.book Page 3 Monday, August 9, 2010 3:10 PM
Page 96 of 96
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2010.08-0.3×1 CR
(E)
DIC183
