YAMAHA XL 700 2001 Owner's Guide

2-6
E
EJU00703
Hood
To open the hood, pull the latch 1 up,
and then lift the hood up.
To close the hood, push the hood down to
lock it in place.
NOTE:
Make sure that the hood is properly secured
before operating the watercraft.
EJU00347
Fuel tank filler cap
To remove the fuel tank filler cap 1, turn it
counterclockwise.
NOTE:
Make sure that the fuel tank filler cap is
properly secured before operating the water-
craft.
EJU00001N
Oil tank filler cap
To remove the oil tank filler cap:
1. Open the hood. (See page 2-6 for hood.)
2. Turn the filler cap 2 counterclockwise.
NOTE:
Make sure that the oil tank filler cap is prop-
erly secured and the hood is closed before
operating the watercraft.
E_F0M-72-2.fm Page 6 Thursday, July 27, 2000 9:50 AM

2-7
E
EJU00704

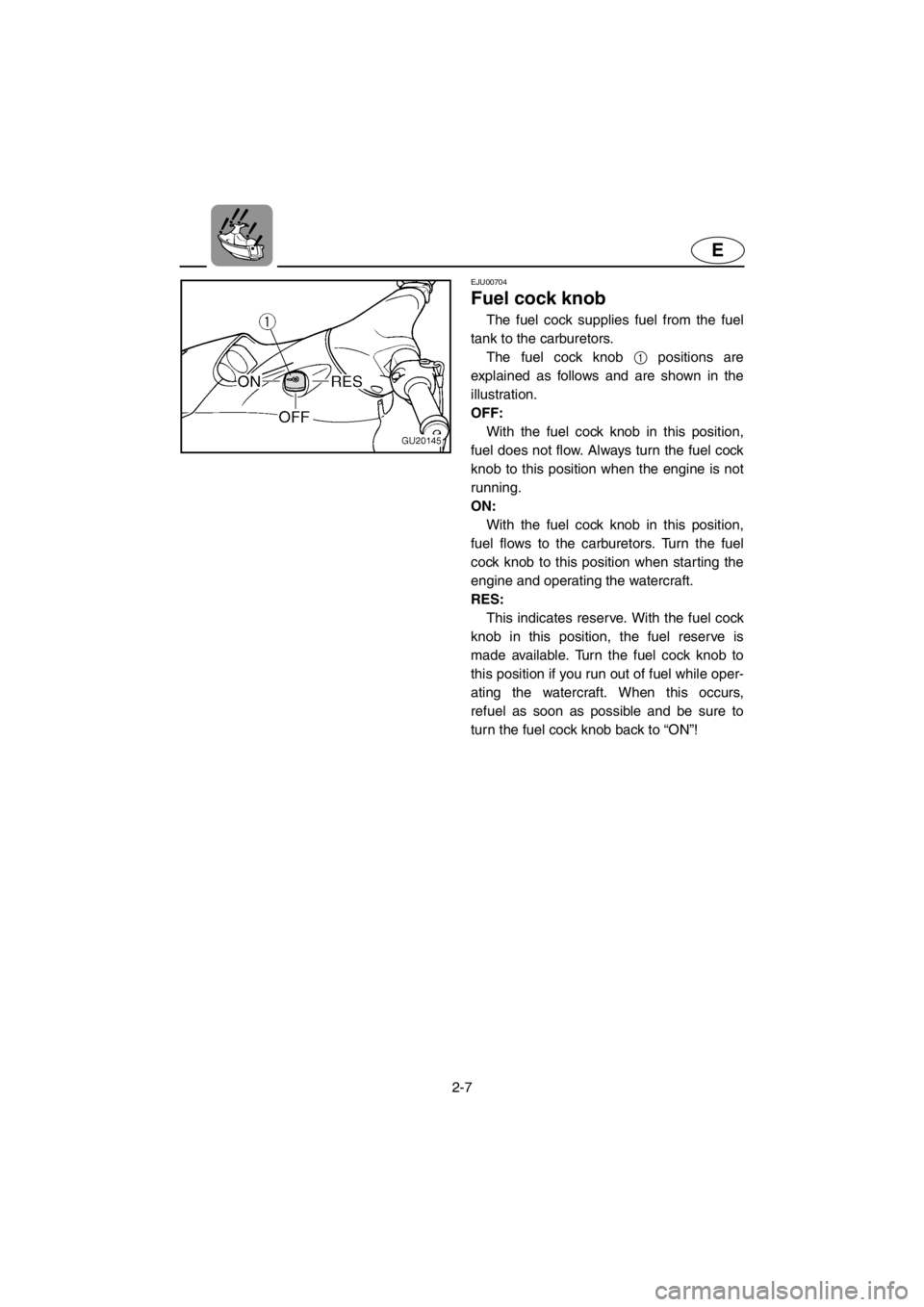

Fuel cock knob
The fuel cock supplies fuel from the fuel
tank to the carburetors.
The fuel cock knob 1 positions are
explained as follows and are shown in the
illustration.
OFF:
With the fuel cock knob in this position,
fuel does not flow. Always turn the fuel cock
knob to this position when the engine is not
running.
ON:
With the fuel cock knob in this position,
fuel flows to the carburetors. Turn the fuel
cock knob to this position when starting the
engine and operating the watercraft.
RES:
This indicates reserve. With the fuel cock
knob in this position, the fuel reserve is
made available. Tur n the fuel cock knob to
this position if you run out of fuel while oper-
ating the watercraft. When this occurs,
refuel as soon as possible and be sure to
turn the fuel cock knob back to “ON”!
E_F0M-72-2.fm Page 7 Thursday, July 27, 2000 9:50 AM

2-8
E
EJU00705
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
EJU00706
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING
●Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.
●To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
EJU00350
Choke knob
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by the
choke.
Pull the knob 1 out to turn the choke on.
Push the knob in to turn the choke off.
E_F0M-72-2.fm Page 8 Thursday, July 27, 2000 9:50 AM

2-9
E
EJU00351
Throttle lever
Squeeze the throttle lever 1 to increase
engine speed.
Release the throttle lever to decrease
engine speed or to return it to the idle posi-
tion.
EJU00353
Start switch
Push the start switch 1 (green button) to
start the engine.
NOTE:
The engine will not start when the clip is
removed from the engine shut-off switch.
E_F0M-72-2.fm Page 9 Thursday, July 27, 2000 9:50 AM

2-10
E
EJU00354
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlet.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlet.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlet. If water is not
being discharged from the outlet, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and check
for the cause. (See pages 2-11 and 5-3 for
further instructions.)
NOTE:
If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
EJU00356
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
E_F0M-72-2.fm Page 10 Thursday, July 27, 2000 9:50 AM

2-11
E
EJU00366
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the
engine speed will be limited to about
3,000 r/min.
When this occurs, check for water dis-
charge at the cooling water pilot outlet. If
there is no discharge of water, reduce the
engine speed and beach the watercraft, and
then check the intake grate and impeller for
clogging.
WARNING
Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
CAUTION:
If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
E_F0M-72-2.fm Page 11 Thursday, July 27, 2000 9:50 AM

2-12
E
EJU00367a
Handgrip
The handgrip 1 provides a handhold for
boarding the watercraft and for a spotter
when facing rearward.
CAUTION:
Do not use to tow objects, lift watercraft,
or attach tie downs, otherwise damage
could occur.
EJU00371
Oil level warning lamp
If the oil remaining in the tank drops to
about 1.2 L (0.31 US gal, 0.26 Imp gal) or
the oil filter is clogged, the oil level warning
lamp begins to blink.
If the oil level warning lamp begins to
blink, refill with engine oil as soon as possi-
ble.
NOTE:
●The lamp will light up for 2 seconds after
starting the engine to check the lamp
operation.
●If the warning lamp blinks with adequate
oil in the tank, check for a clogged oil fil-
ter.
E_F0M-72-2.fm Page 12 Thursday, July 27, 2000 9:50 AM

2-13
E
EJU00672a

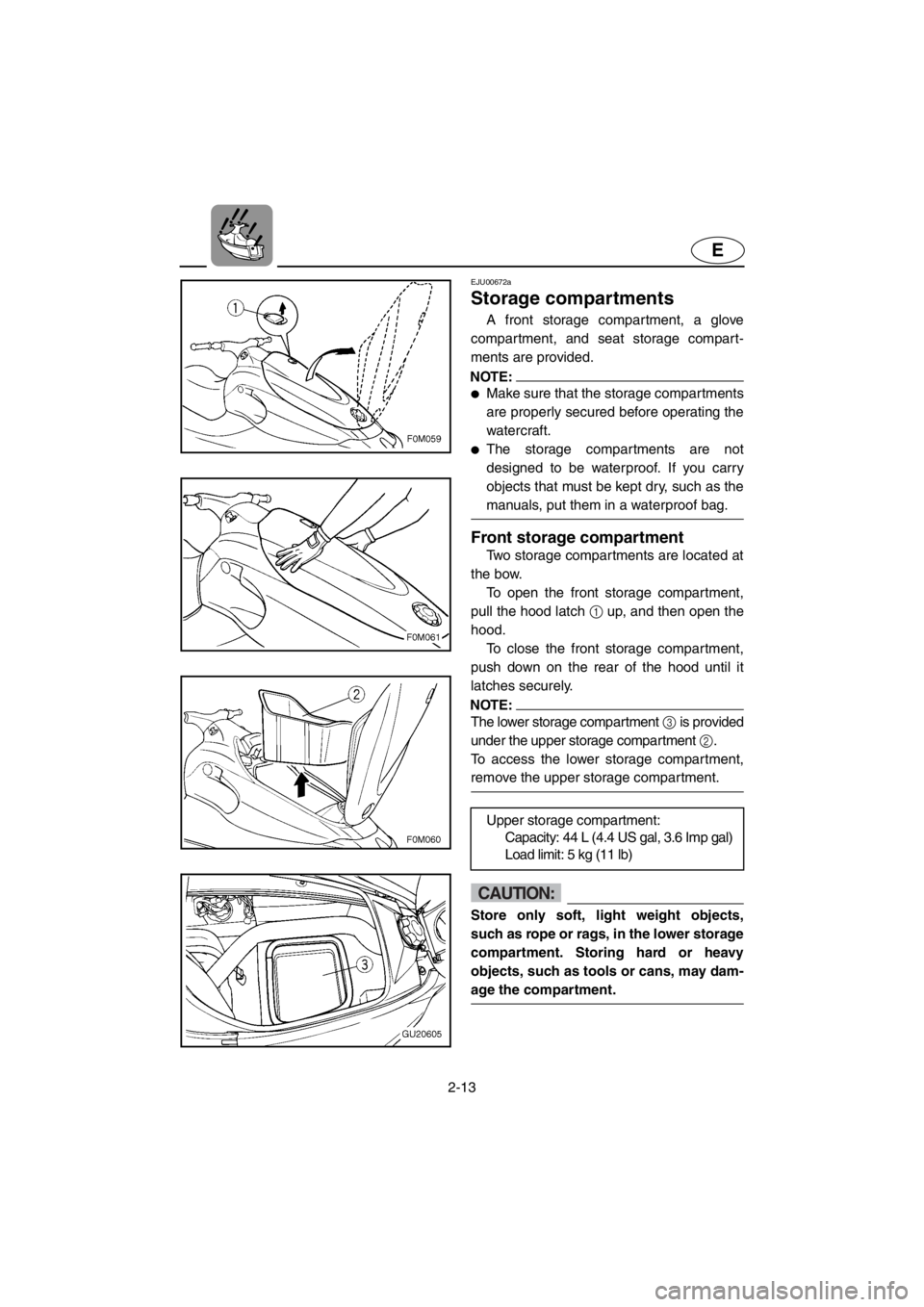

Storage compartments
A front storage compartment, a glove
compartment, and seat storage compart-
ments are provided.
NOTE:
●Make sure that the storage compartments
are properly secured before operating the
watercraft.
●The storage compartments are not
designed to be waterproof. If you carry
objects that must be kept dry, such as the
manuals, put them in a waterproof bag.
Front storage compartment
Two storage compartments are located at
the bow.
To open the front storage compartment,
pull the hood latch 1 up, and then open the
hood.
To close the front storage compartment,
push down on the rear of the hood until it
latches securely.
NOTE:
The lower storage compartment 3 is provided
under the upper storage compartment 2.
To access the lower storage compartment,
remove the upper storage compartment.
CAUTION:
Store only soft, light weight objects,
such as rope or rags, in the lower storage
compartment. Storing hard or heavy
objects, such as tools or cans, may dam-
age the compartment.
Upper storage compartment:
Capacity: 44 L (4.4 US gal, 3.6 Imp gal)
Load limit: 5 kg (11 lb)
E_F0M-72-2.fm Page 13 Thursday, July 27, 2000 9:50 AM

2-14
E

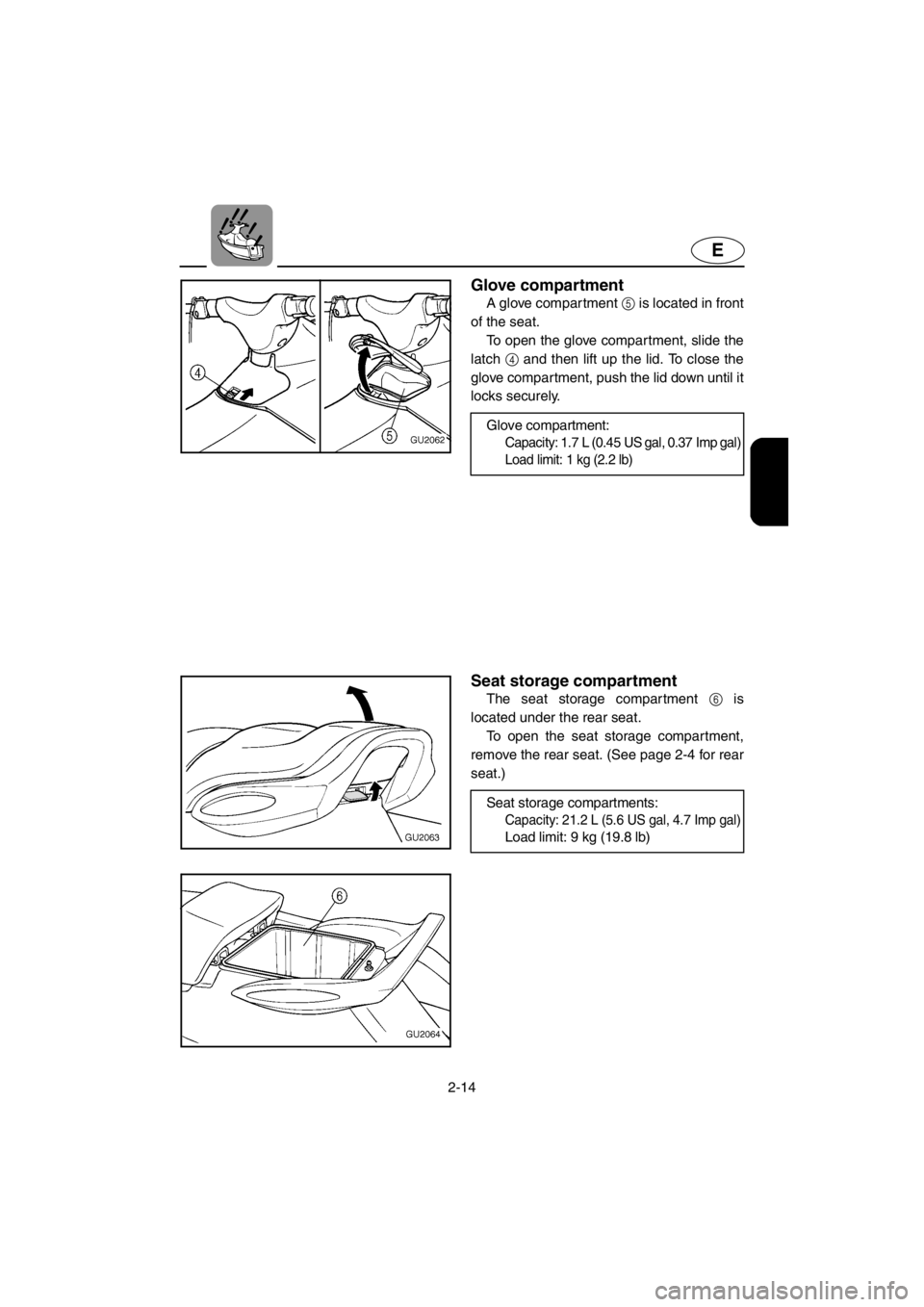

Glove compartment
A glove compartment 5 is located in front
of the seat.
To open the glove compartment, slide the
latch 4 and then lift up the lid. To close the
glove compartment, push the lid down until it
locks securely.
Glove compartment:
Capacity: 1.7 L (0.45 US gal, 0.37 Imp gal)
Load limit: 1 kg (2.2 lb)
Seat storage compartment
The seat storage compartment 6 is
located under the rear seat.
To open the seat storage compartment,
remove the rear seat. (See page 2-4 for rear
seat.)
Seat storage compartments:
Capacity: 21.2 L (5.6 US gal, 4.7 Imp gal)
Load limit: 9 kg (19.8 lb)
E_F0M-72-2.fm Page 14 Thursday, July 27, 2000 9:50 AM
