YAMAHA XMAX 125 2006 Manual PDF

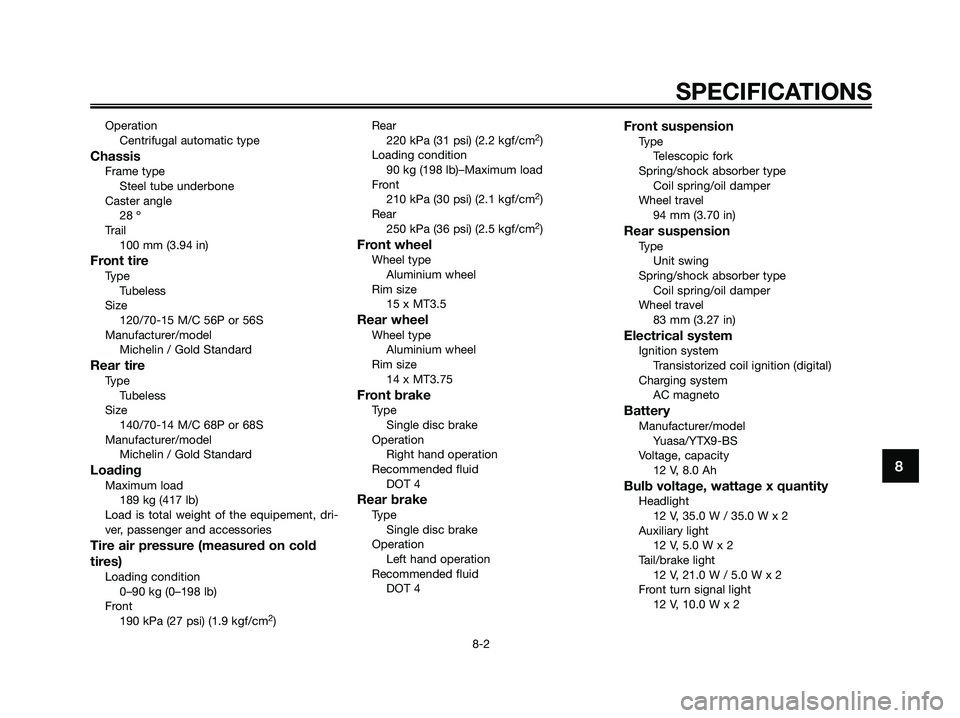

Operation
Centrifugal automatic type
ChassisFrame type
Steel tube underbone
Caster angle
28 º
Trail
100 mm (3.94 in)
Front tireType
Tubeless
Size
120/70-15 M/C 56P or 56S
Manufacturer/model
Michelin / Gold Standard
Rear tireType
Tubeless
Size
140/70-14 M/C 68P or 68S
Manufacturer/model
Michelin / Gold Standard
LoadingMaximum load
189 kg (417 lb)
Load is total weight of the equipement, dri-
ver, passenger and accessories
Tire air pressure (measured on cold
tires)
Loading condition
0–90 kg (0–198 lb)
Front
190 kPa (27 psi) (1.9 kgf/cm
2)Rear
220 kPa (31 psi) (2.2 kgf/cm
2)
Loading condition
90 kg (198 lb)–Maximum load
Front
210 kPa (30 psi) (2.1 kgf/cm
2)
Rear
250 kPa (36 psi) (2.5 kgf/cm
2)
Front wheelWheel type
Aluminium wheel
Rim size
15 x MT3.5
Rear wheelWheel type
Aluminium wheel
Rim size
14 x MT3.75
Front brakeType
Single disc brake
Operation
Right hand operation
Recommended fluid
DOT 4
Rear brakeType
Single disc brake
Operation
Left hand operation
Recommended fluid
DOT 4
Front suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
94 mm (3.70 in)
Rear suspensionType
Unit swing
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
83 mm (3.27 in)
Electrical systemIgnition system
Transistorized coil ignition (digital)
Charging system
AC magneto
BatteryManufacturer/model
Yuasa/YTX9-BS
Voltage, capacity
12 V, 8.0 Ah
Bulb voltage, wattage x quantityHeadlight
12 V, 35.0 W / 35.0 W x 2
Auxiliary light
12 V, 5.0 W x 2
Tail/brake light
12 V, 21.0 W / 5.0 W x 2
Front turn signal light
12 V, 10.0 W x 2
8
SPECIFICATIONS
8-2
1B9-F8199-E0.qxd 14/10/2005 11:07 Página 71

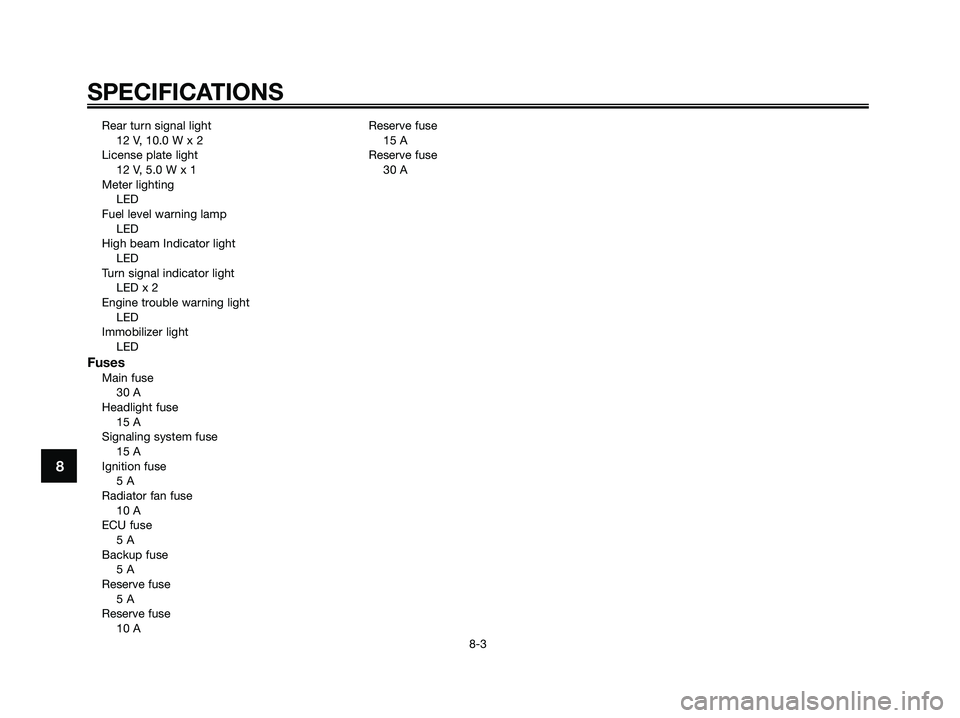

Rear turn signal light
12 V, 10.0 W x 2
License plate light
12 V, 5.0 W x 1
Meter lighting
LED
Fuel level warning lamp
LED
High beam Indicator light
LED
Turn signal indicator light
LED x 2
Engine trouble warning light
LED
Immobilizer light
LED
FusesMain fuse
30 A
Headlight fuse
15 A
Signaling system fuse
15 A
Ignition fuse
5 A
Radiator fan fuse
10 A
ECU fuse
5 A
Backup fuse
5 A
Reserve fuse
5 A
Reserve fuse
10 AReserve fuse
15 A
Reserve fuse
30 A
8
SPECIFICATIONS
8-3
1B9-F8199-E0.qxd 14/10/2005 11:07 Página 72

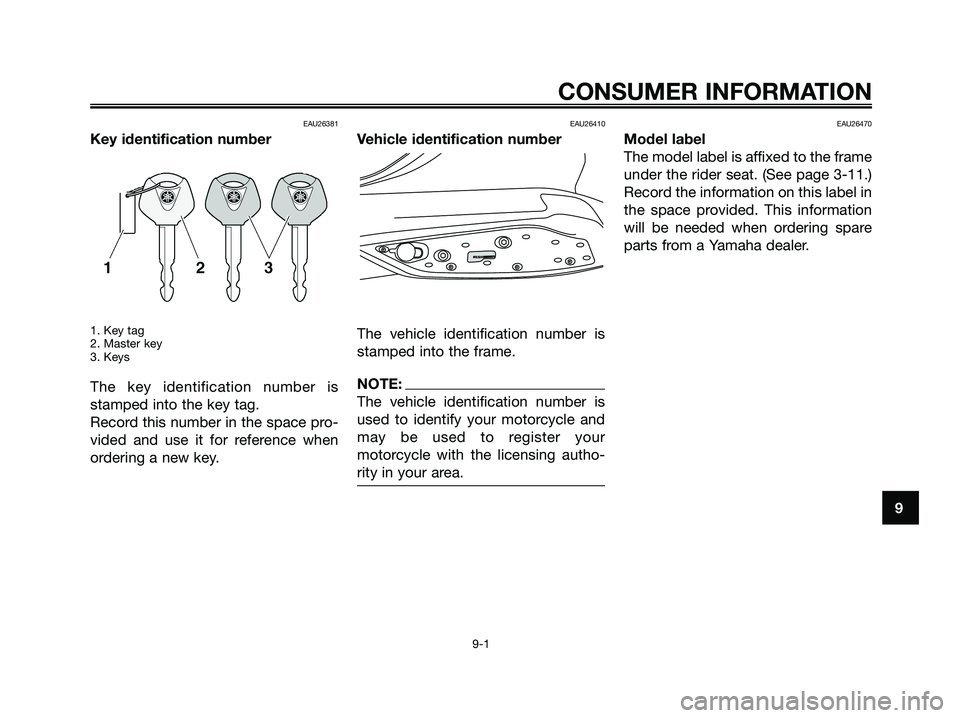

EAU26381
Key identification number
1. Key tag
2. Master key
3. Keys
The key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when
ordering a new key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-11.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
9
CONSUMER INFORMATION
9-1
1B9-F8199-E0.qxd 14/10/2005 11:07 Página 73

AAcceleration and deceleration ...................5-2
Adjusting the shock absorber
assemblies .............................................3-13
Adjusting the throttle cable free play .......6-14
Air filter and V-belt case air filter
elements ................................................6-12
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-22
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-17
Catalytic converter ...................................3-11
Changing the brake fluid..........................6-19
Checking and lubricating the centerstand
and sidestand ........................................6-20
Checking and lubricating the throttle grip
and cable ...............................................6-19
Checking the brake fluid level .................6-18
Checking the front and rear brake pads..6-17
Checking the front fork ............................6-20
Checking the spark plug ............................6-7
Checking the steering ..............................6-21
Checking the wheel bearings ..................6-22
Controls and instruments ..........................2-3
Coolant.....................................................6-11
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-8
FFinal transmission oil ...............................6-10Front and rear brake lever free play.........6-17
Front brake lever ........................................3-9
Front storage compartment .....................3-12
Fuel ..........................................................3-10
Fuel gauge .................................................3-4
Fuel tank cap ...........................................3-10
HHandlebar switches ...................................3-8
IIdentification numbers ...............................9-1
Immobilizer system ....................................3-1
Indicators, indicator lights and
warning light ............................................3-3
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-20
MMain switch/steering lock ..........................3-2
Multi-function display ................................3-5
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-4
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
RRear brake lever .........................................3-9
Removing and installing cowlings
and panels ...............................................6-6
Replacing a front turn signal light bulb....6-25
Replacing a headlight bulb ......................6-24
Replacing the auxiliary light bulb .............6-27Replacing the fuses .................................6-23
Replacing the license plate light bulb......6-26
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-25
Right view ..................................................2-2
SSeat ..........................................................3-11
Sidestand .................................................3-13
Speedometer .............................................3-4
Starting a cold engine ................................5-1
Starting off .................................................5-2
Storage.......................................................7-3
Storage compartment ..............................3-12
TTips for reducing fuel consumption ...........5-3
Tires .........................................................6-15
Troubleshooting .......................................6-27
Troubleshooting charts ............................6-28
VValve clearance ........................................6-15
INDEX
1B9-F8199-E0.qxd 14/10/2005 11:07 Página 74

1B9-F8199-E0.qxd 14/10/2005 11:07 Página 75

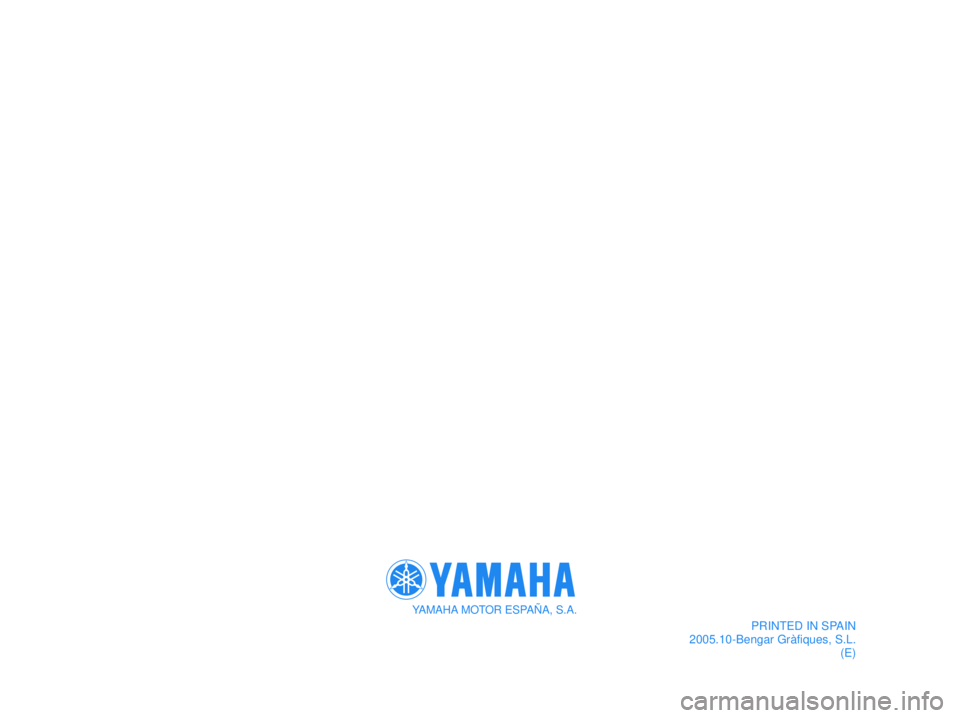

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2005.10-Bengar Gràfiques, S.L.
