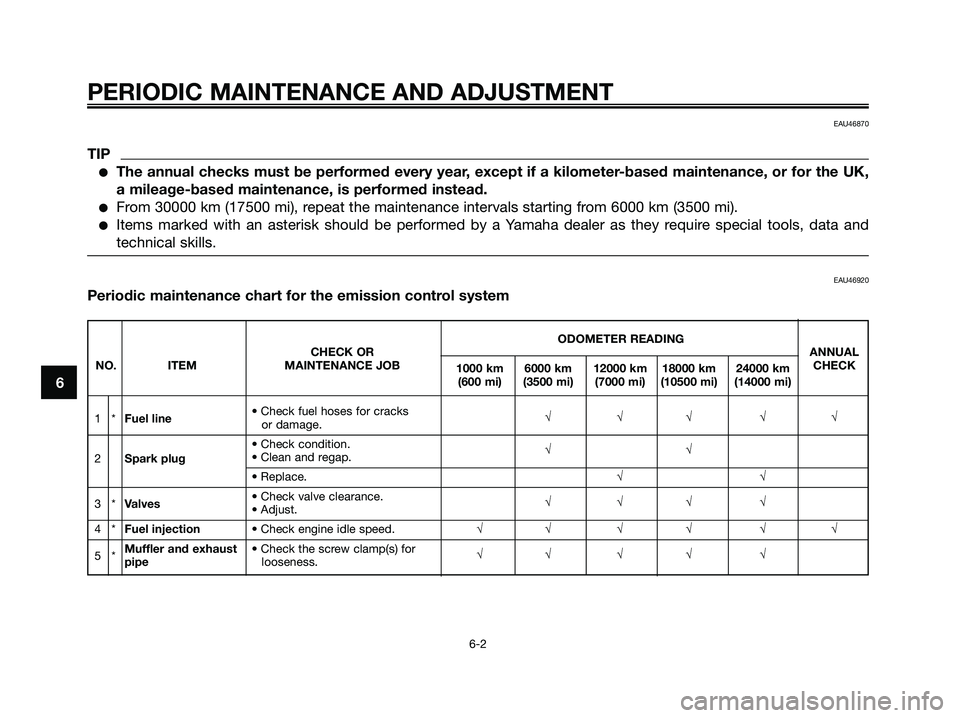

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46870
TIP
●The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
●From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46920
Periodic maintenance chart for the emission control system
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
1*Fuel line• Check fuel hoses for cracks
or damage.√√√ √√
2Spark plug• Check condition.
• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√√ √
4*Fuel injection• Check engine idle speed.√√ √√ √ √
5*Muffler and exhaust • Check the screw clamp(s) for
pipelooseness.√√ √√ √
