YAMAHA XMAX 125 2011 Owner's Manual

When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then
return to zero in order to test the elec-
trical circuit.EAU11872

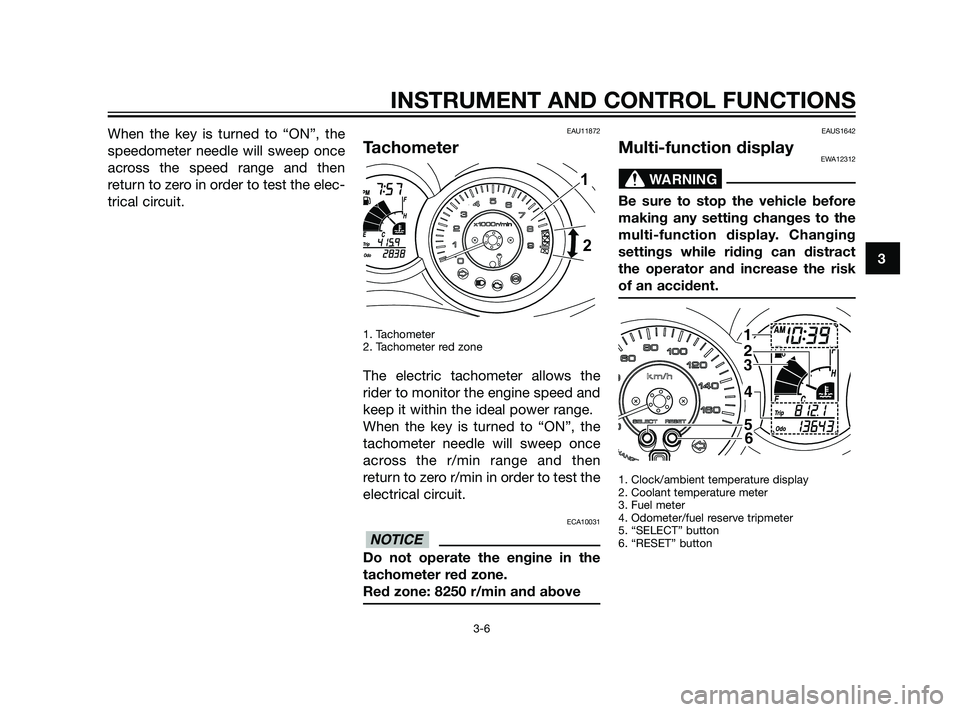

Tachometer
1. Tachometer
2. Tachometer red zone
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
When the key is turned to “ON”, the
tachometer needle will sweep once
across the r/min range and then
return to zero r/min in order to test the
electrical circuit.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 8250 r/min and above
EAUS1642
Multi-function displayEWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
1. Clock/ambient temperature display
2. Coolant temperature meter
3. Fuel meter
4. Odometer/fuel reserve tripmeter
5. “SELECT” button
6. “RESET” button
1
2
3
4
5
6
WARNING
NOTICE
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
37P-F8199-E1 19/2/10 05:09 Página 21

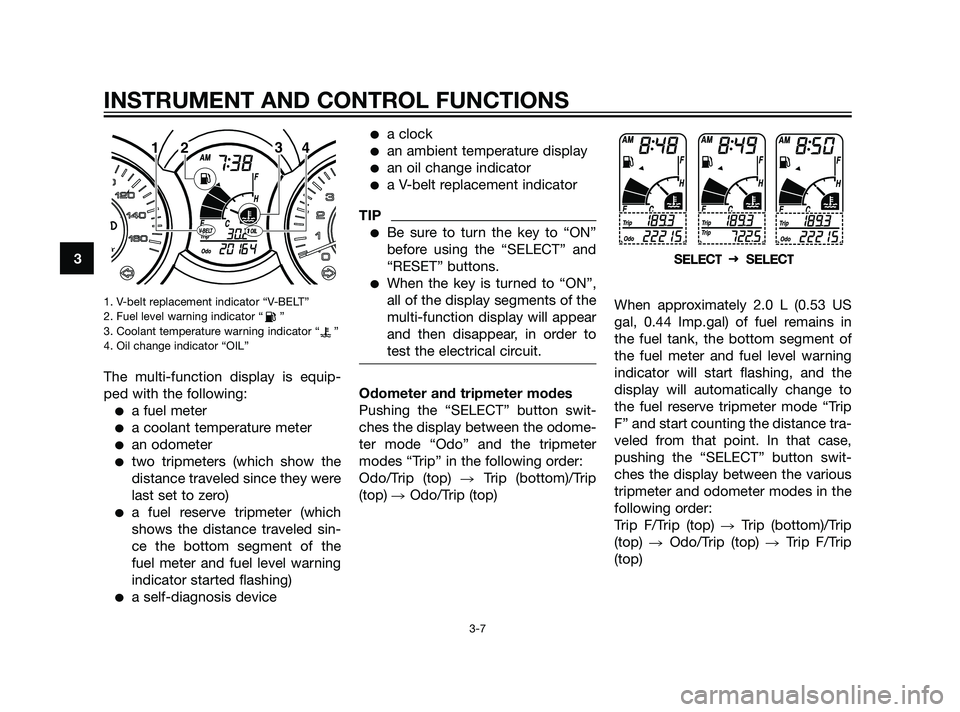

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “ ”
3. Coolant temperature warning indicator “ ”
4. Oil change indicator “OIL”
The multi-function display is equip-
ped with the following:
a fuel meter
a coolant temperature meter
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the bottom segment of the
fuel meter and fuel level warning
indicator started flashing)
a self-diagnosis device
a clock
an ambient temperature display
an oil change indicator
a V-belt replacement indicator
TIP
Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons.
When the key is turned to “ON”,
all of the display segments of the
multi-function display will appear
and then disappear, in order to
test the electrical circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button swit-
ches the display between the odome-
ter mode “Odo” and the tripmeter
modes “Trip” in the following order:
Odo/Trip (top) Trip (bottom)/Trip
(top) Odo/Trip (top) When approximately 2.0 L (0.53 US
gal, 0.44 Imp.gal) of fuel remains in
the fuel tank, the bottom segment of
the fuel meter and fuel level warning
indicator will start flashing, and the
display will automatically change to
the fuel reserve tripmeter mode “Trip
F” and start counting the distance tra-
veled from that point. In that case,
pushing the “SELECT” button swit-
ches the display between the various
tripmeter and odometer modes in the
following order:
Trip F/Trip (top)
Trip (bottom)/Trip
(top) Odo/Trip (top)  Trip F/Trip
(top)
12 3
4
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
37P-F819D-E1 13/4/10 07:27 Página 22

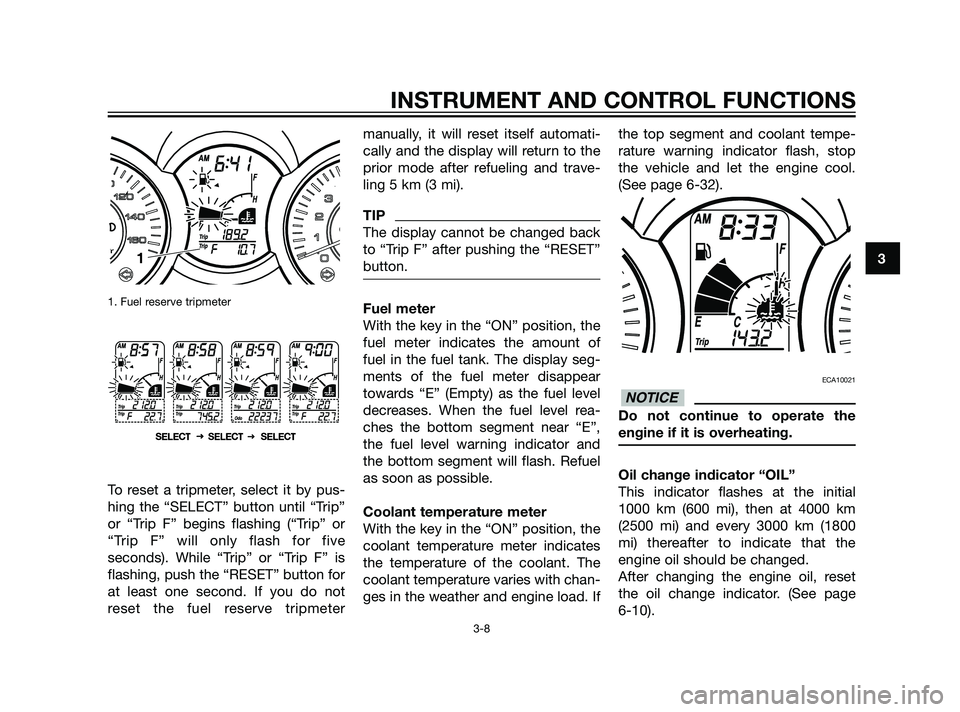

1. Fuel reserve tripmeter
To reset a tripmeter, select it by pus-
hing the “SELECT” button until “Trip”
or “Trip F” begins flashing (“Trip” or
“Trip F” will only flash for five
seconds). While “Trip” or “Trip F” is
flashing, push the “RESET” button for
at least one second. If you do not
reset the fuel reserve tripmetermanually, it will reset itself automati-
cally and the display will return to the
prior mode after refueling and trave-
ling 5 km (3 mi).
TIP
The display cannot be changed back
to “Trip F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear
towards “E” (Empty) as the fuel level
decreases. When the fuel level rea-
ches the bottom segment near “E”,
the fuel level warning indicator and
the bottom segment will flash. Refuel
as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. Ifthe top segment and coolant tempe-
rature warning indicator flash, stop
the vehicle and let the engine cool.
(See page 6-32).
ECA10021
Do not continue to operate the
engine if it is overheating.
Oil change indicator “OIL”
This indicator flashes at the initial
1000 km (600 mi), then at 4000 km
(2500 mi) and every 3000 km (1800
mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset
the oil change indicator. (See page
6-10).
NOTICE
1
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
37P-F8199-E1 19/2/10 05:09 Página 23

If the engine oil is changed before the
oil change indicator comes on (i.e.
before the periodic oil change interval
has been reached), the indicator must
be reset after the oil change for the
next periodic oil change to be indica-
ted at the correct time. (See page
6-10).
The electrical circuit of the indicator
can be checked according to the
following procedure.1. Turn the key to “ON”.
2. Check that the indicator comes on for a few seconds and then
goes off.
3. If the indicator does not come on, have a Yamaha dealer check the
electrical circuit.
V-belt replacement indicator “V-
BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to
be replaced.
The electrical circuit of the indicator
can be checked according to the
following procedure. 1. Turn the key to “ON”. 2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator does not come on, have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If a problem is detected in any of tho-
se circuits, the multi-function display
will indicate an error code.
If the multi-function display indicates
such an error code, note the code
number, and then have a Yamaha
dealer check the vehicle.
ECA11790
If the multi-function display indica-
tes an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine
damage.
The self-diagnosis device also
detects problems in the immobilizer
system circuits. If a problem is detected in the immobili-
zer system circuits, the immobilizer sys-
tem indicator light will flash and the mul-
ti-function display will indicate an error
code when the key is turned to “ON”.
TIP
If the multi-function display indicates
error code 52, this could be caused
by transponder interference. If this
error appears, try the following.
1. Error code display
1. Use the code re-registering key
to start the engine.
TIP
Make sure there are no other immobi-
lizer keys close to the main switch,
1NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
37P-F819D-E1 2/3/10 08:19 Página 24

and do not keep more than one
immobilizer key on the same key ring!
Immobilizer system keys may cause
signal interference, which may pre-
vent the engine from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard
keys do not start the engine, take
the vehicle, the code re-registe-
ring key and both standard keys
to a Yamaha dealer and have the
standard keys re-registered.
If the multi-function display indicates
any error codes, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.

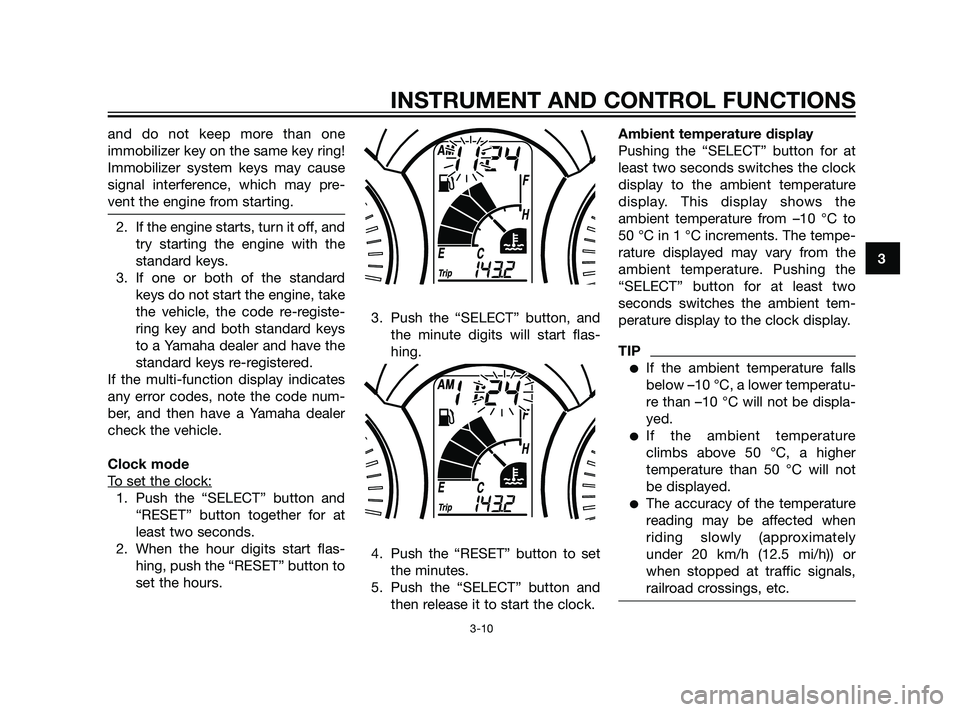

Clock mode
T
o set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flas-
hing, push the “RESET” button to
set the hours.3. Push the “SELECT” button, and
the minute digits will start flas-
hing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.Ambient temperature display
Pushing the “SELECT” button for at
least two seconds switches the clock
display to the ambient temperature
display. This display shows the
ambient temperature from –10 °C to
50 °C in 1 °C increments. The tempe-
rature displayed may vary from the
ambient temperature. Pushing the
“SELECT” button for at least two
seconds switches the ambient tem-
perature display to the clock display.
TIP
If the ambient temperature falls
below –10 °C, a lower temperatu-
re than –10 °C will not be displa-
yed.
If the ambient temperature
climbs above 50 °C, a higher
temperature than 50 °C will not
be displayed.
The accuracy of the temperature
reading may be affected when
riding slowly (approximately
under 20 km/h (12.5 mi/h)) or
when stopped at traffic signals,
railroad crossings, etc.
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
37P-F8199-E1 19/2/10 05:09 Página 25

EAU12348

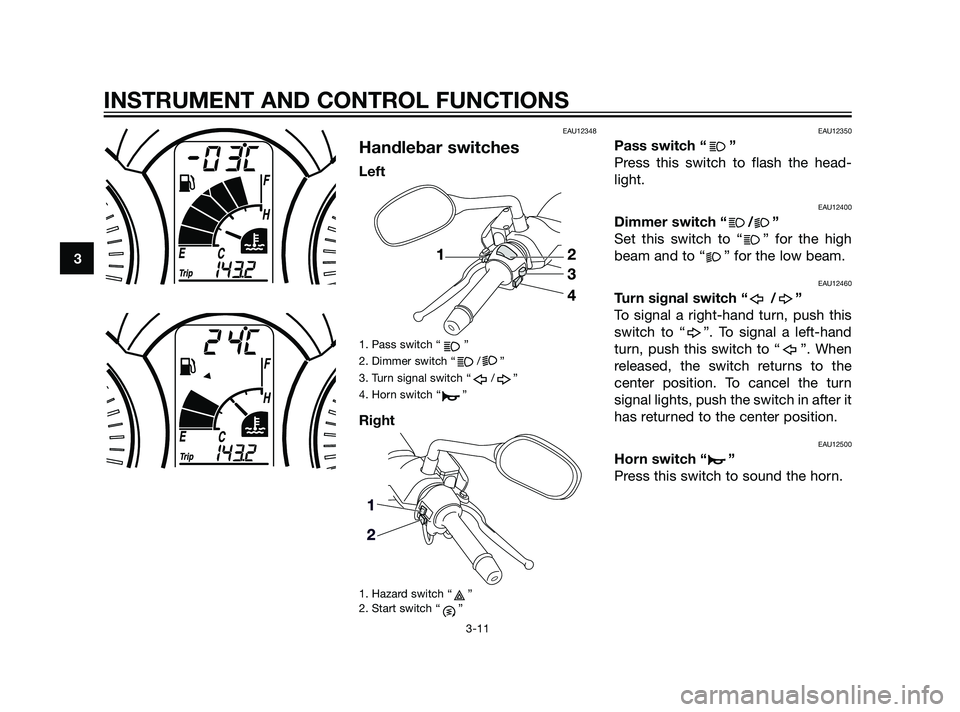

Handlebar switches
Left
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
EAU12350
Pass switch “ ”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
37P-F8199-E1 19/2/10 05:09 Página 26

EAU12721

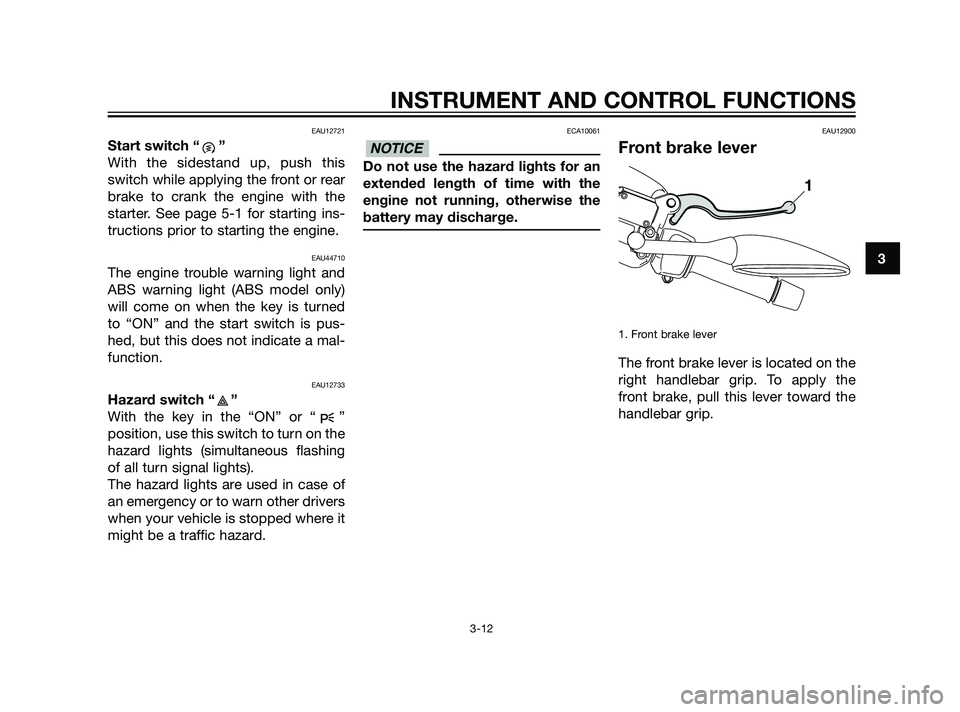

Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU44710
The engine trouble warning light and
ABS warning light (ABS model only)
will come on when the key is turned
to “ON” and the start switch is pus-
hed, but this does not indicate a mal-
function.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ”
position, use this switch to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
37P-F8199-E1 19/2/10 05:09 Página 27

EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU12995
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic
control system, which acts on the
front and rear brakes independently.
The ABS securely controls wheel loc-
kup during emergency braking on
changing road surfaces and under
various weather conditions, thereby
maximizing tire adhesion and perfor-
mance while providing a smooth bra-
king action. The ABS is monitored by
an ECU, which will have recourse to
manual braking if a malfunction
occurs.
EWA10090
The ABS performs best on long
braking distances.
On certain (rough or gravel)
roads, the braking distance
may be longer with than wit-
hout the ABS. Therefore,
always keep a sufficient distan-
ce to the vehicle ahead to
match the riding speed.
TIP
The ABS performs a self-diagno-
sis test for a few seconds each
time the vehicle first starts off
after the key was turned to “ON”.
During this test, a “clicking” noi-
se can be heard from the front of
the vehicle, and if either brake
lever is even slightly applied, a
vibration can be felt at the lever,
but these do not indicate a mal-
function.
When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be
felt at the brake levers, but this
does not indicate a malfunction.
This ABS has a test mode which
allows the owner to experience
the pulsating at the brake levers
when the ABS is operating.
However, special tools are requi-
red, so please consult your
Yamaha dealer when performing
this test.WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
37P-F8199-E1 19/2/10 05:09 Página 28

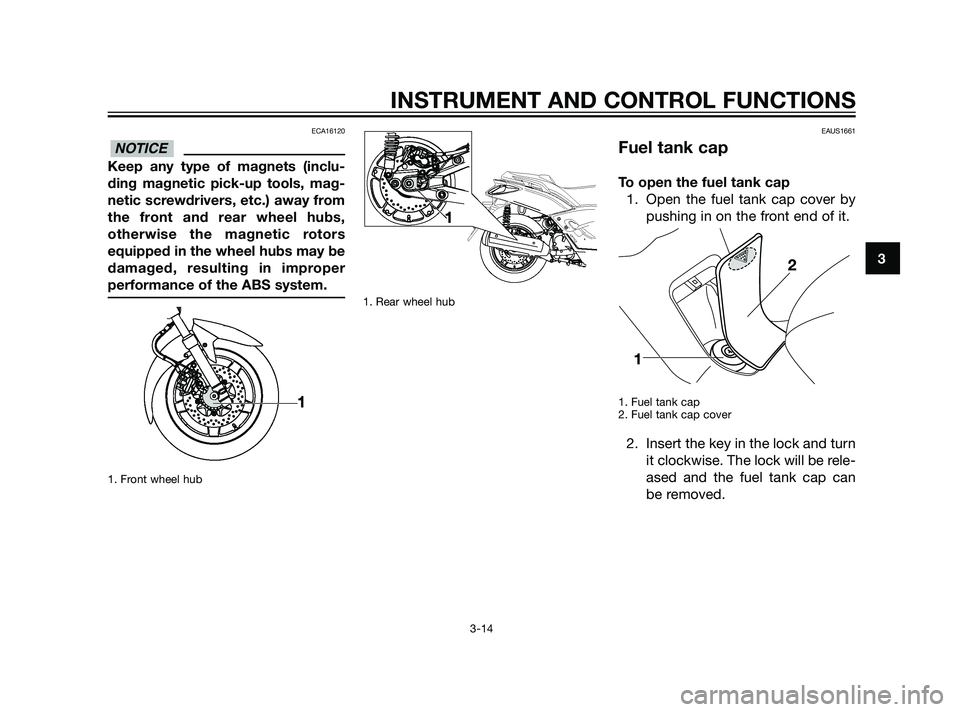

ECA16120
Keep any type of magnets (inclu-
ding magnetic pick-up tools, mag-
netic screwdrivers, etc.) away from
the front and rear wheel hubs,
otherwise the magnetic rotors
equipped in the wheel hubs may be
damaged, resulting in improper
performance of the ABS system.
1. Front wheel hub1. Rear wheel hub
EAUS1661
Fuel tank cap
To open the fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the front end of it.
1. Fuel tank cap
2. Fuel tank cap cover
2. Insert the key in the lock and turn
it clockwise. The lock will be rele-
ased and the fuel tank cap can
be removed.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
37P-F8199-E1 19/2/10 05:09 Página 29

1. Lock
2. Fuel tank cap

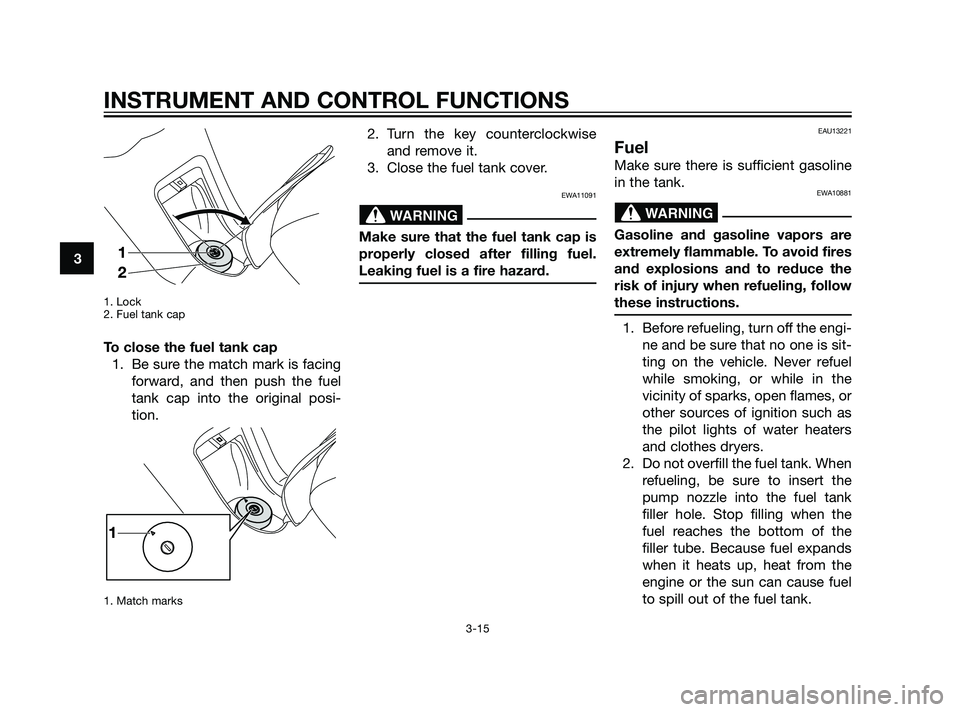

To close the fuel tank cap
1. Be sure the match mark is facing
forward, and then push the fuel
tank cap into the original posi-
tion.
1. Match marks
2. Turn the key counterclockwise
and remove it.
3. Close the fuel tank cover.
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi-
ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank
filler hole. Stop filling when the
fuel reaches the bottom of the
filler tube. Because fuel expands
when it heats up, heat from the
engine or the sun can cause fuel
to spill out of the fuel tank.
WARNINGWARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
37P-F8199-E1 19/2/10 05:09 Página 30
