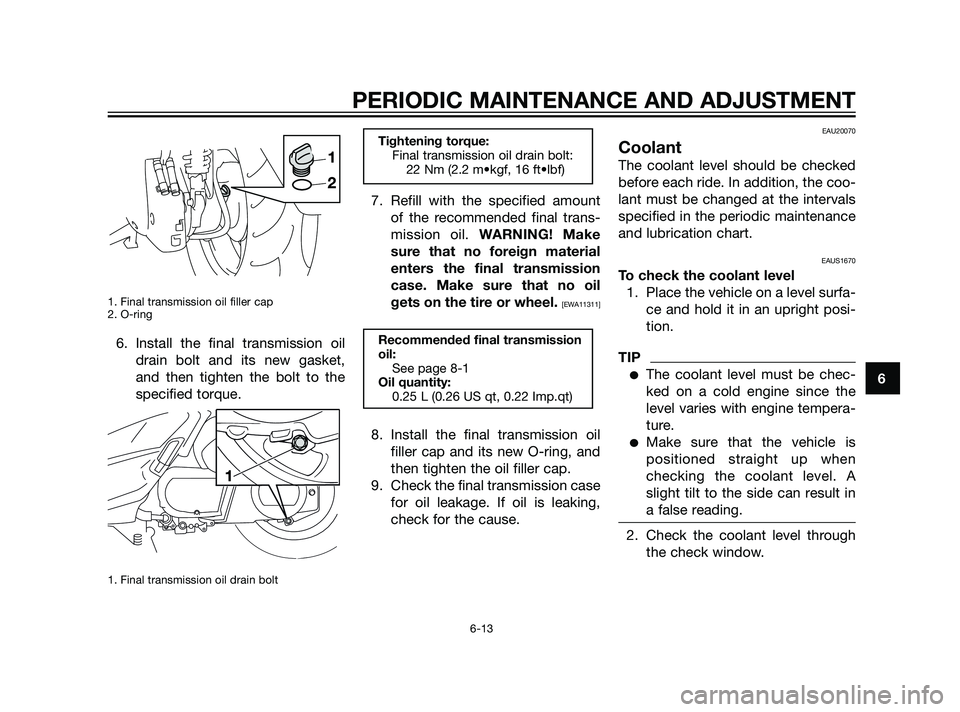

1. Final transmission oil filler cap
2. O-ring
6. Install the final transmission oil
drain bolt and its new gasket,
and then tighten the bolt to the
specified torque.
1. Final transmission oil drain bolt
7. Refill with the specified amount
of the recommended final trans-
mission oil. WARNING! Make
sure that no foreign material
enters the final transmission
case. Make sure that no oil
gets on the tire or wheel.
[EWA11311]
8. Install the final transmission oil
filler cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1670
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
Recommended final transmission
oil:
See page 8-1
Oil quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m•kgf, 16 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
