EAUM3621
Immobilizer system indicator light
“”
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will flash steadily to indicate the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
if the indicator light remains on, or if the
indicator light flashes in a pattern (if a
problem is detected in the immobilizer
system, the immobili zer system indica-
tor light will flash in a pattern), have a
Yamaha dealer check the vehicle.TIPIf the immobilizer system indicator light
flashes in the pattern, slowly 5 times
then quickly 2 times, this could be
caused by transponder interference. If
this occurs, try the following.
1. Make sure there are no other im- mobilizer keys close to the main
switch. Other immobilizer system
keys may cause signal interfer-
ence and prevent the engine from
starting.
2. Use the code re-registering key to start the engine.
3. If the engine starts, turn it off, and try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle and all 3 keys to a Yamaha
dealer to have the standard keys
re-registered.
EAU73253

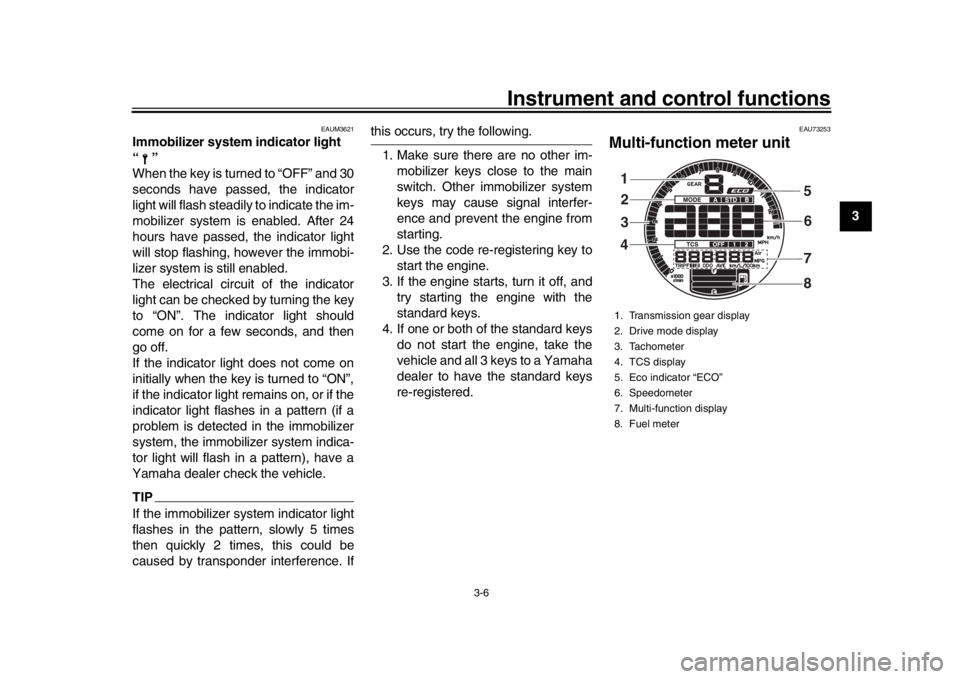

Multi-function meter unit1. Transmission gear display
2. Drive mode display
3. Tachometer
4. TCS display
5. Eco indicator “ECO”
6. Speedometer
7. Multi-function display
8. Fuel meter1
32
4 5
6
8
7
B90-9-E0_1.book 6 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-7
1
23
4
5
6
7
8
9
10
11
12
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function meter unit is
equipped with the following:
a speedometer

a tachometer

a fuel meter

an eco indicator

a transmission gear display

a drive mode display

a traction control system display

a multi-function display
TIP
Except when switching to the
brightness control mode or to dis-
play the clock, turn the key to “ON”
before using the bottom and top
set buttons.

For the UK: To switch the speed-
ometer and multi-function display
between kilometers and miles, set
the multi-function display to the
odometer mode or a tripmeter
mode, and then press the bottomset button for three seconds.
Speedometer The speedometer shows the vehicle’s
traveling speed.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.Red zone: 11250 r/min and above

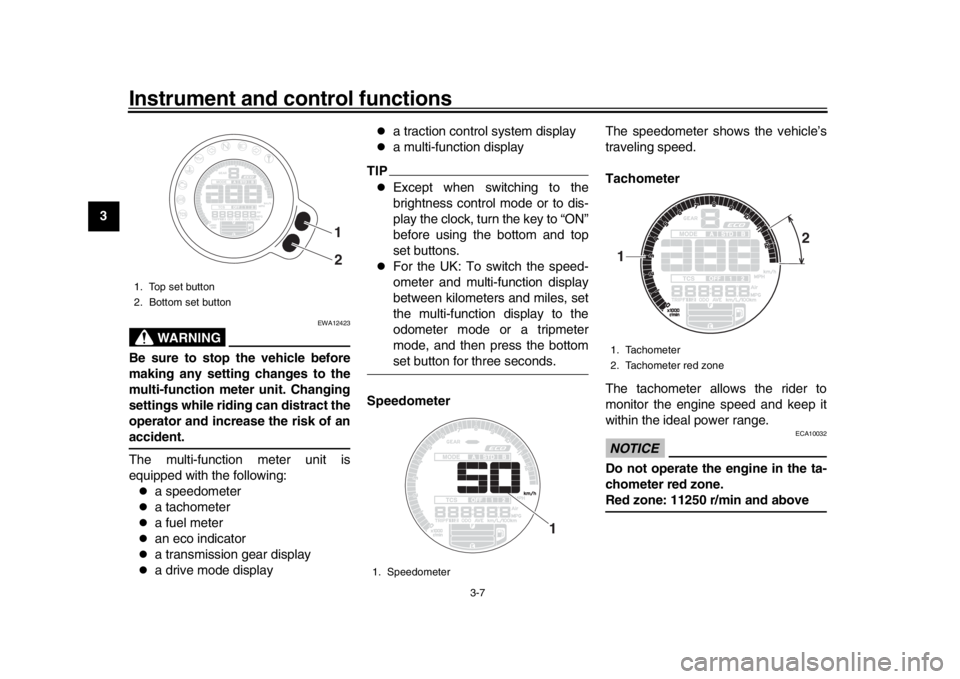

1. Top set button
2. Bottom set button
1
2
1. Speedometer
1
1. Tachometer
2. Tachometer red zone1 2
B90-9-E0_1.book 7 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-8
1
234
5
6
7
8
9
10
11
12
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full tank) towards “E” (empty tank)
as the fuel level decreases. When the
last segment and frame start flashing,
refuel as soon as possible.
TIPThis fuel meter is equipped with a
self-diagnosis system. If a problem is
detected in the fuel tank electrical cir-
cuit, the fuel level segments, frame,
and “ ” will flash repeatedly. If this oc-
curs, have a Yamaha dealer check the
vehicle.
Eco indicator
This indicator comes on when the vehi-
cle is being operated in an environmen-
tally friendly, fuel-efficient manner. The
indicator goes off when the vehicle is
stopped.TIPConsider the following tips to reduce
fuel consumption:
Avoid high engine speeds during
acceleration.

Travel at a constant speed.

Select the transmission gear that
is appropriate for the vehicle
speed.
Transmission gear display
This display shows the selected gear.
The neutral position is indicated by “ ”
and by the neutral indicator light.

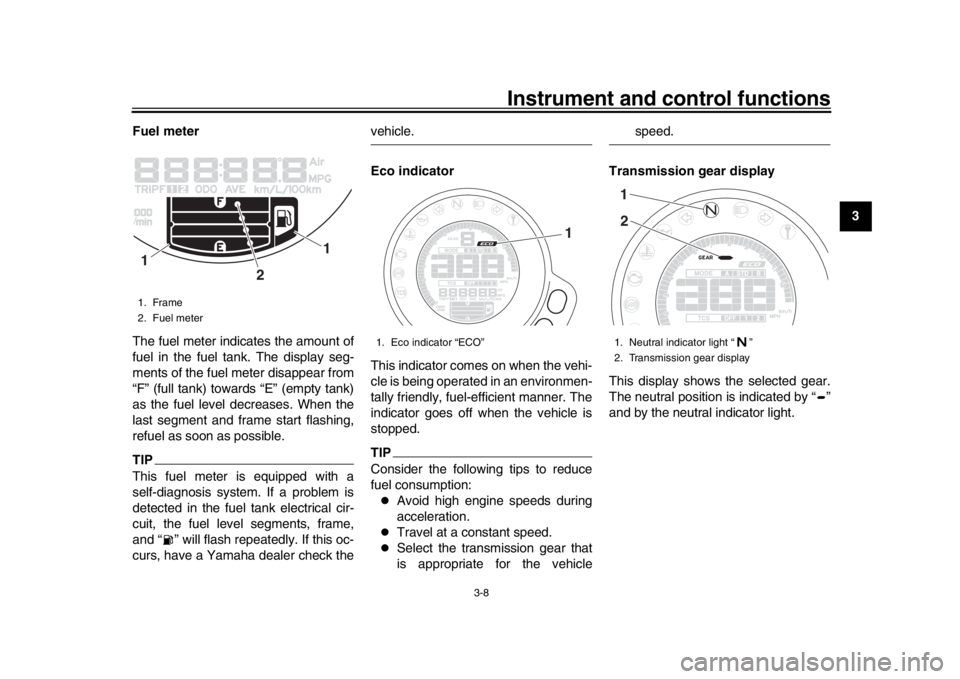

1. Frame
2. Fuel meter
1
1
2
1. Eco indicator “ECO”
1
1. Neutral indicator light “ ”
2. Transmission gear display12
B90-9-E0_1.book 8 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-9
1
23
4
5
6
7
8
9
10
11
12 Drive mode display
This display indicates which drive
mode has been selected: “STD”, “A” or
“B”. For more details on the modes and
on how to select them, see pages 3-13
and 3-15.
TCS display
This display indicates which traction
control system setting has been select-
ed: “1”, “2” or “OFF”. For more details
on the TCS settings and on how to se-
lect them, see page 3-18.Multi-function display
The multi-function display is equipped
with the following:

an odometer

two tripmeters

a fuel reserve tripmeter

an instantaneous fuel consump-
tion display

an average fuel consumption dis-
play

a coolant temperature display

an air temperature display

a clock

a brightness level display
The odometer “ODO” shows the total
distance the vehicle has traveled.

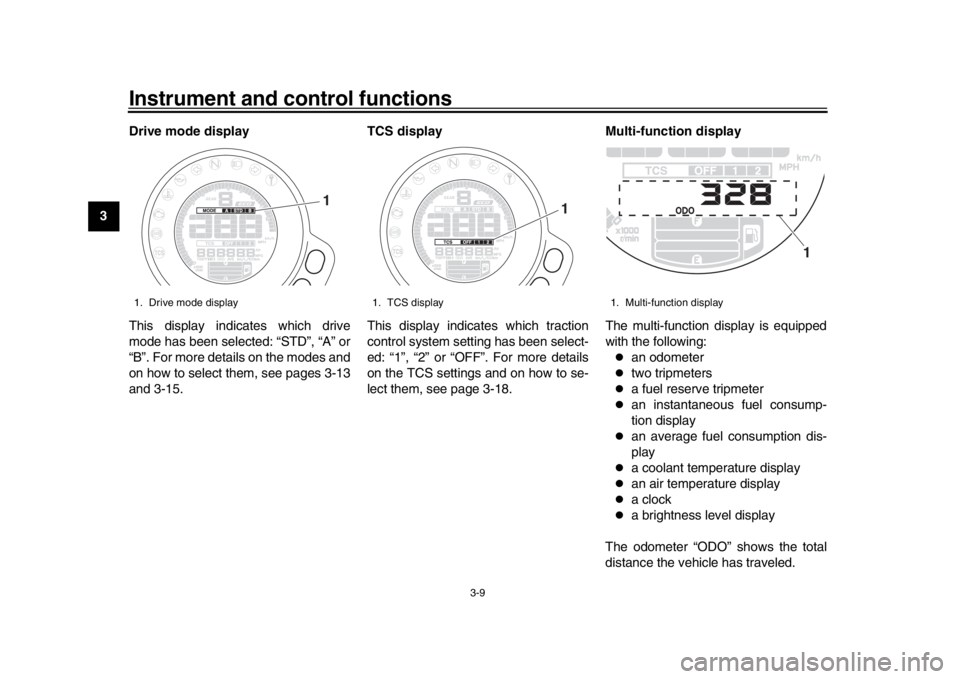

1. Drive mode display
1
1. TCS display
1
1. Multi-function display
1
B90-9-E0_1.book 9 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-10
1
234
5
6
7
8
9
10
11
12
The tripmeters “TRIP” show the dis-
tance traveled since they were last re-
set.
TIP
The odometer will lock at 999999.

The tripmeters will reset and con-
tinue counting after 9999.9 isreached.
Push the bottom set button to switch
the display between odometer “ODO”,
tripmeters “TRIP 1” and “TRIP 2”, in-
stantaneous fuel consumption “km/L”
or “L/100 km”, average fuel consump-
tion “AVE_ _._ km/L” or “AVE_ _._
L/100 km”, coolant temperature “_ _
 C”, ambient temperature “Air_ _ C”,
and clock “_ _:_ _” in the following or-
der:
ODO  TRIP 1  TRIP 2  km/L or
L/100 km  AVE_ _._ km/L or AVE_
_._ L/100 km  _ _ C  Air_ _ C 
Clock _ _ :_ _  ODO
For the UK:
Push the bottom set button to switch
the display between odometer “ODO”,
tripmeters “TRIP 1” and “TRIP 2”, in- stantaneous fuel consumption “km/L”,
“L/100 km” or “MPG”, average fuel con-
sumption “AVE_ _._ km/L”, “AVE_ _._
L/100 km” or “AVE_ _._ MPG”, coolant
temperature “_ _ 
C”, and ambient tem-
perature, and “Air_ _ C”, and clock “_
_:_ _” in the following order:
ODO  TRIP 1  TRIP 2  km/L,
L/100 km or MPG  AVE_ _._ km/L,
AVE_ _._ L/100 km or AVE_ _._ MPG
 _ _ C  Air_ _ C  Clock _ _ :_ _
 ODO
TIP
Push the top set button to switch
the display in the reverse order.

The fuel reserve tripmeter comeson automatically.
If the last segment and frame of the fuel
meter start flashing, the display auto-
matically changes to fuel reserve trip-
meter “TRIP F” and starts counting the
distance traveled from that point. In this
case, push the bottom set button to
switch the display in the following order:
TRIP F  km/L or L/100 km  AVE_ _._ km/L or AVE_ _._ L/100 km
 _ _
 C  Air_ _ C  Clock _ _ :_ _ 
ODO  TRIP 1  TRIP 2  TRIP F
For the UK:
TRIP F  km/L, L/100 km or MPG 
AVE_ _._ km/L, AVE_ _._ L/100 km or
AVE_ _._ MPG  _ _ C  Air_ _ C
 Clock _ _ :_ _  ODO  TRIP 1 
TRIP 2  TRIP F
To reset a tripmeter, push the top set
button for one second.
If you do not reset the fuel reserve trip-
meter manually, after refueling and
traveling 5 km (3 mi) it resets automati-
cally and disappears from the display.
B90-9-E0_1.book 10 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-11
1
23
4
5
6
7
8
9
10
11
12 Instantaneous fuel consumption
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”; or for the UK, to “MPG” as
well.

“km/L”: The distance that can be
traveled on 1.0 L of fuel under cur-
rent riding conditions.

“L/100 km”: The amount of fuel
necessary to travel 100 km under
current riding conditions.

“MPG”: The distance that can be
traveled on 1.0 Imp.gal of fuel un-
der current riding conditions.
To switch the instantaneous fuel con-
sumption display settings, push the
bottom set button for two seconds.
TIPIf traveling at speeds under 20 km/h (12mi/h), “_ _._” is displayed.
Average fuel consumption
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “AVE_ _._ km/L” or
“AVE_ _._ L/100 km”, or for the UK, to
“AVE_ _._ MPG” as well.
“AVE_ _._ km/L”: The average dis-
tance that can be traveled on 1.0 L
of fuel.

“AVE_ _._ L/100 km”: The average
amount of fuel necessary to travel
100 km.

“AVE_ _._ MPG”: The average
distance that can be traveled on
1.0 Imp.gal of fuel.
To switch the average fuel consump-
tion display settings, push the bottom
set button for two seconds.
To reset the average fuel consumption,
push the top set button for one second.
TIPAfter resetting the average fuel con-
sumption, “_ _._” will be shown until thevehicle has traveled 1 km (0.6 mi).
Coolant temperature
This display shows the coolant temper-
ature from 40 C to 116 C in 1  C incre-

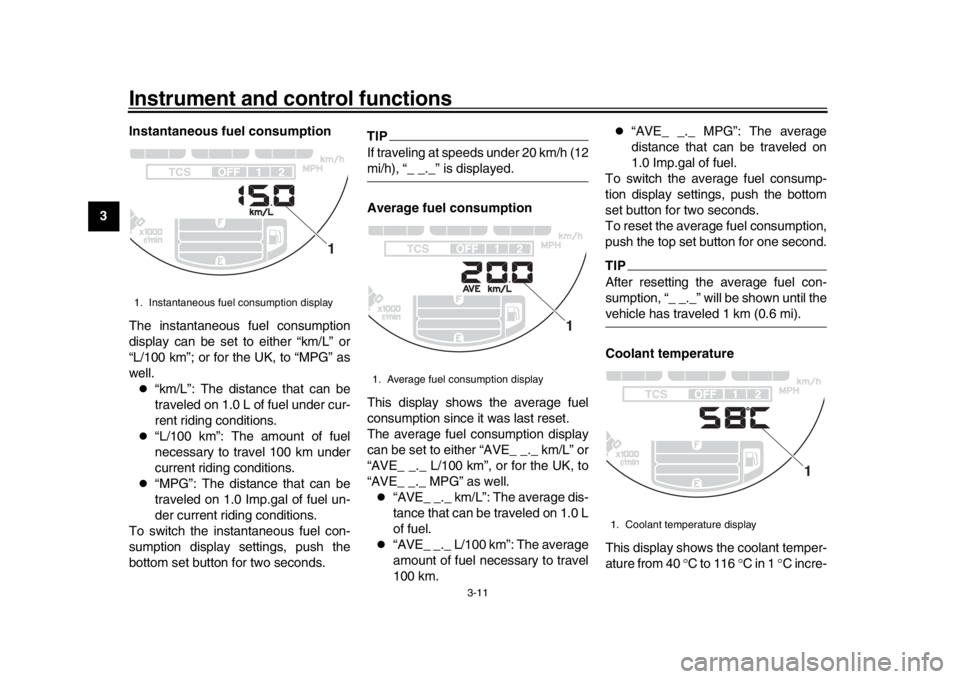

1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
1. Coolant temperature display
1
B90-9-E0_1.book 11 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-12
1
234
5
6
7
8
9
10
11
12
ments.
If the message “HI” flashes, stop the
vehicle, then stop the engine and let it
cool. (See page 6-39.)
TIP
When the coolant temperature is
below 40
C, “Lo” will be displayed.

The coolant temperature varies
with changes in the weather andengine load.
Air temperature

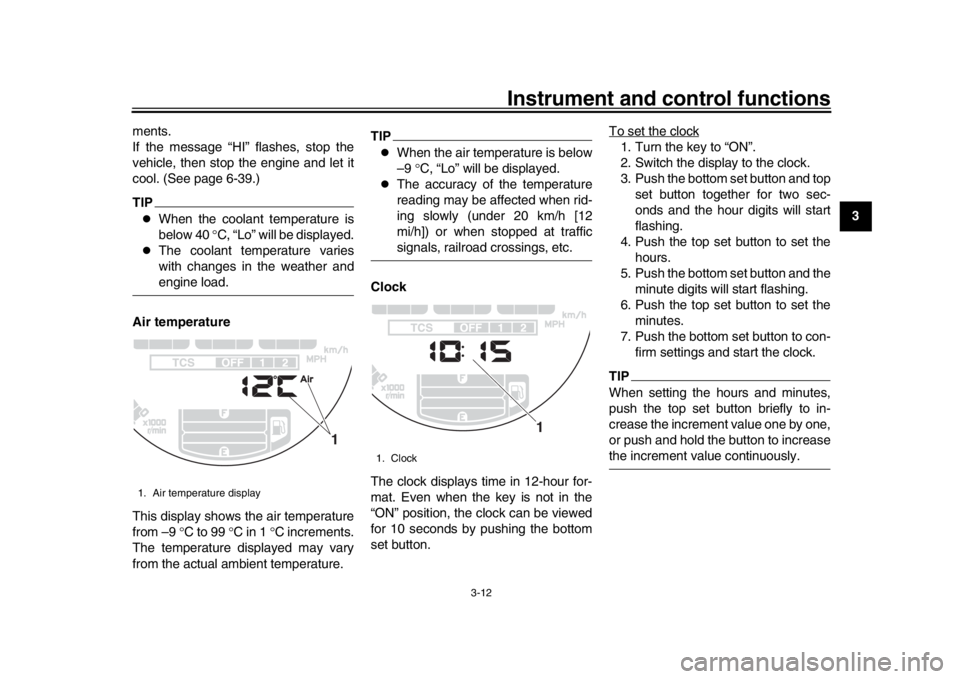

This display shows the air temperature
from –9 C to 99 C in 1  C increments.
The temperature displayed may vary
from the actual ambient temperature.
TIP
When the air temperature is below
–9 C, “Lo” will be displayed.

The accuracy of the temperature
reading may be affected when rid-
ing slowly (under 20 km/h [12
mi/h]) or when stopped at trafficsignals, railroad crossings, etc.
Clock
The clock displays time in 12-hour for-
mat. Even when the key is not in the
“ON” position, the clock can be viewed
for 10 seconds by pushing the bottom
set button. To set the clock
1. Turn the key to “ON”.
2. Switch the display to the clock.
3. Push the bottom set button and top
set button together for two sec-
onds and the hour digits will start
flashing.
4. Push the top set button to set the hours.
5. Push the bottom set button and the minute digits will start flashing.
6. Push the top set button to set the minutes.
7. Push the bottom set button to con- firm settings and start the clock.TIPWhen setting the hours and minutes,
push the top set button briefly to in-
crease the increment value one by one,
or push and hold the button to increasethe increment value continuously.
1. Air temperature display
1
1. Clock
1
B90-9-E0_1.book 12 ページ ２０１５年１２月１５日　火曜日　午後８時５分

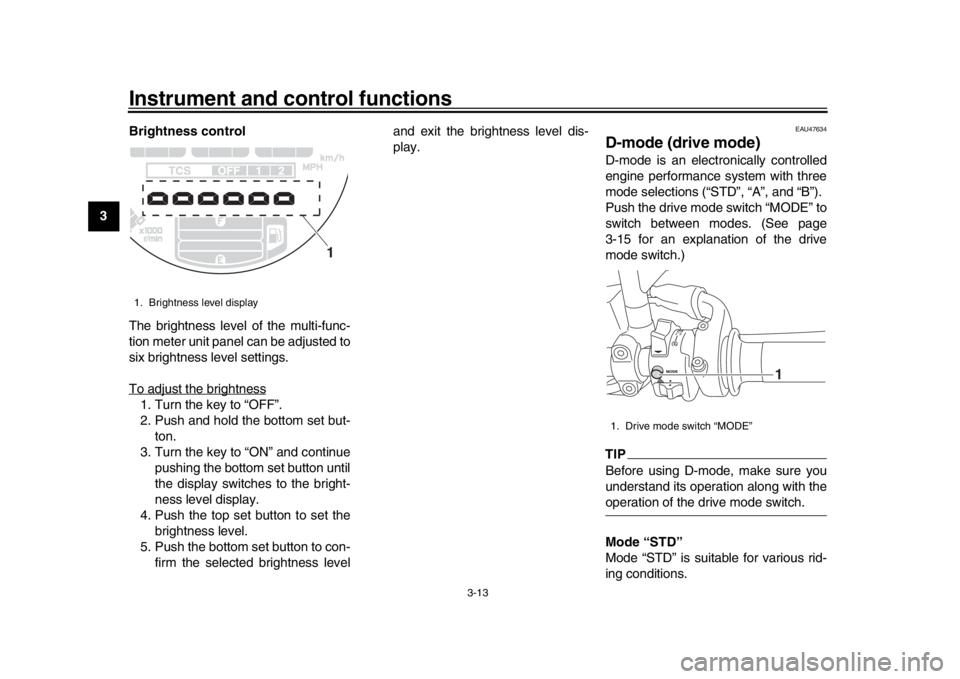

Instrument and control functions
3-13
1
23
4
5
6
7
8
9
10
11
12 Brightness control
The brightness level of the multi-func-
tion meter unit panel can be adjusted to
six brightness level settings.
To adjust the brightness
1. Turn the key to “OFF”.
2. Push and hold the bottom set but-
ton.
3. Turn the key to “ON” and continue pushing the bottom set button until
the display switches to the bright-
ness level display.
4. Push the top set button to set the brightness level.
5. Push the bottom set button to con- firm the selected brightness level and exit the brightness level dis-
play.
EAU47634
D-mode (drive mode)D-mode is an electronically controlled
engine performance system with three
mode selections (“STD”, “A”, and “B”).
Push the drive mode switch “MODE” to
switch between modes. (See page
3-15 for an explanation of the drive
mode switch.)TIPBefore using D-mode, make sure you
understand its operation along with theoperation of the drive mode switch.
Mode “STD”
Mode “STD” is suitable for various rid-
ing conditions.
1. Brightness level display
1
1. Drive mode switch “MODE”
1
B90-9-E0_1.book 13 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-14
1
234
5
6
7
8
9
10
11
12
This mode allows the rider to enjoy
smooth and sporty drivability from the
low-speed range to the high-speed
range.
Mode “A”
Mode “A” offers a sportier engine re-
sponse in the low- to mid-speed range
compared to mode “STD”.
Mode “B”
Mode “B” offers response that is some-
what less sharp compared to mode
“STD” for riding situations that require
especially sensitive throttle operation.
EAU1234K

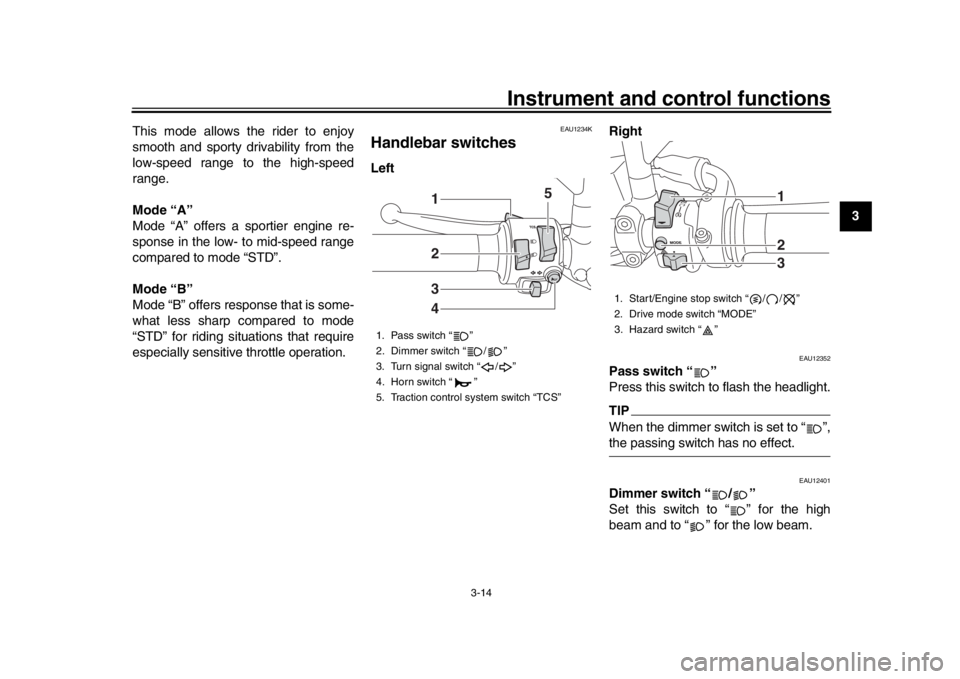

Handlebar switchesLeft
Right
EAU12352
Pass switch “ ”
Press this switch to flash the headlight.TIPWhen the dimmer switch is set to “ ”,the passing switch has no effect.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
5. Traction control system switch “TCS”
2341
5
1. Start/Engine stop switch “ / / ”
2. Drive mode switch “MODE”
3. Hazard switch “ ”
123
B90-9-E0_1.book 14 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Instrument and control functions
3-15
1
23
4
5
6
7
8
9
10
11
12
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU73391
Traction control system switch
“TCS”
With the throttle closed, push this
switch down to change from TCS “1” to
“2”. Push up to change from TCS “2” to
“1”.
With the vehicle stopped, push this
switch up for two seconds to turn the
system off. Push down to turn the sys-
tem on.TIP
The current TCS setting is shown
in the TCS display (page 3-9).

See page 3-18 for an explanation of the traction control system and
the TCS settings.
EAU54212
Stop/Run/Start switch “ / / ”
To crank the engine with the starter, set
this switch to “ ”, and then push the
switch down towards “ ”. See page
5-1 for starting instructions prior to
starting the engine.
Set this switch to “ ” to stop the engine
in case of an emergency, such as when
the vehicle overturns or when the throt-
tle cable is stuck.
EAU12735
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en- gine not running, otherwise the bat-
tery may discharge.
EAU73320
Drive mode switch “MODE”
WARNING
EWA18440
Do not change the drive mode whilethe vehicle is moving.
With the throttle grip closed, press this
switch to change the drive mode (3-13)
in the following order:
A
 B  STD  ATIP
The current drive mode is shown in
the drive mode display (page 3-9).

The current drive mode is savedwhen the vehicle is turned off.
B90-9-E0_1.book 15 ページ ２０１５年１２月１５日　火曜日　午後８時５分
