INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU10472
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU26811
ON
All electrical circuits are supplied with
power; the meter lighting, taillights, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF ”.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “ OFF” or
“ LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “ OFF” po-
sition, and then turn it to “ LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.12
U23PE2E0.book Page 3 Monday, August 1, 2011 4:25 PM
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
64. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU39013

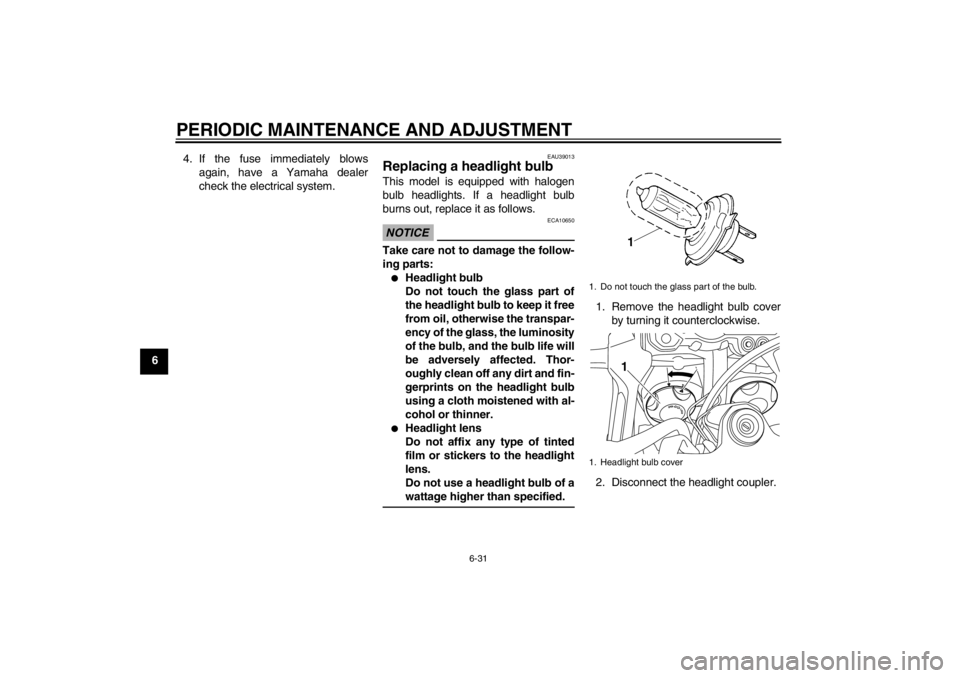

Replacing a headlight bulb This model is equipped with halogen
